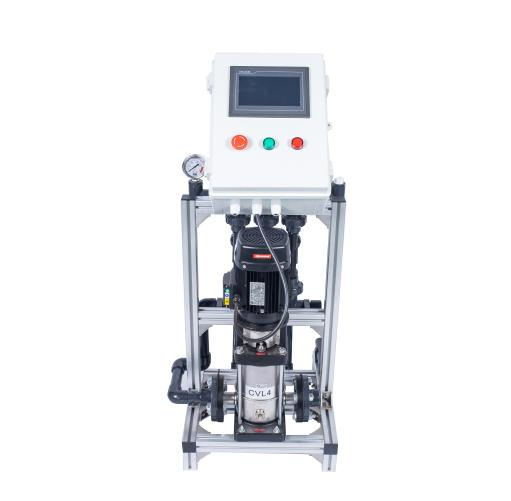

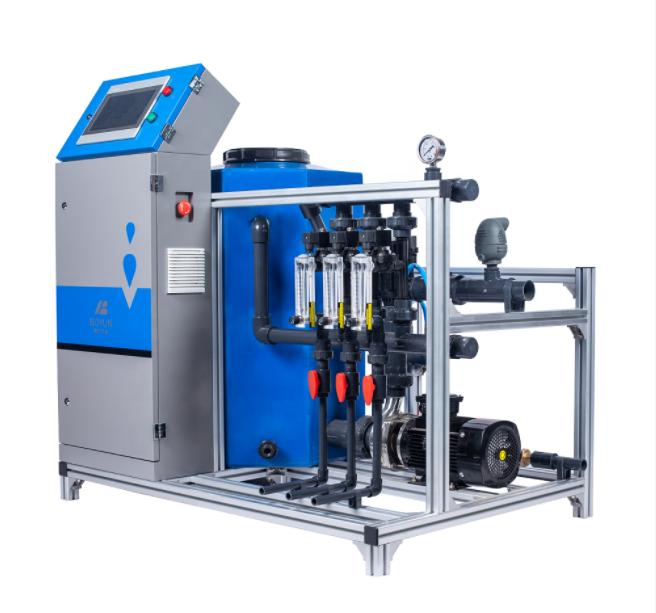

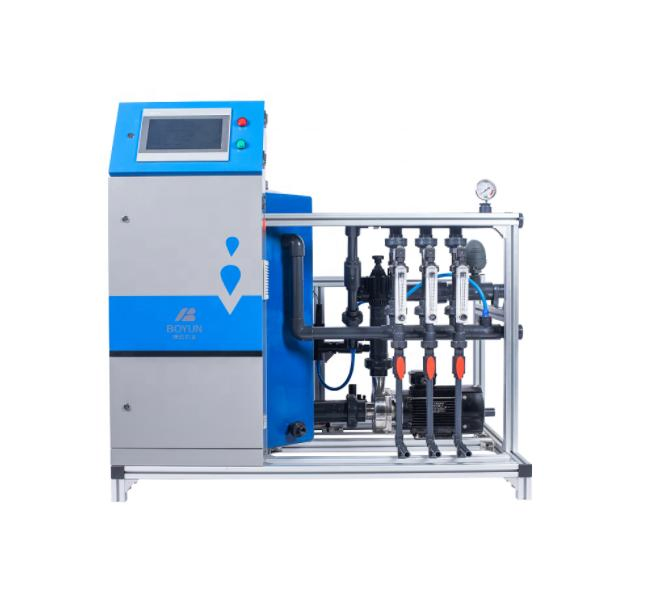

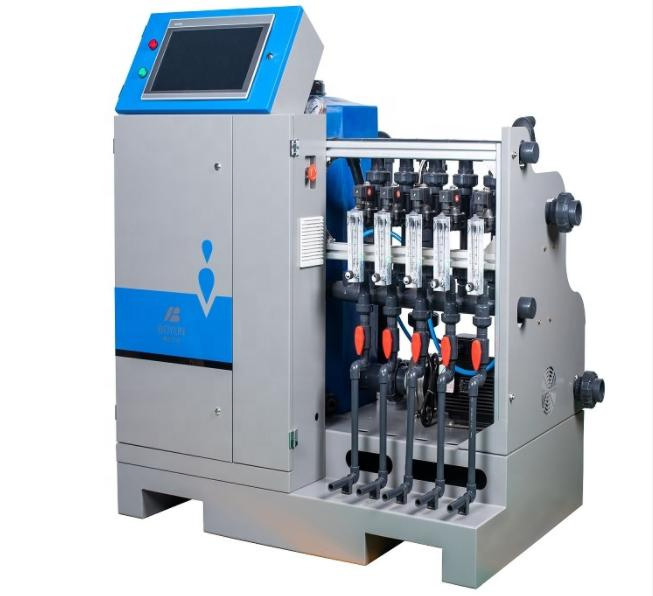

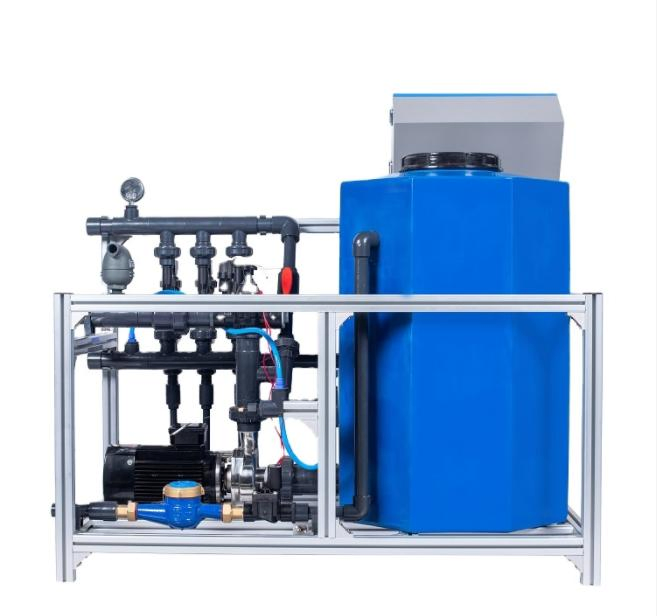

Yieldmaster Precision Crop Fertilization and Yield Enhancement System

Customization: Available
Power Source: Electricity
Warranty: 1 Year

Product Description

📋 Basic Specifications
Model NO. DAF-YW1
Product Name Fertilizer for Irrigation System
Voltage 380V
Transport Package Wooden Box
💡 General Introduction

According to soil nutrient content and the fertilizer requirements and characteristics of crop species, the integrated water and fertilizer machine mixes the fertilizer solution prepared by soluble solid or liquid fertilizer with irrigation water. This forms a perfect ratio and acts on the roots of crops by the set concentration and ratio.

Technical Parameters
Power (kW) 2.2
Flow rate of fertilizer (L/h) 50-600
Touch screen (inch) 10
Fluid sensor EC sensor, PH sensor
Number of channels 3
Quantity of controlled valve 16 (Increaseable)
Application site Field / Orchard / Greenhouse / Hydroponics
Control mode Touch screen / Mobile App
Size (mm) 125 * 85 * 130
Weight (kg) 120
🖼️ Product & Installation Display

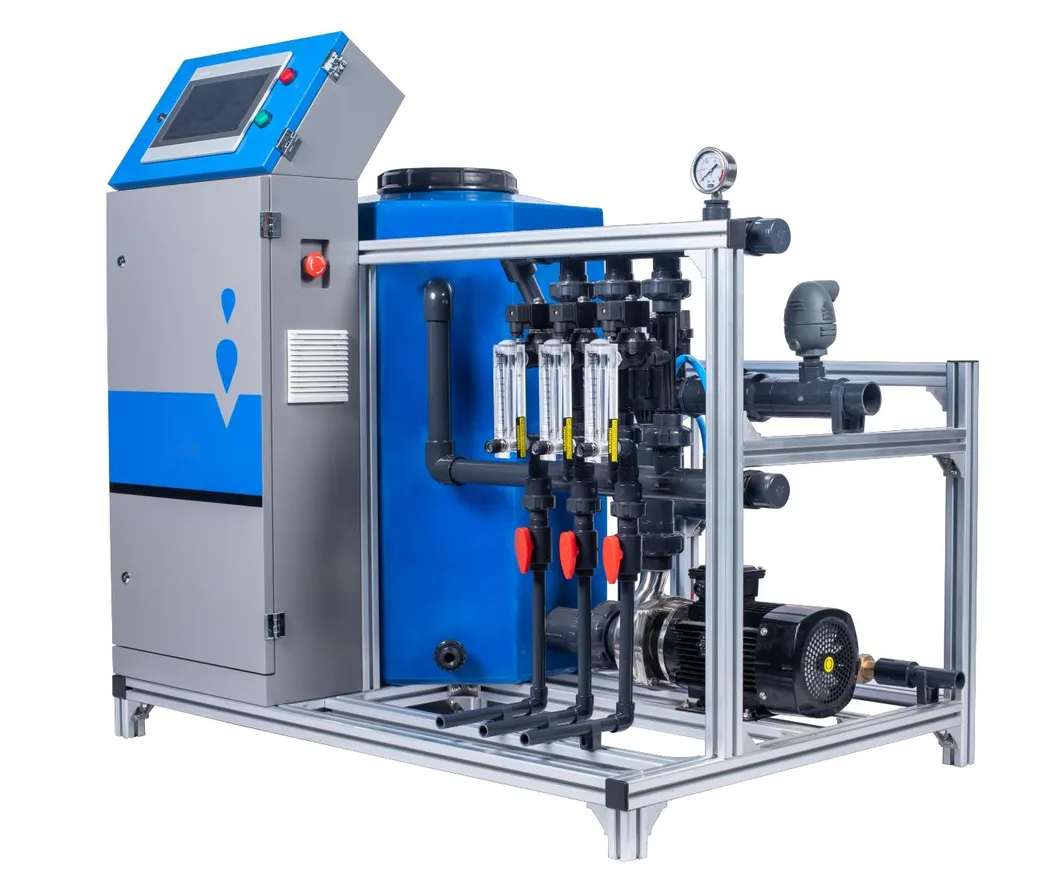

Precision Crop Fertilization System
Site Installation

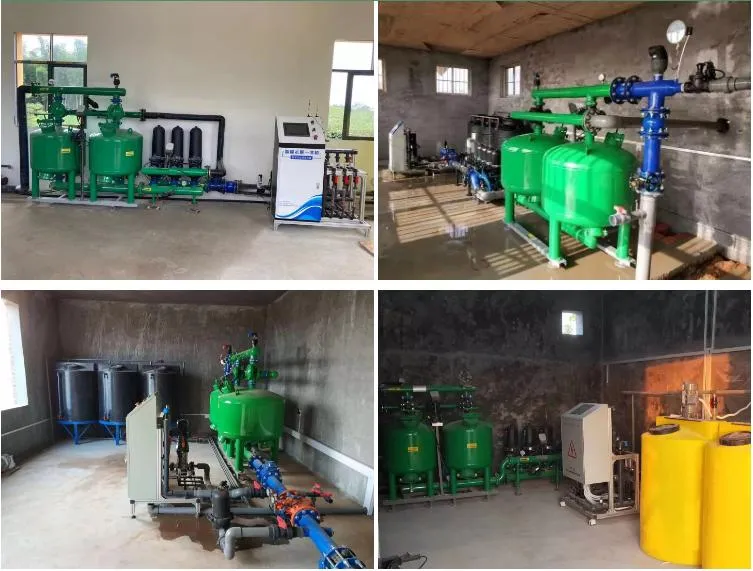

Site Installation 1
Site Installation 2
System Infrastructure
🛠️ Industrial Expertise

Specialized in water filter systems since 2002, our solutions include automatic back washing filters, self-cleaning filters, sand media filters, and disc filters. These systems provide efficient, stable solutions for irrigation and industrial water treatment across various sectors including agriculture, construction, steel, and pharmaceuticals.

Frequently Asked Questions (FAQ)
Q1: What is the main purpose of this fertilization system?
A: It is designed to automatically mix soluble fertilizers with irrigation water at precise ratios, ensuring crops receive nutrients directly at the roots based on specific soil and plant needs.
Q2: Can the system be controlled remotely?
A: Yes, the system supports dual control modes via a 10-inch integrated touch screen on-site and a convenient Mobile App for remote management.
Q3: What types of sensors are included for water quality monitoring?
A: The machine is equipped with high-precision EC (Electrical Conductivity) and PH sensors to monitor and adjust the nutrient solution in real-time.
Q4: How many irrigation valves can this machine manage?
A: The standard system can control 16 valves, and this capacity is increaseable based on specific field or greenhouse requirements.
Q5: What is the fertilizer flow rate capacity?
A: The system provides a flexible flow rate ranging from 50 to 600 Liters per hour (L/h).
Q6: What power supply is required for operation?
A: This professional-grade system requires a 380V voltage supply for optimal performance.
