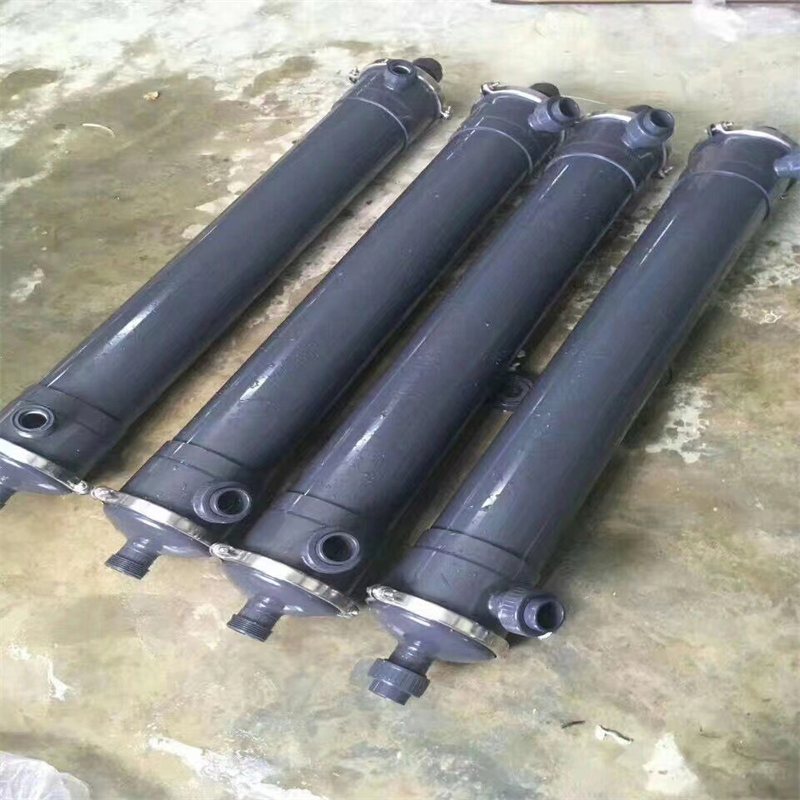

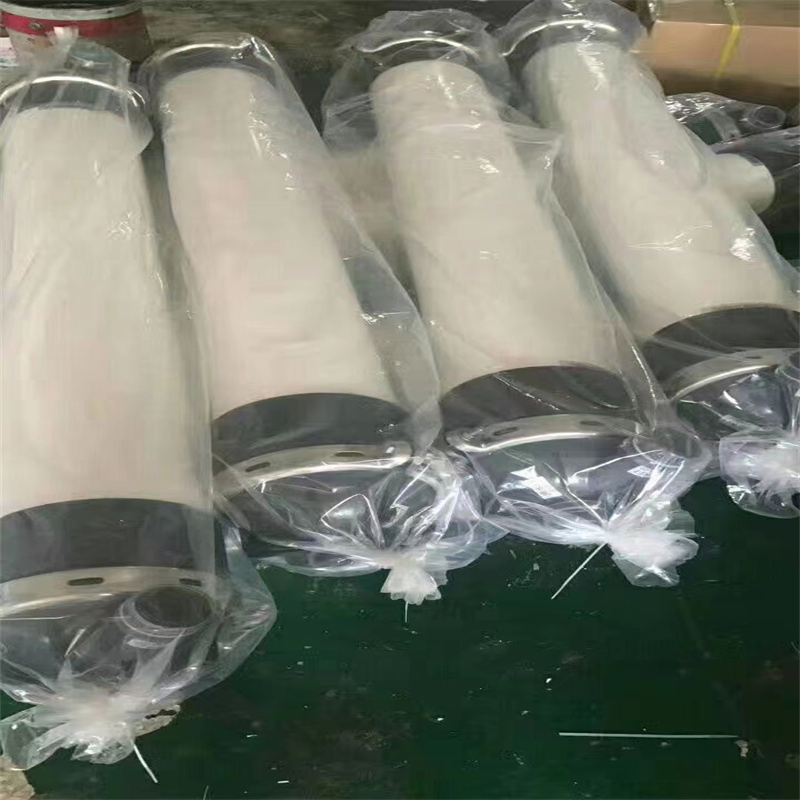

Water Purificationro Water Purifieruf Membraneultrafiltration (UF) System

📊

Basic Information

Model NO.

BSD-UF-2880

Material

PVDF PVC

Membrane Area

40 Sq. M

Inlet and Outlet

DN65

Mode of Operation

Internal & External Pressure

Flux

80 Tons Per Hour

Time of Use

3-5 Years

Operating Pressure

10kg

Production Cycle

7 Days

MOQ

1 Stick

💧

Product Description

Water Purification RO Water Purifier UF Membrane Ultrafiltration (UF) System

Ultrafiltration (UF) is a separation principle for screening, with pressure as the driving force to realize mechanical separation membrane separation process. Under certain pressure, when the mixed solution of large molecules or a small molecule solute passes through the membrane surface, solvent and small molecule solutes pass through the membrane, while larger molecules are intercepted as concentrate. This achieves high-efficiency purification, separation, and concentration.

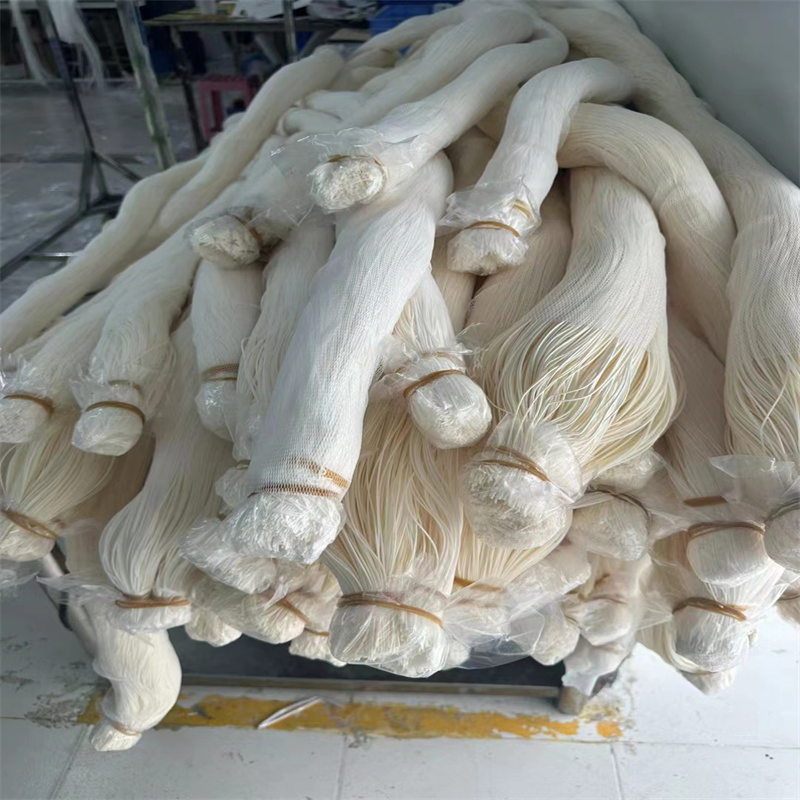

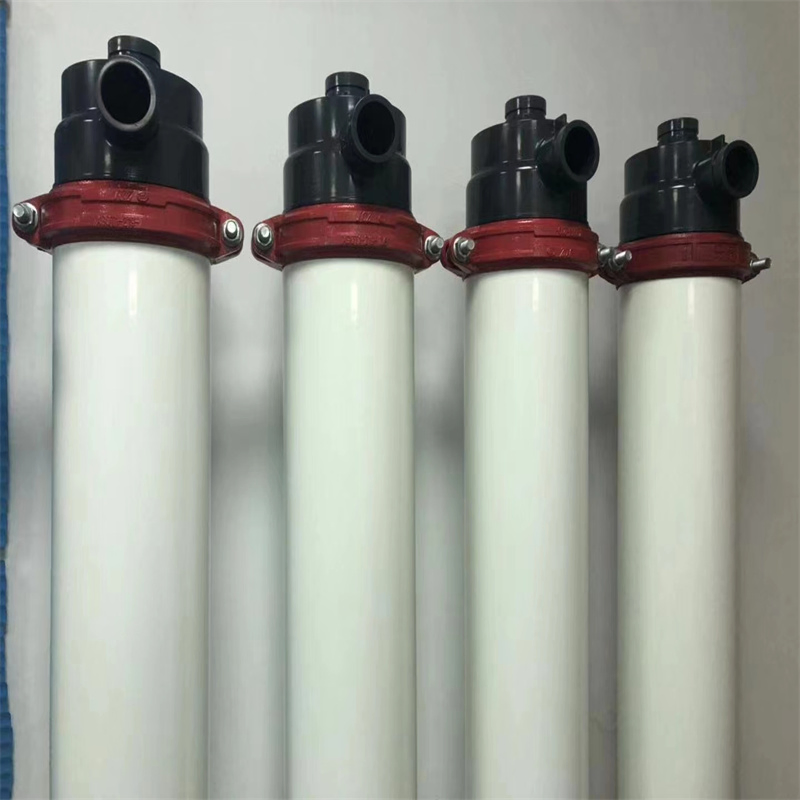

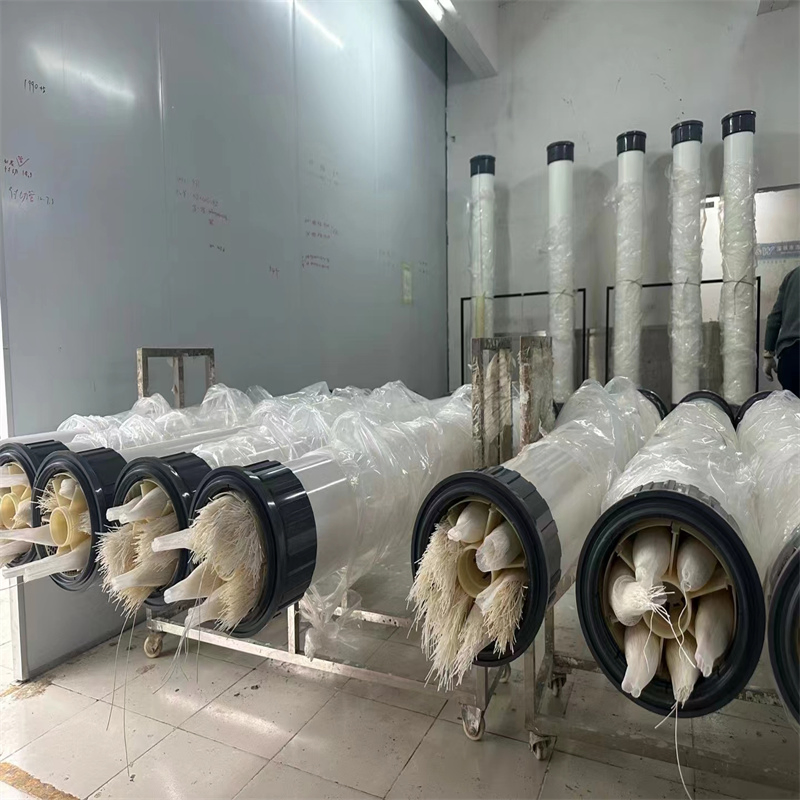

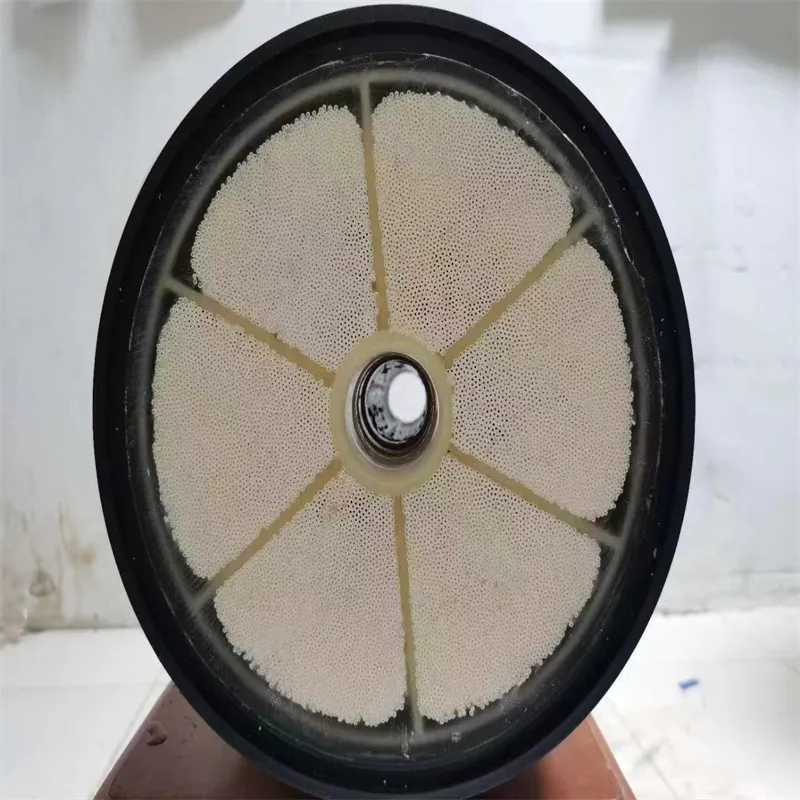

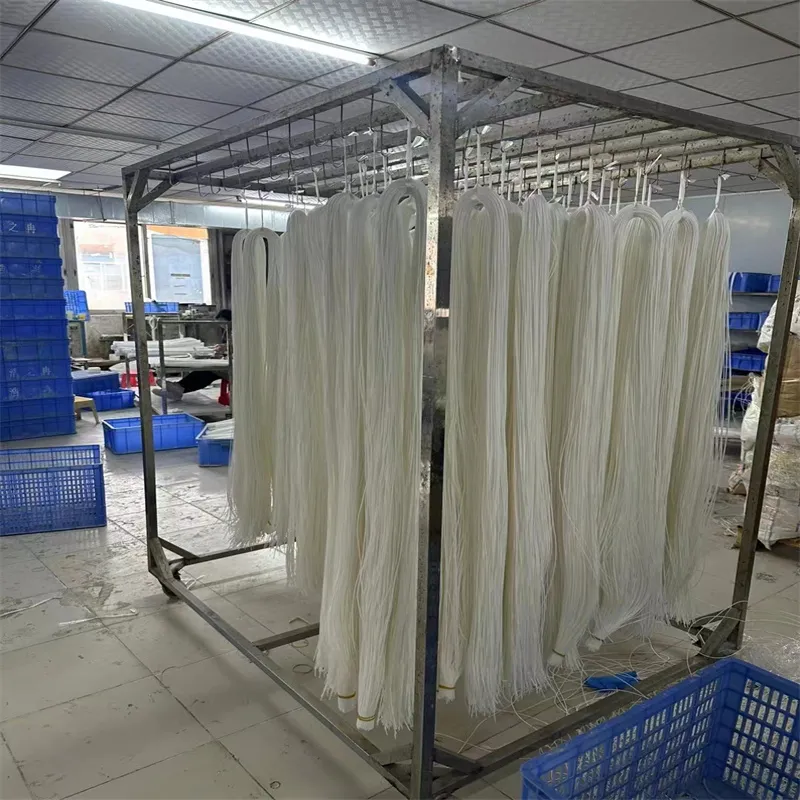

Hollow fiber ultrafiltration membrane is an important form of separation membrane. The membrane pores are capillary and located on the tube wall. With the largest effective area per unit volume, it offers high filtration efficiency, easy cleaning, simple structure, and easy operation. The production process ensures no secondary pollution, making it widely applicable for industrial and commercial use.

📏

Product Parameters

Model	Material	Lateral Center Distance (mm)	Module Dimensions	Effective Area (M2)	Design Flux (m3/0.1Mpa 25ºC)	Pore Size
UF-90	PES	910	φ90×1100	4.5	50-80L	0.01um
UF-160	PES	990	φ160×1330	20	50-80L	0.01um
UF-200	PES	1000	φ200×1415	25	50-80L	0.01um
UF-225	PES	1600	φ225×1730	40	50-80L	0.01um
UF-250	PES	1600	φ250×1715	50	50-80L	0.01um
UF-315	PES	780	φ315×1302	55	50-80L	0.01um
UF-8040	PAN	---	φ200×1010	15	60-120L	0.02um

📸

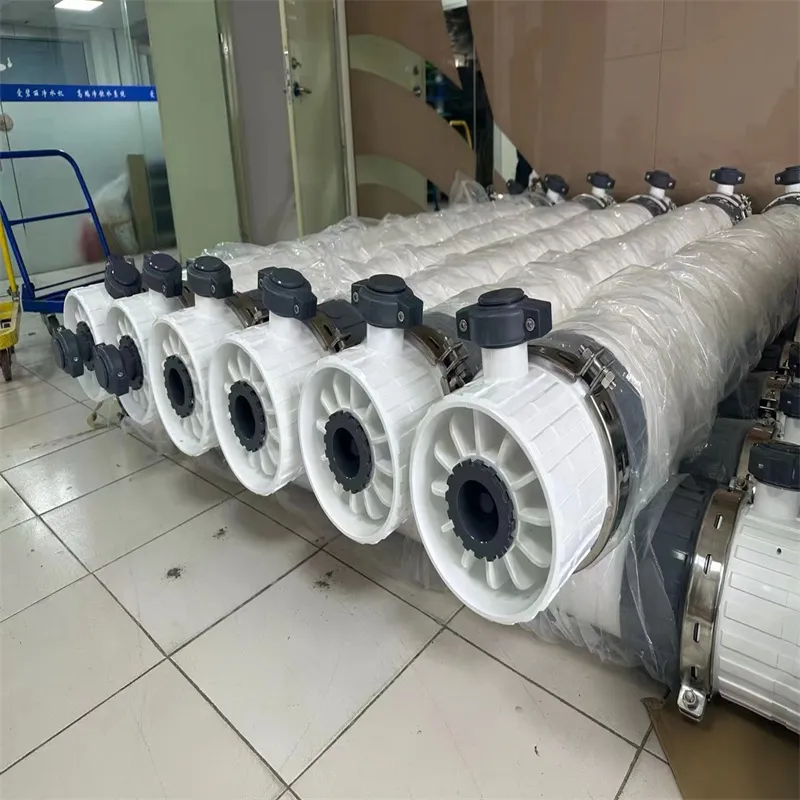

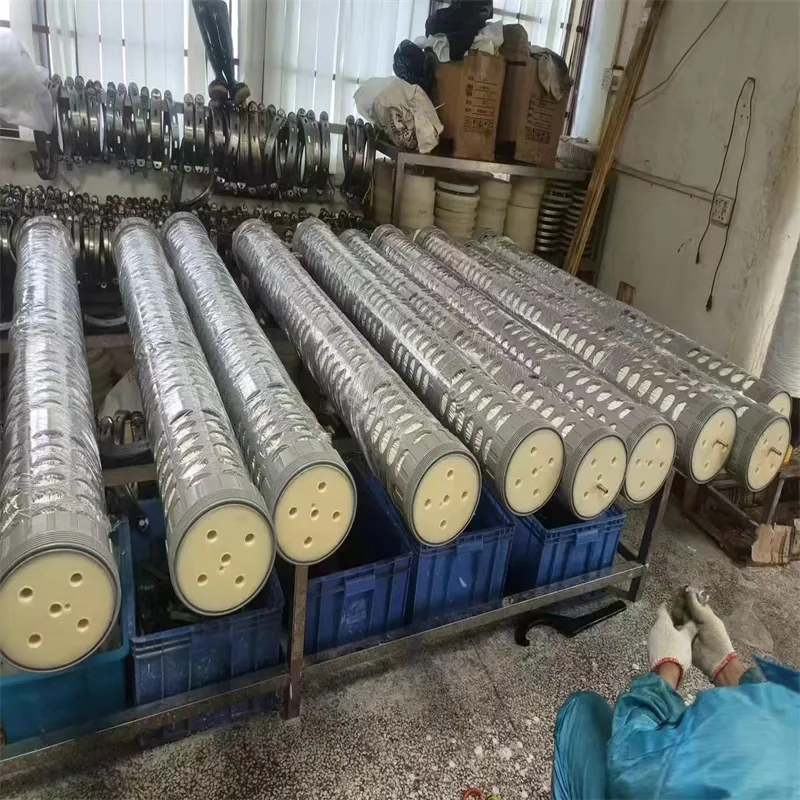

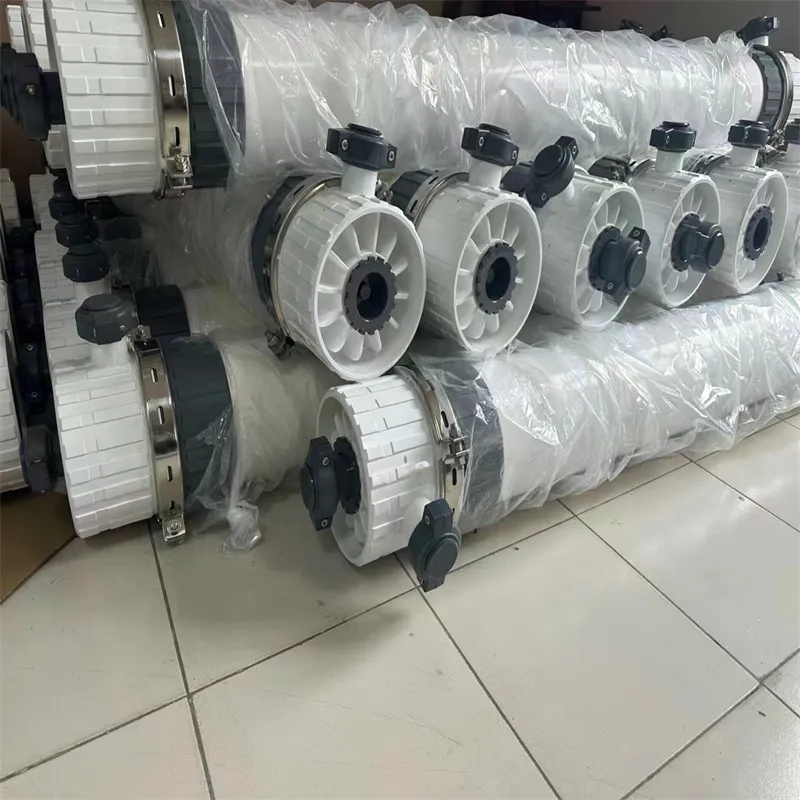

Detailed Photos

🏭

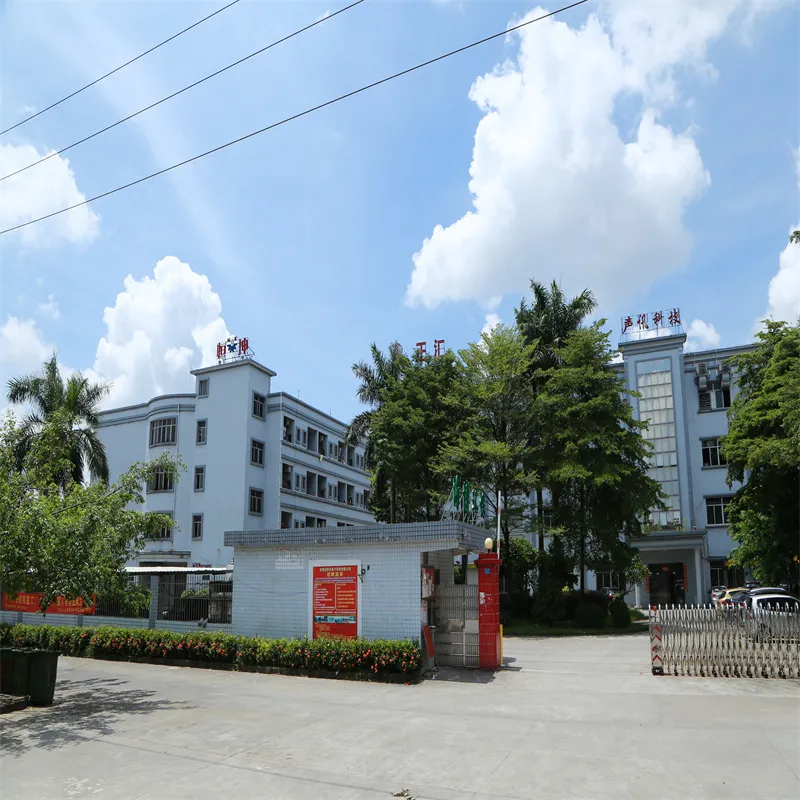

Manufacturing & Quality Control

Specializing in the production of seawater desalination systems, reverse osmosis drinking pure water machines, industrial pure water equipment, and ultrafiltration systems. We adopt advanced equipment and technology to provide users with optimized process flows and reliable equipment performance. All products undergo strict quality control and have passed CE and SGS certifications.

Our experienced engineering team is dedicated to development, manufacturing, installation, and debugging. Professional solutions are provided according to specific customer requirements, including OEM services. Our equipment is exported globally, serving various industrial and commercial water treatment needs.

❓

Frequently Asked Questions

What is Reverse Osmosis (RO)?

Reverse osmosis (RO) is a water treatment process in which water is forced through a semi-permeable membrane that has very small holes or "pores". Clean water passes through and impurities that are too big to pass through the membrane are left behind and flushed away.

How Do I Know Which Capacity to Buy?

RO units are rated by the amount of treated water produced per day or per hour. We offer capacities from 250 liters per hour to 100,000 liters per hour. You can choose based on your actual requirement (1 ton = 1000 liters).

What materials are available for the system?

You can choose from FRP (fiber glass) filters with U-PVC pipe, stainless steel filters with U-PVC pipe, or full stainless steel construction depending on your environment and budget.

Is the machine easy to install?

Yes, the machine is delivered mostly assembled. You simply need to load the filter media, connect the power and water supply, and follow the provided English instructions and video for the initial flush and startup.

How is the equipment packed for shipment?

The machine is packed in a standard, sturdy wooden case suitable for sea or land transport. Upon arrival, you only need to open the case to access the equipment safely.

What happens if there are problems with the machine?

We offer a one-year warranty. During this period, if any issues arise, we provide free spare parts. Beyond the warranty, we continue to provide technical support and help you source necessary parts.
