Product Description

i

Basic Information

Model NO.
BSD-UF-2880
Material
PVDF PVC
Membrane Area
40 Sq. M
Inlet and Outlet
DN65
Mode of Operation
Internal & External Pressure
Flux
80 Tons Per Hour
Lifespan
3-5 Years
Operating Pressure
10kg
Production Cycle
7 Days
Usage
Industrial & Commercial

Product Description

Ultrafiltration (UF) is a separation principle for screening, using pressure as the driving force to realize mechanical membrane separation. Under specific pressure, solvent and small molecule solutes pass through the membrane surface, while large molecules and particles are intercepted as concentrate. This process achieves efficient purification, separation, and concentration.

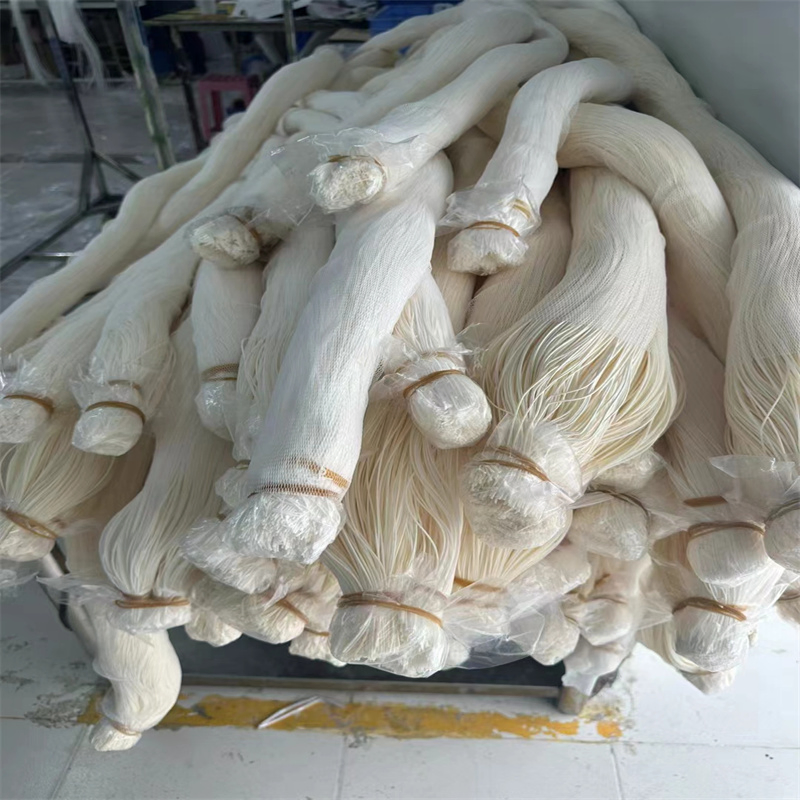

Hollow Fiber Ultrafiltration Membrane is a critical component where micropores are located on the tube wall. It offers the largest effective area per unit volume, providing high filtration efficiency, simple operation, and low maintenance costs. The production process is environmentally friendly and does not produce secondary pollution, making it widely used across various industries.

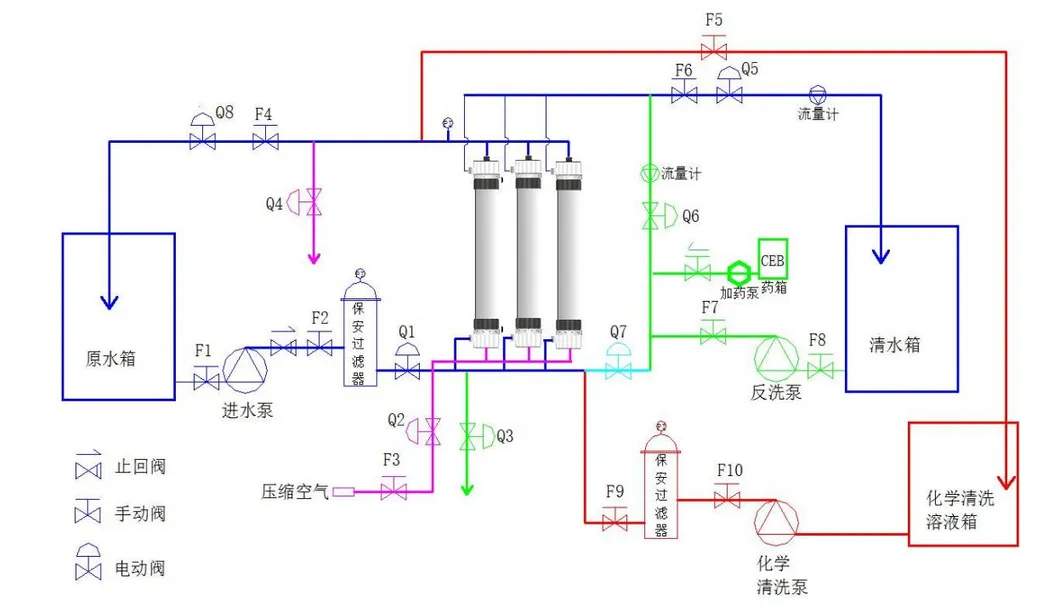

Ultrafiltration Systems
📊

Product Parameters

Model Material Module Dimensions Effective Area (㎡) Design Flux (L/㎡•h) Pore Size
UF-90PESφ90×11004.550-80L0.01um
UF-160PESφ160×13302050-80L0.01um
UF-200PESφ200×14152550-80L0.01um
UF-225PESφ225×17304050-80L0.01um
UF-250PESφ250×17155050-80L0.01um
UF-315PESφ315×13025550-80L0.01um
UF-4040PESφ90×1010450-80L0.01um
UF-8040PESφ200×10102050-80L0.01um
📷

Detailed Photos

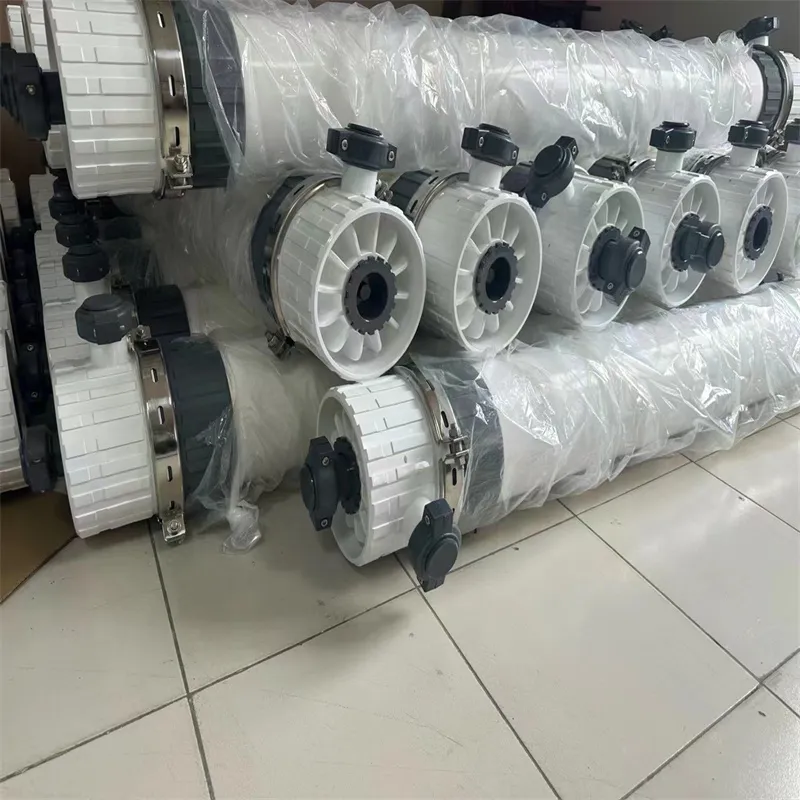

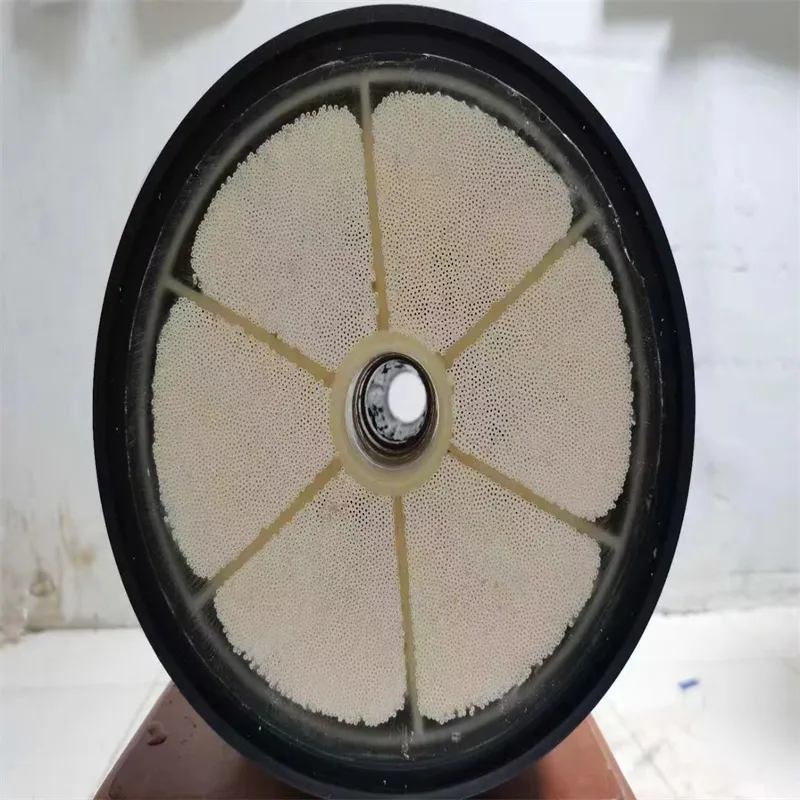

UF Details 1

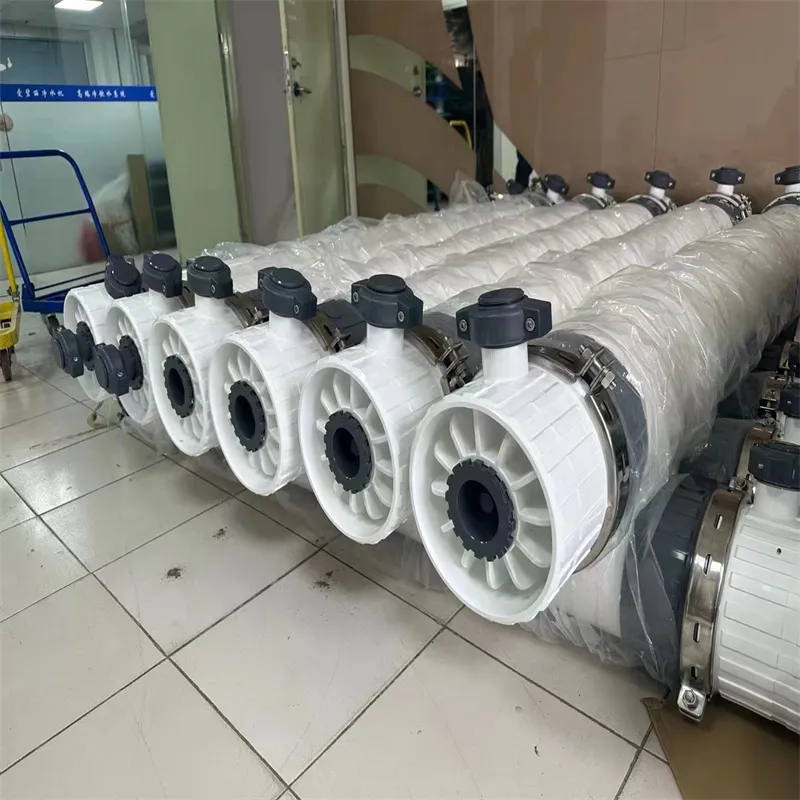

UF Details 2

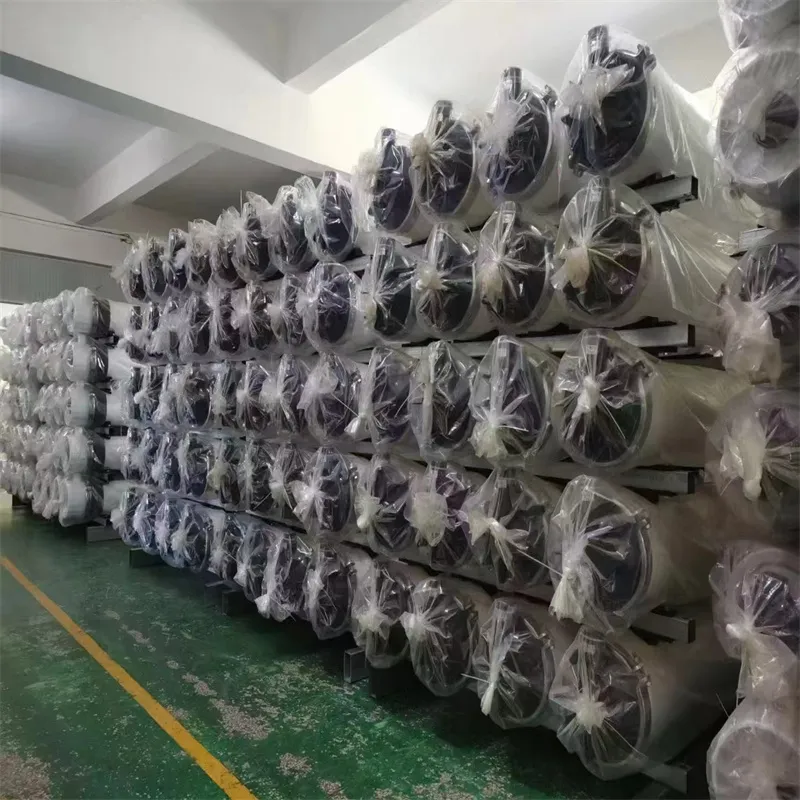

UF Details 3
UF Details 4

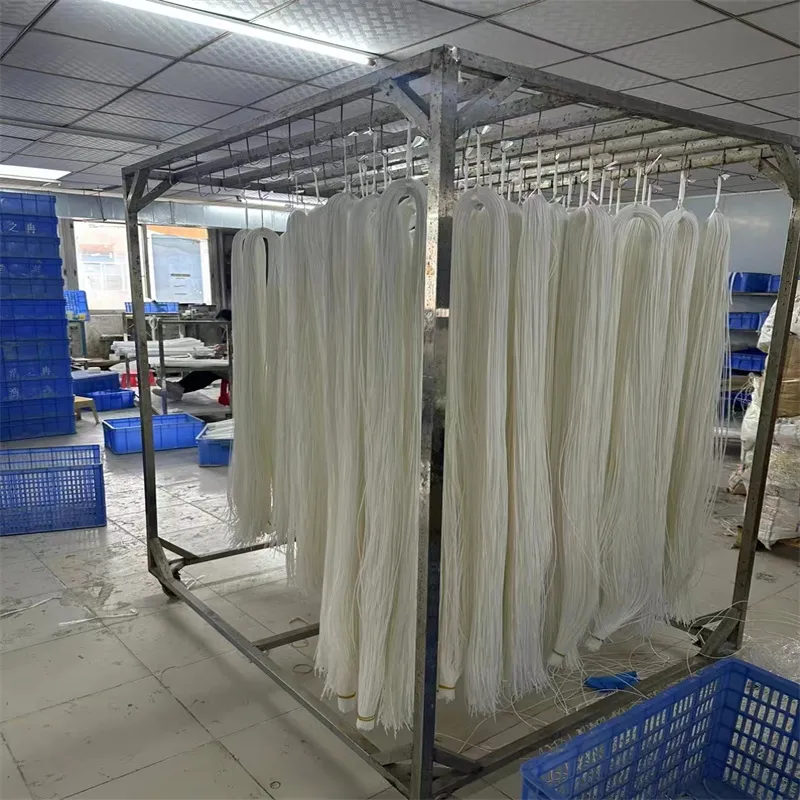

UF Details 5

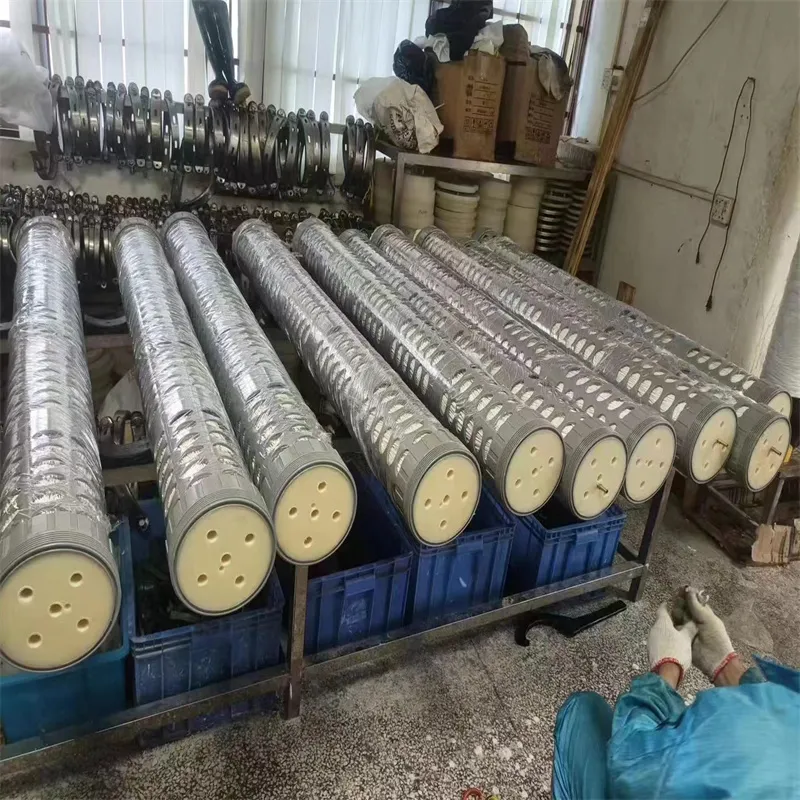

UF Details 6
🏢

Industry Expertise

Specializing in advanced water treatment since 2018, we provide a comprehensive range of solutions including seawater desalination systems, reverse osmosis machines, industrial pure water equipment, and EDI systems. Our commitment to continuous improvement ensures the integration of advanced technology from global sources to provide optimal process flows and reliable equipment.

With an experienced engineering team dedicated to manufacturing, installation, and debugging, we adhere to strict quality control standards, holding CE and SGS certifications. Our products serve a global clientele across regions such as the Middle East, Africa, Southeast Asia, and Europe, offering professional OEM services and tailored water treatment solutions.

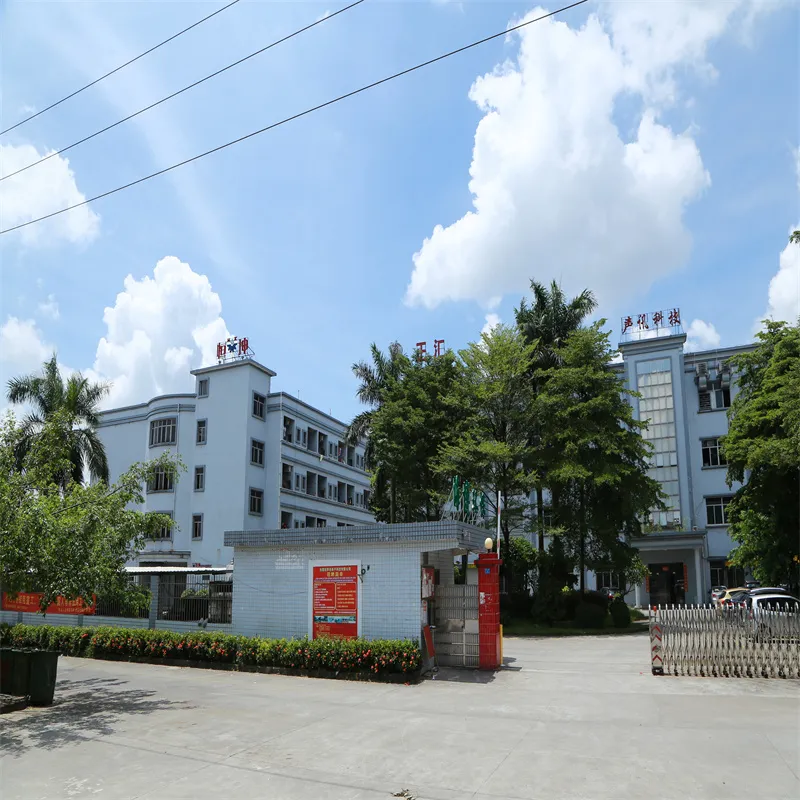

Factory View 1
Factory View 2
Production Line 1
Production Line 2
?

Frequently Asked Questions

What is the difference between UF and RO?
Ultrafiltration (UF) focuses on removing suspended solids, bacteria, and high molecular weight solutes using a membrane with larger pores, while Reverse Osmosis (RO) removes dissolved salts and minerals at a molecular level using much higher pressure.
How do I choose the right capacity for my needs?
Systems are rated by output per hour (e.g., 250L/h to 100,000L/h). You should calculate your daily water demand and peak usage hours to select the appropriate tonnage. Note: 1 ton = 1000 liters.
What materials are available for the system housing?
You can choose between FRP (fiberglass) filters with U-PVC piping, stainless steel filters with U-PVC piping, or full high-grade stainless steel construction for maximum durability.
Is the equipment easy to install?
Yes, the machines are mostly pre-assembled. Installation involves placing the filter media, connecting the power and water source, and following the initial flushing protocols. Detailed English instructions and video guides are provided.
What kind of packaging is used for international shipping?
All equipment is packed in standard, export-grade wooden cases to ensure protection during sea or land transport.
What is the warranty and support policy?
We offer a one-year warranty. During this period, spare parts for non-human errors are provided free of charge. Beyond the warranty, we continue to provide technical troubleshooting and parts support.
