Basic Information
Processing Capacity
30kg-10t Per Batch
Combustion Temp
850-1200°C
Fuel Type
Diesel/Oil/Natural Gas
⚙️
Product Description

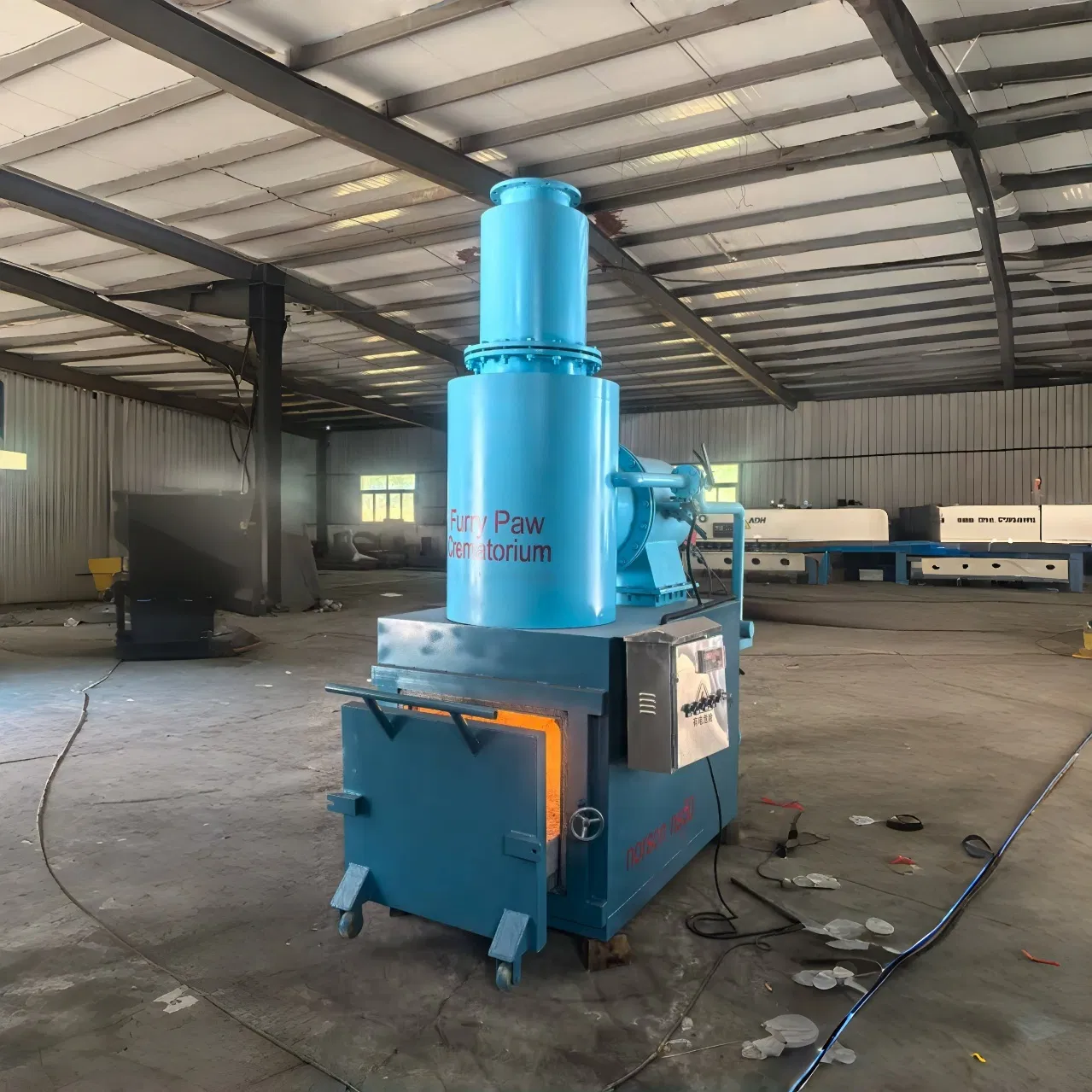

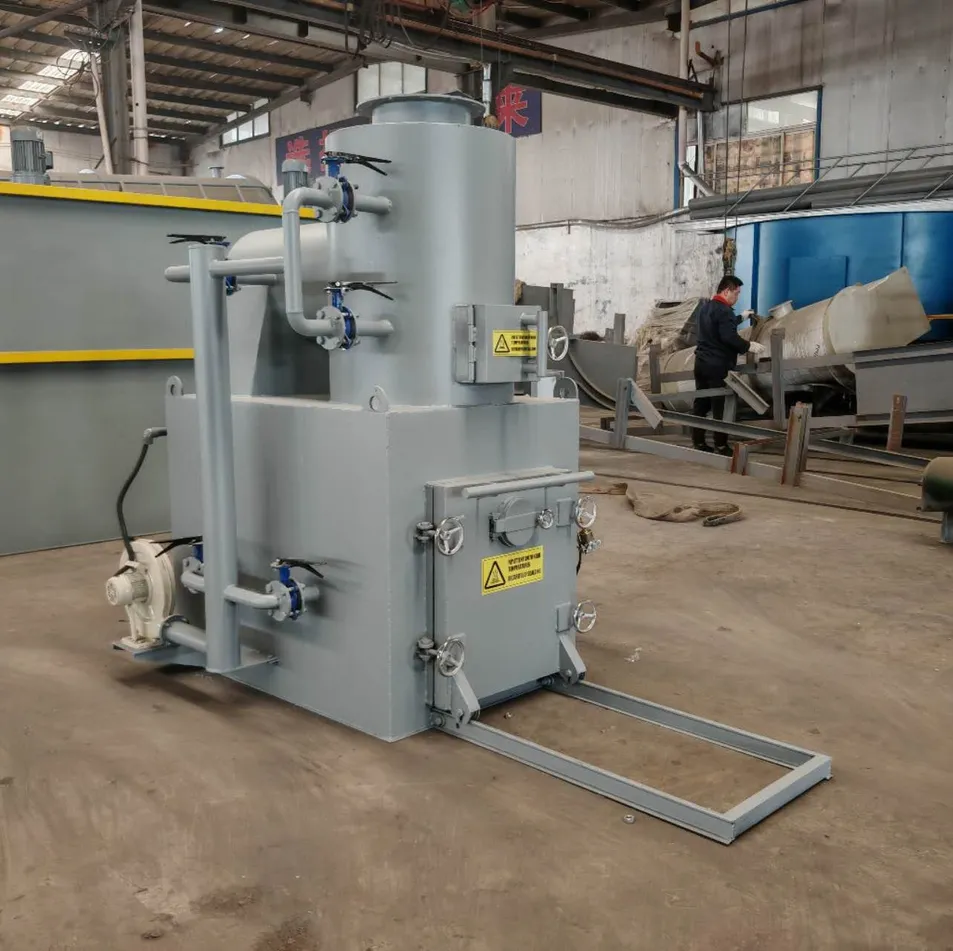

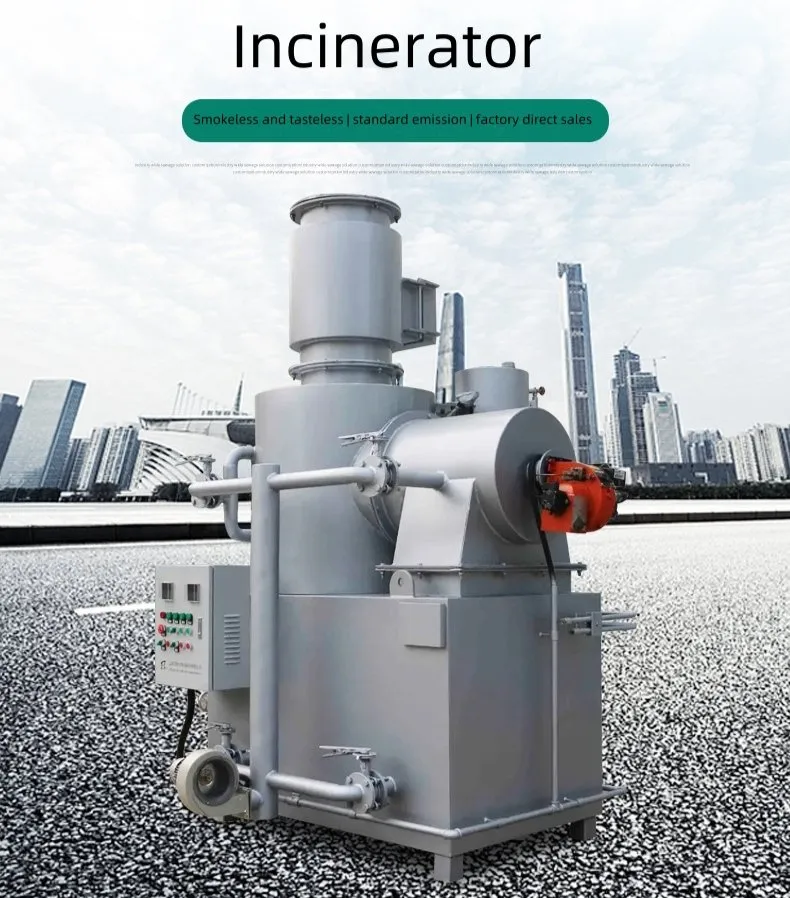

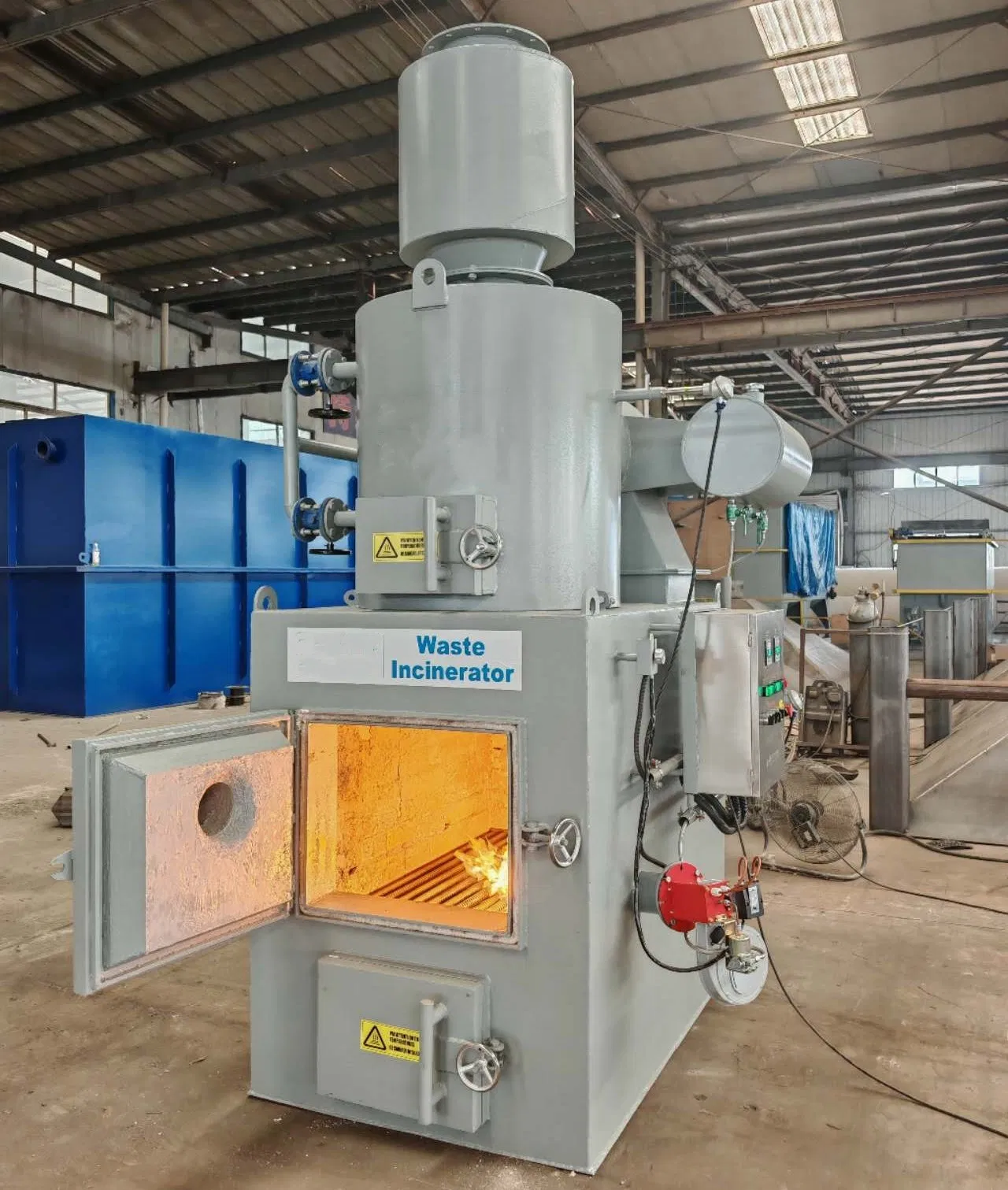

An incinerator is a device that burns waste materials at high temperatures (typically 800–1200°C) to reduce volume, destroy pollutants, and generate heat or energy. It processes various wastes—municipal solid waste, medical waste, and hazardous substances—by converting them into ash, flue gas, and heat. Equipped with emission control systems, it is widely used in waste management for efficient disposal and environmental protection.
📊
Specifications
- ✔
Waste Handling Capacity: Small incinerators handle 0.1–5 t/d; municipal models process 10–100 t/d.
- ✔
Operating Temperature: 800–1200°C (up to 1300°C for hazardous waste) to ensure pathogen destruction.
- ✔
Combustion Efficiency: ≥99%, significantly reducing unburned residues.
- ✔
Dioxin Removal: Advanced treatment reaches rates of ≥99.9%.
🔄

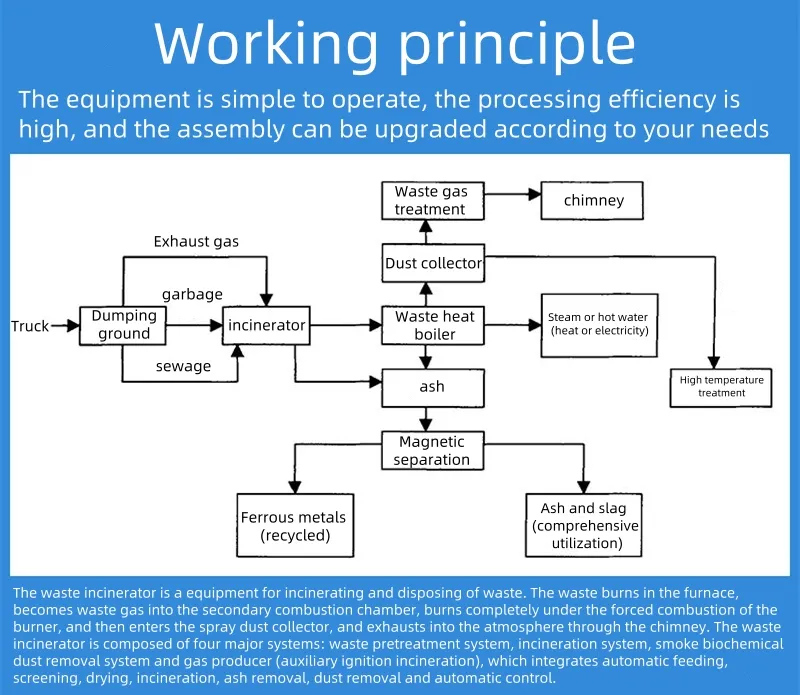

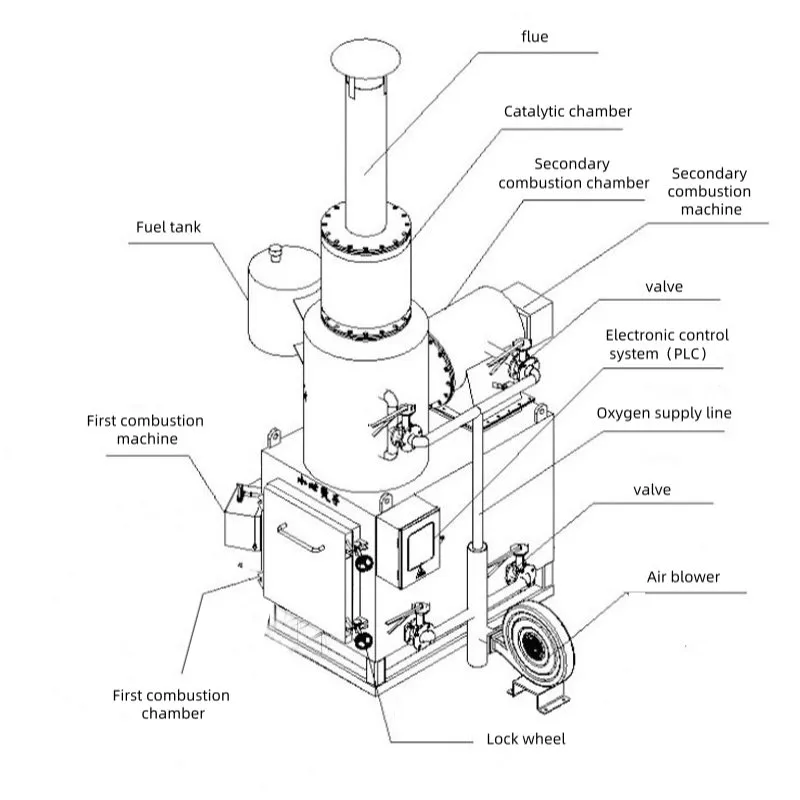

Working Principle
The system adopts advanced incineration modes: Primary Pyrolytic Gasification + Surround Wind Mixed Combustion + Secondary Incineration + Burnout Treatment.
1. Primary Chamber: Waste undergoes drying and pyrolysis at 600–800°C, decomposing organic materials into volatile gases.
2. Secondary Chamber: Operating at 850–1200°C with excess air, this stage ensures complete oxidation of harmful substances like dioxins and hydrocarbons.
📋
Technical Parameters
| Item |
NS-30 |
NS-50 |
NS-100 |
NS-200 |
NS-500 |
| Capacity (per batch) |
30-50kg |
50-100kg |
100-150kg |
200-300kg |
400-500kg |
| Size (m) |
1.45x0.9x2.75 |
1.8x1.15x3 |
2x1.4x3.5 |
2.2x1.4x3.8 |
3.3x2.3x4.8 |
| Burner Power |
0.15kw |
0.15kw |
0.15kw |
0.15kw |
0.37kw |
| Voltage |
220V/380V |
220V/380V |
220V/380V |
220V/380V |
220V/380V |
| Weight (kg) |
2800 |
4000 |
7000 |
8000 |
17000 |
🌍
Wide Range of Applications
🏢
Company Profile
Established in 2018, our company operates from a large-scale production facility with over 100 sets of advanced processing machinery. We specialize in wastewater treatment, water purification, and a full range of high-efficiency incinerators. Our team includes 20 experienced engineers and technicians dedicated to providing reliable, eco-friendly solutions. Our equipment is exported to Southeast Asia, Africa, and the Middle East, recognized for superior quality and competitive pricing.
❓
Frequently Asked Questions
Q: How can I purchase your incinerator products?
A: Simply submit an inquiry with your project details. Our sales managers will provide a professional solution and a detailed quote based on your capacity needs.
Q: Do you offer customization for specific logos or requirements?
A: Yes, we offer comprehensive OEM and ODM services. We can customize the machine specifications and apply your company logo.
Q: What is the typical delivery time for an order?
A: Delivery usually takes between three to four weeks, depending on the order quantity and customization requirements.
Q: What kind of warranty do you provide?
A: We provide a one-year warranty period starting from the date you receive the goods.
Q: How is the equipment installed at the destination?
A: We provide detailed installation instructions. If required, we can send a technician to assist with on-site installation and training.
Q: What waste materials can your incinerators handle?
A: Our machines are designed for municipal solid waste, medical waste, hazardous materials, and animal carcasses.
