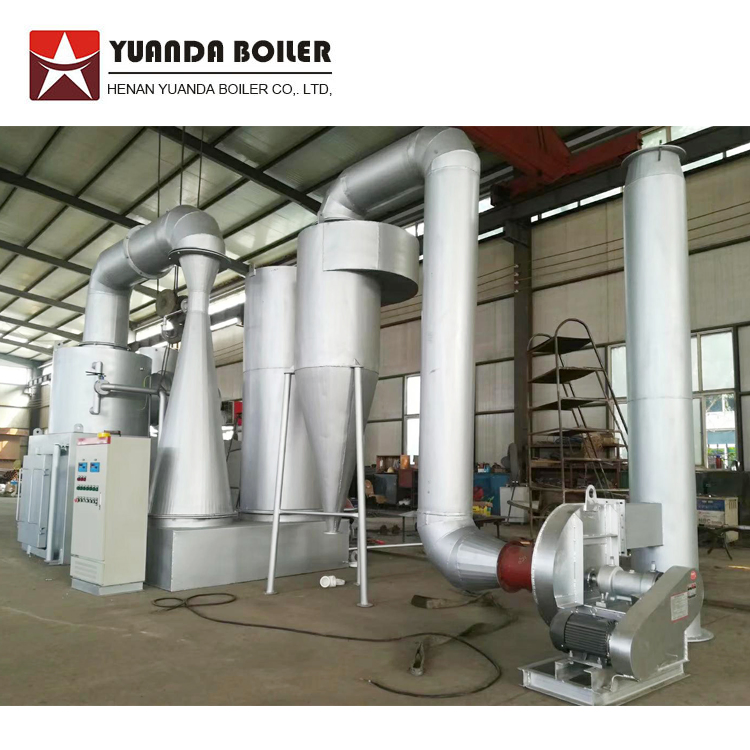

Incinerators use high-temperature combustion to break down organic matter in garbage into ash and flue gas. The flue gas is kept above 850°C for more than two seconds to break down dioxins. A purification system ensures exhaust gas meets standards, and the ash is treated and then landfilled.

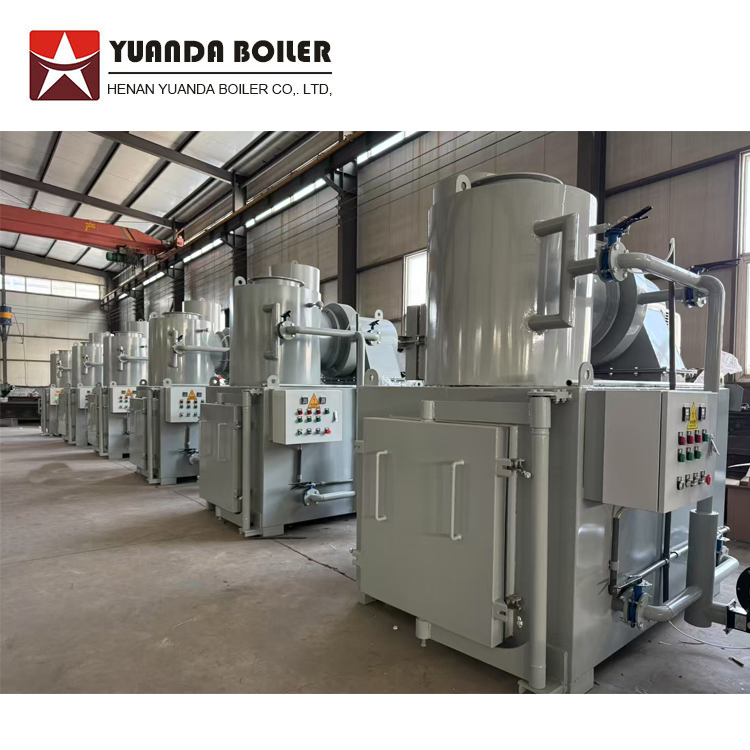

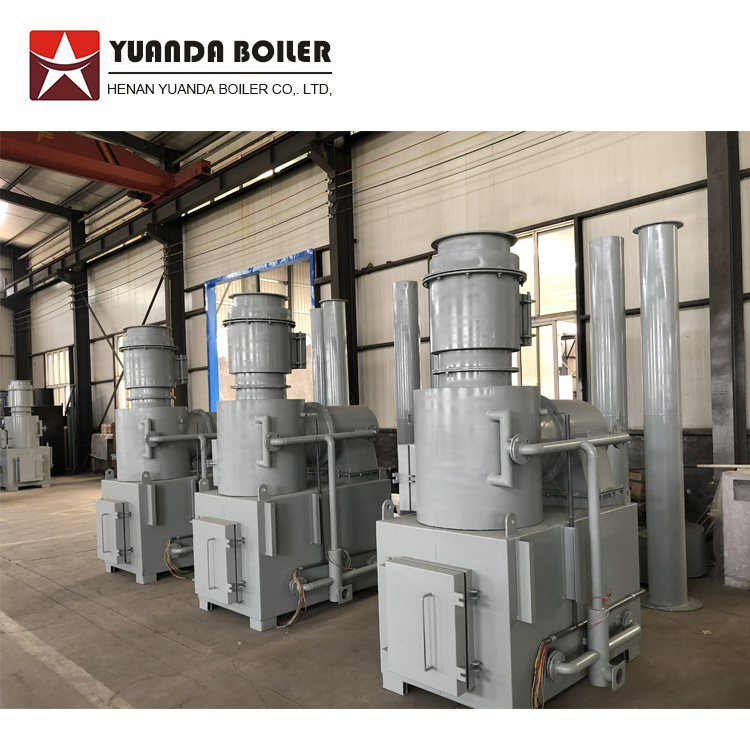

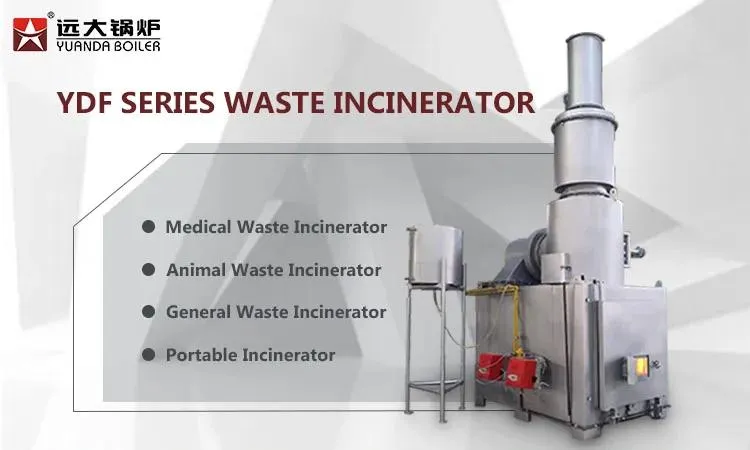

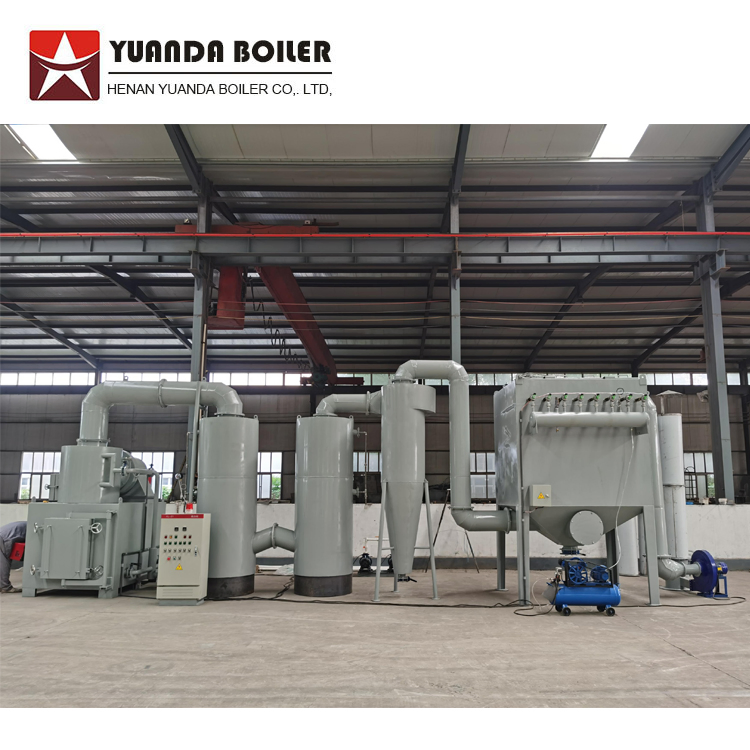

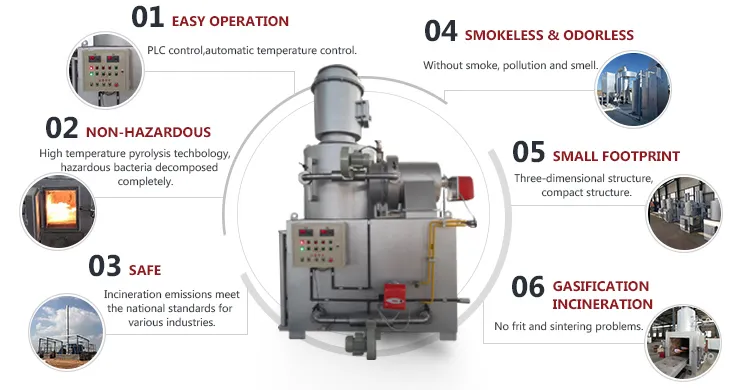

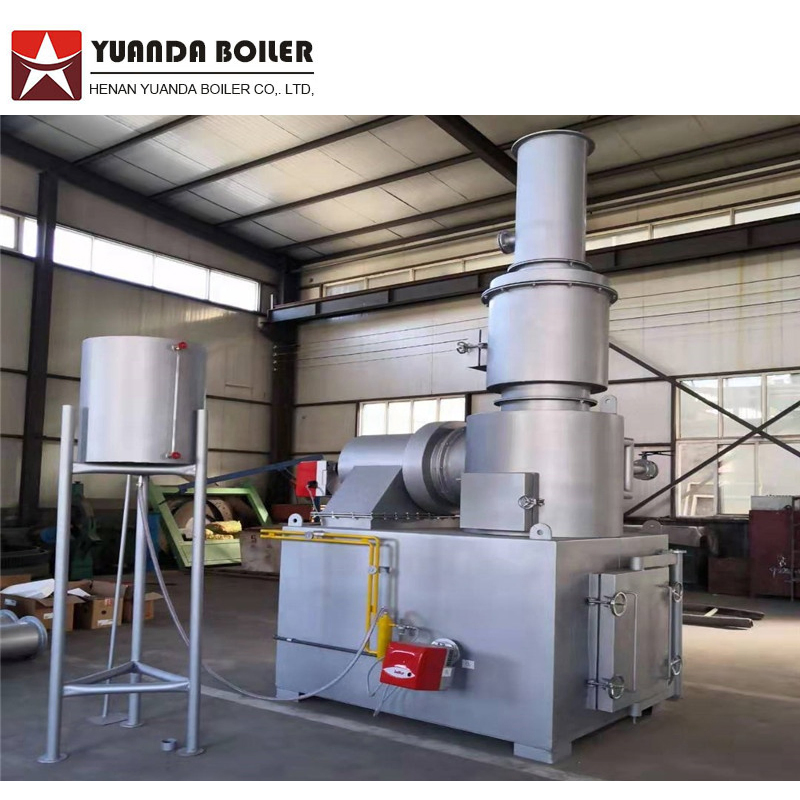

Our waste incinerator adopts advanced technology: First furnace pyrolysis gasification & surround wind con-firing + secondary furnace reburning till burn-out + flue gas purification system. The incinerator can reduce waste volume by 95-96%. The highest temperature of incinerator running can reach 1200ºC, which achieves sterilization and disinfection. There will be no smoke, no smell, and no pollution after burning.
| Model | YDF-20 | YDF-30 | YDF-50 | YDF-100 | YDF-150 | YDF-300 | YDF-500 |
|---|---|---|---|---|---|---|---|
| Burning ability (kg/batch) | 20 | 30 | 50 | 100 | 150 | 300 | 500 |
| Size (L×H×B) | 1.6×1.3×1.75 | 1.45×0.9×2.55 | 1.8×1.15×3 | 1.8×1.4×3.4 | 2×1.4×3.5 | 2.2×1.4×3.8 | 3×2×4.8 |
| Garbage entrance (mm) | 380×480 | 480×600 | 620×800 | 760×960 | 760×960 | 900×1100 | 1080×1280 |
| Voltage (V) | 220V / 380V | ||||||
| Weight (kg) | 1800 | 3000 | 5000 | 7000 | 8200 | 10000 | 16000 |

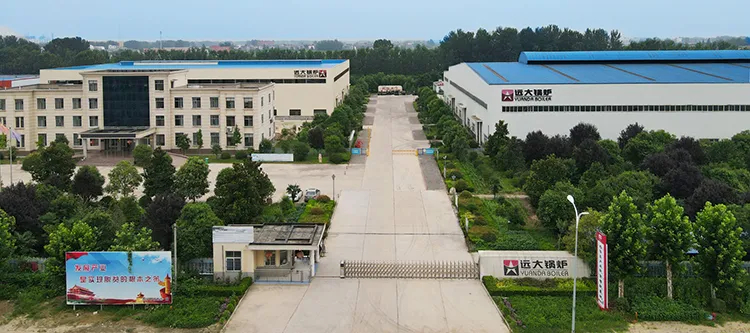

Established in 1956, we are one of the leading manufacturers which first obtained national manufacturing licenses. We hold A Class boiler licenses and D Class pressure vessel licenses along with ISO9001:2015, ISO14001:2015, and OHSAS18001:2007 certificates. As a high-tech enterprise, we integrate R&D, manufacturing, sales, and service.
Our product range includes oil/gas fired systems, biomass systems, electric hot water systems, thermal oil systems, and specialized incinerators for medical, industrial, and animal waste. With 70 years of experience, our equipment is utilized in 135 countries and regions, qualified by global certificates including CE, ASME, EAC, and DOSH.
