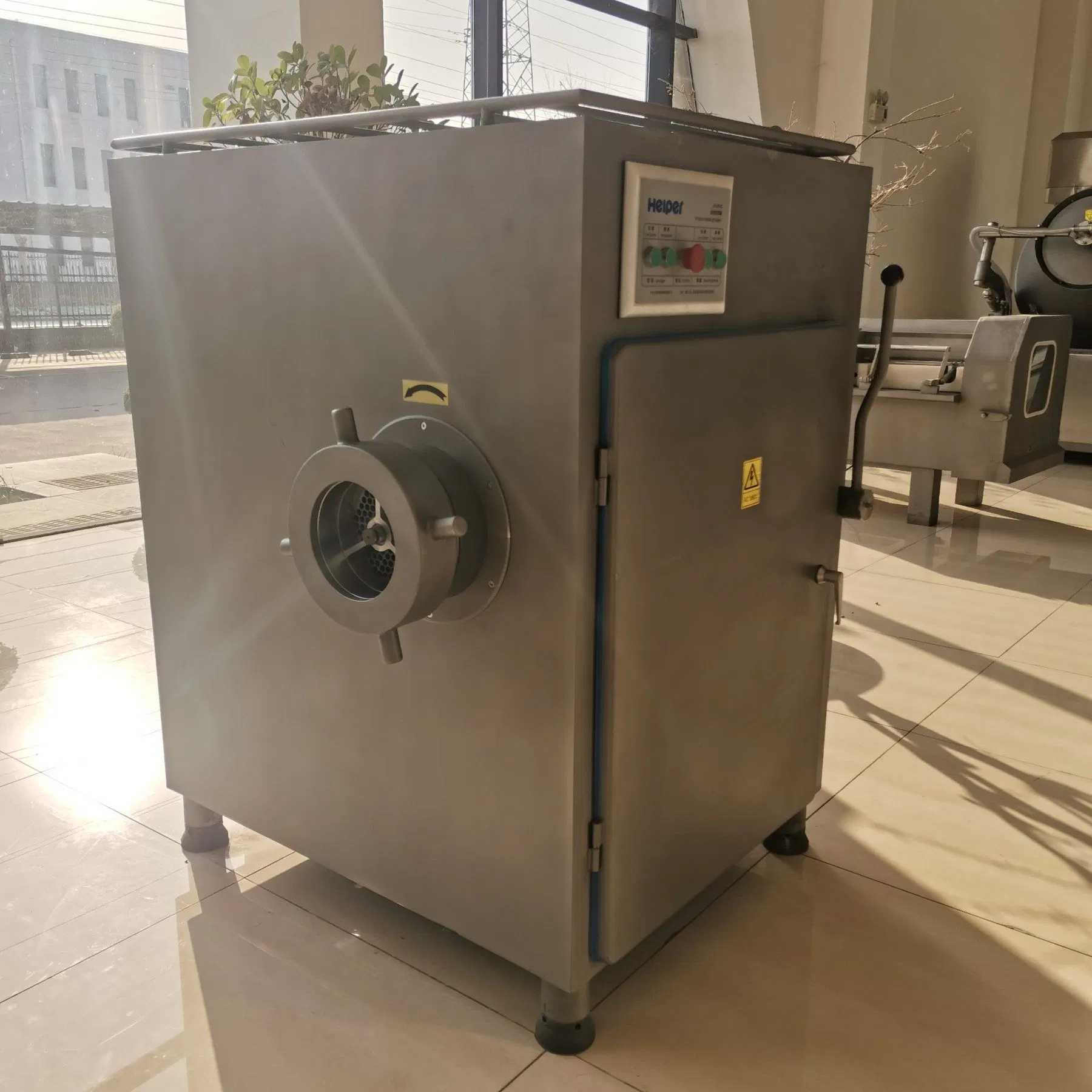

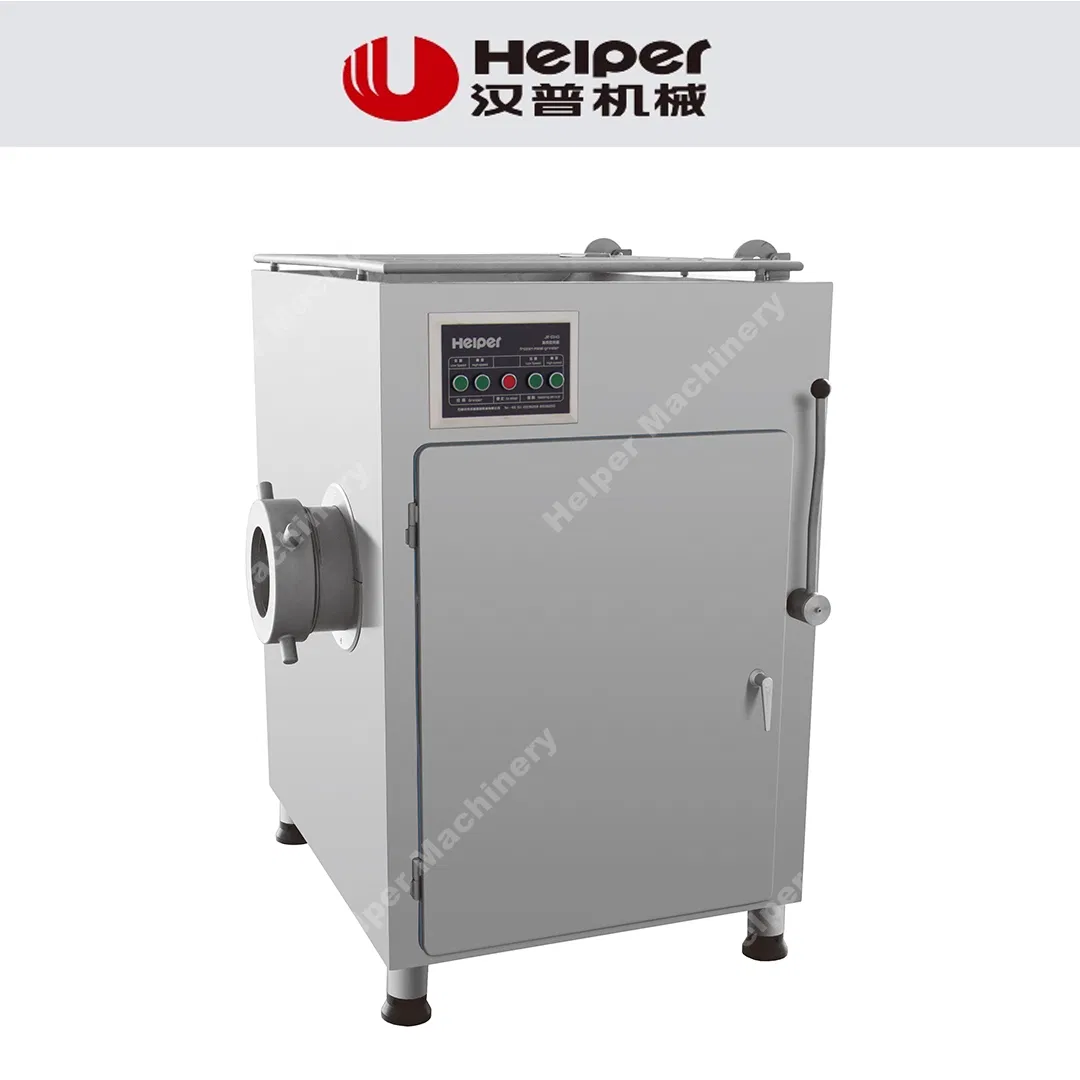

Premium Frozen Meat Grinder for Efficient Food Preparation

Customization: Available
After-sales Service: Remote/Onsite
Warranty: 1 Year

Product Description

Basic Information
Model NO.
JR-D140
Power Source
Electric
Automatic Grade
Automatic
Type
Meat Grinder
Voltage
380V
Material
304 Stainless Steel
Power
15.8kw
Dimension
1200X1050X1440mm
Certificate
CE
Production Capacity
100 units/period
Packaging & Delivery

Package Size: 140.00cm * 128.00cm * 170.00cm

Gross Weight: 980.000kg

Transport Package: Wooden Case

Product Description

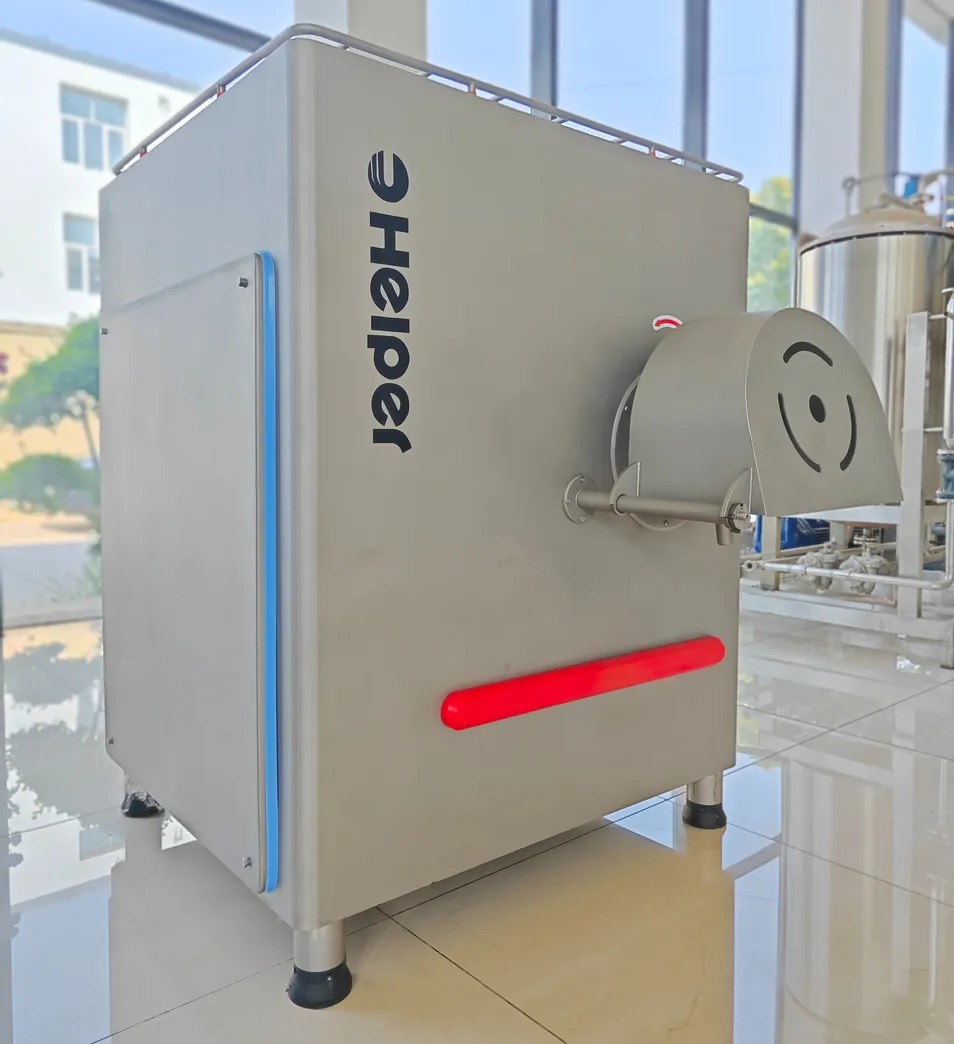

Heavy-duty industrial-grade frozen meat grinder

  • Essential equipment for meat food processing, directly mincing unthawed meat blocks.
  • Maintains nutrition and freshness by eliminating the thawing process.
  • Reasonable design with low friction, preventing damage to muscle fiber tissue.

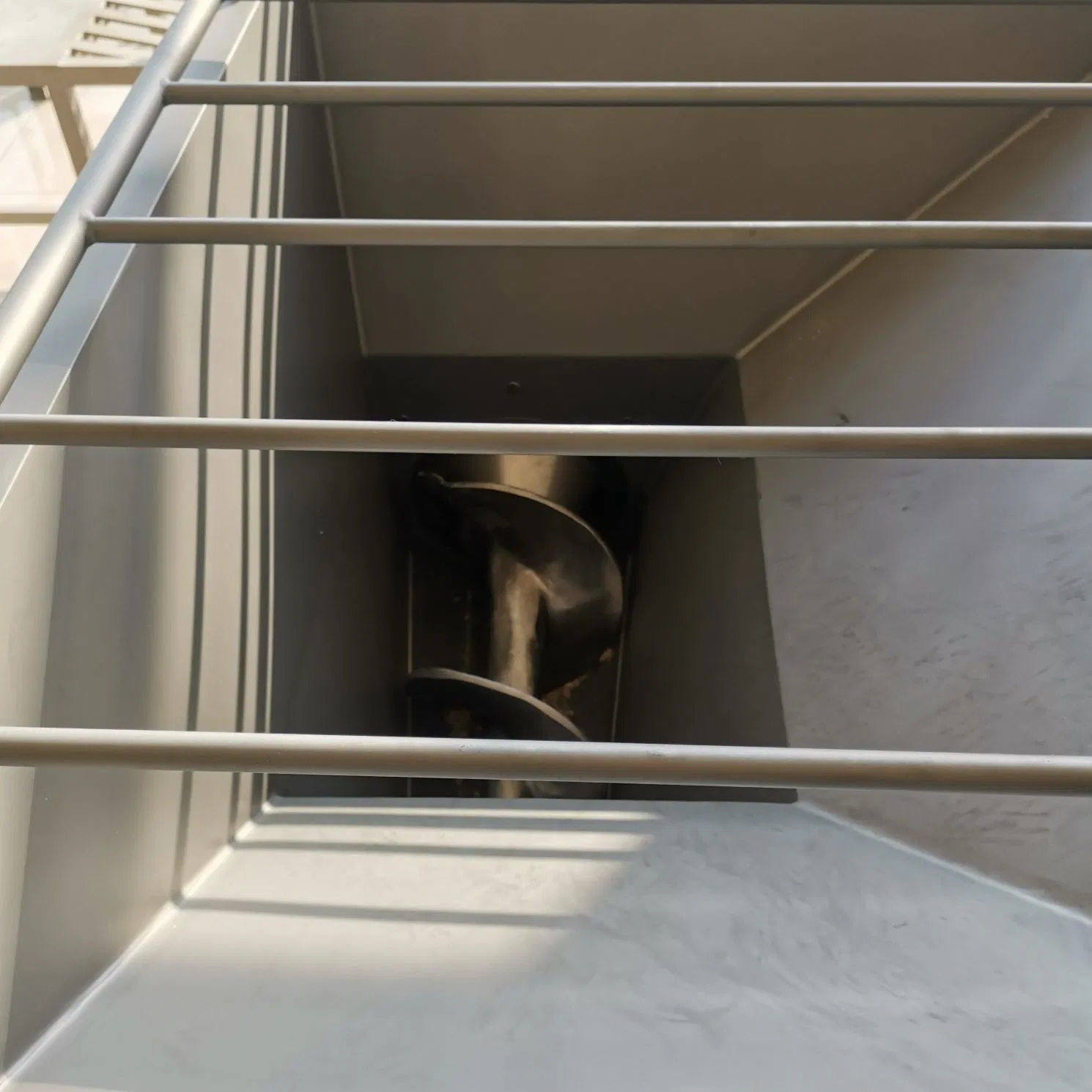

  • Features independent feeding and mincing augers with dual speeds for optimal output.
  • Large feed inlet and auger shaft lead ensure high production efficiency and smooth feeding.
Performance Characteristics

Suitable for Different Materials:

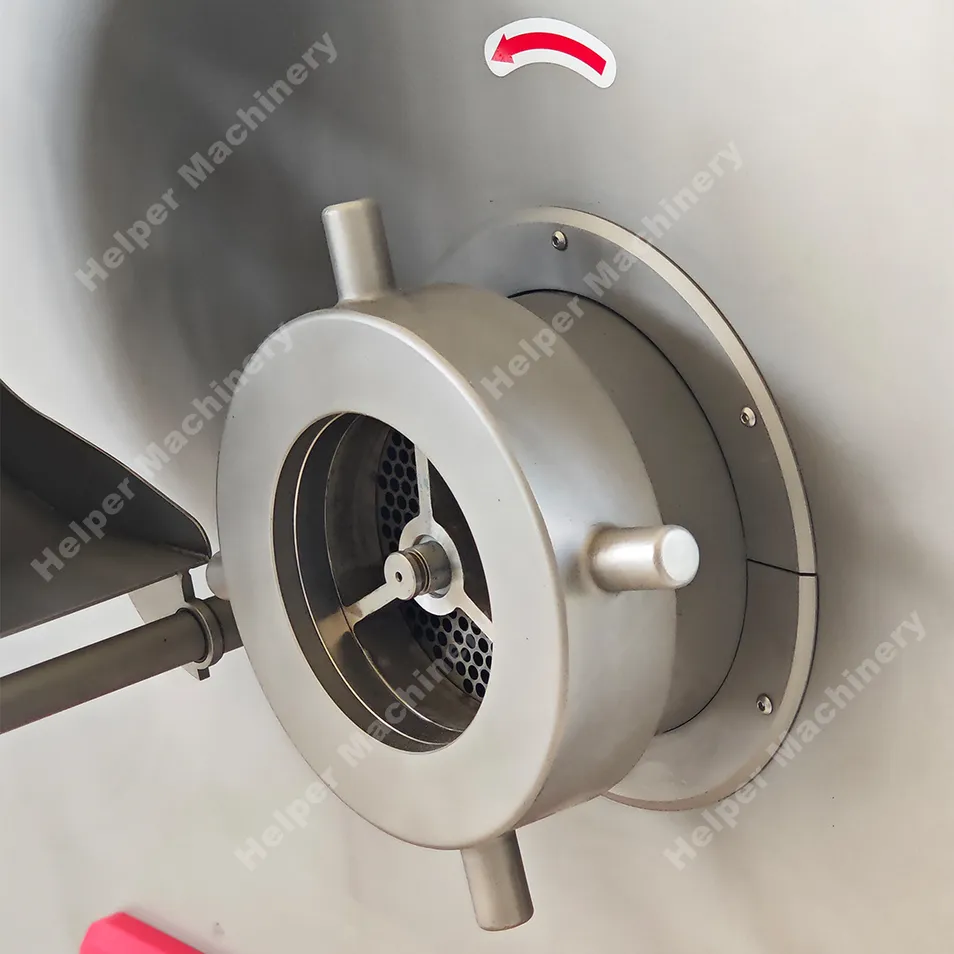

Equipped with a large 140mm discharge port, compatible with orifice plates ranging from φ6 to φ35, with customized options available.

Safety Protection:

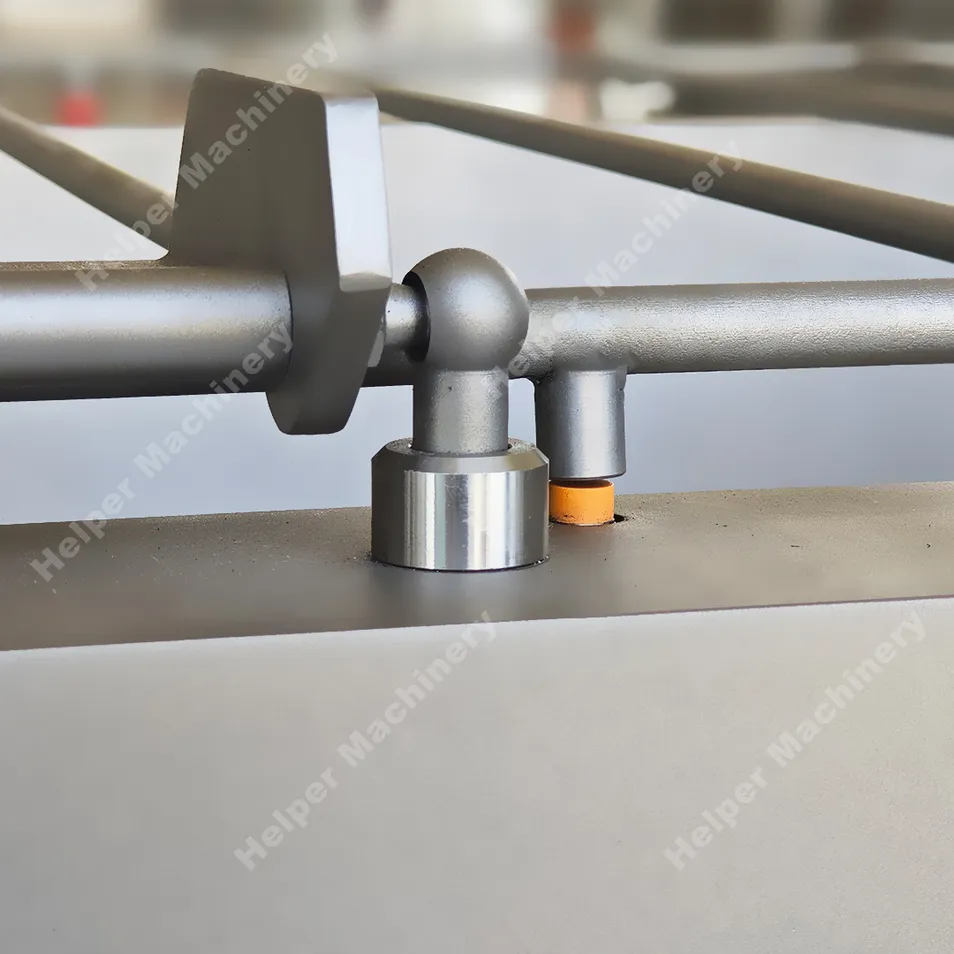

CE certified. Features a protective cover and shutdown detection function to ensure operator safety during operation.

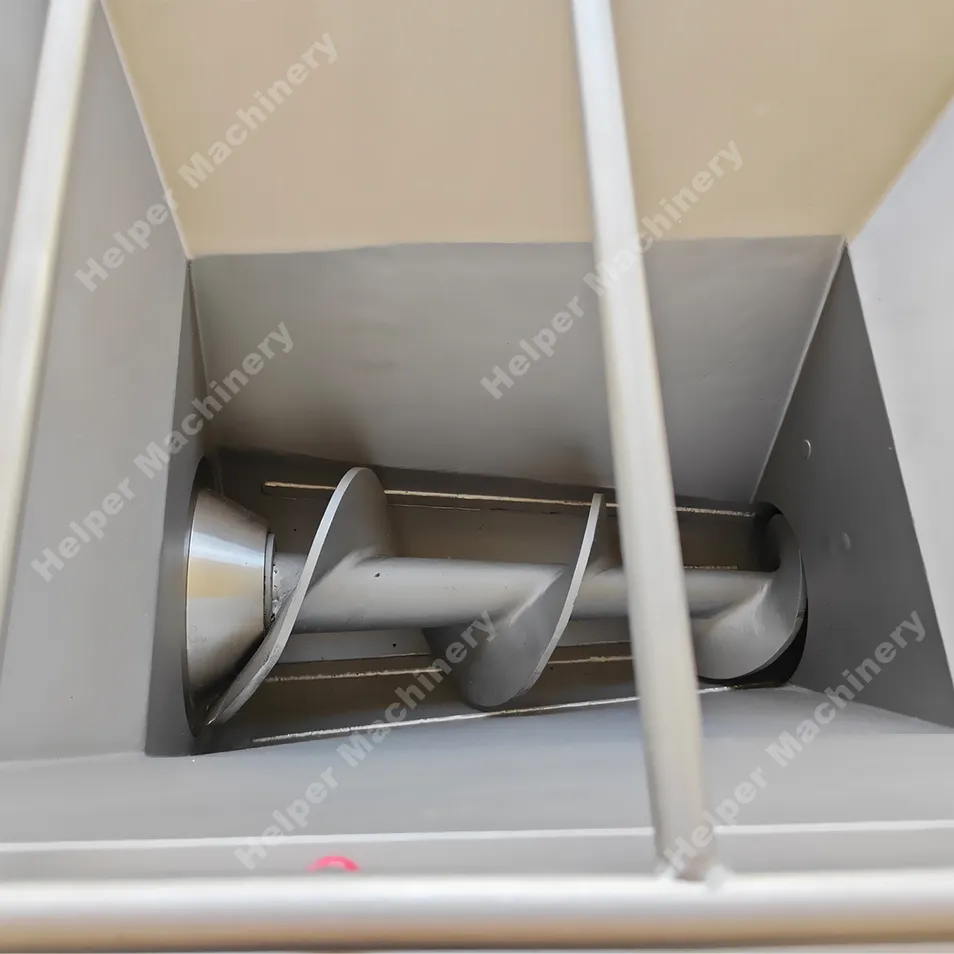

Double-Auger Structure

The double auger structure with separate speeds allows for free combination based on material state. Its design prevents oil leakage and minimizes extrusion, ensuring clear edges and low temperature rise of the meat particles.

Specification Table
Model Capacity Power Speed Weight Dimension
JR-D140 2000-3000kg/h 14kw 170/260rpm 850kg 1185×900×1450mm
Service & Certifications
  • 12 months comprehensive warranty.
  • 24/7 after-sales service availability.
  • 12-hour rapid response time.
  • Remote and on-site technical support.
  • Lifetime equipment maintenance service.
Certifications

ISO9001:2015 | CE | UL | NRTL Certified

Production Capability

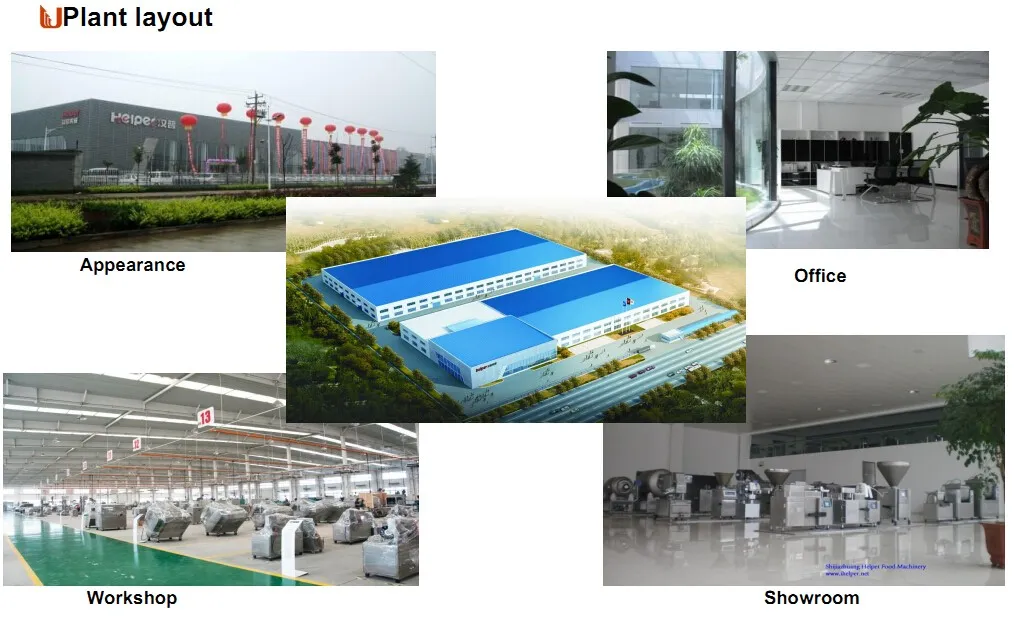

Factory Overview

With over 30 years of experience since 1986, the manufacturing facility employs more than 300 workers and maintains high-quality standards through ISO9001:2008 management. Most products carry international CE and UL certifications, reflecting professional expertise in the food machinery industry.

Frequently Asked Questions
Q: Can this machine process frozen meat blocks without thawing?
A: Yes, it is specifically designed to mince unthawed meat blocks directly, which helps maintain the nutrition and freshness of the meat.
Q: What is the production capacity of the JR-D140 model?
A: The machine has a capacity of 2000-3000 kg per hour, making it suitable for industrial-scale food processing.
Q: What safety features are included for the operator?
A: The meat grinder is CE certified and equipped with a protective cover and an automatic shutdown detection function for maximum safety.
Q: Are different output sizes available?
A: Yes, the discharge port supports various orifice plates ranging from φ6mm to φ35mm, and customized specifications are accepted.
Q: What kind of after-sales support do you offer?
A: We provide a 12-month warranty, 24/7 service availability, and a 12-hour response time for any technical inquiries or maintenance needs.
Q: Is the machine made of food-grade materials?
A: Absolutely. The machine is constructed using 304 Stainless Steel, ensuring it meets strict food industry hygiene and durability standards.
