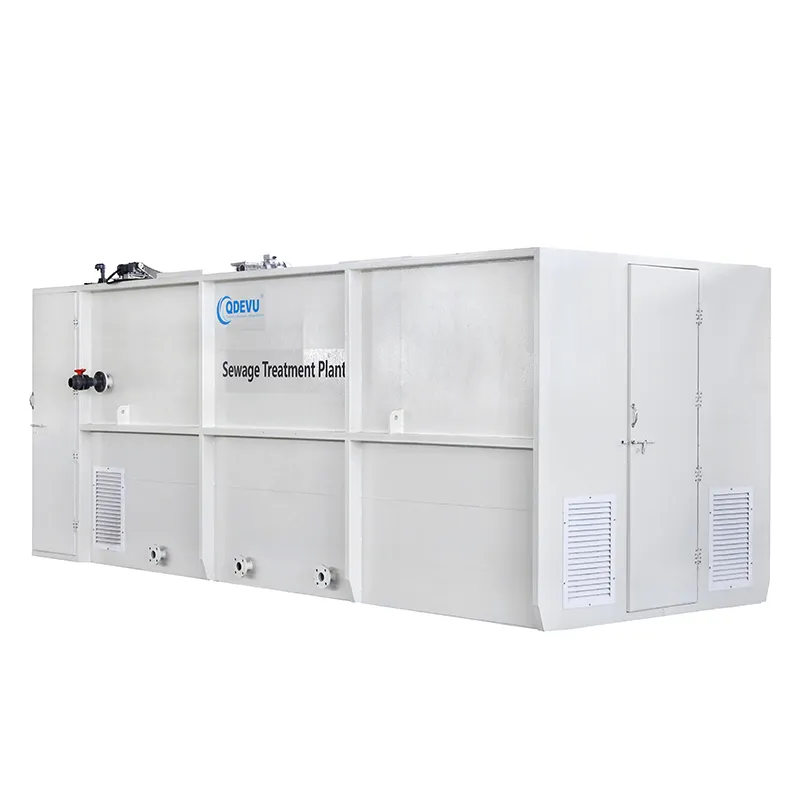

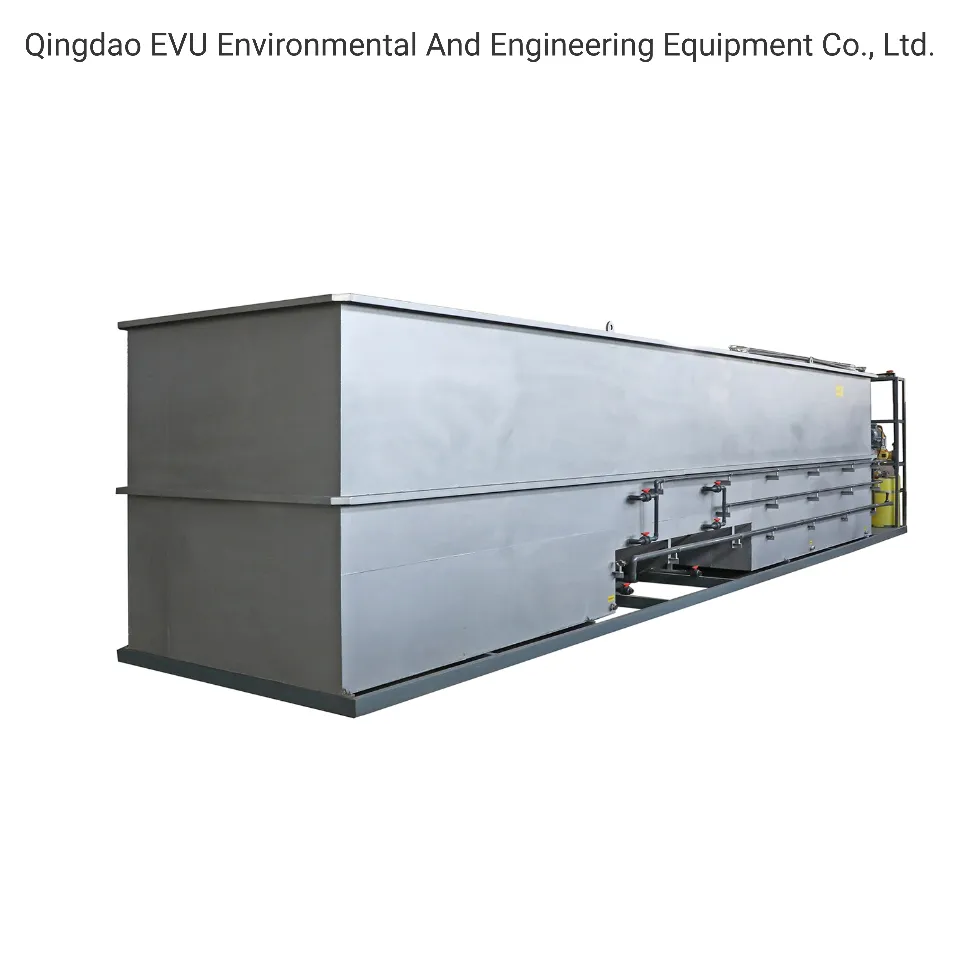

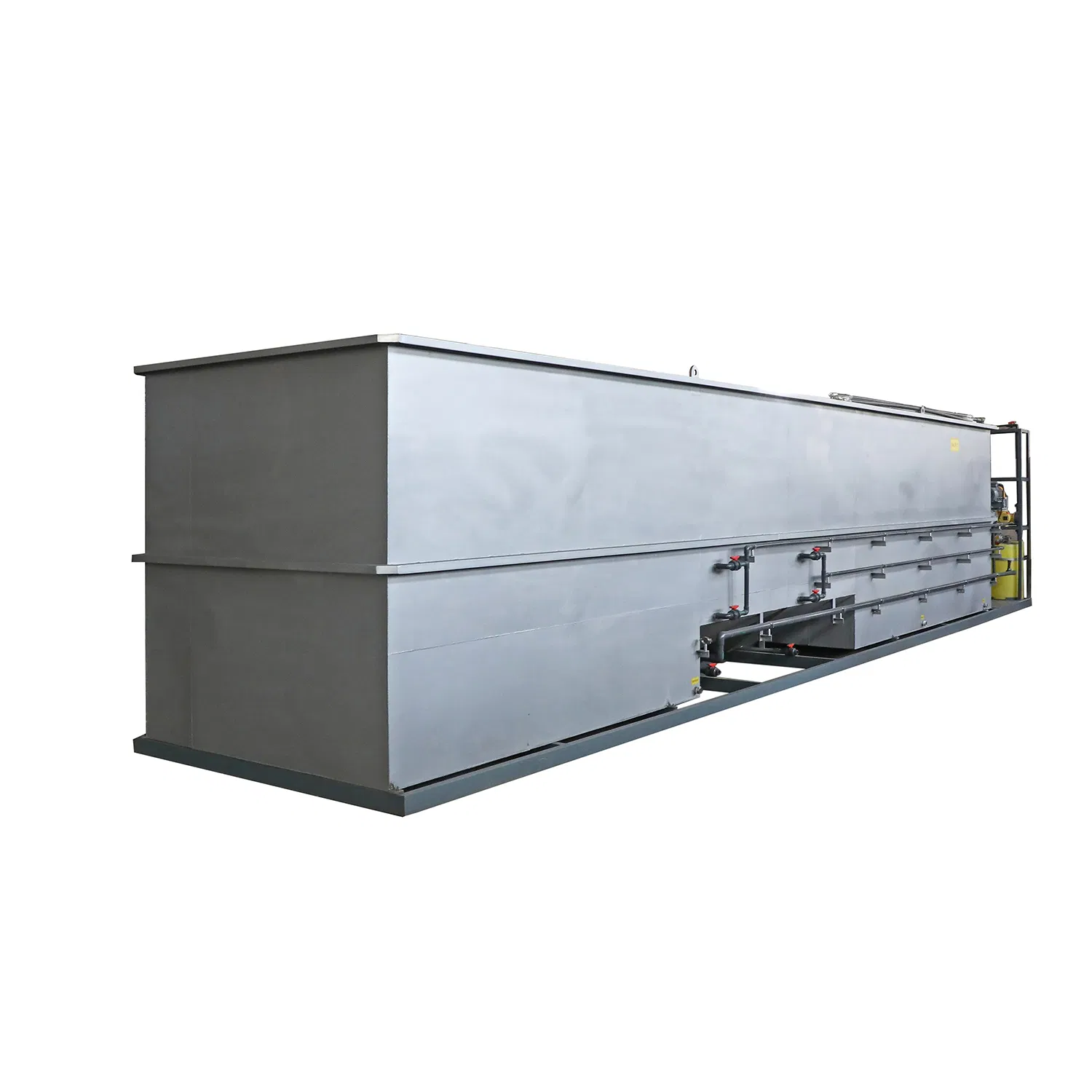

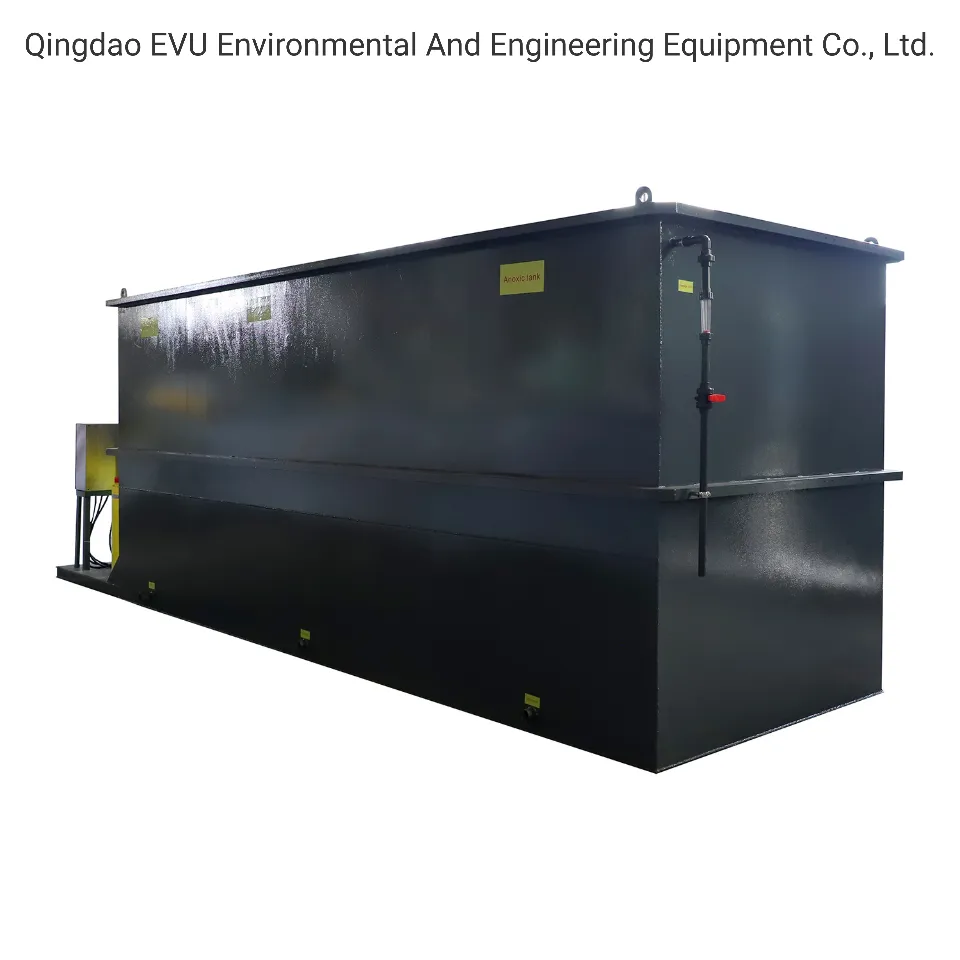

Principle of Work: The integrated sewage treatment equipment eliminates organic matter pollutants and ammonia nitrogen primarily through the AO biological treatment process. In the A-level pond, microorganisms under anoxic conditions decompose organic nitrogen into NH3-N. In the O-level pond, good oxygen microorganisms further decompose organic matter into CO2 and H2O, while nitrifying bacteria transform NH3-N into NO2-N and NO3-N, effectively eliminating eutrophication pollution.
Hotels, restaurants, nursing homes, hospitals, residential areas, villages, stations, airports, port terminals, ships, factories, mines, tourist spots, and various industrial organic wastewater treatment.
| Model | QDCK1 | QDCK3 | QDCK5 | QDCK10 | QDCK20 | QDCK30 | QDCK50 | |
|---|---|---|---|---|---|---|---|---|
| Process load (m³/h) | 1 | 3 | 5 | 10 | 20 | 30 | 50 | |
| Air blower | Wind Amount (m³/min) | 0.31 | 0.67 | 1.02 | 2.5 | 4.11 | 4.11×2 | 4.11×3 |
| Wind pressure | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | |
| Power (KW) | 0.55 | 1.5 | 1.5 | 3.7 | 5.5 | 5.5×2 | 5.5×3 | |
| Water pump | Lifting (m) | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Power (KW) | 0.55 | 0.55 | 0.75 | 0.75 | 1.5 | 2.2 | 5.5 | |
| Area (m²) | 6 | 14 | 19 | 39 | 75 | 113 | 168 | |
1. Thirteen years experience in waste treatment facilities.
2. Cooperating customers all over the world.
3. Commitment to technological development and pollution remediation.
We are dedicated to providing wholeheartedly customer services and building a better world through advanced environmental technology.
