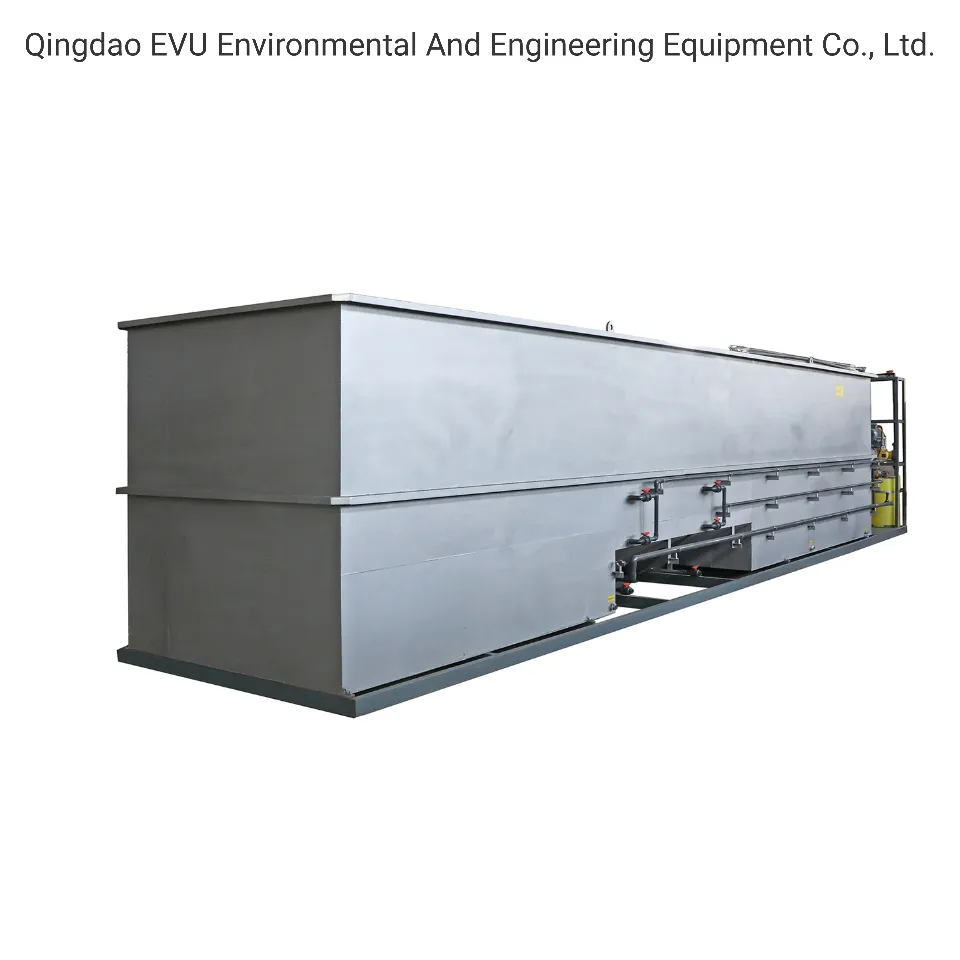

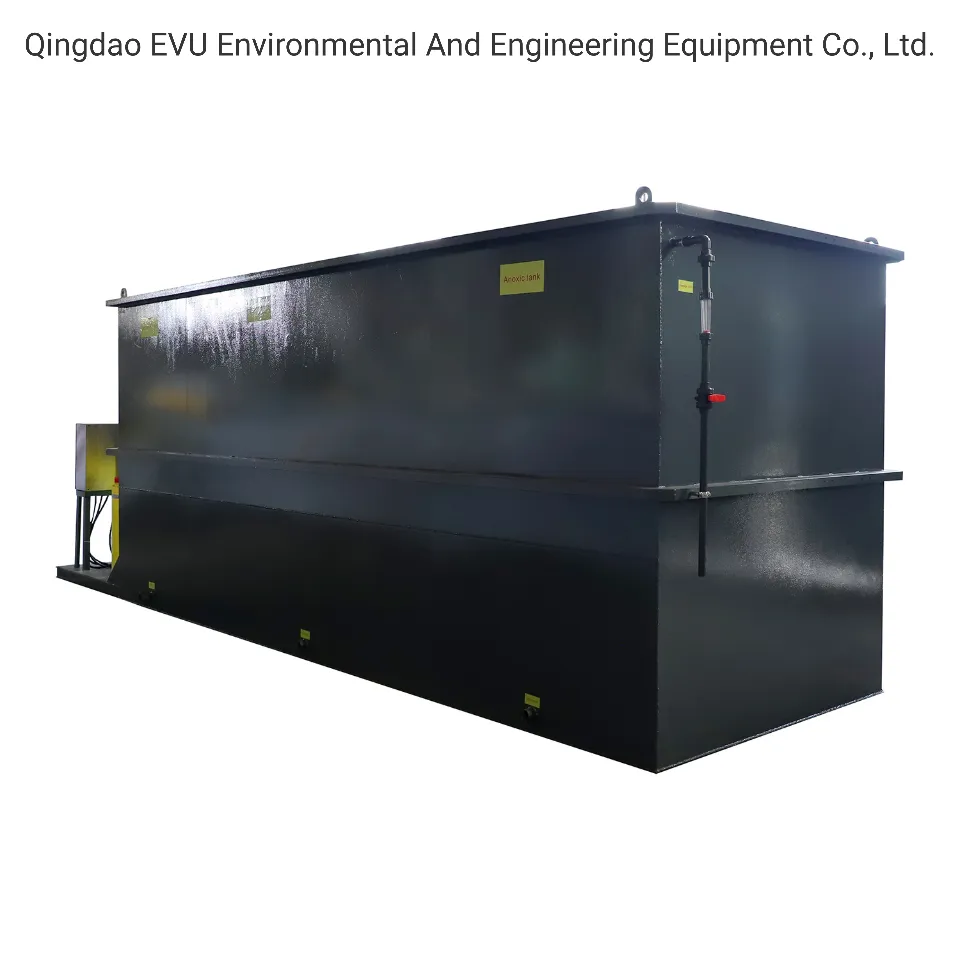

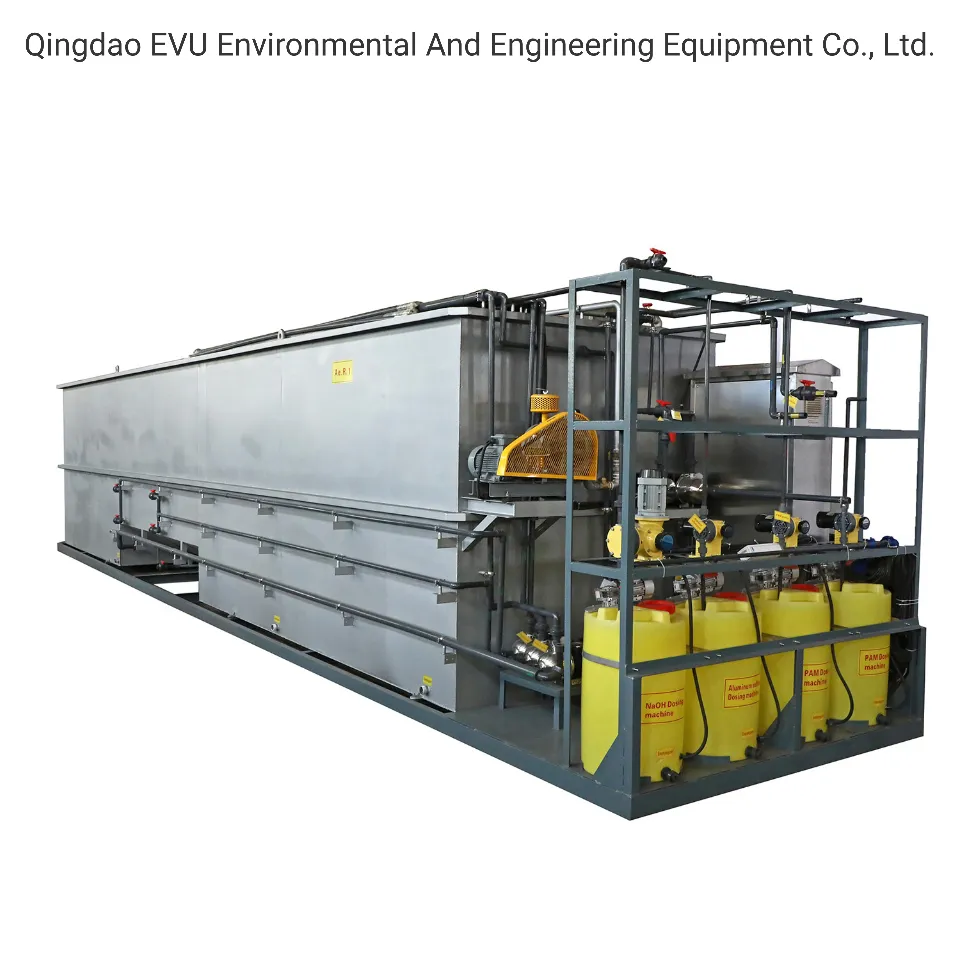

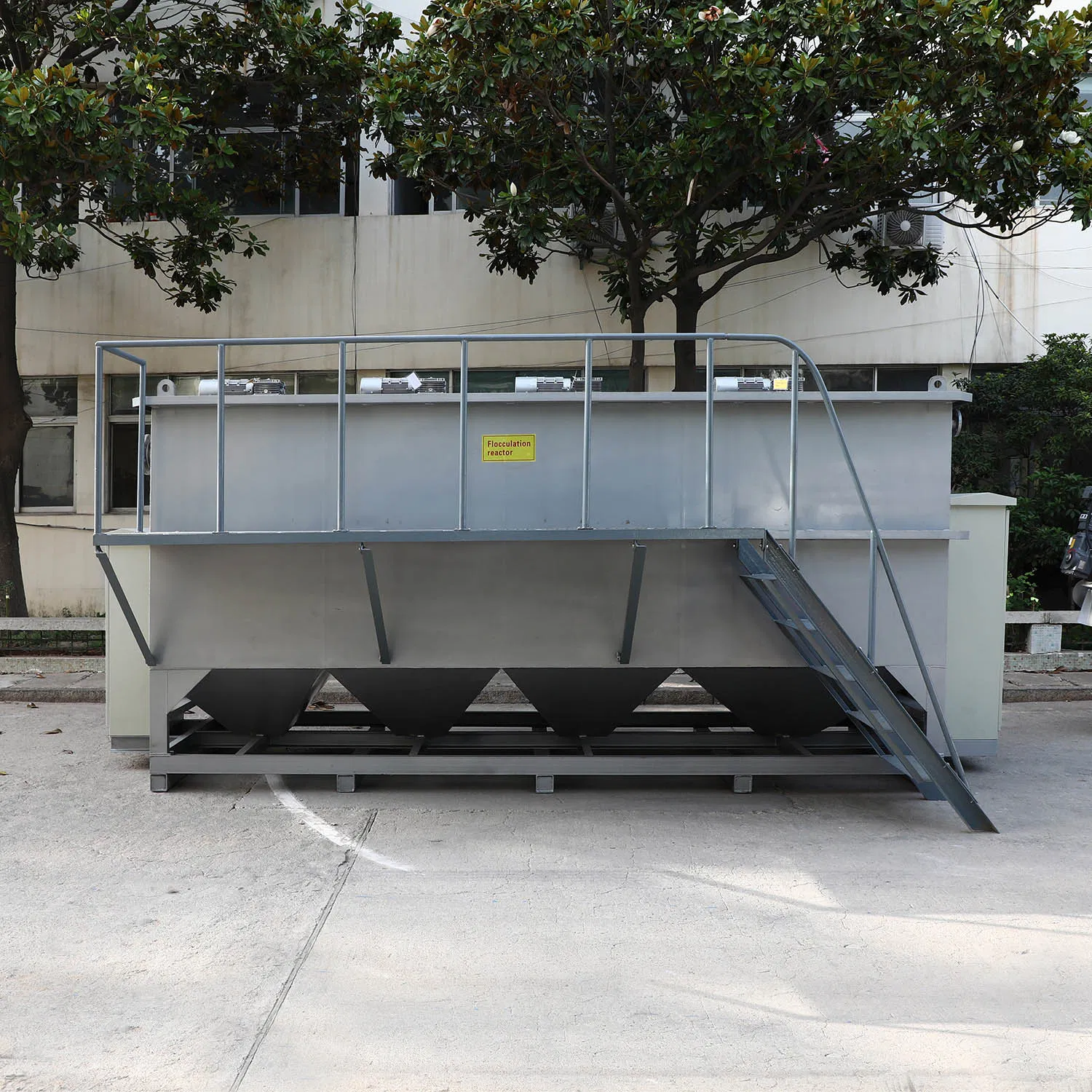

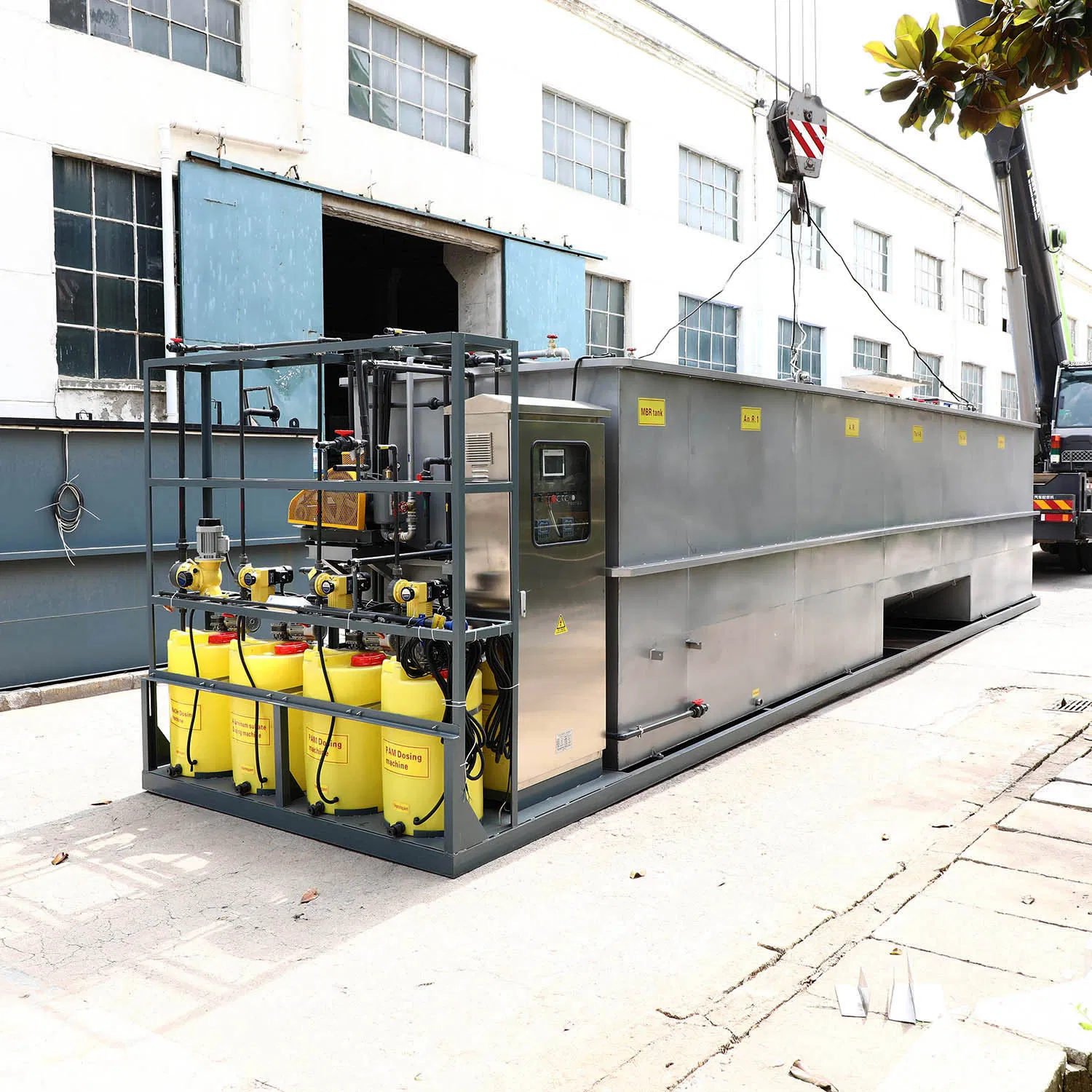

The integrated sewage treatment equipment eliminates organic matter pollutants and ammonia nitrogen primarily through the AO biological treatment process. Because the sewage organic matter density is very high at the A-level stage, microorganisms operate under anoxic conditions to decompose organic nitrogen into NH3-N. This process reduces the organic load for the subsequent O-level oxygen pond, completing denitrification and removing eutrophication pollution.
In the O-level stage, the reduced organic matter density allows for further oxygenolysis and smooth nitrification. The good oxygen microorganisms decompose organic matter into CO2 and H2O, while nitrifying bacteria transform NH3-N into NO2-N and NO3-N, ensuring complete denitrogenation pollution control.
Suitable for hotels, restaurants, nursing homes, hospitals, residential areas, villages, stations, airports, ports, terminals, ships, factories, mines, tourist spots, and landscapes, as well as various industrial organic wastewater.
| Model | QDCK1 | QDCK2 | QDCK3 | QDCK5 | QDCK10 | QDCK20 | QDCK30 | QDCK50 | |
|---|---|---|---|---|---|---|---|---|---|
| Process load (m³/h) | 1 | 2 | 3 | 5 | 10 | 20 | 30 | 50 | |
| Air blower | Wind (m³/min) | 0.31 | 0.59 | 0.67 | 1.02 | 2.5 | 4.11 | 4.11×2 | 4.11×3 |
| Power (KW) | 0.55 | 0.75 | 1.5 | 1.5 | 3.7 | 5.5 | 5.5×2 | 5.5×3 | |
| Water pump | Lifting (m) | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Power (KW) | 0.55 | 0.55 | 0.55 | 0.75 | 0.75 | 1.5 | 2.2 | 5.5 | |
| Area (m²) | 6 | 10 | 14 | 19 | 39 | 75 | 113 | 168 | |
