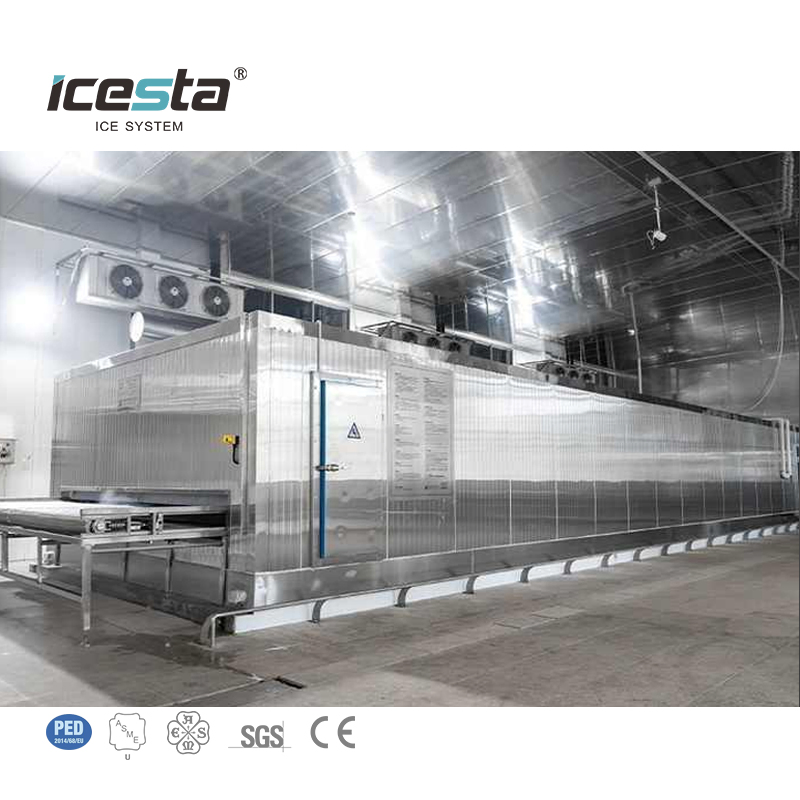

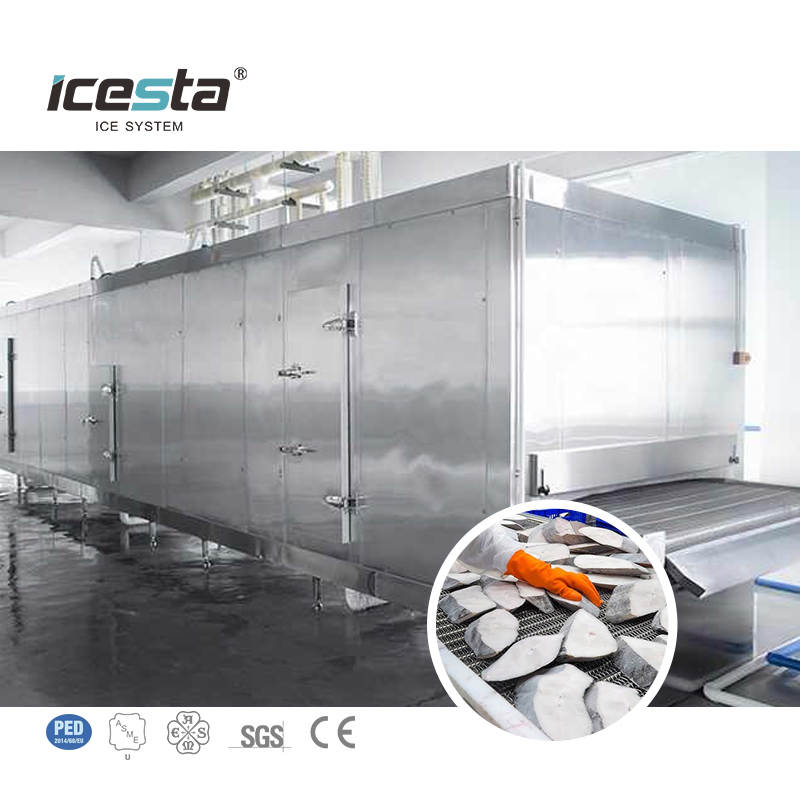

Icesta Automatic High Reliable Long Service Life Stainless Steel Quick Freezing Tunnel Freezer for Fish Meat Poultry

1 / 5

Icesta Automatic High Reliable Long Service Life Stainless Steel Quick Freezing Tunnel Freezer for Fish Meat Poultry

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Voltage:380V

Type:Tunnel Type Quick Freezer

Freezing Time:4-40mins Application

Cold Consumption:55kw

Capacity:200kg to 10000kg/H

Refrigerant:R404A/R22/R717

Control Panel:PLC Touch Screen

Material:Stainless Steel

Certification:CE/ISO9001

Transport:Wooden Box

Product Introduction

The tunnel freezer employs high-speed air jets that target both the top and bottom of food products, effectively eliminating the insulating air layer around the surface. By removing this heat barrier, the product freezes much faster, achieving freezing speeds comparable to cryogenic systems while maintaining mechanical freezer efficiency.

Technical Data Table

Specification	Details
Product Name	Tunnel freezer
Insulated Enclosure	PIR/PU, double sides stainless steel panel
Control Panel	PLC touch screen, SS panel
Refrigerant	Freo, Ammonia, CO2
Evaporator	Al/SS tube, aluminum fin, variable fin pitch

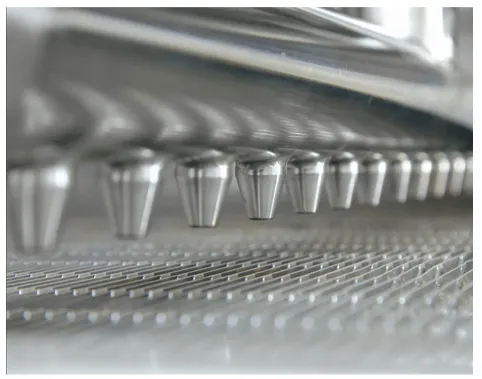

Defrost	Water/hot /ADF optional
Freezing/Cooling Time	Stepless variable frequency adjustable

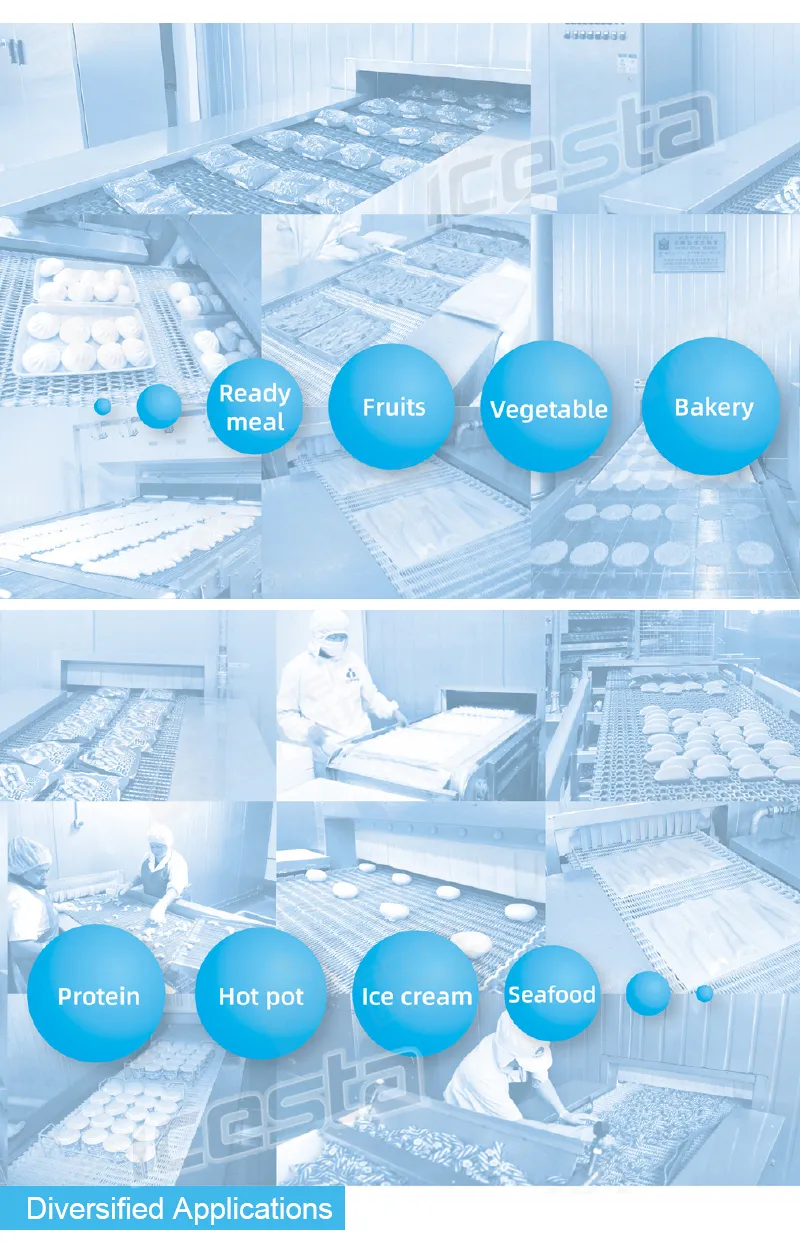

Wide Applications

Food Processing: Meat cuts (pork, beef, mutton), aquatic products (shrimp/fish/shellfish), frozen convenience foods, ice cream, baking ingredients.
Cold Chain Logistics: Central kitchen pre-made food freezing, e-commerce fresh food storage, large cold storage pre-cooling.
Pharmaceuticals & Chemicals: Low-temperature storage of biological preparations and chemical raw materials.

Product Advantages

High-Efficiency Continuous Production: 24-hour uninterrupted operation significantly improves refrigeration efficiency and reduces labor costs.
Uniform Freezing Quality: Stable temperature field preserves taste and nutrition, preventing cell damage through consistent freezing.
Energy Optimization: VFD technology achieves 15-20% energy savings compared to conventional systems.
Flexible Customization: Adjustable conveyor belt type, tunnel width, and airflow direction based on specific material needs.
Easy Maintenance: Modular design and detachable evaporator comply with HACCP food safety standards.

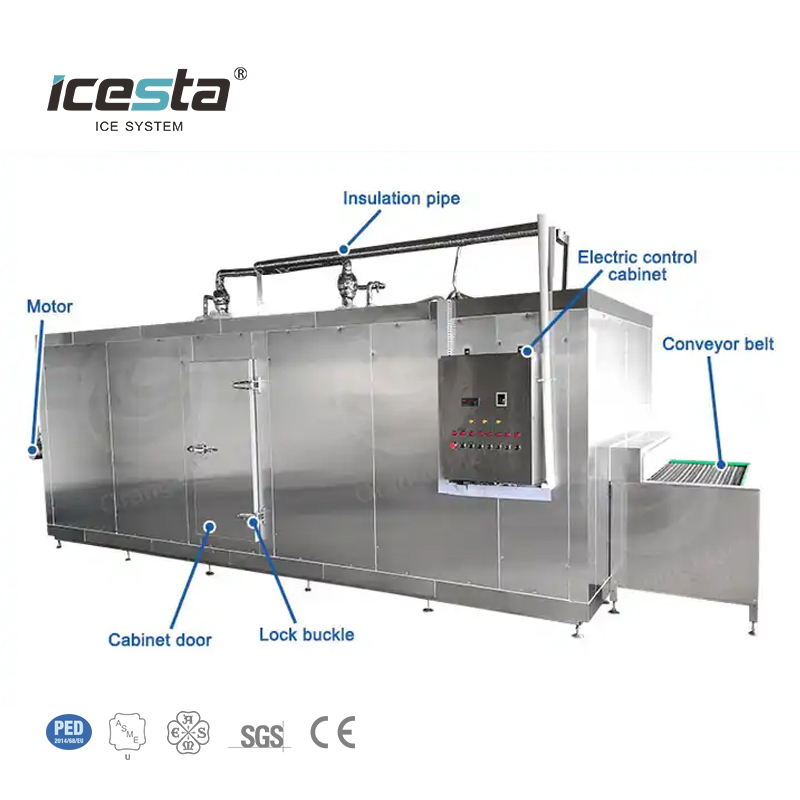

Detailed Component Display

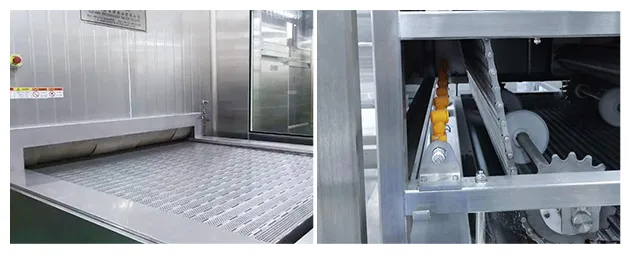

1. Structural Design

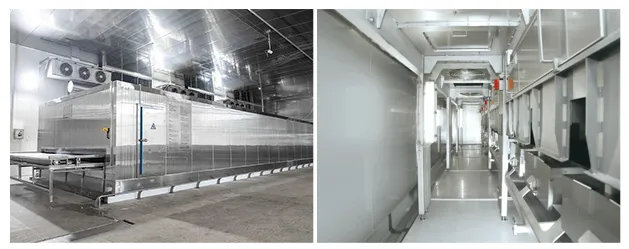

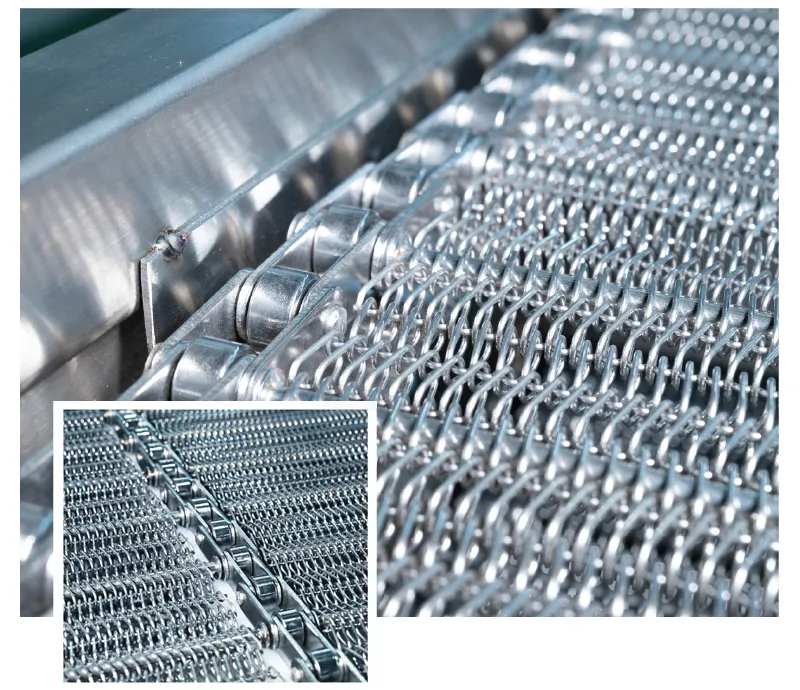

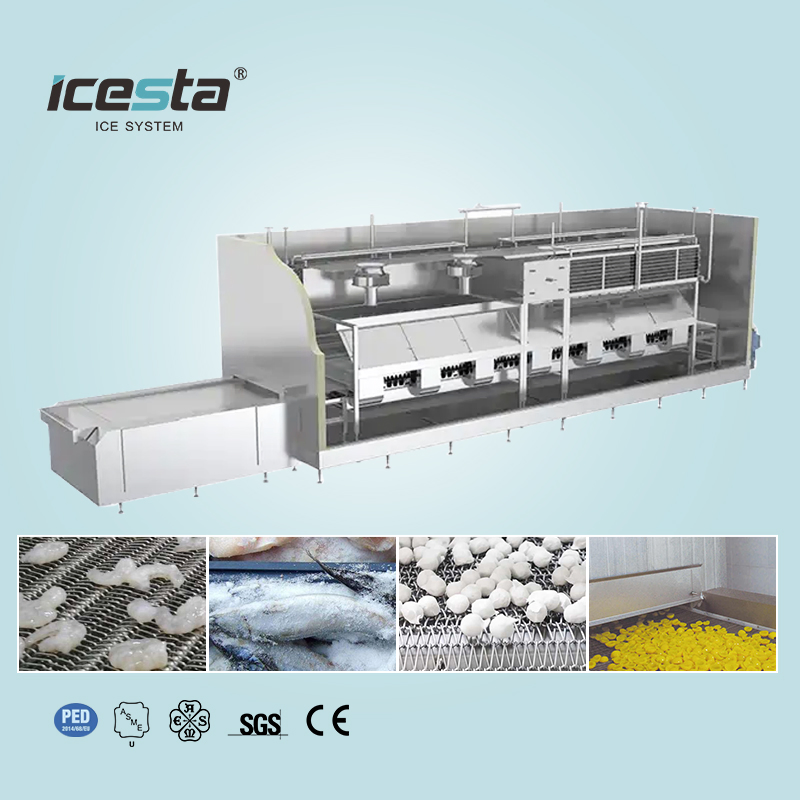

Main body features a long stainless steel tunnel chamber with food-grade mesh belt/chain plate support.

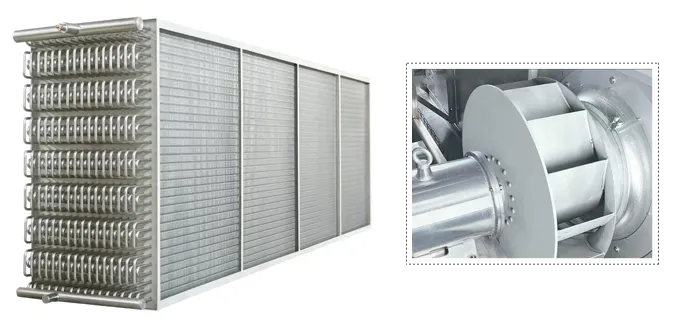

2. Evaporator and Cooling Technology

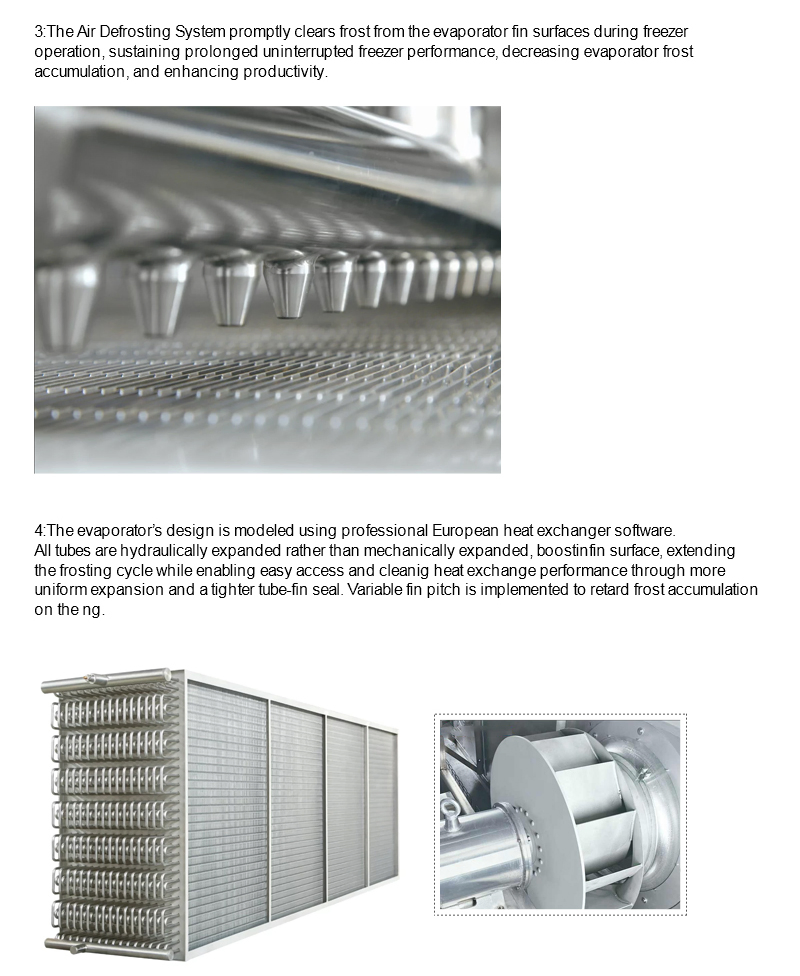

Hydraulically expanded tubes boost heat exchange performance. Variable fin pitch design retards frost accumulation.

3. Intelligent Control System

H-M Interactive Intelligent Control with PLC Touch-Screen supporting real-time monitoring, fault alarms, and pre-set freezing programs.

Quality & Certification

Frequently Asked Questions

What information is needed for a customized quotation?

We need to know the water source (fresh/salt), installation location, ambient temperature, power supply details, and the specific application of the ice or frozen product.

How is the installation and commissioning handled?

Customers can install equipment using our manuals and live video support, or we can arrange professional engineers for site supervision and final commissioning.

What is the standard warranty period?

Our equipment comes with a 1-year warranty from the Bill of Lading date. During this period, we provide free spare parts for any failures due to our responsibility.

Do you provide long-term technical support?

Yes, we provide permanent technical consultation and support throughout the entire life cycle of the machines, including 24/7 phone and email assistance.

What is the procedure for a failure claim?

Please provide a detailed written description and relevant photos/videos. Our engineering team will check the diagnostic report and offer solutions within 24 hours.

Are the materials used food-grade safe?

Absolutely. All components in contact with food, including the outer shell and conveyor belts, are made of SUS304 stainless steel or food-grade materials complying with hygiene standards.
