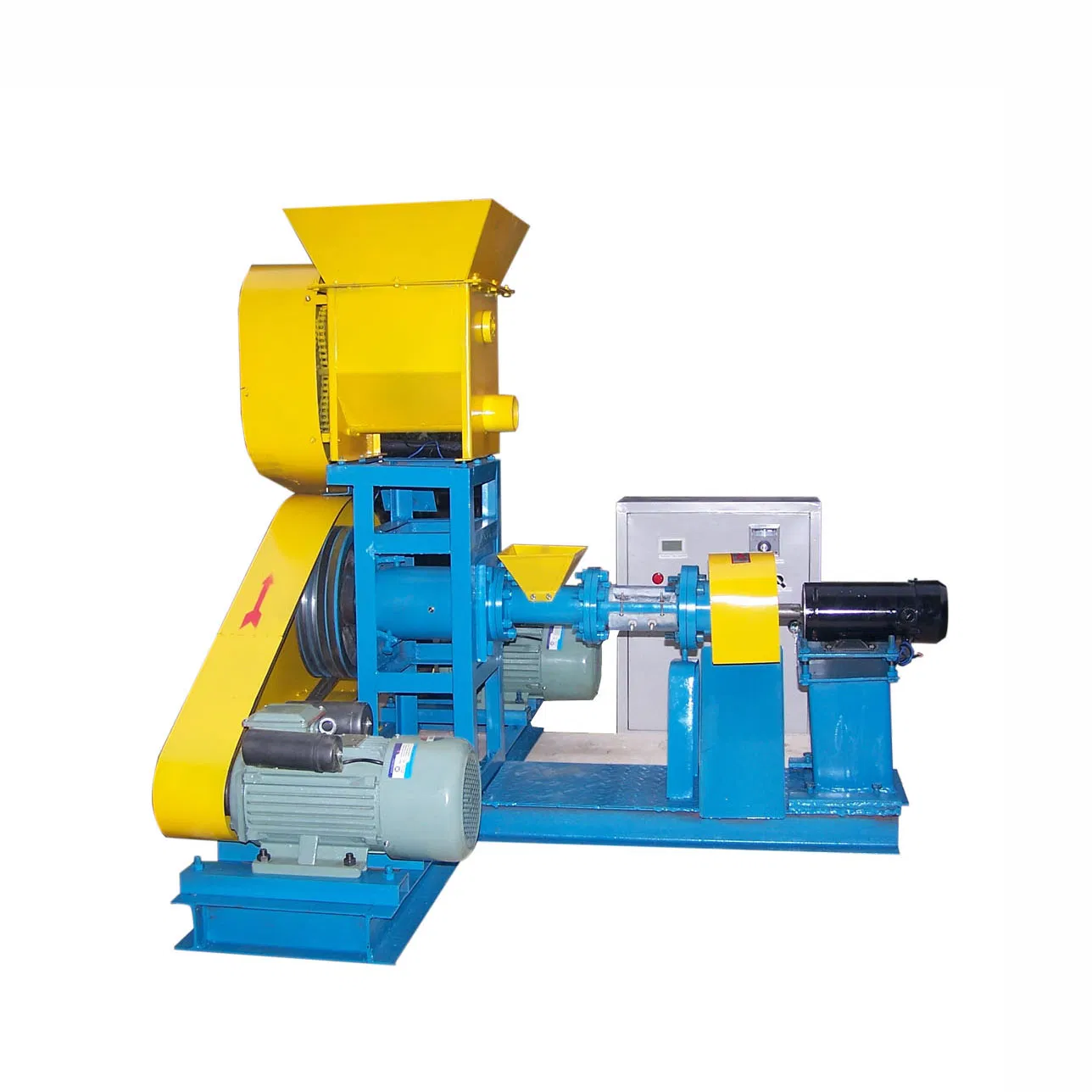

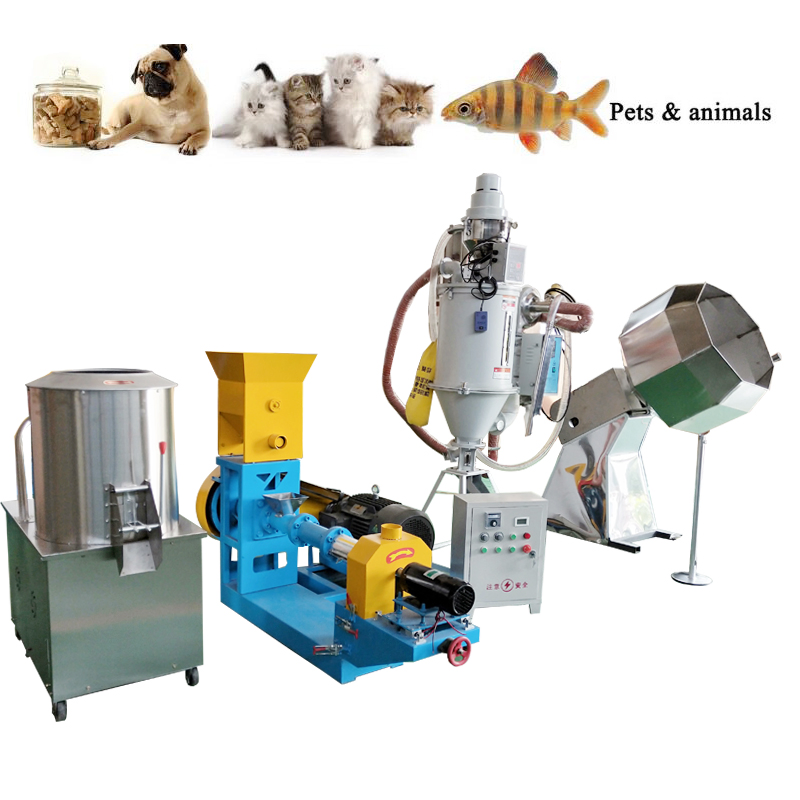

High Protein Hills Science Diet Dog Food Croquette Pet Treat Machine Extrusion Equipment Machinery
High Protein Hills Science Diet Dog Food Croquette Pet Treat Machine Extrusion Equipment Machinery
High Protein Hills Science Diet Dog Food Croquette Pet Treat Machine Extrusion Equipment Machinery
High Protein Hills Science Diet Dog Food Croquette Pet Treat Machine Extrusion Equipment Machinery
High Protein Hills Science Diet Dog Food Croquette Pet Treat Machine Extrusion Equipment Machinery
1 / 5
High Protein Hills Science Diet Dog Food Croquette Pet Treat Machine Extrusion Equipment Machinery
High Protein Hills Science Diet Dog Food Croquette Pet Treat Machine Extrusion Equipment Machinery
High Protein Hills Science Diet Dog Food Croquette Pet Treat Machine Extrusion Equipment Machinery
High Protein Hills Science Diet Dog Food Croquette Pet Treat Machine Extrusion Equipment Machinery
High Protein Hills Science Diet Dog Food Croquette Pet Treat Machine Extrusion Equipment Machinery

High Protein Hills Science Diet Dog Food Croquette Pet Treat Machine Extrusion Equipment Machinery

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

ℹ️

Basic Specifications

Model NO.
WSJY-200
Processing Object
Animal-Derived Feed
Processing Technics
Crushing-before-Mixing
Grinding Type
Feed Hammer Mill
Pellet Mill Type
Screw Granulator
Expanding Method
Dry Expansion
Capacity
1800-2000kg/H
Power
132kw
Warranty
2 Years Guarantee
Material Shape
Powder
📦

Packaging & Delivery

Package Size
140.00cm * 103.00cm * 110.00cm
Gross Weight
260.000kg
Transport
Export Wooden Cases
Capacity
10 Sets Per Month
🚀

Product Description

Introducing the floating fish feed machine:

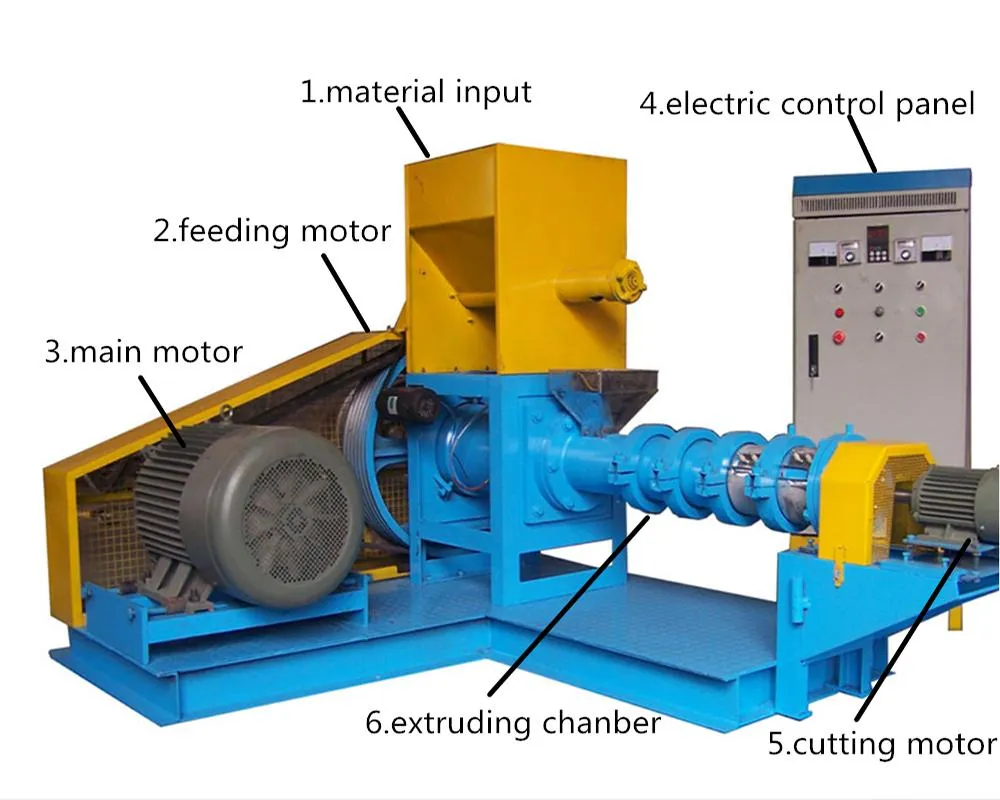

Feed Machine 1
Feed Machine 2

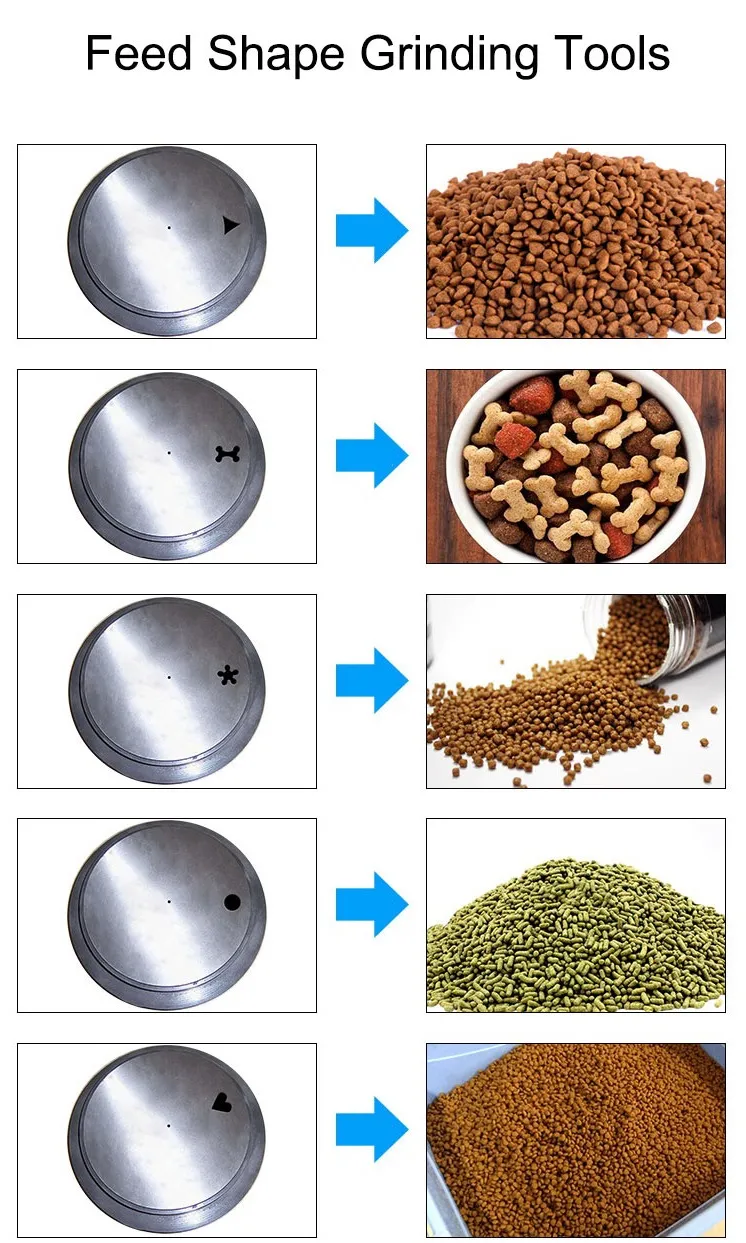

Feed Processing
  • ⭐Pellet feed extrusion equipment can produce a variety of flower shapes, and molds can be customized. Equipped with a variable frequency speed-adjustable rotary cutting device.
  • ⭐Suitable for multi-purpose pet, fish, shrimp puffed feed production. High market demand for commercialized scale production.
  • ⭐Uses corn, soybean, and animal scraps as raw materials. Particles float on water for more than 12 hours without sinking, reducing water pollution and fish diseases.
📊

Technical Parameters

Model WSJY-40 WSJY-60 WSJY-80 WSJY-120 WSJY-160 WSJY-200
Capacity (kg/h) 30-40 120-150 300-350 500-700 1200-1500 1800-2000
Pellet Dia (mm) 1-8 1-10 1-10 1-10 1-12 1-12
Main Power (kw) 5 15 22 55 90 132
Screw Dia (mm) 40 60 80 120 160 200
Cooking Degree >95% >95% >95% >95% >95% >95%
Weight (kg) 260 355 700 1700 3600 4300
✅

Equipment Advantages

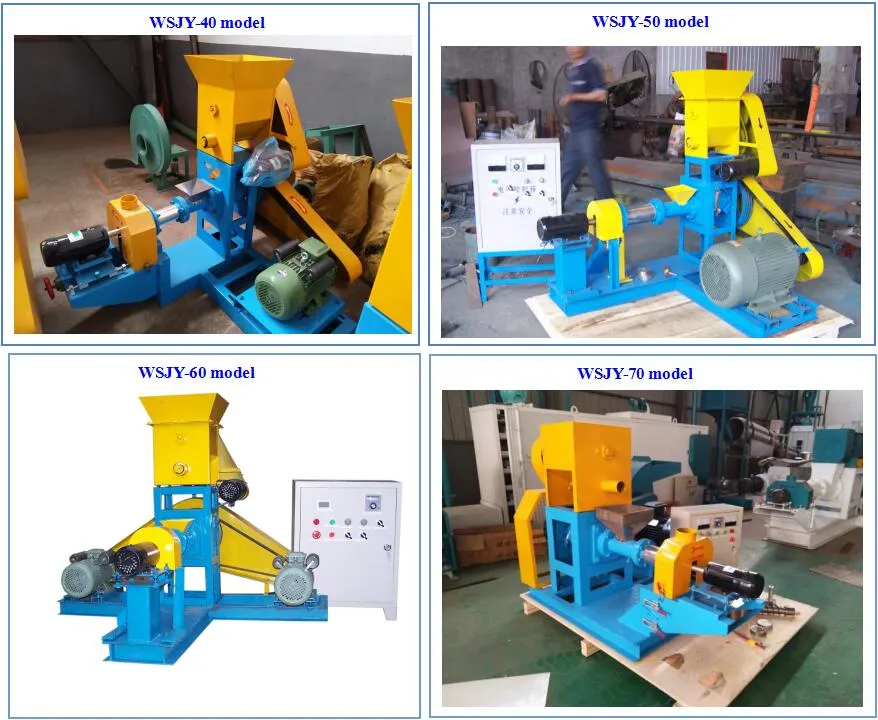

Advantage 1

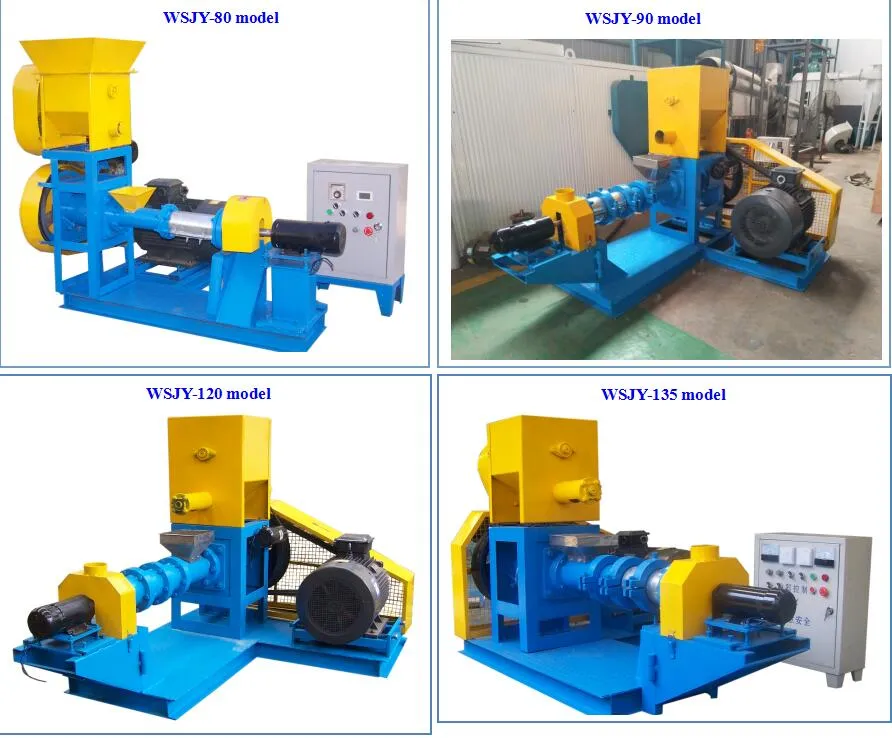

Advantage 2
  • 🔹 Precision Control: Built-in screw and extended screw sleeve for long-term cutting and adjustable temperature/torque.
  • 🔹 Versatility: Makes fresh meat dog food, high protein food, floating aquatic feed, and sinking shrimp/crab pellets.
  • 🔹 Advanced Cutting: Soft knife lamination structure for infinite speed change and precise length control.
  • 🔹 Durable Material: Screw and sleeve made of special wear-resistant and high-temperature-resistant alloy steel.
  • 🔹 Easy Maintenance: Simple structure, easy to assemble/disassemble, and templates are quick to replace for different apertures.

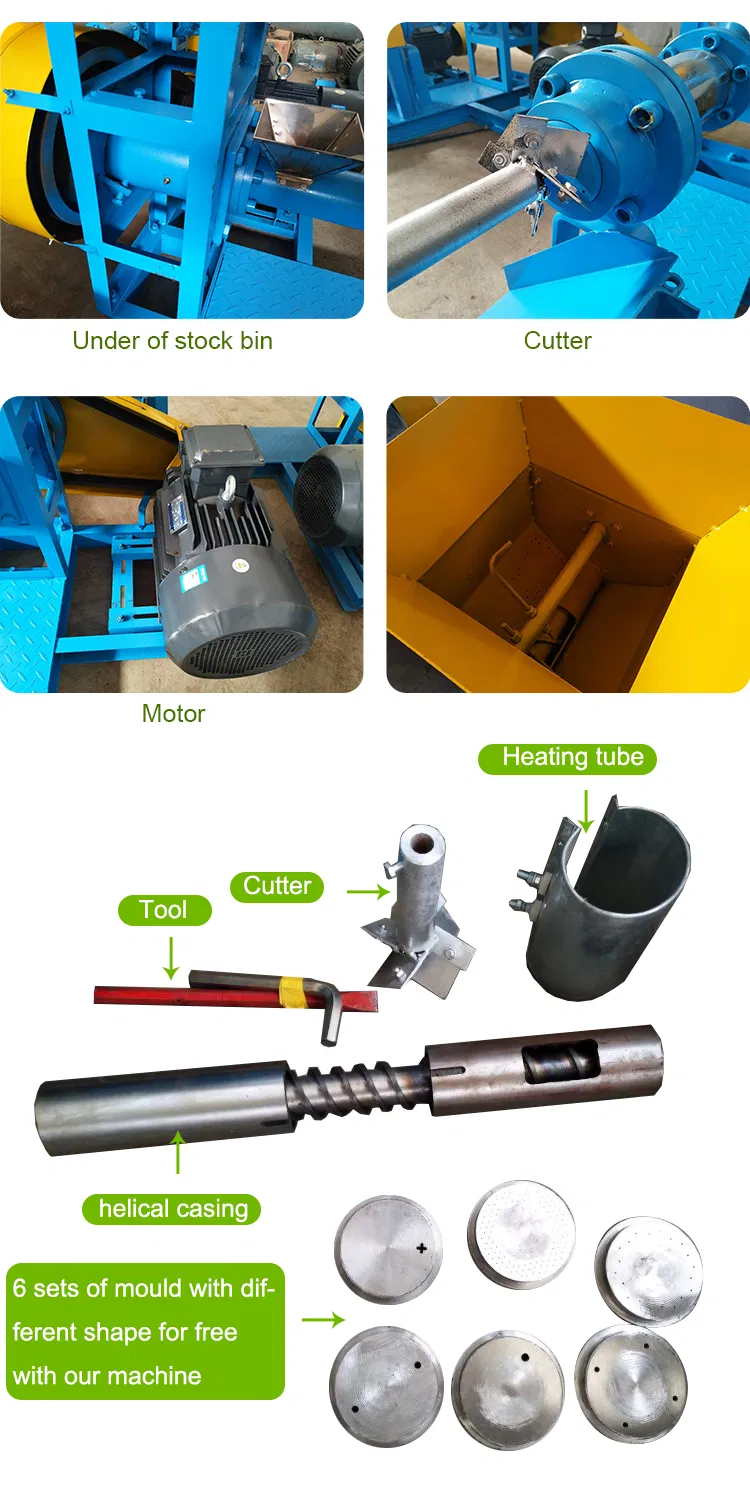

Machine Structure
📈

Advantages of Extruded Feed

1. Improved Palatability: Increased aroma stimulates animal appetite.
2. Higher Digestibility: Broken-chain structure of proteins and fats makes nutrients easier to absorb.
3. Water Quality Protection: Protein and starch matrix combination prevents feed loss in water.
4. Sterile Quality: High-temperature extrusion reduces bacteria and molds for healthier livestock.

Feed Sample 1
Feed Sample 2
Feed Sample 3
Extrusion Process 1
Extrusion Process 2
❓

Frequently Asked Questions

Q1: What is the maximum production capacity of this series?
The capacity ranges from 30kg/h for small models up to 2000kg/h for the WSJY-200 high-output industrial model.
Q2: How long can the produced fish feed float on the water?
The extruded pellets are designed to float on the water surface for more than 12 hours without sinking or dissolving, which helps prevent water pollution.
Q3: Can I produce different shapes of pet food with one machine?
Yes, the molds (discharging templates) are easily replaceable. We can customize mold shapes to produce various flower shapes or specific pellet designs based on your requirements.
Q4: What raw materials are suitable for this extruder?
Common raw materials include corn, soybean meal, bean cake, animal scraps, and other nutrient additives in powder form.
Q5: Is the machine suitable for producing both floating and sinking feed?
Yes, by adjusting the formula and the extrusion parameters, the machine can produce floating aquatic feed, sinking fish/shrimp feed, and various types of dry pet food.
Q6: What is the warranty period for the equipment?
The equipment comes with a 2-year guarantee to ensure reliable operation and peace of mind for our customers.
