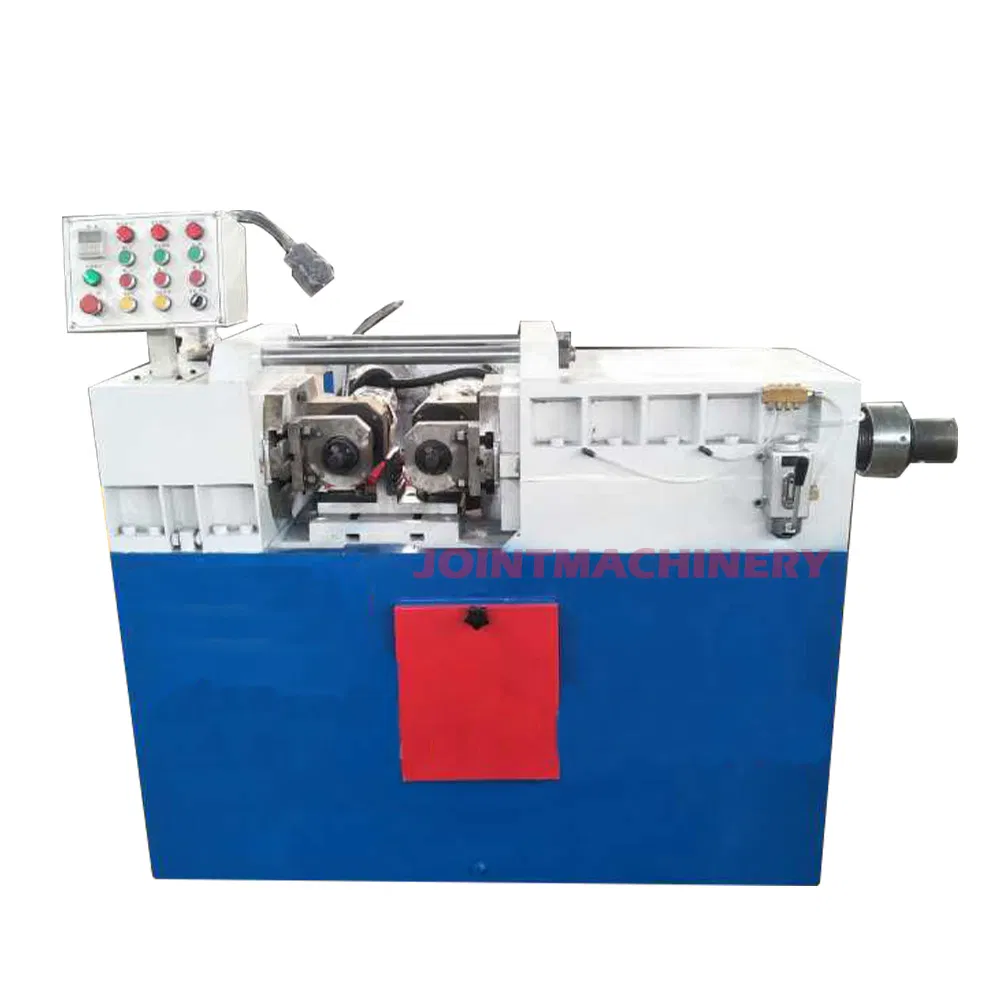

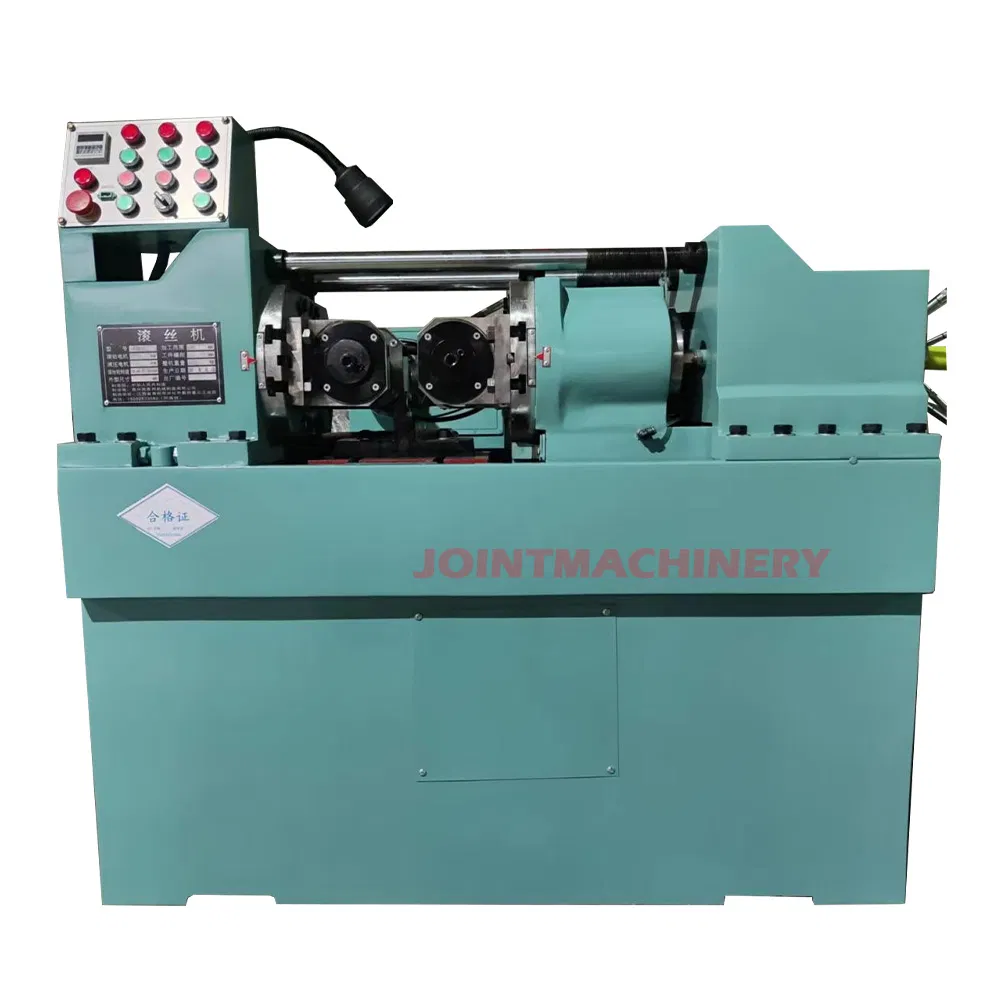

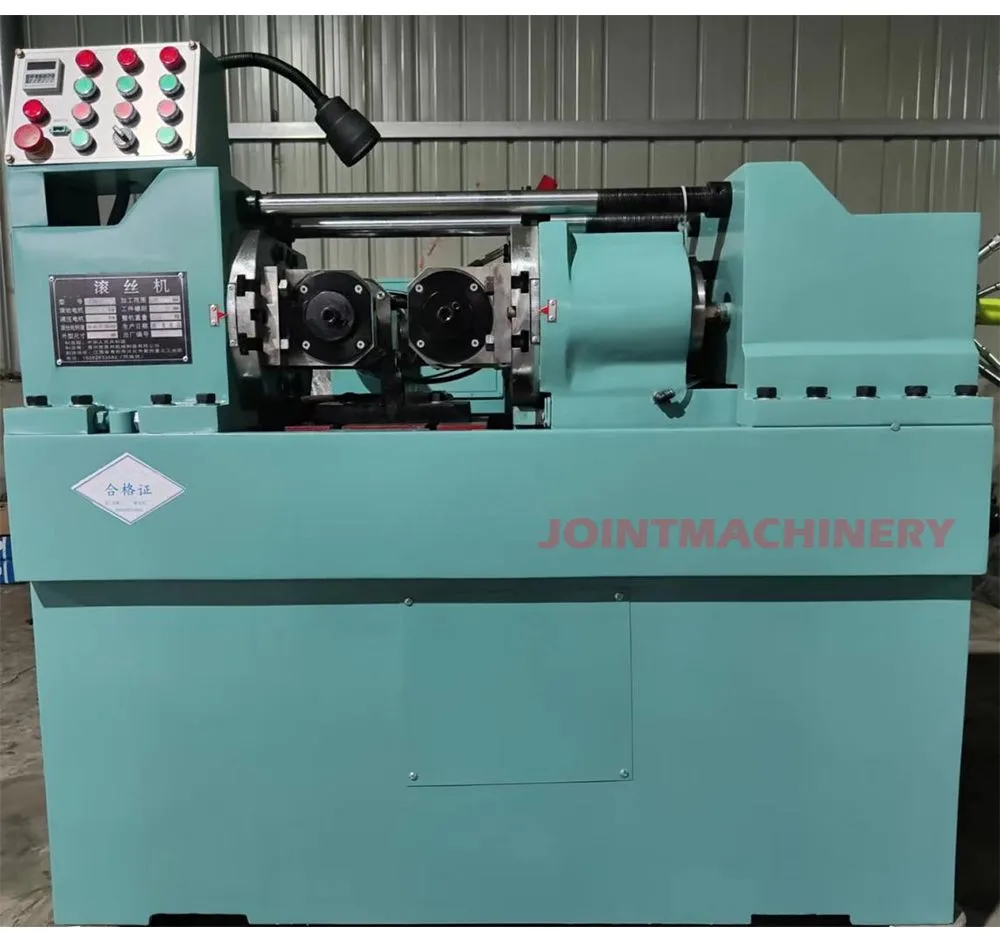

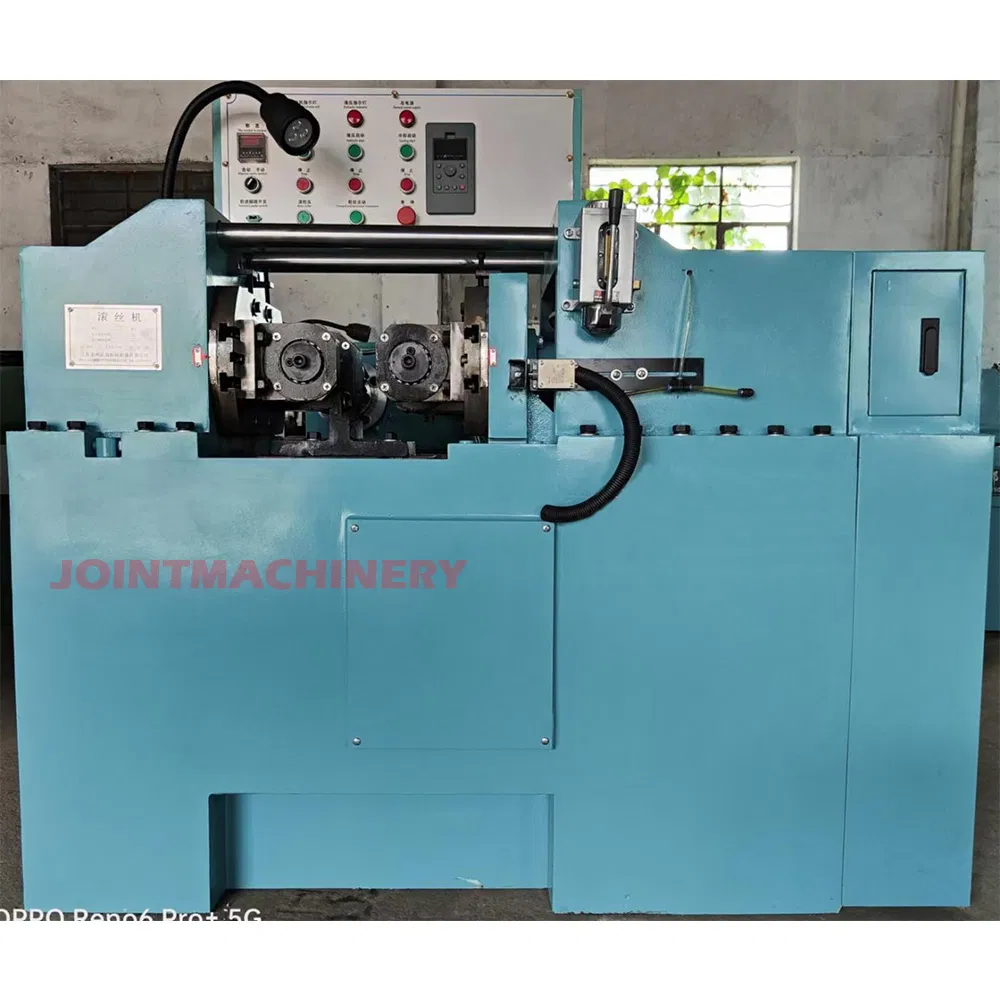

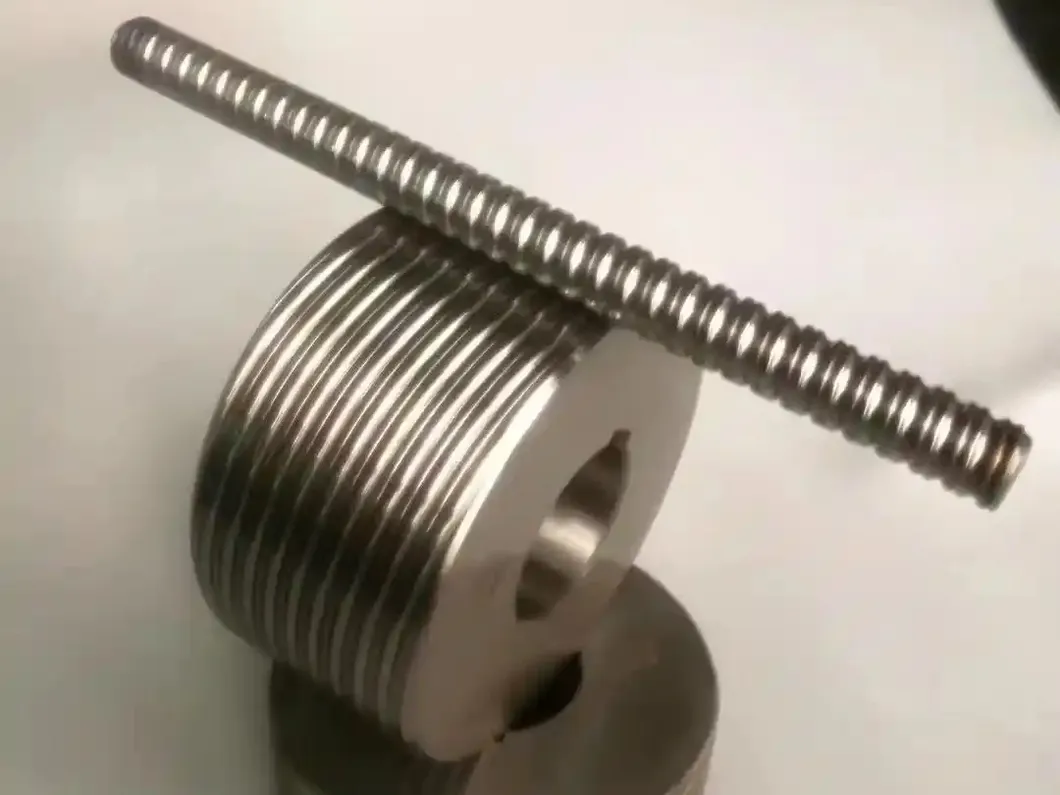

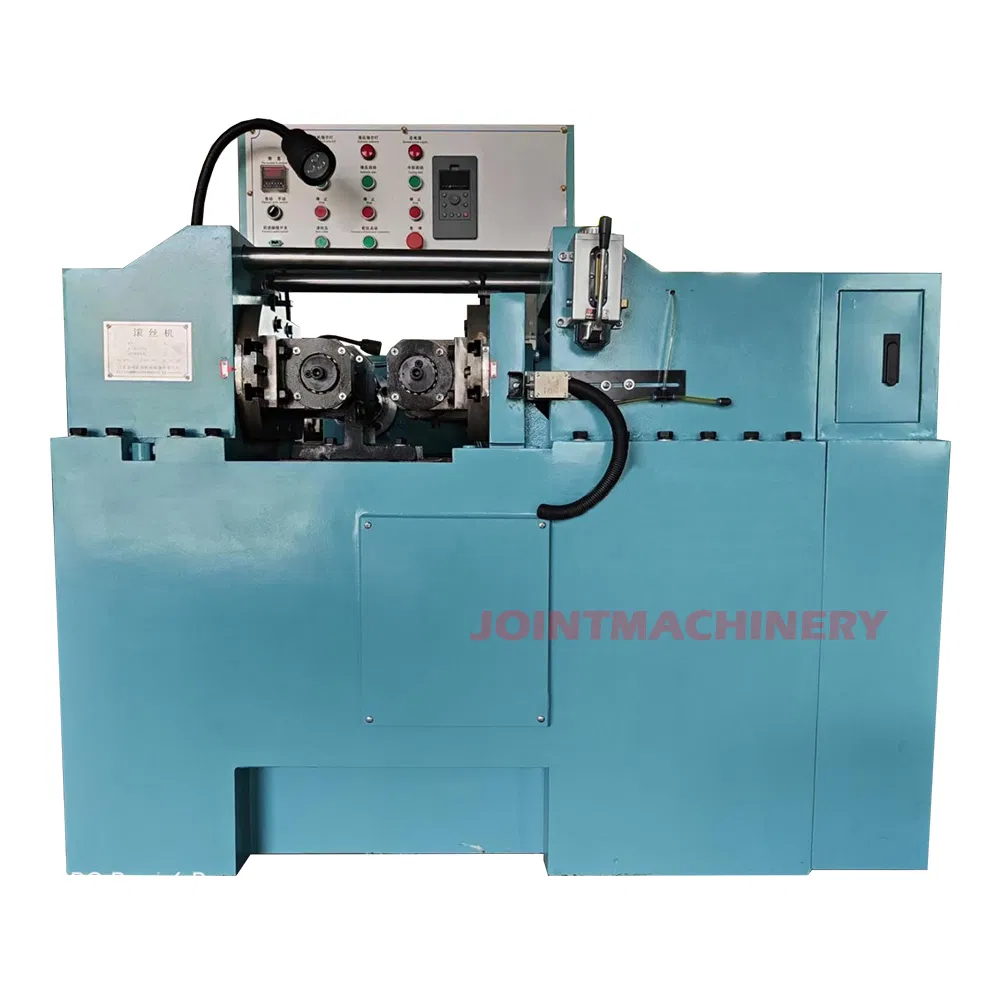

The thread rolling machine is a multifunctional cold extrusion forming machine tool. It can perform thread, straight and diagonal rolling on workpieces in a cold state within its pressure range. It is suitable for rolling spur gears, helical gears, and helical spline gears, as well as straightening and forming operations.
The machine body is made of HT250 integral casting. Fixed and movable roller press seats use QT450 integral casting. The transmission system uses large modulus spur and helical gears to ensure sufficient torque and stability.
1. Stable rolling force for continuous work.

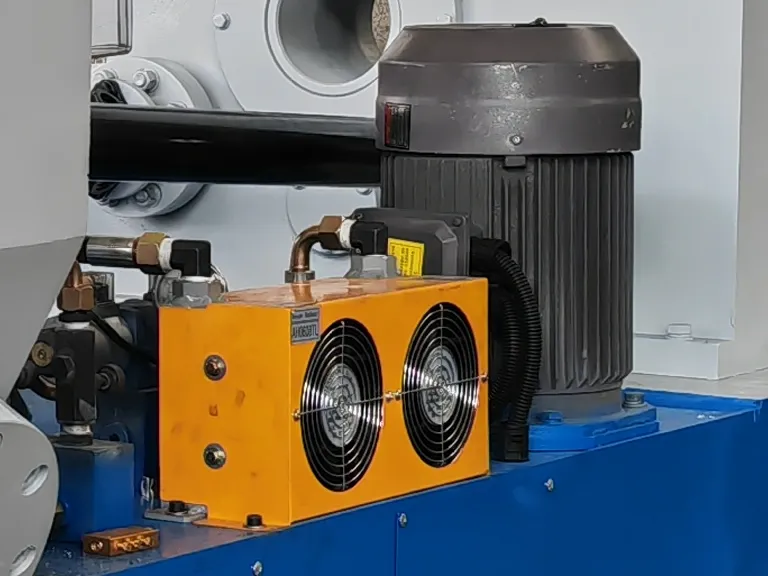

2. Parallel hydraulic cylinder layout ensures the rolling axes remain perfectly parallel under force.
3. Adjustable stroke with position mechanical locking function.

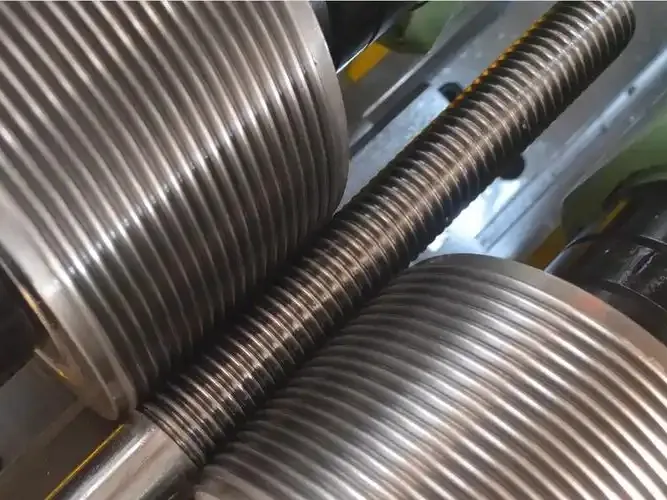

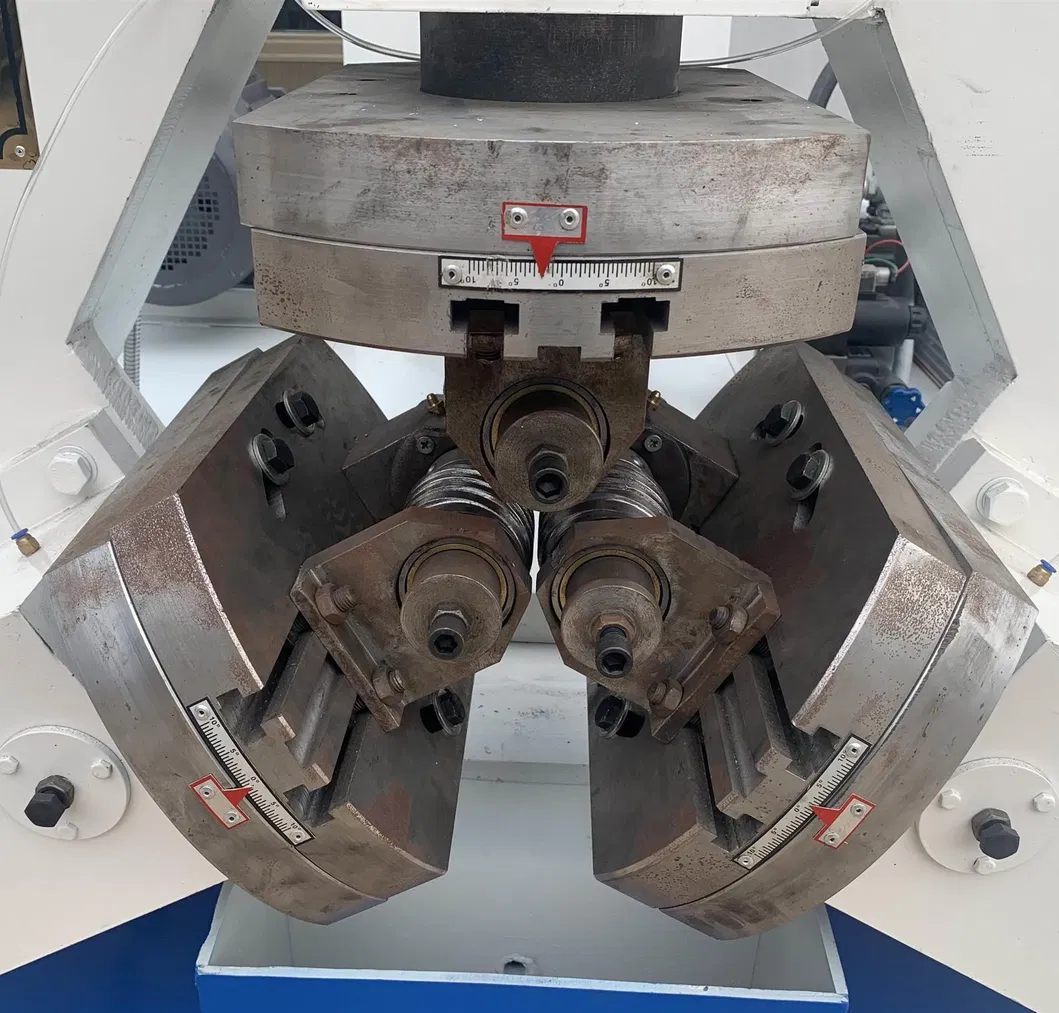

Supports both axial and radial rolling. Features adjustable roller angles for axial through-rolling of long screws, equipped with a rotating plate angle indicator for precise adjustment.
| Item | Specification (Z28-150) |
|---|---|
| Max Rolling Pressure | ≥150KN |
| Max Working Pressure (Hydraulic) | ≥5MPa |
| Transmission Structure | Gearbox |
| Feeding Method | Hydraulic Feed |
| Rolling Thread Accuracy | 6g |
| Radial Rolling Diameter | 4-42mm |
| Axial Rolling Diameter | 4-45mm |
| Rolling Pitch Range | 0.7-4.5mm |
| Main Motor Power | ≥7.5kw |
| Dimensions | 1500*1450*1430mm |
