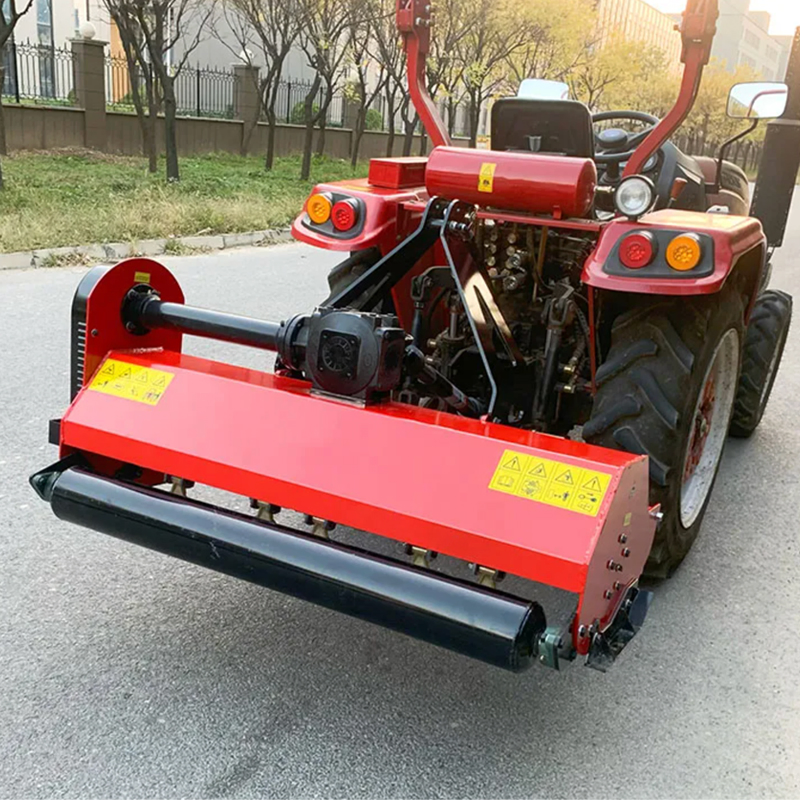

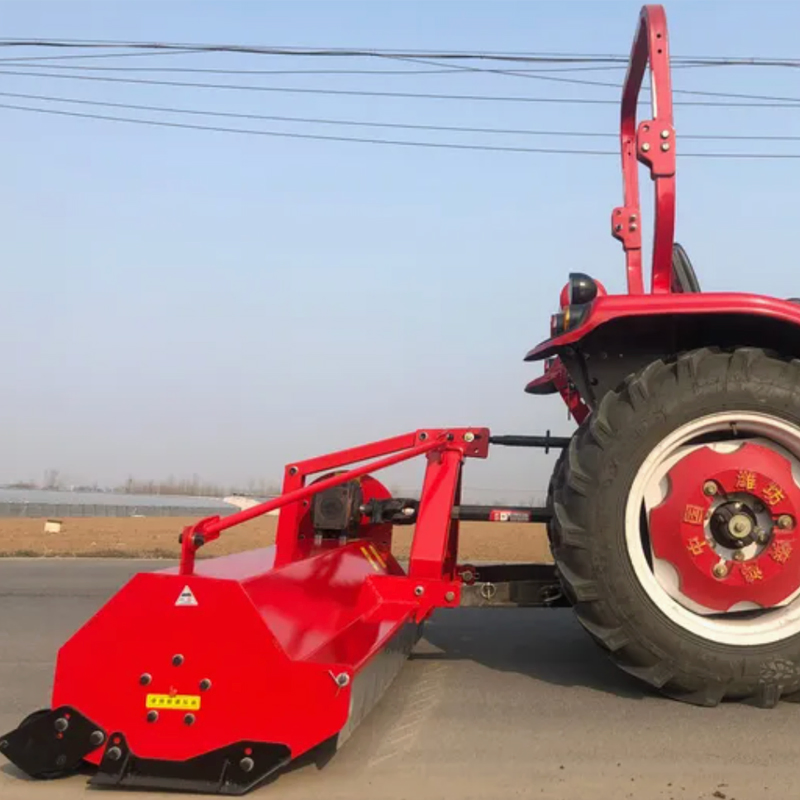

Flail Mower for Sustainable Farming Promotes Soil Health by Returning Finely Shredded Organic Matter.

Customization: Available
After-sales Service: Available
Warranty: 12 Months

Product Description

📋

Basic Information

Model NO.
Flail Mower
Certification
CE, ISO 9001:2000, ISO 9001:2008
Application
Paddy Field, Fruit Tree, Tea Tree, Lawn, Farmland
Cutting Height
60-80mm
Cutting Width
1150-2150mm
Working Way
Rotary
Type
Tractor Mounted
Color
Red (Customizable)
Weight
249-665kg
Hammer Knife
18-38
Origin
China
🚜

Master Tough Terrain with the Hydraulic Offset Flail Mower

Tackle overgrowth where standard mowers can't go. Our Heavy-Duty Hydraulic Flail Mower is engineered for the professional who demands both reach and refinement. Mounted to your tractor's standard PTO, it delivers powerful, fine shredding for grass, straw, and woody brush—transforming dense vegetation into valuable mulch on site.

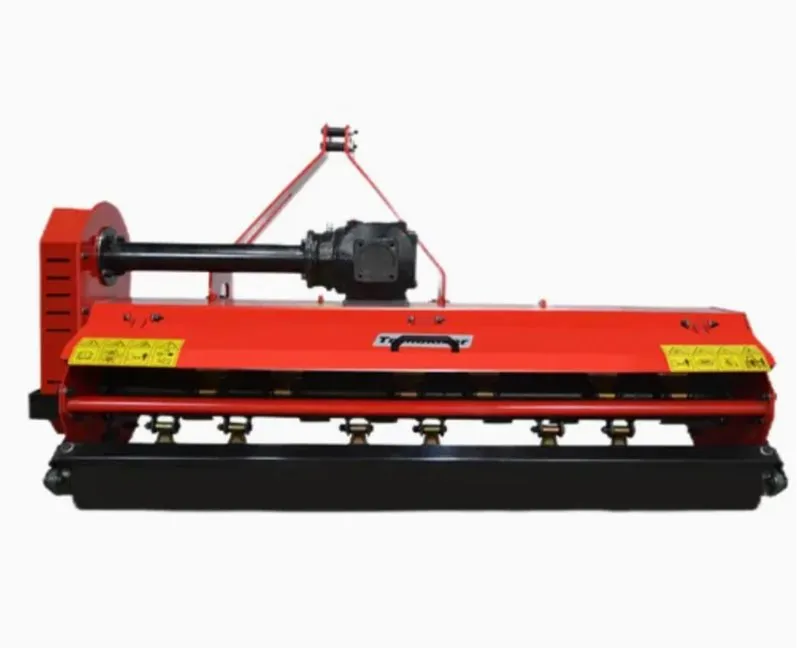

Hydraulic Flail Mower
  • Engineered for Versatility & Control: Featuring a hydraulic side-shift mechanism. Precisely mow steep canal slopes, reach under fences, and navigate orchard branches while keeping the tractor on stable ground.
  • Fine, Even Shredding: Advanced flail hammer design ensures a consistently fine mulch that decomposes rapidly, returning nutrients to the soil.
  • Uncompromised Safety: Robust housing designed to contain debris with an integrated safety locking system to prevent blade ejection.
  • Rugged Design: Built from high-resistance materials for superior impact tolerance. Connects directly to existing hydraulic systems.

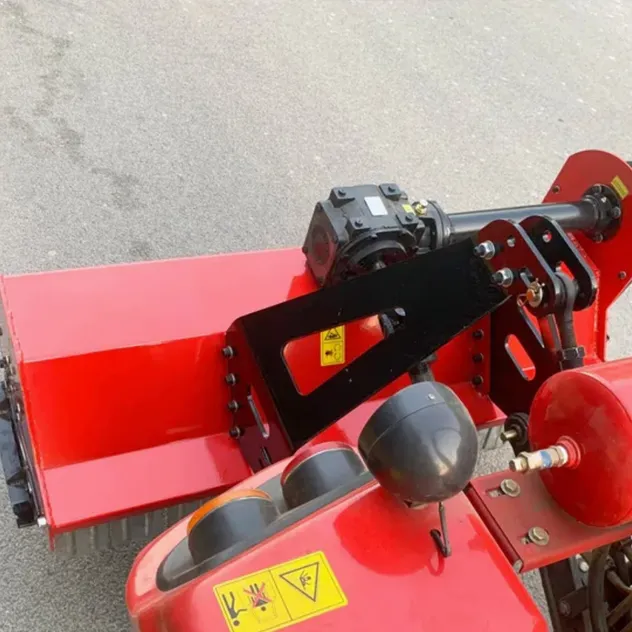

Mower Detail 1

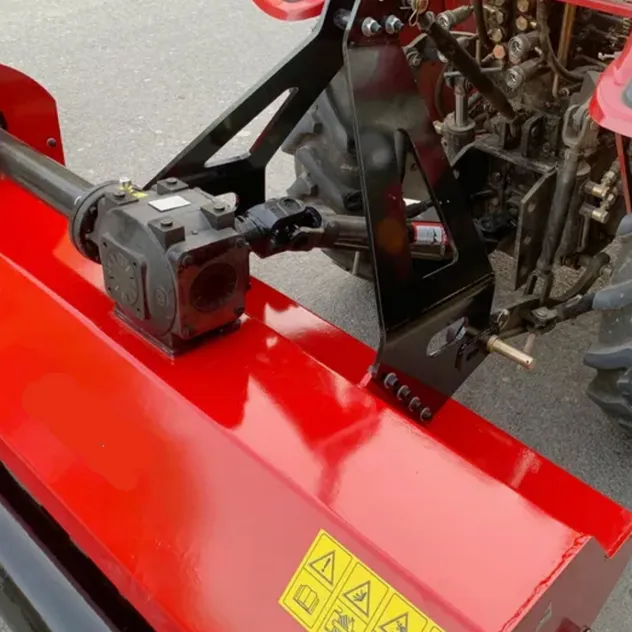

Mower Detail 2

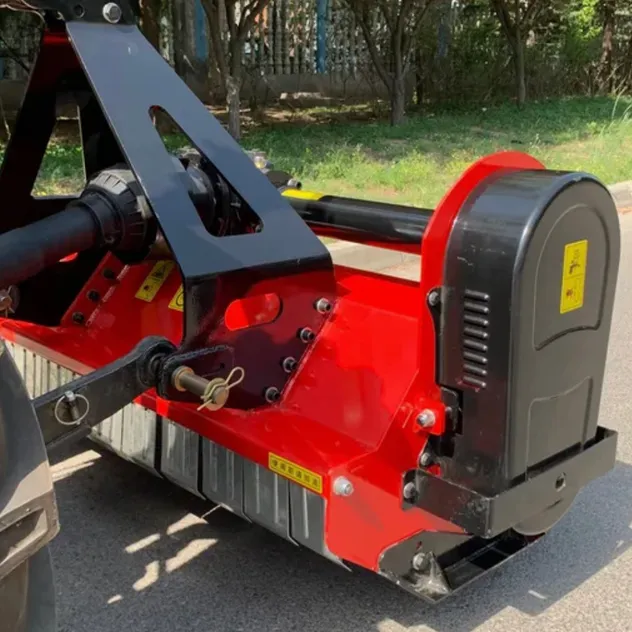

Mower Detail 3
📊

Technical Specifications

CATEGORY MODEL DIMENSIONS (LxWxH) WEIGHT CUTTING WIDTH INPUT SPEED POWER REQUIRED
Fixed Lawn Mower EF125 1340x700x520mm 245kg 125cm 540r/min 25~35hp
EF155 1640x700x520mm 295kg 150cm 540r/min 35~55hp
EF185 1940x700x520mm 340kg 180cm 540r/min 55~85hp
EF250 2740x700x520mm 580kg 250cm 540r/min 90~135hp
Side Moving Mower AGL105 1240x1400x920mm 230kg 105cm 540r/min 25~55hp
AGL140 1550×2225×1020mm 350kg 140cm 540r/min 40-85HP
AGL200 2150×2225×1020mm 470kg 200cm 540r/min 60-100HP
Hydraulic Side Offset EFLGCH-105 1180*925*1035mm 260kg 102cm 540r/min 18-25HP
EFGCH160 1750*790*850mm 360kg 1.55cm 540r/min 45-55HP
EFGCH220 2350*900*850mm 460kg 215cm 540r/min 80-120HP

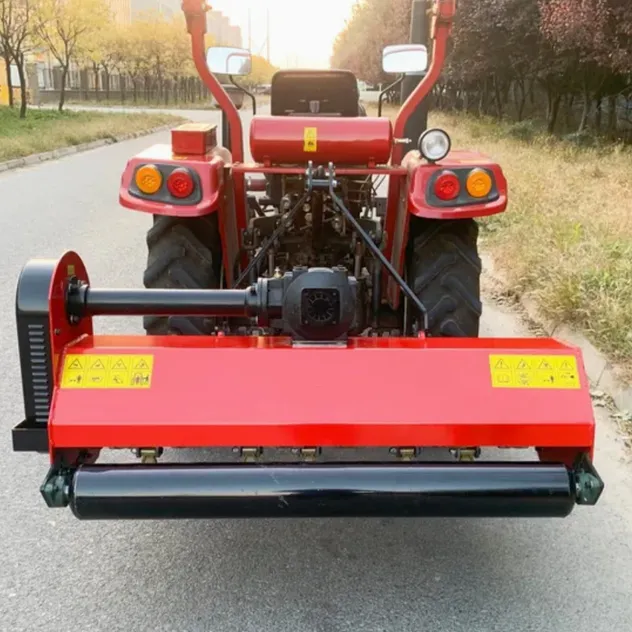

Application 1

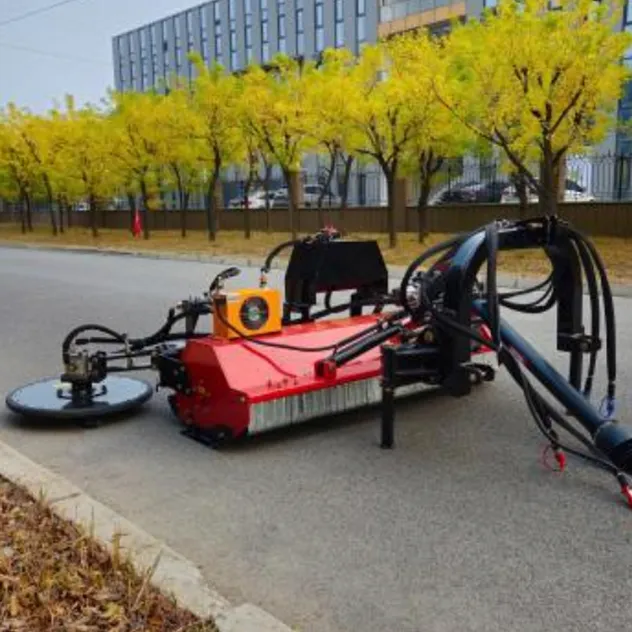

Application 2

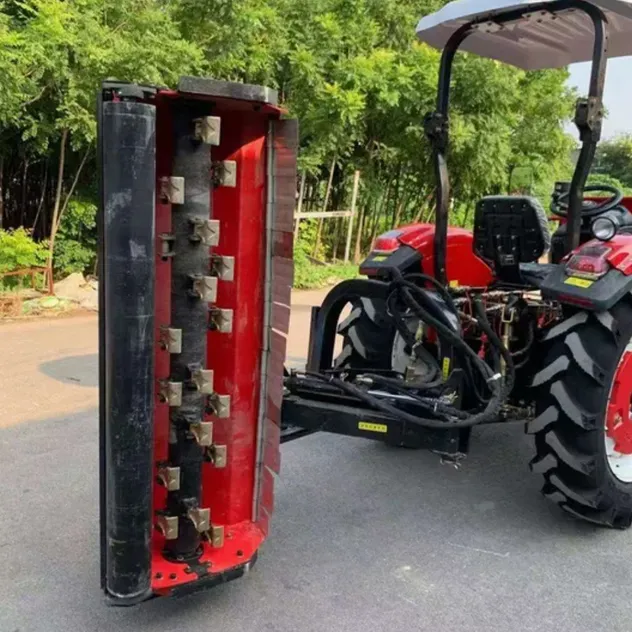

Application 3

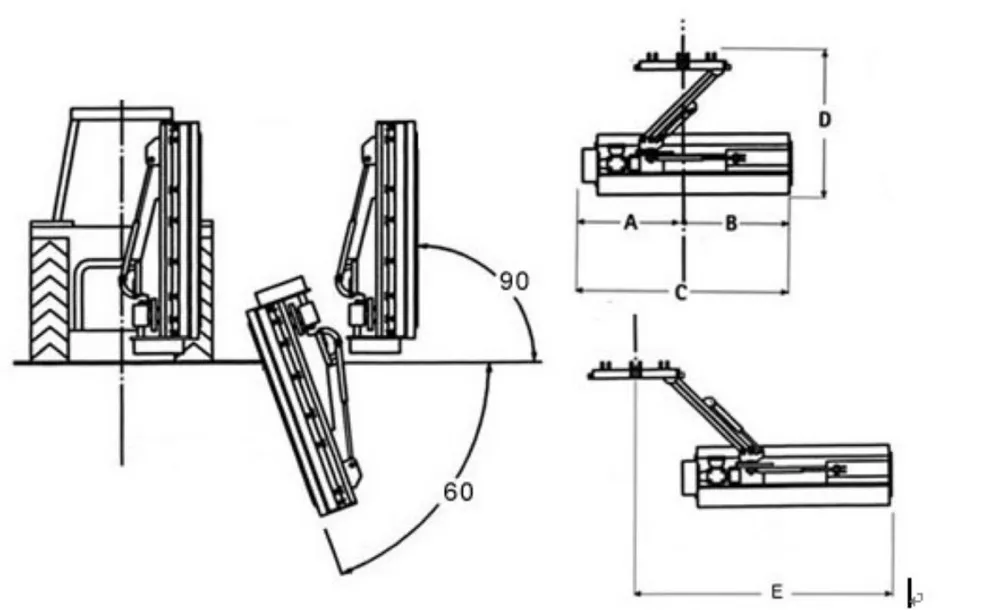

Technical Layout
Equipment Overview
🏢

Company Overview

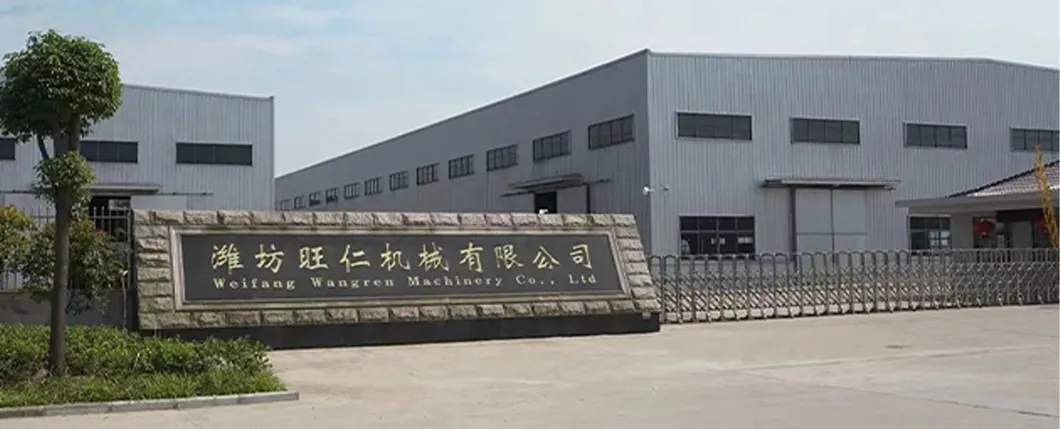

Workshop

Our company initially focused on the research, development, and manufacturing of various agricultural gearboxes. Driven by market demand, we expanded into producing high-performance equipment such as mowers, stalk return machines, fertilizer spreaders, and post-hole diggers.

Since the gearbox is a key component in machine operation, we effectively address technical challenges in agricultural machinery transmission. Adhering to the philosophy of "survival through quality, development through reputation," we serve customers throughout Asia, America, and Europe.

Frequently Asked Questions

What is the lead time for orders?
Standard models typically ship within 15–30 days, while customized units require approximately 30–45 days.
Do you offer OEM/ODM services?
Yes, we provide full OEM/ODM customization based on specific customer requirements, along with significant price advantages.
What documents are provided for export?
We provide a complete export package including Commercial Invoice, Packing List, Bill of Lading, and COC.
How is product quality guaranteed?
We maintain a strict QC team that inspects every step from materials to finished products. We are 100% responsible for any damage caused by improper packaging.
Can the equipment be customized for specific tractors?
Yes, custom configurations for power requirements and hydraulic connections are available upon request.
How do I place an order?
Please contact us for a formal quote, and once details are confirmed, you can proceed with a Purchase Order (PO).
