📊 Basic Information
Type
Sludge Dewatering Machine
Method
Biological Treatment
Usage
Industrial, Home, Agriculture, Hospital
Material
Carbon Steel & Stainless Steel/FRP
Color
Black/Silver Grey/etc
Specification
300cm*200cm*200cm

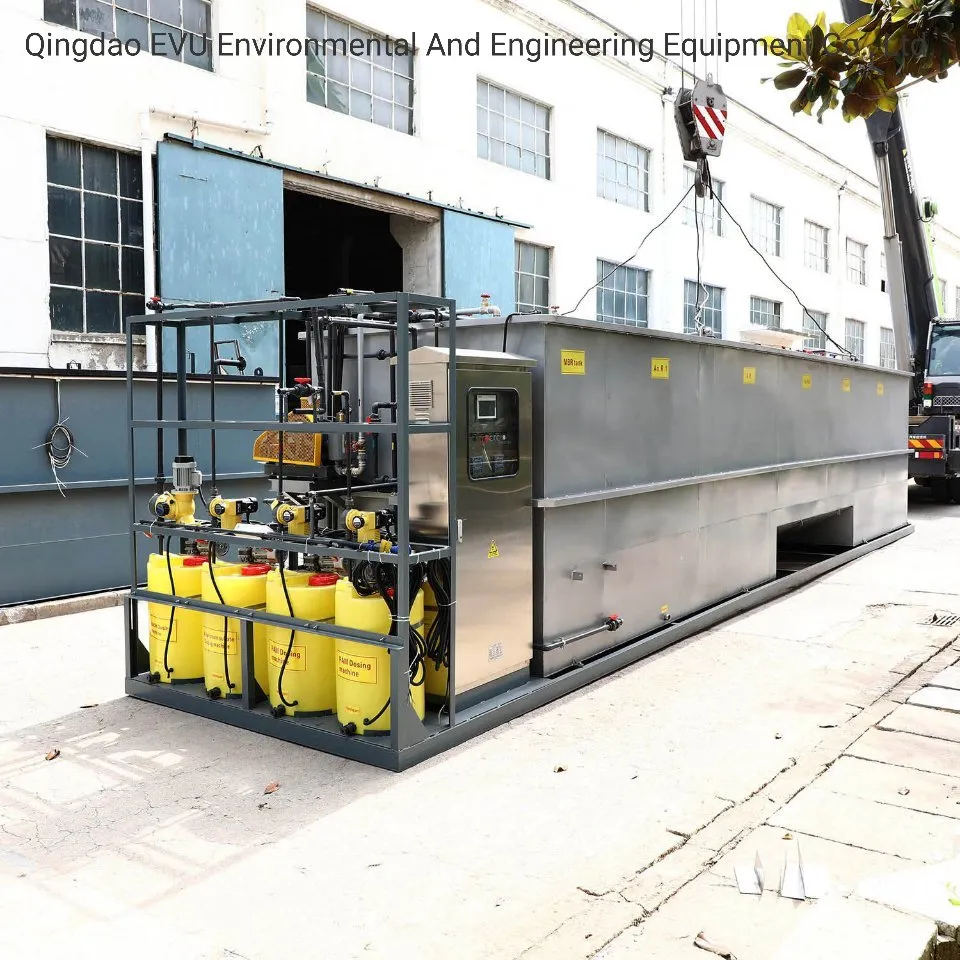

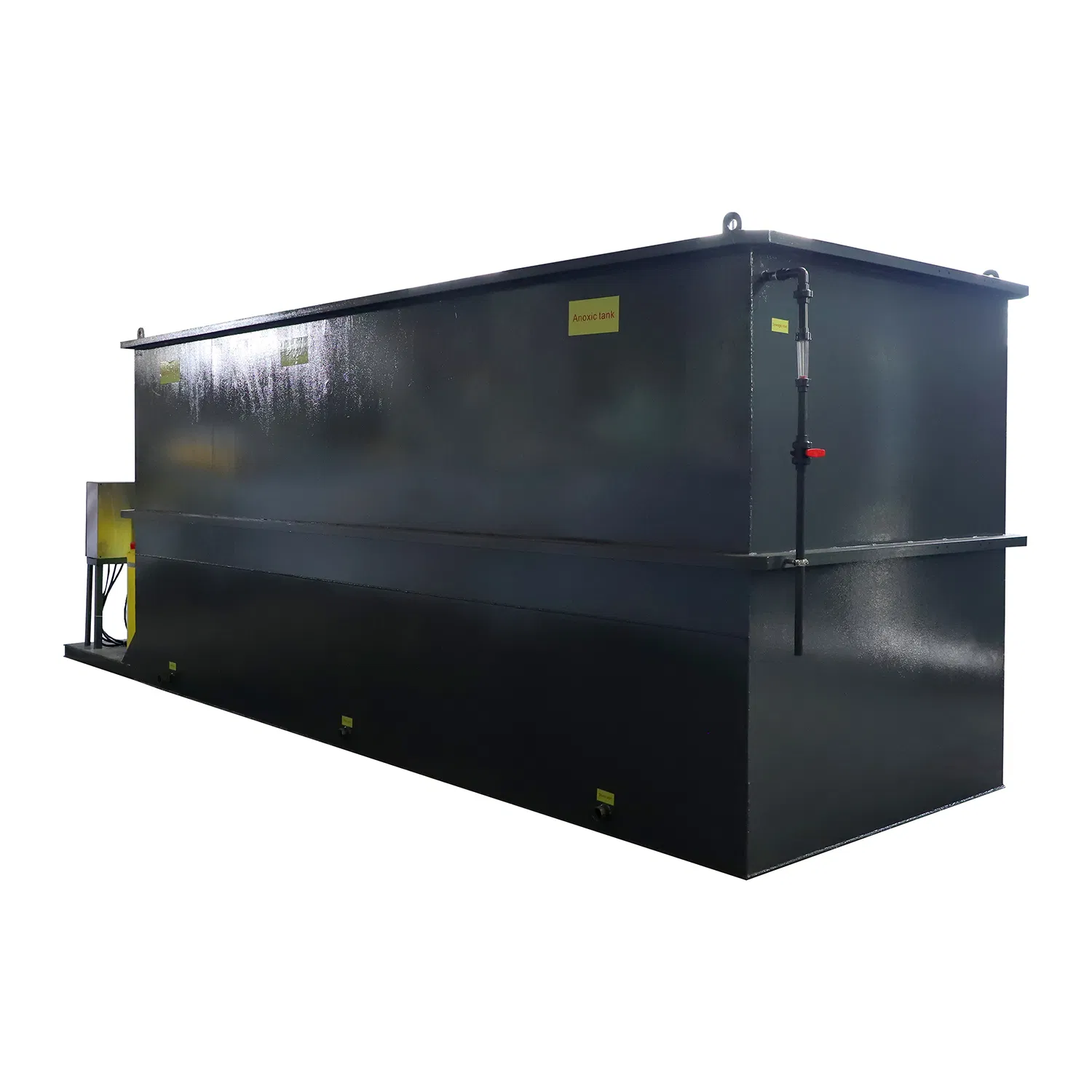

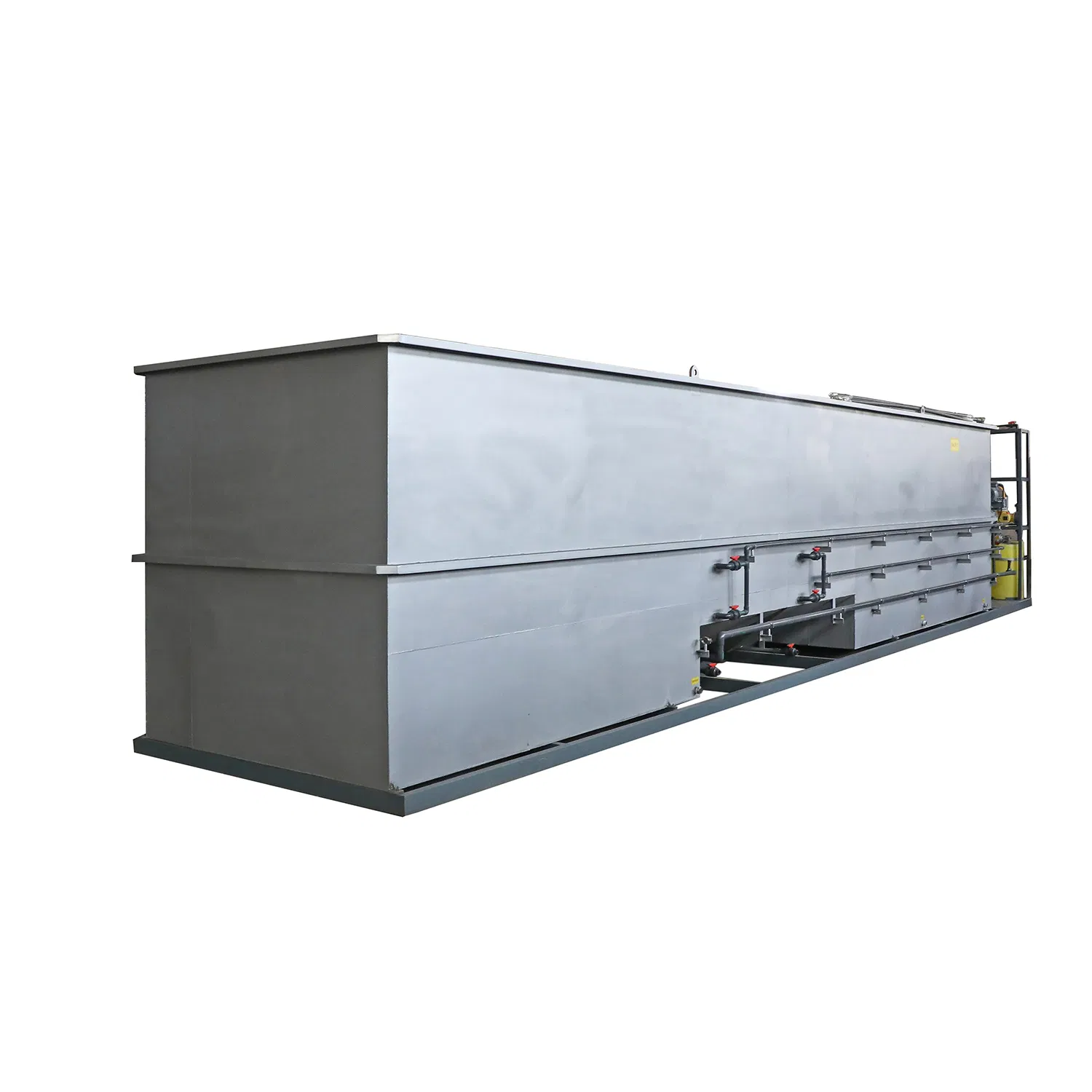

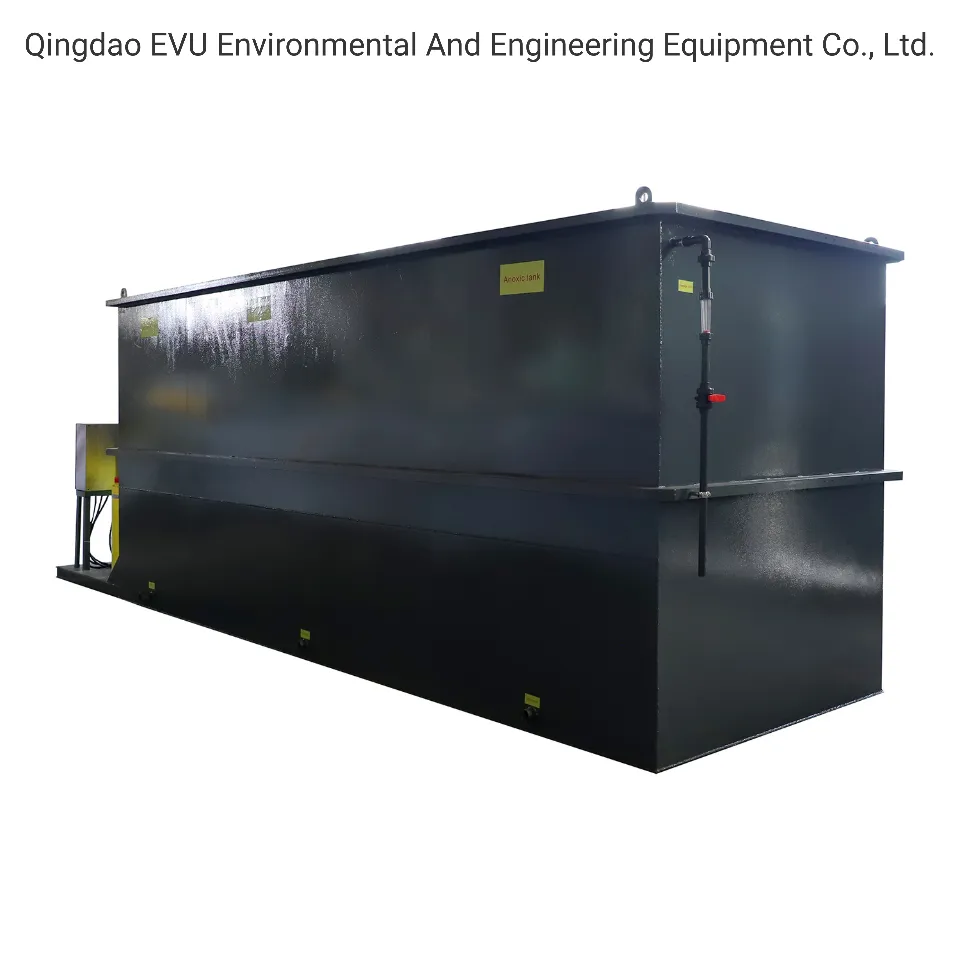

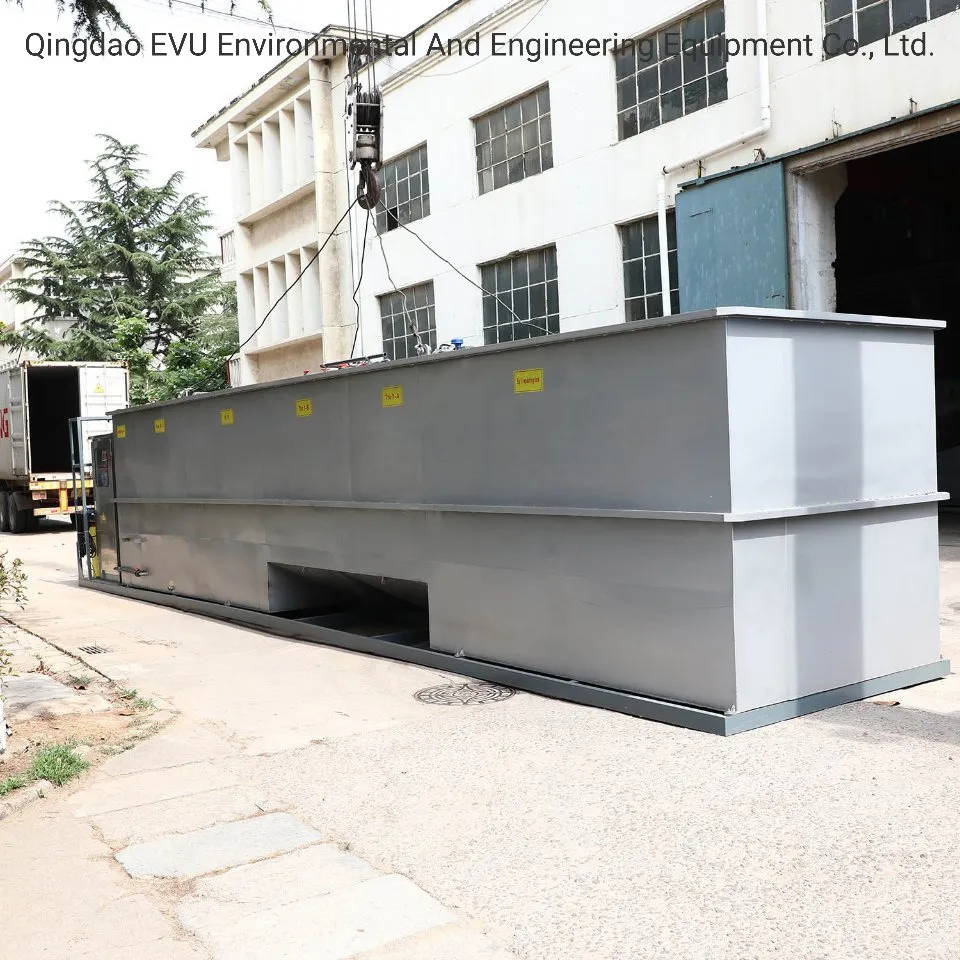

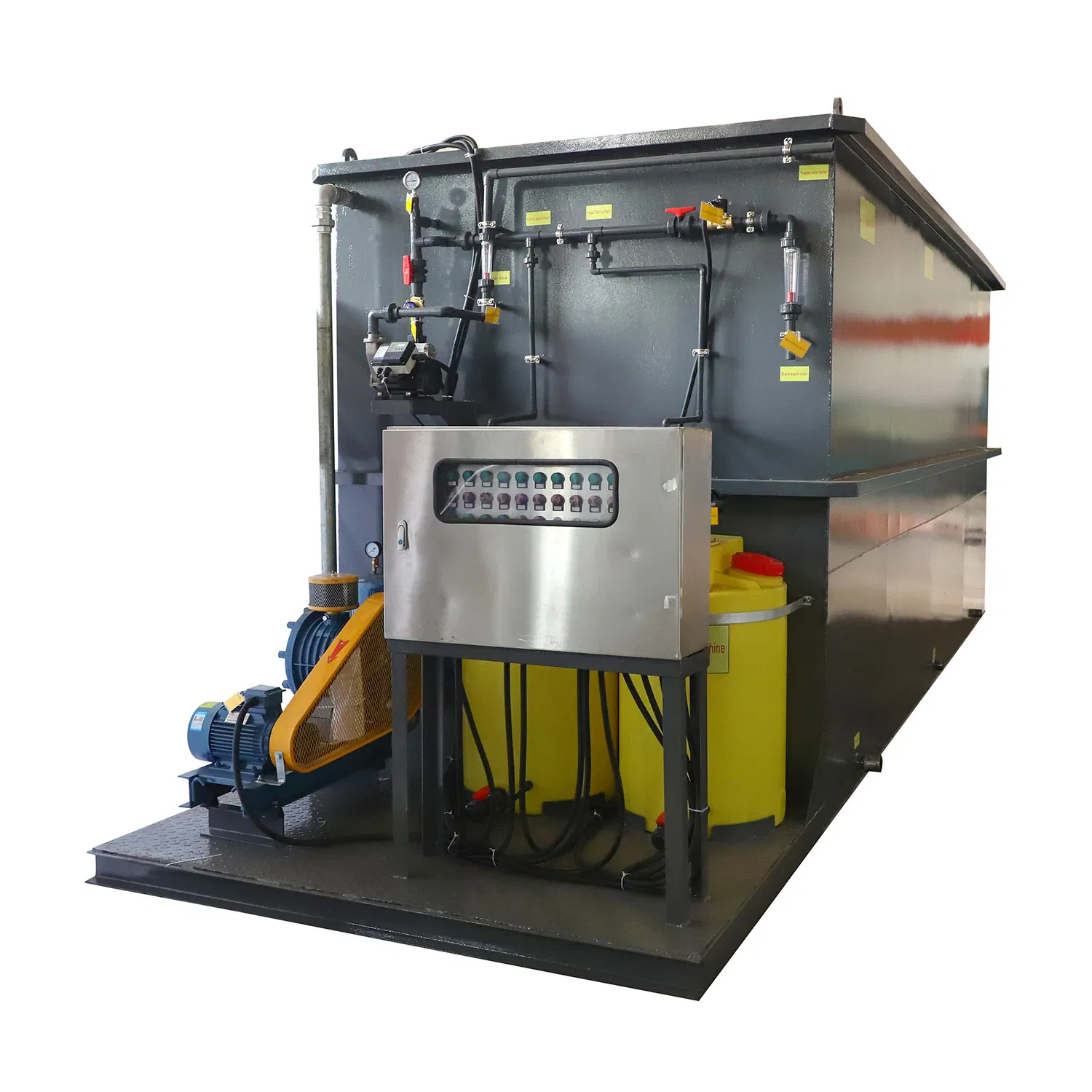

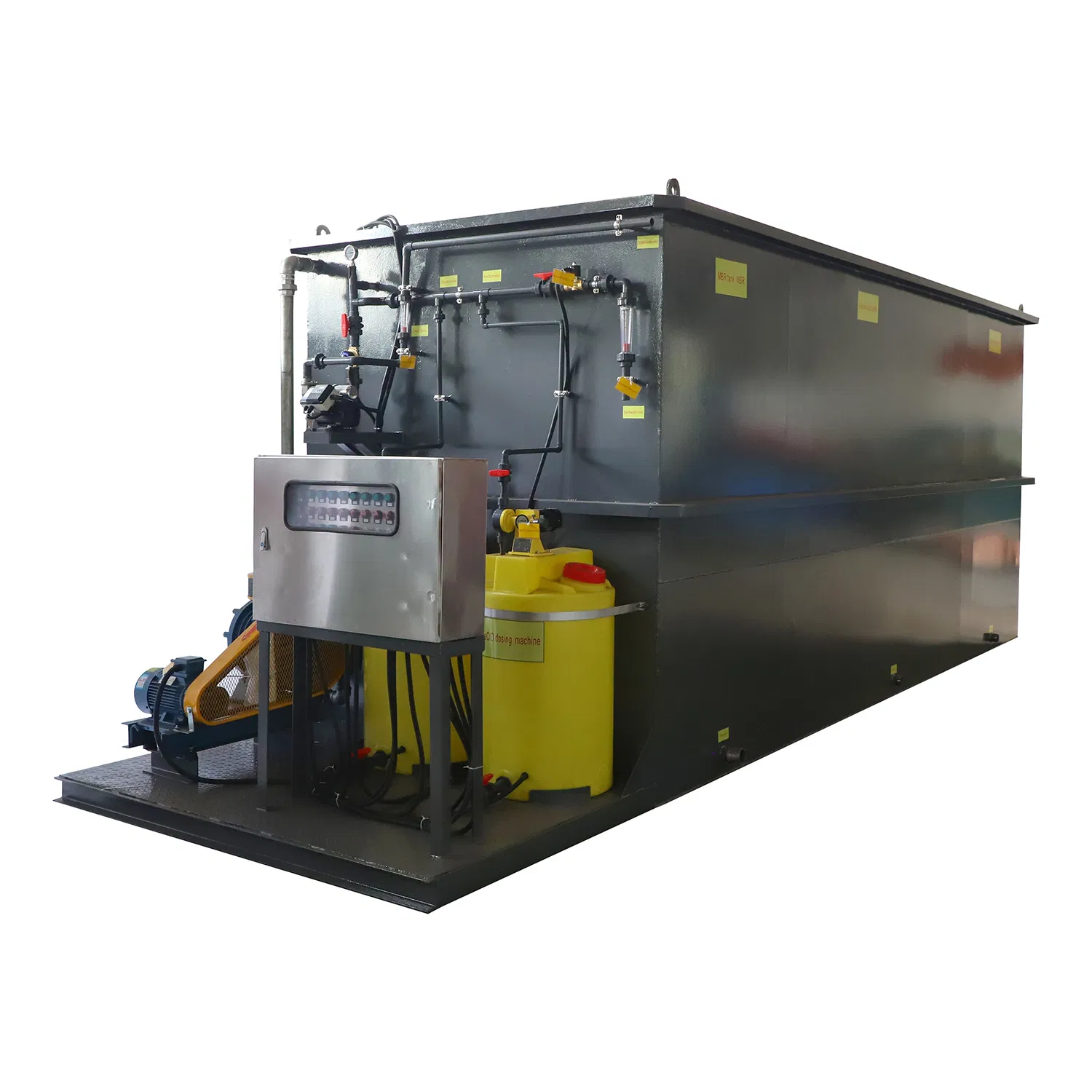

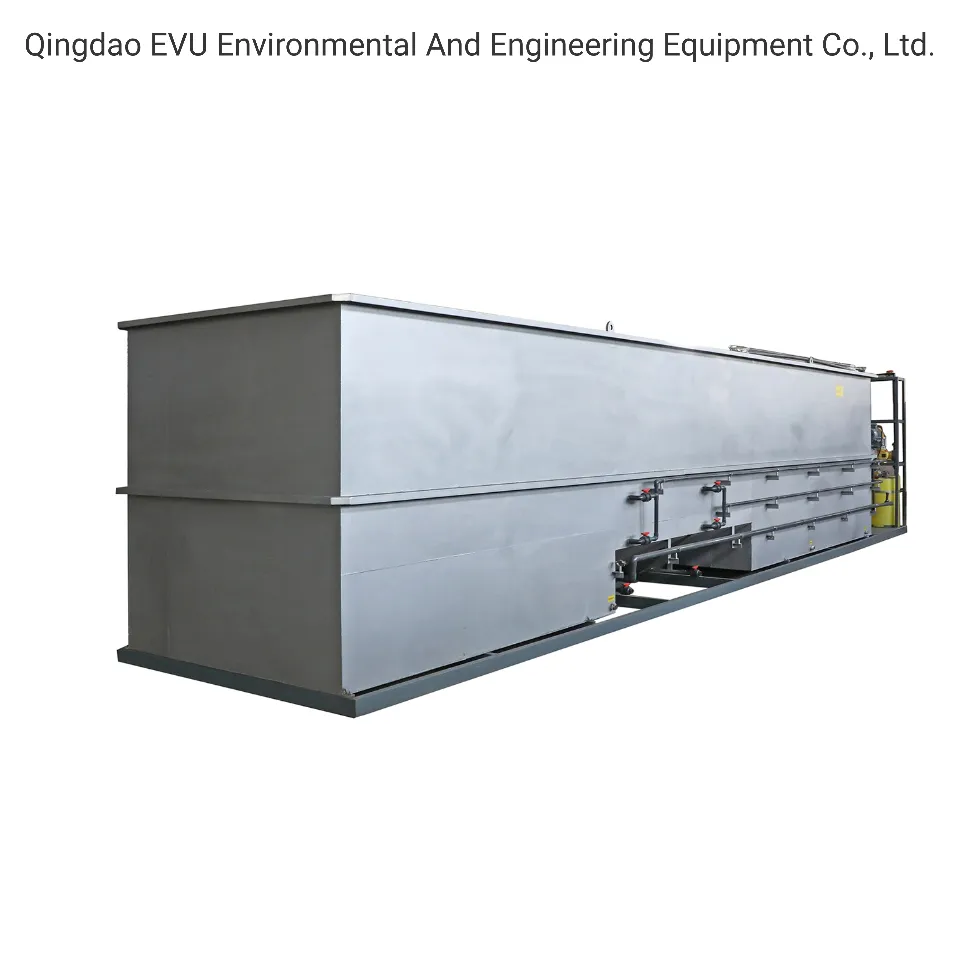

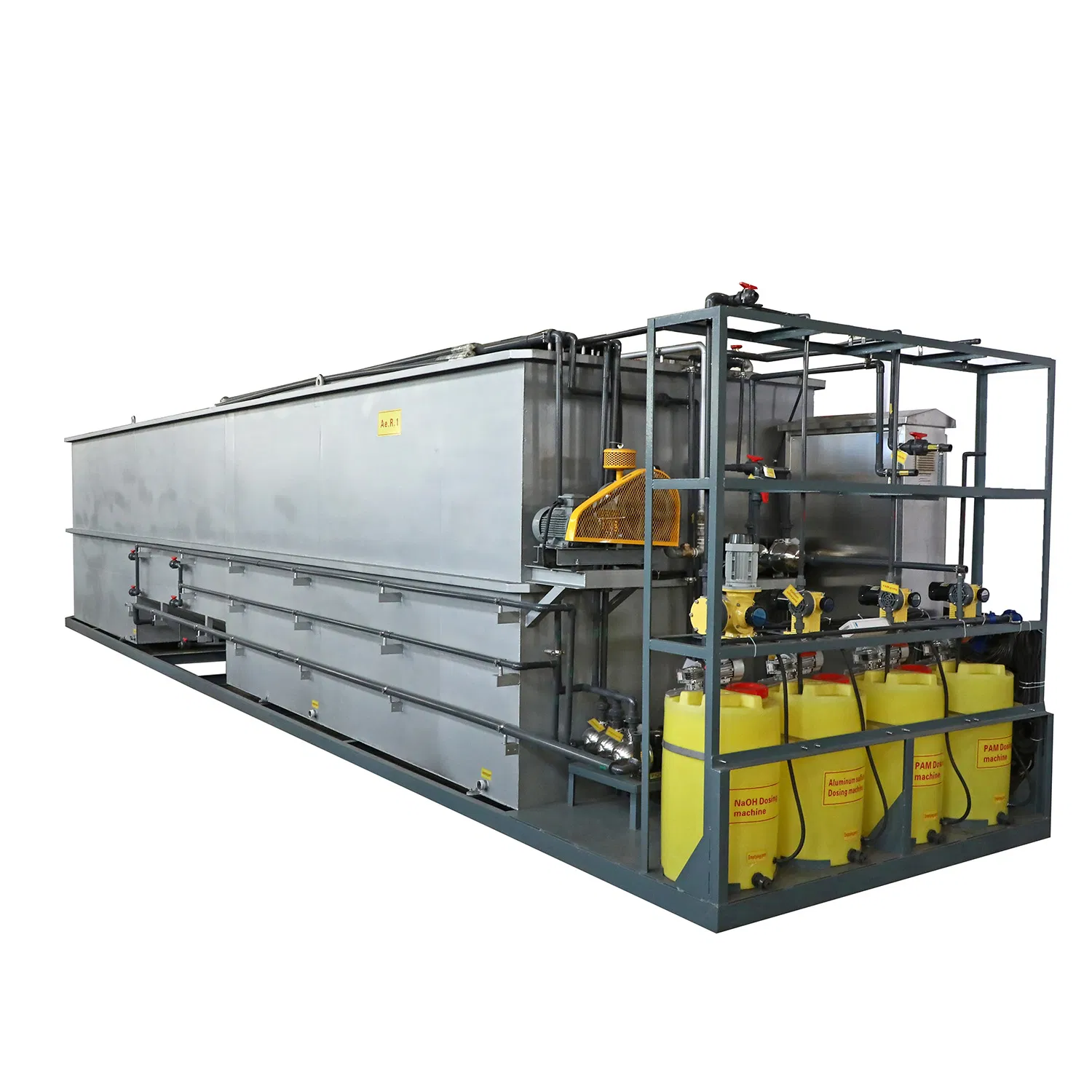

💧 Water Treatment Equipment for Printing and Dyeing
Principle of Work:
The integrated sewage treatment equipment eliminates organic matter pollutants and ammonia nitrogen mainly through the AO biological treatment craft. In the A-level stage, high-density organic matter is decomposed into NH3-N under anoxic conditions using microorganisms. In the O-level stage, organic matter is further oxidized, and nitrifying bacteria transform NH3-N into NO2-N and NO3-N. This process ensures the effective removal of organic loads and prevents eutrophication pollution.
⚙️ Performance Features
- Advanced international biological treatment processes for BOD5, COD, and NH3-N removal with stable performance.
- Compact design: Equipment can be embedded underground, allowing the surface to be used for greenery or other land uses.
- Utilizes plug-flow biological contact oxidation, superior to completely mixed systems.
- Minimal activated sludge volume with high resistance to shock loading and no sludge bulking.
- New flexible three-dimensional packing with a large surface area for easy microbial film attachment and high removal rates.
- Relatively low filler volume loading results in less sludge production, requiring removal only once every 90 days.
- Equipped with both conventional high-altitude exhaust and soil deodorization measures.
- Fully automatic control system with failure alarms for safe, reliable operation with minimal manual management.
📍 Application Areas
Suitable for a wide range of environments including: Hotels, restaurants, nursing homes, hospitals, residential areas, villages, stations, airports, port terminals, ships, factories, mines, military facilities, tourist spots, and landscapes, as well as various industrial organic wastewater treatments.
📋 Major Technique Parameters
| Model |
QDCK1 |
QDCK2 |
QDCK3 |
QDCK5 |
QDCK10 |
QDCK20 |
QDCK30 |
QDCK50 |
| Process load (m³/h) |
1 |
2 |
3 |
5 |
10 |
20 |
30 |
50 |
| Air Blower Power (KW) |
0.55 |
0.75 |
1.5 |
1.5 |
3.7 |
5.5 |
5.5×2 |
5.5×3 |
| Water Pump Power (KW) |
0.55 |
0.55 |
0.55 |
0.75 |
0.75 |
1.5 |
2.2 |
5.5 |
| Area (m²) |
6 |
10 |
14 |
19 |
39 |
75 |
113 |
168 |
🌟 Our Advantages
- Thirteen years of experience in waste treatment facilities.
- Global cooperation with customers worldwide.
- Commitment to technological development and pollution remediation.
- Dedicated to providing wholehearted customer service and building a better world together.
🛠️ After-Sales Service
- 24/7, 365-day access to a toll-free health care professional hotline for trouble-shooting assistance.
- Year-round on-site installation and debugging service abroad with professional engineer guidance.
- Professional guidance for installation and daily operation.
- English manual books included with the machinery upon arrival at the destination.
- Complete technical drawings and layout plans provided.
❓ Frequently Asked Questions
What contaminants can this equipment remove?
The system is designed to remove BOD5, COD, and NH3-N using advanced AO biological treatment processes.
Does the equipment require a lot of surface space?
No, the equipment can be embedded underground. The surface above can be used for landscaping, greenery, or other purposes.
How often do I need to remove the sludge?
Due to the efficient biological oxidation process, sludge volume is minimized. Sludge removal is typically required only once every 90 days.
Is the operation of the system complicated?
The system is equipped with an automatic control and electrical failure alarm system, ensuring safe operation with very little manual intervention needed.
What materials are the tanks made of?
The equipment can be manufactured using high-quality Carbon Steel with epoxy painting, Stainless Steel, or FRP (Fiber Reinforced Plastic).
Is technical support available for international customers?
Yes, we provide year-round on-site installation, debugging services, and training by professional engineers abroad, along with 24-hour hotline support.
