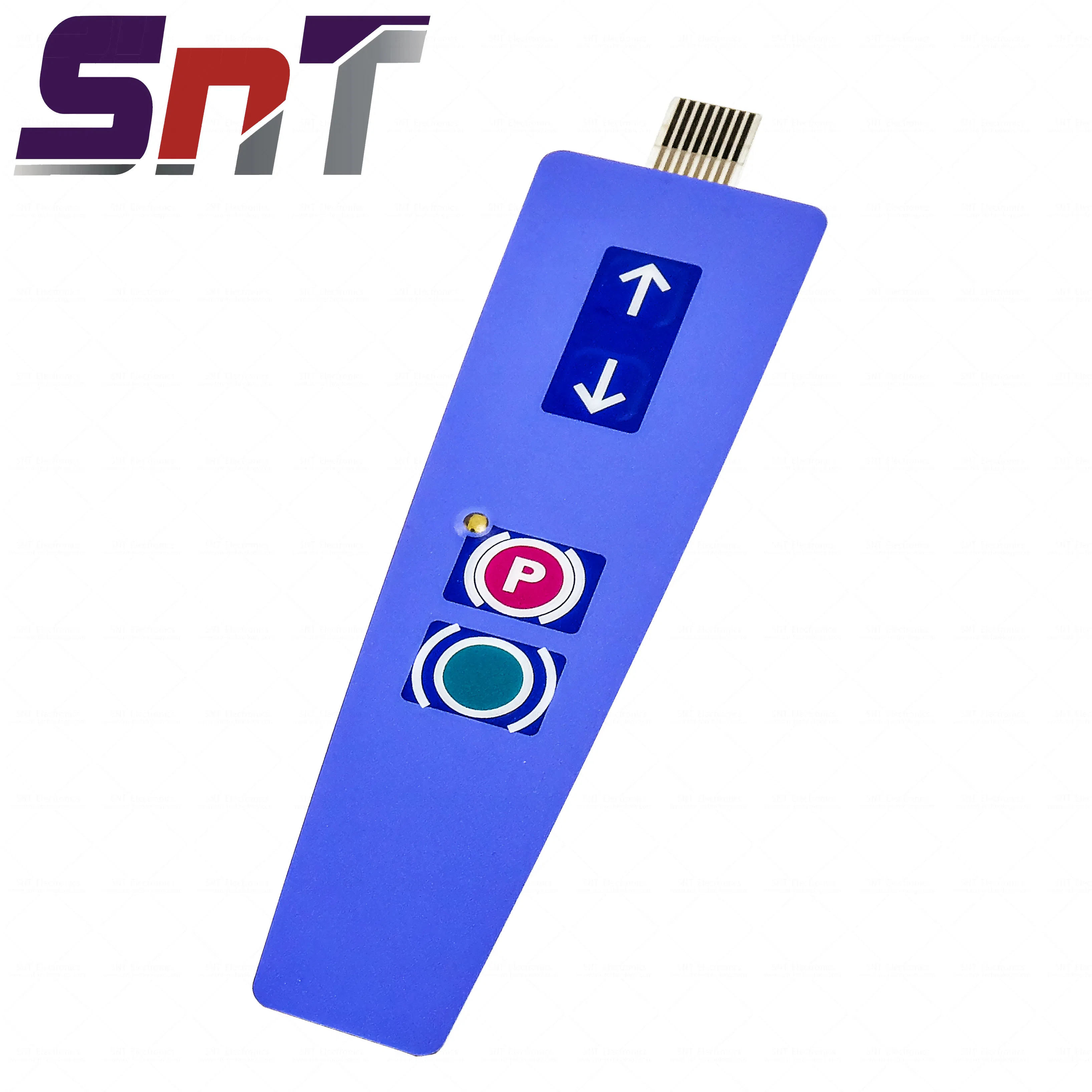

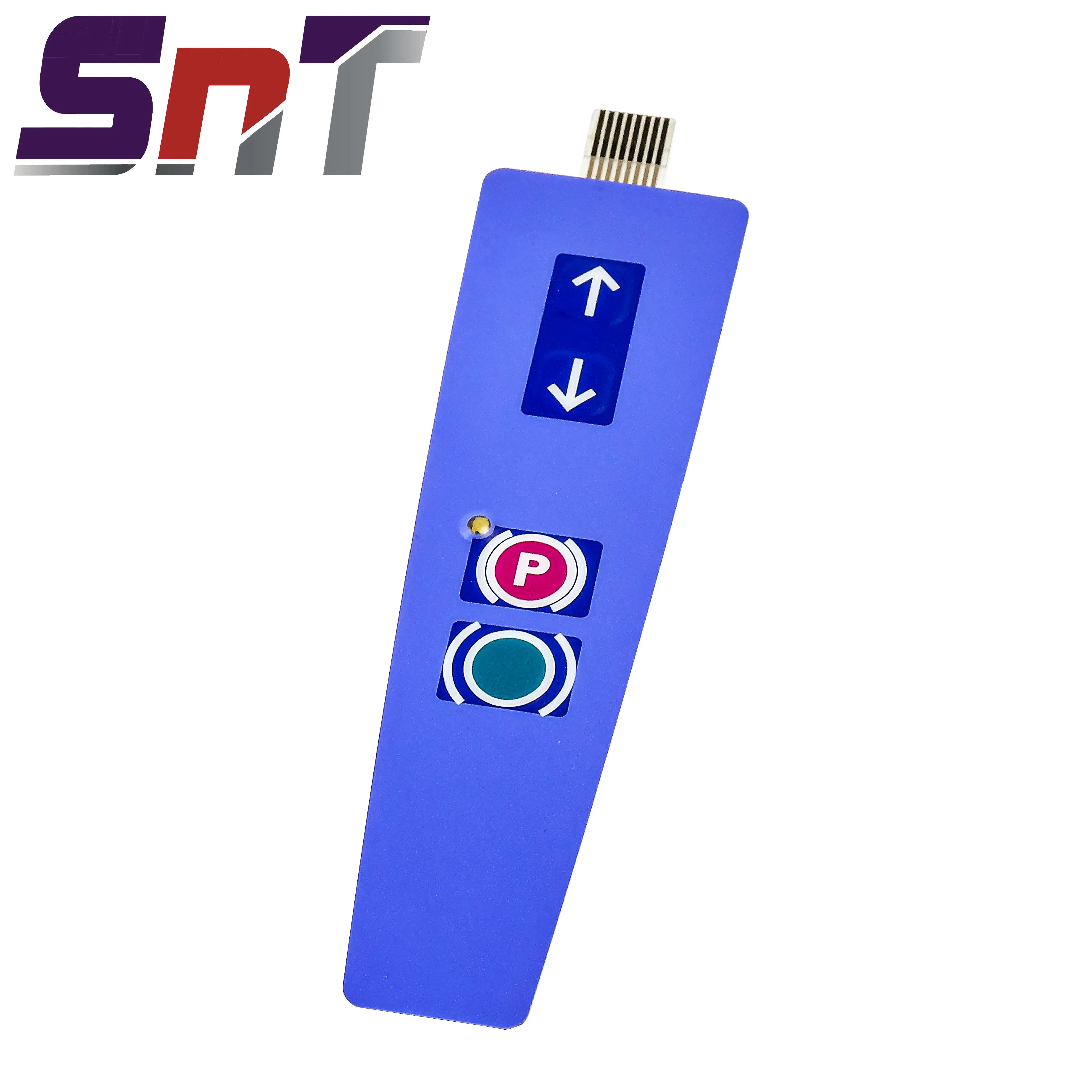

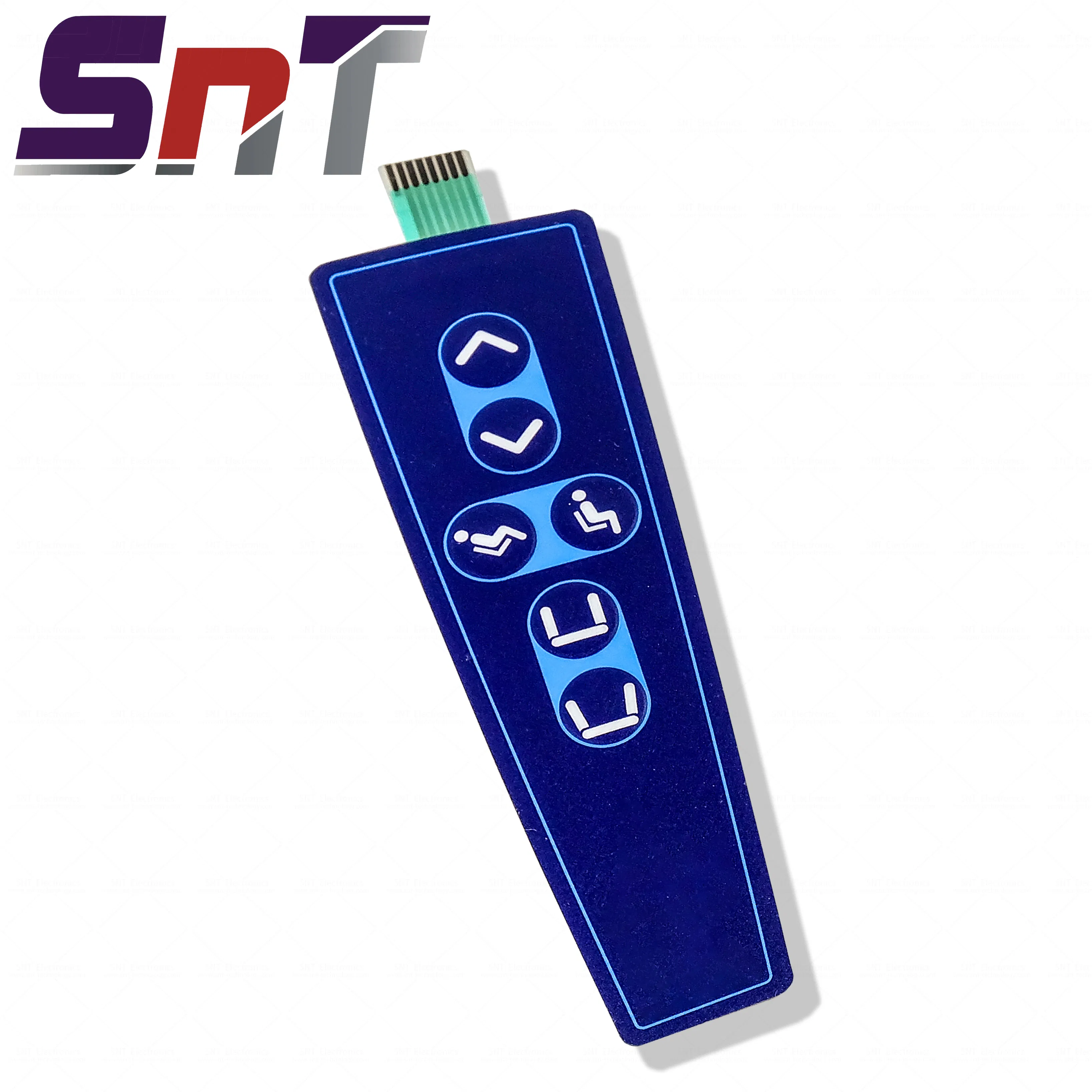

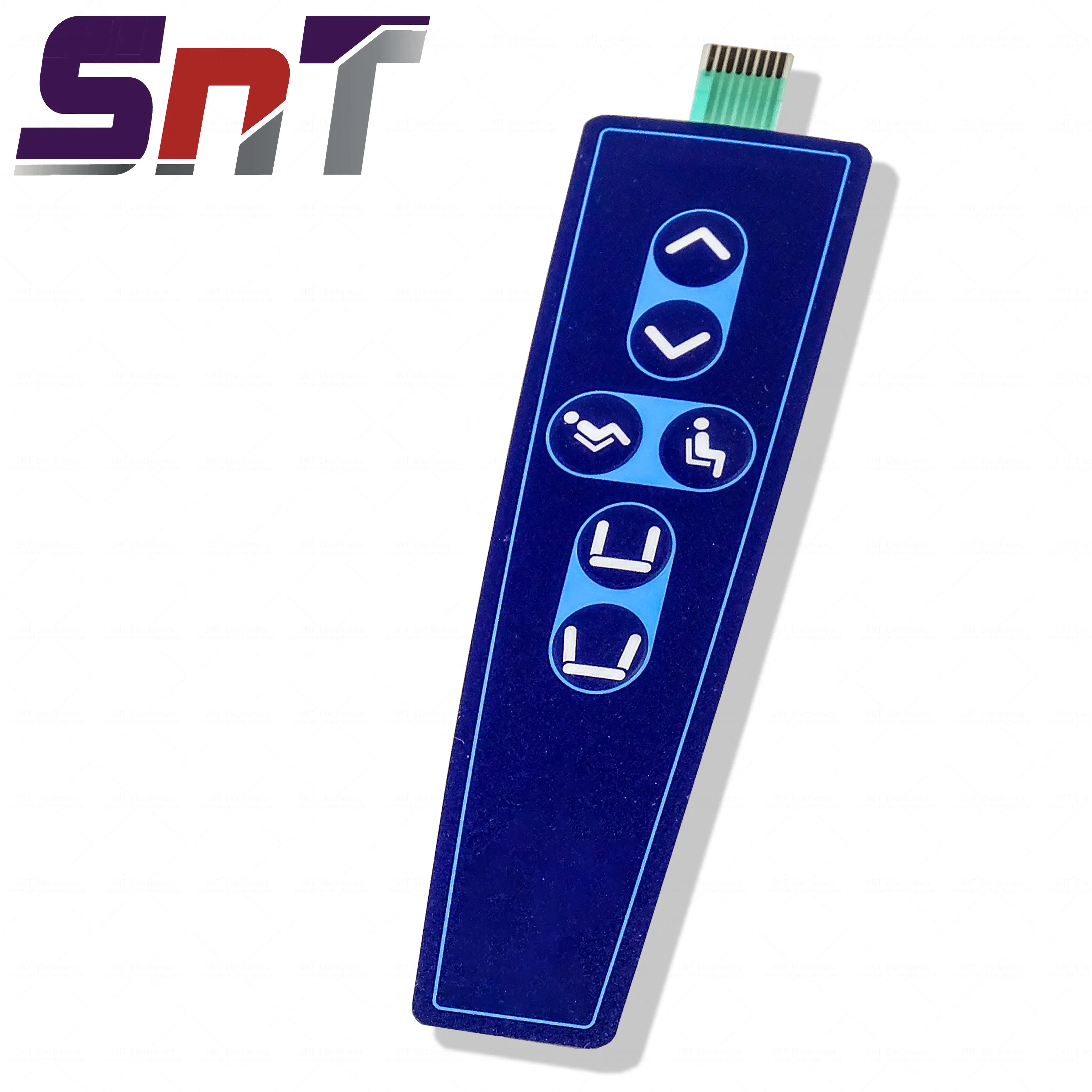

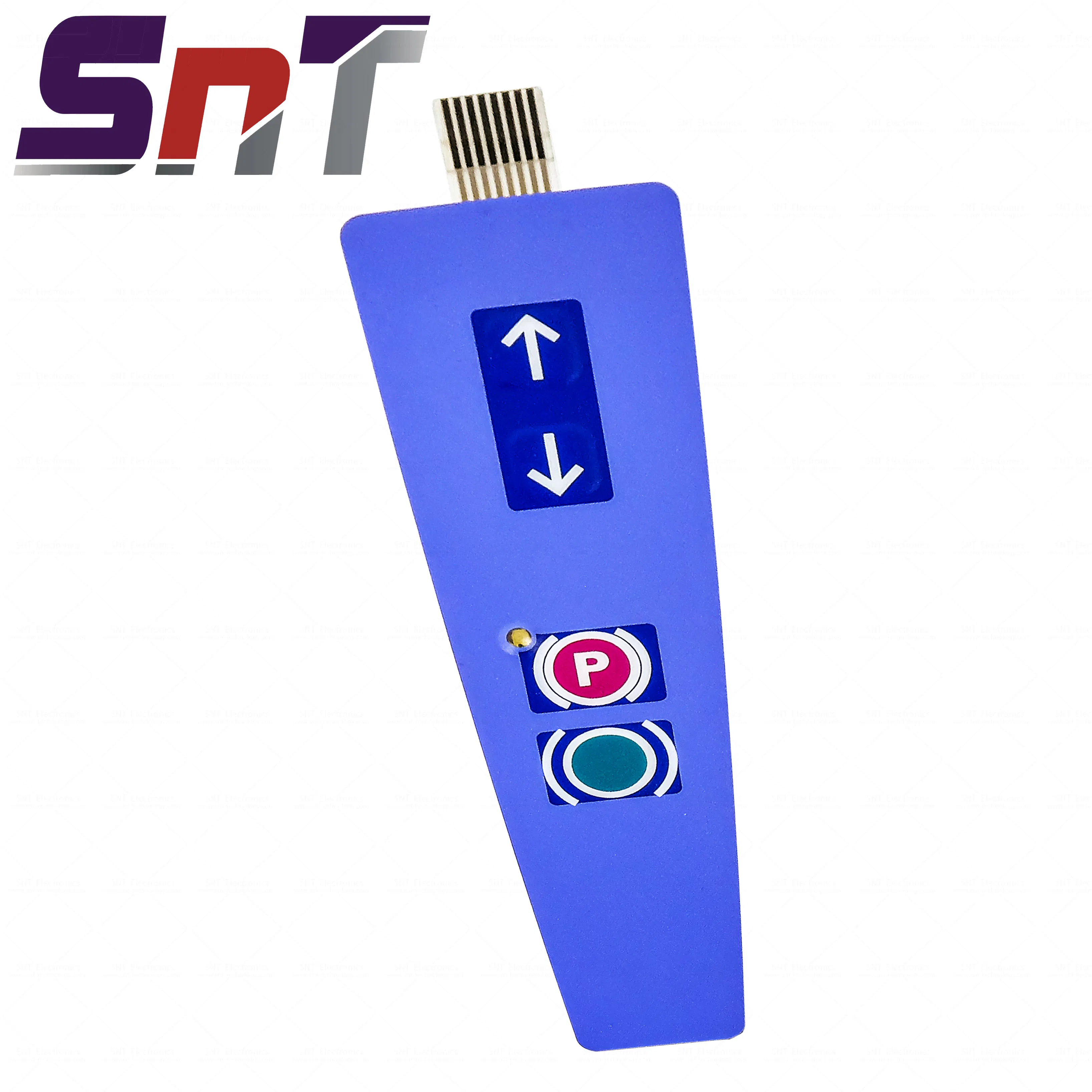

| Model NO. | embossed keypad with translucent Windows |
| Application | Home Appliance, Telecommunication Equipment, With Remote Control, Calculator, Camera, Industrial/Medical Device/Farm |
| Number of Switch | Multi Control Switch |
| Certification | ISO9001 |
| Function | Durable, Waterproof, Dustproof, UV Resistant |
| Logo/Design | Customized |
| Color | Pantone, Ral, Cmyk |
| Production Capacity | 1,000,000 |
| Characteristics | Touch/ Deadfront, Backlight, Waterproof, Anti-UV, Anti-ESD, Anti-RFI |
| Overlay Material | PET/PC/Rubber/Glass/Acrylic(PMMA)/Polycarbonate/Metal |
| Surface | Matt/Glossy/Anti-UV/Anti-biotics/ Anti-scratch Surface |
| Ink Printing | Silkscreen, Digital |
| Display Window | Clear/Transparent/Color Window |
| Display | TFT/OLED/LCD Display, Touch screen(OCA) |
| Tactile button | Metal dome, Poly dome, Silicone rubber button |
| Circuit | FPC (Kapton polyimide), PCB, PET Conductive silver ink printed |
| Adhesive | 3M, Lukxing, Soken, Four Pillars, etc. |
| Compliance | RoHS, REACH, CE etc. |
1. Electrical
| Maximum Circuit Rating | 35V(DC), 100mA, 1W |
| Contact Resistance | 10Ω ~ 500Ω |
| Insulation Resistance | 100MΩ 100V |
| Dielectric | 250 Vrms (50~60Hz 1min) |
| Life Cycle | Flat: ≥5 million times | Tactile: ≥1 million times |
2. Mechanical & Environmental
| Actuation Force | Flat: 57~284g | Tactile: 170~397g |
| Switch Height | Flat: 0.1~0.5mm | Tactile: 0.6~1.5mm |
| Operation Temp | -40 ~ +80 Degree Centigrade |
| Humidity | 90%~95%, 240 hours |
| Vibration | 20G, max (10~200Hz) |
