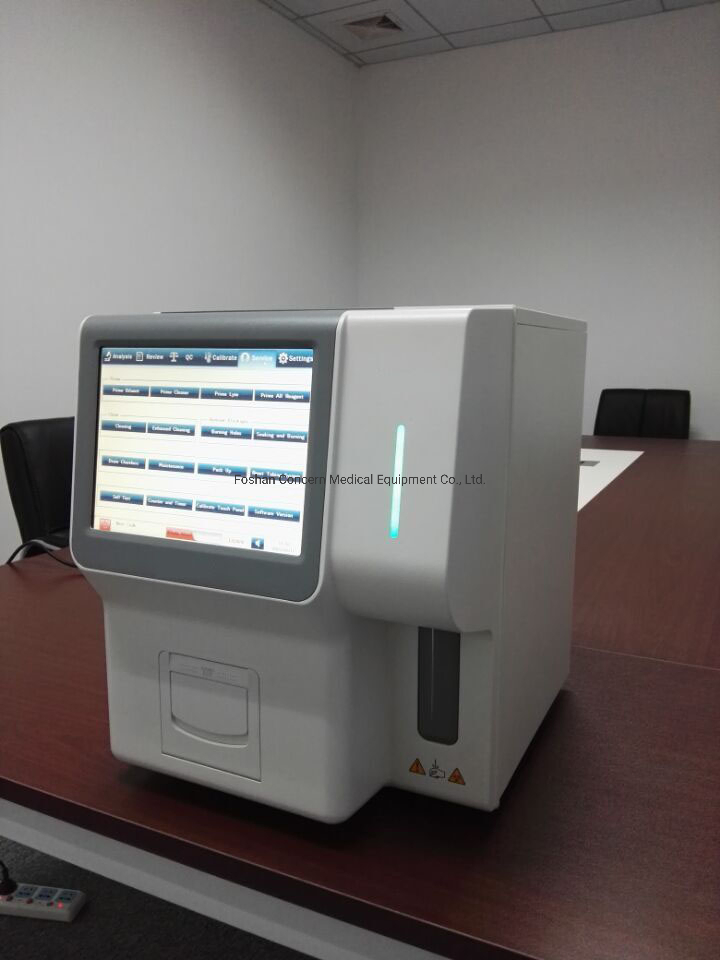

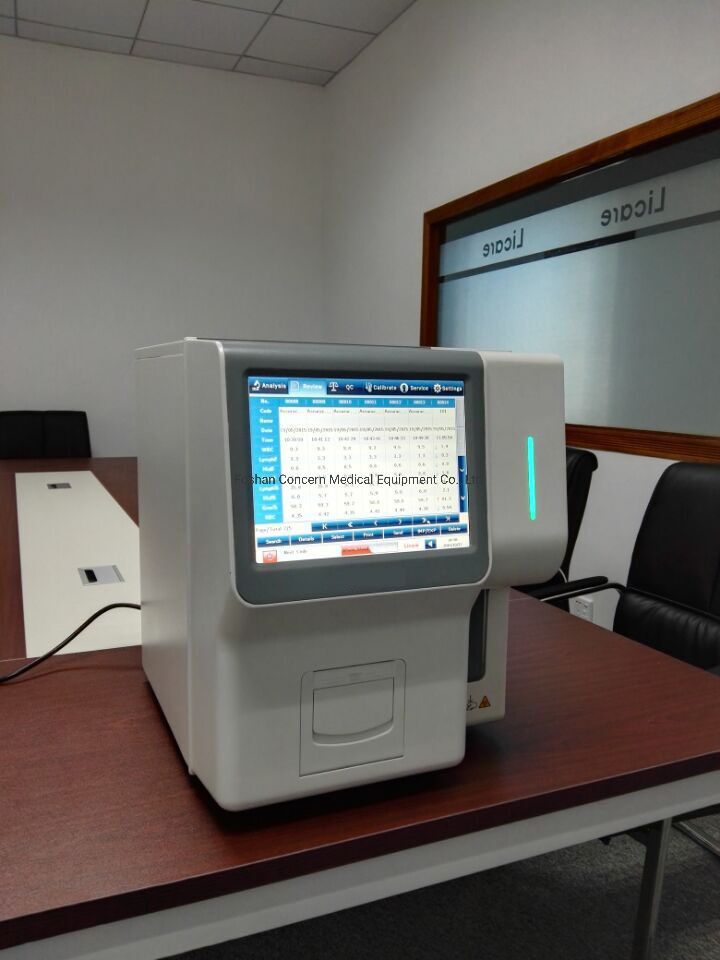

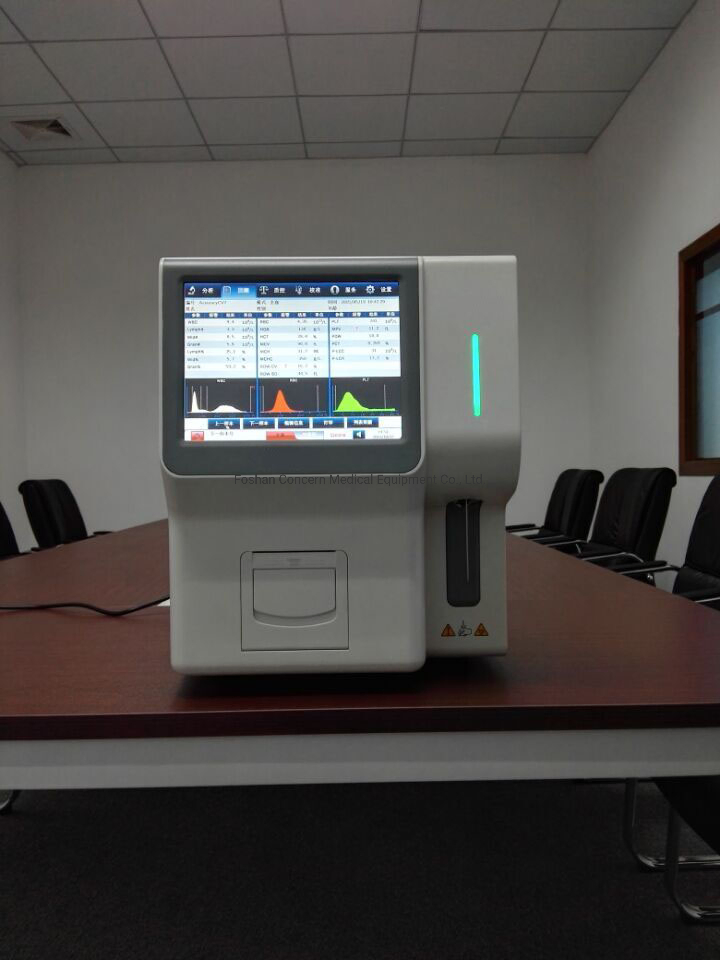

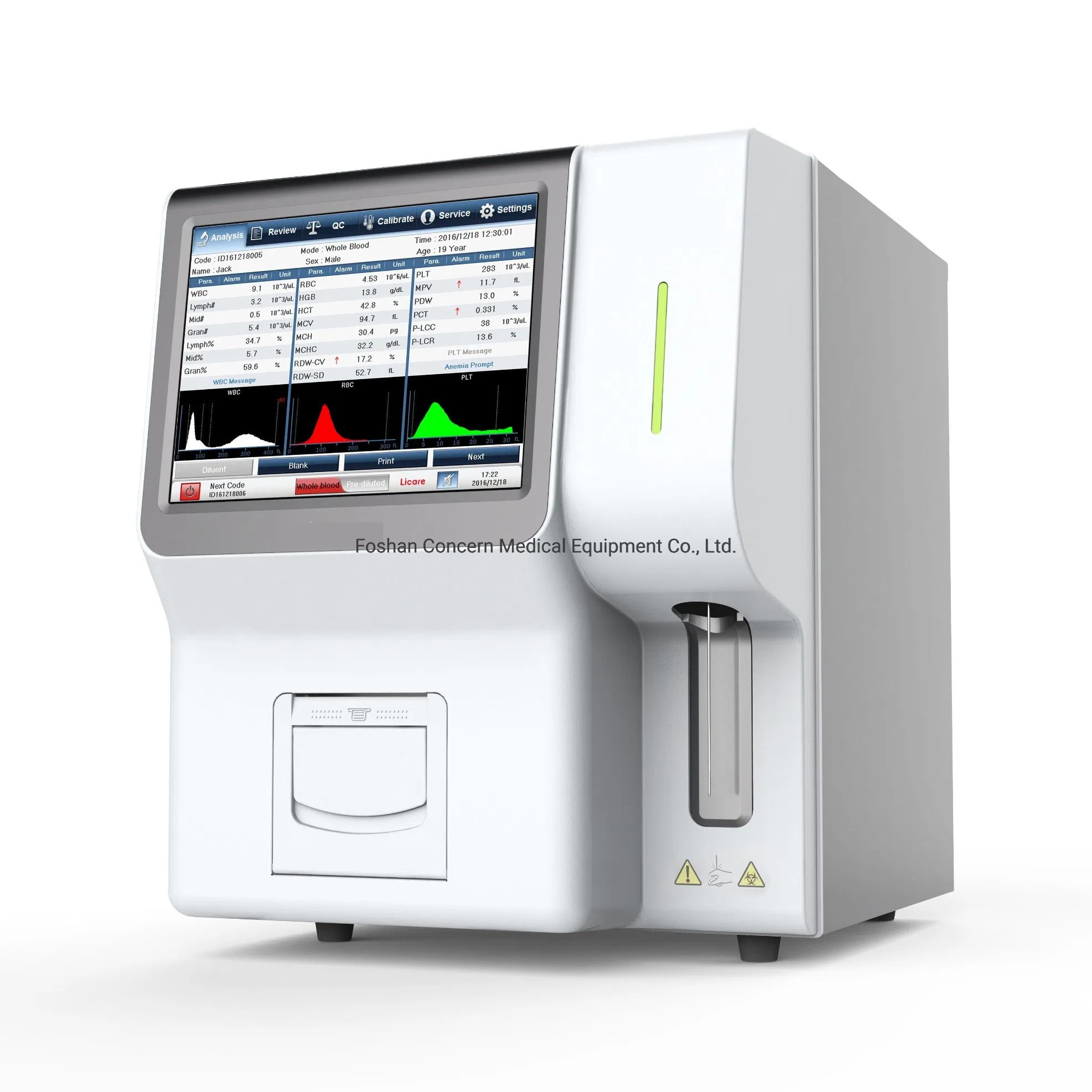

Medical Hospital Laboratory Instrument 3 Parts 22 Parameter Clinical Auto Blood Hematology Analyzer

Classification:	Biological Diagnostics
Type:	Urine Analyzer
Certification:	CE, MSDS, ISO13485

Send Inquiry

Product Description

Basic Information

Model NO.

CCL-H3200

Warrant

1 Year

LCD

10.4 Inch True Color TFT LCD

Speed

60 Test Per Hour

Analyzer

3-Parts

Counting Modes

Whole Blood, Pre-Diluted Blood

Parameters

21 Parameters and 3 Histograms

Origin

China

Product Overview

Medical Hospital 3 Parts Diff 22 Parameter Clinical Auto Blood Hematology Analyzer

Technical Parameters & Features

User-friendly interface: 10.4 inch true color TFT LCD & touch screen, minimize interface layers.
Internationalization support: Multiple units and languages available with online switching.
Anemia indications: Provides indications for Normocytic, Macrocytic, and Microcytic anemia.
Advanced Alarm System: Clearer text alarm information (reagents empty, waste full, etc.) compared to traditional codes.
Automated Processing: Automatic blank counting during start-up and automatic re-counting after unclogging.
Efficient Printing: Built-in patented thermal printer, 80mm wide paper, prints reports in just 5 seconds.
State-of-the-art Technology: Sweeping flow, Pulse discrimination, and intelligent floating threshold technology.

Detailed Specifications

Measuring Principles Impedance method for cells counting; Cyanide free colorimetric method for HGB measurement.

Throughput ≤ 60 Seconds from test beginning to completion of printout.

Parameters (21 Total) WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC, HGB, MCV, MCH, MCHC, RDW-CV, RDW-SD, HCT, PLT, MPV, PDW, PCT, P-LCR, P-LCC, and 3 Histograms (WBC, RBC, PLT).

Sample Volume Whole Blood: ≤14µL; Pre-diluted Blood: ≤20µL.

Data Storage Capacity for more than 10,000 sample results including parameters, histograms, and patient info.

Connectivity Open communication protocol (LIS support), 4 USB ports, one network port, and one RS-232 port.

Medical Equipment One-Stop Supply

Department	Equipment Category	Key Products
Radiology	X-Ray Room	X-ray machine, Film, Cassette, Lead clothing (apron, glasses, gloves)
Radiology	Ultrasound	B/W 2D Ultrasound, 2D/3D/4D Color Ultrasound
Laboratory	Diagnostics	Chemistry analyzer, Hematology analyzer, ELISA reader/washer, Centrifuge
Operating Room	Surgery & Life Support	Anesthesia machine, Ventilator, Operating lamp/table, Patient monitor, Defibrillator

Frequently Asked Questions (FAQ)

How many tests can the CCL-H3200 perform per hour?

The analyzer is designed for high efficiency, capable of performing up to 60 tests per hour, with a total processing time of 60 seconds or less per sample.

What types of blood samples can be analyzed?

The device supports two counting modes: Whole Blood (requiring ≤14µL) and Pre-diluted Blood (requiring ≤20µL).

Does the analyzer support LIS connectivity?

Yes, it features an open communication protocol and a dedicated network port to support seamless connection to Laboratory Information Systems (LIS).

What is the display and interface like?

The unit is equipped with a 10.4-inch true color TFT LCD touch screen. It uses a user-friendly interface with a pop-up soft keyboard to minimize operational complexity.

How does the device handle clogged counting holes?

It includes an automatic re-counting feature. If a counting hole is clogged, the device performs an unclogging treatment and re-counts automatically to avoid the need for re-collecting blood.

What parameters are included in the report?

The analyzer provides 21 distinct parameters (including WBC, RBC, HGB, PLT, etc.) and 3 detailed histograms for WBC, RBC, and PLT.
