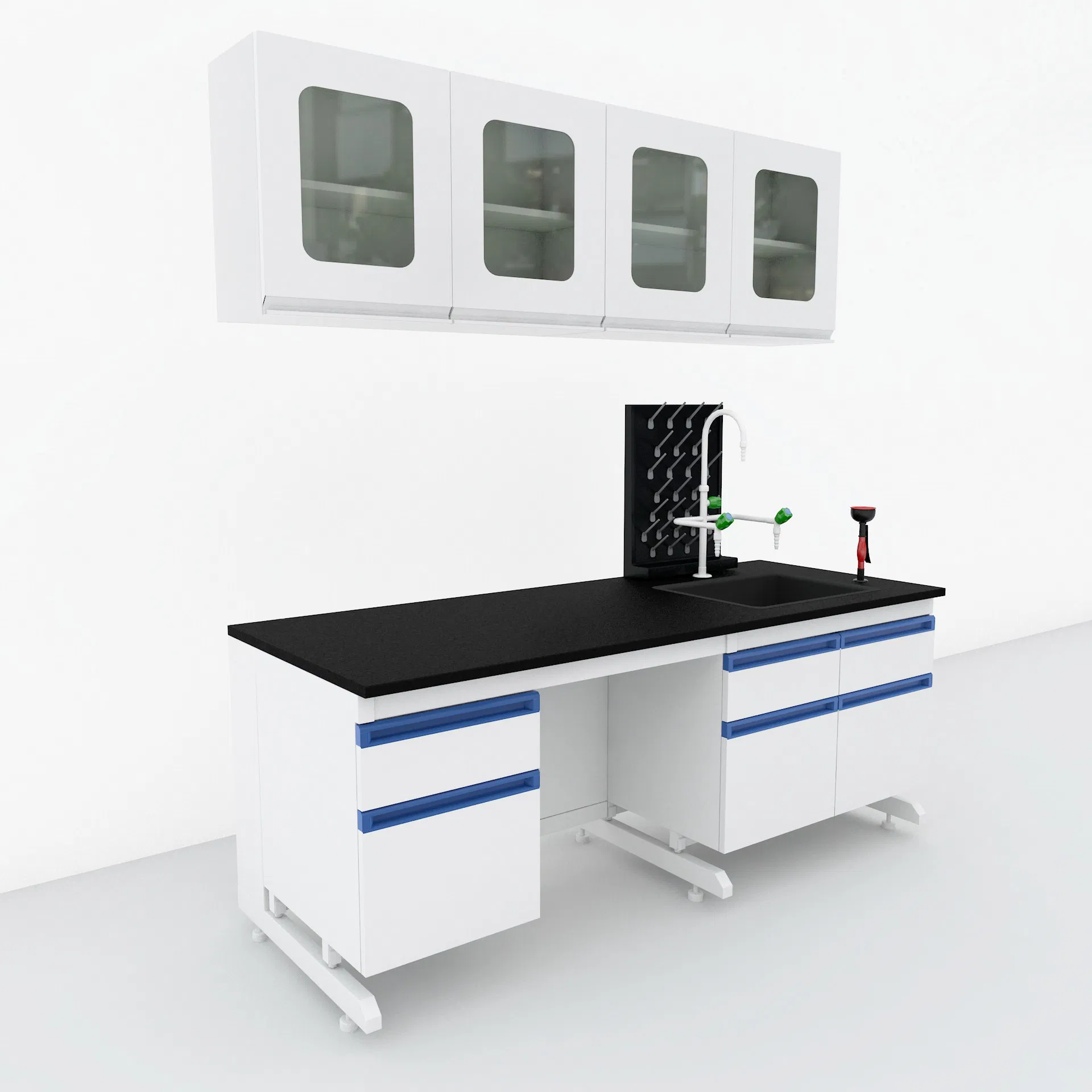

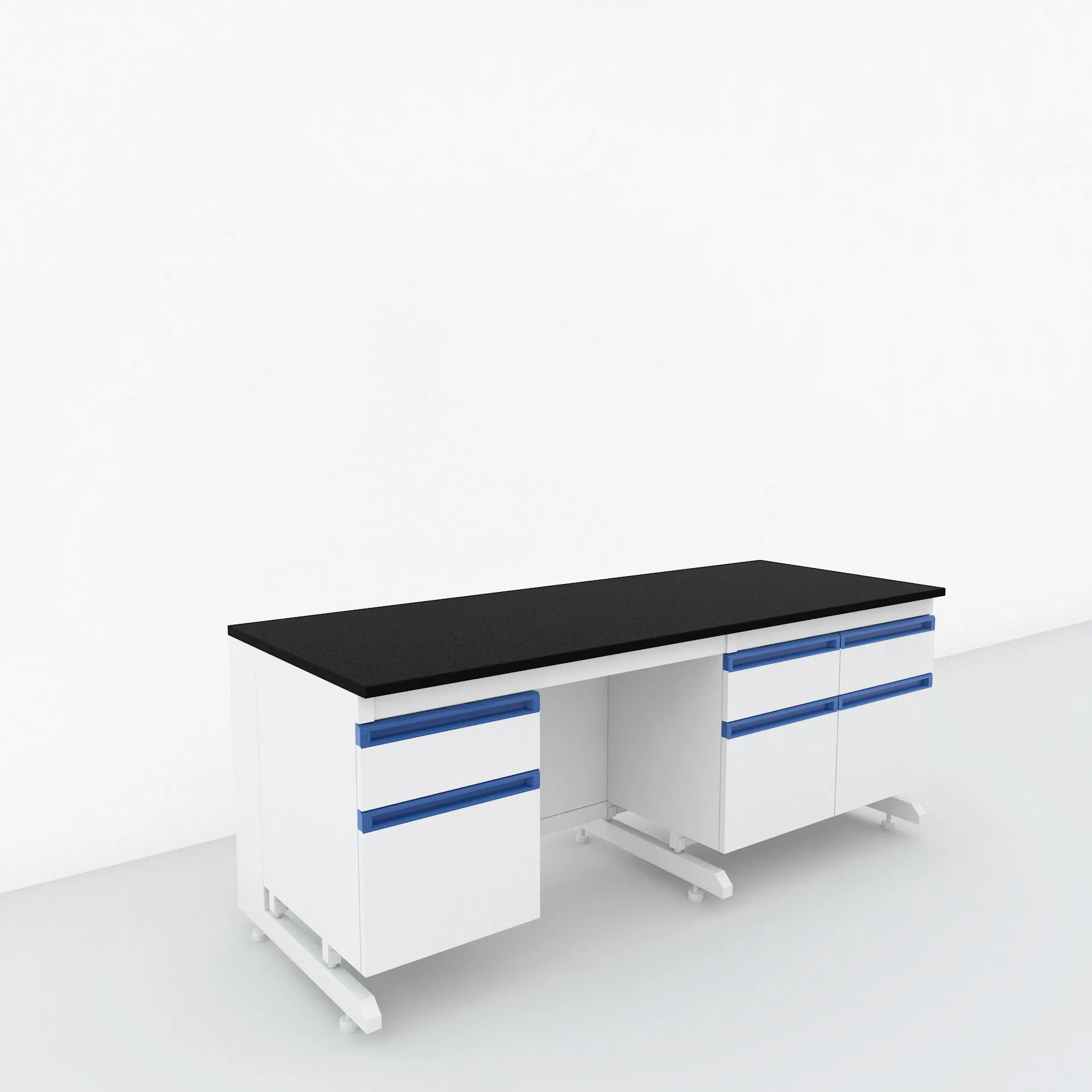

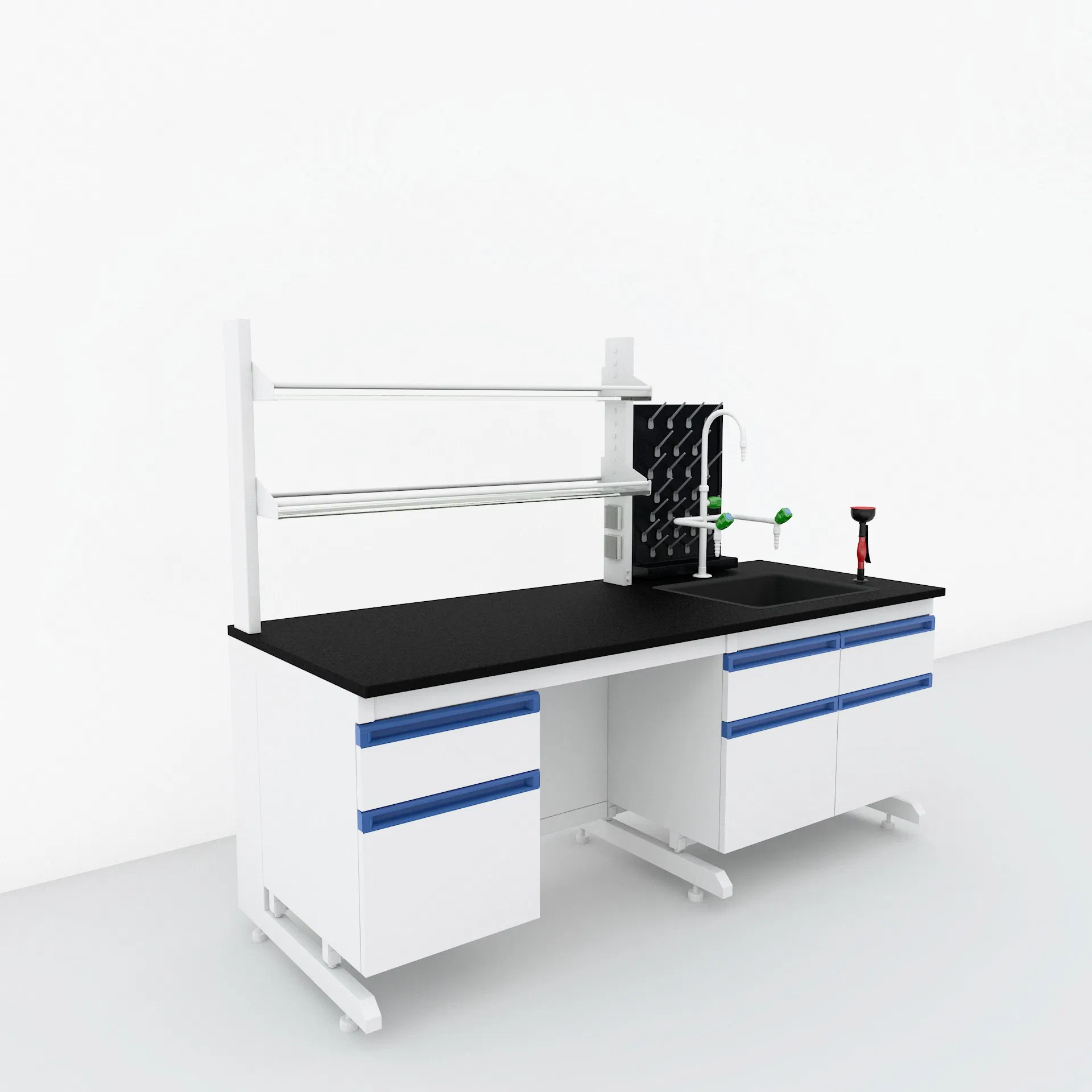

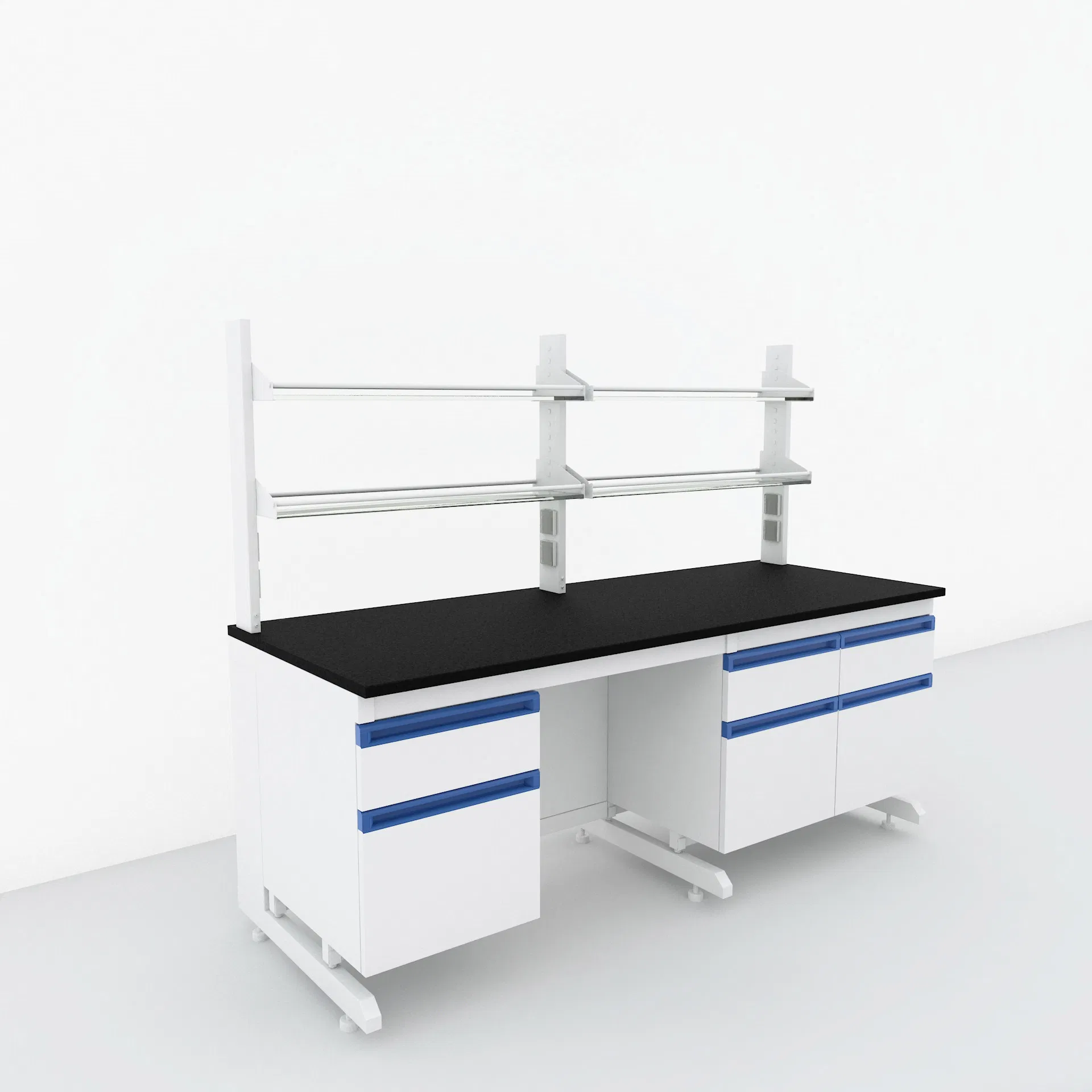

Lab Work Benches Cheap Price for Clinical and Medical Laboratories Guangzhou Factory

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.
LB-CF-11
Usage
Hospital, School, Company, Research Institute, Laboratory
Color
Blue
Name
Lab Furniture/Lab Bench/Lab Table
Structure
Floor Mounted/C-Frame/H-Frame/Mobile Modular
Materials
Steel/Stainless Steel/PP/Wood/HPL/MDF
Worktop
Phenolic Resin/Epoxy Resin/Ceramic/HPL/Trespa
Accessories
Water Tap/PP Sink/Electrical Outlets
Surface
Electrostatic Powder Coated with Epoxy Resin
Certificate
CE Certification/ISO Certification
Load-Bearing
500kg/Square Meter
Origin
China

Product Description

Lab Work Benches Lab Work Benches Description

1. Countertop Options

  • Phenolic Resin: 12.7mm (Edge banding & thicken to 25.4mm) / 16 / 19 / 25mm thickness
  • Epoxy Resin: 16 / 19 / 20 / 25mm thickness
  • Ceramic: 15 / 20 / 25mm thickness
  • Trespa: 13 / 16 / 19 / 20 / 25mm thickness
  • Granite/Marble: 20mm thickness

2. Cabinet & Accessories

  • Frame: 40*60*1.5mm thick high-quality cold-rolled rectangle tube, phosphating treatment, electrostatic powder coated with epoxy resin (220°C cure).
  • Handle: Aluminum alloy/Non-welded linear/C-shaped/Insertion handle.
  • Rail: DTC 16-inch three-section silent rail.
  • Hinge: DTC 105°/175° buffer hinge/stainless steel hinge.
  • Footing: Adjustable laboratory-specific feet (range ≥35mm) with strong bearing capacity.

3. Cabinet Unit Options

  • Wooden Cabinet Unit: 15mm thickness body, 18mm double-face MDF/melamine board doors, sealed with 2mm PVC edge strips.
  • Steel Cabinet Unit: 1.0mm cold-roll steel sheet, epoxy resin powder coated (1.15mm~1.2mm total thickness). Double-layered doors with sound insulation.
Product Type Standard Dimensions (L*D*H)
C-Frame Wall Bench L*750*850mm / Customize
C-Frame Island Bench L*1500*850mm / Customize
C-Frame Corner Bench 1000*1000*850mm / Customize

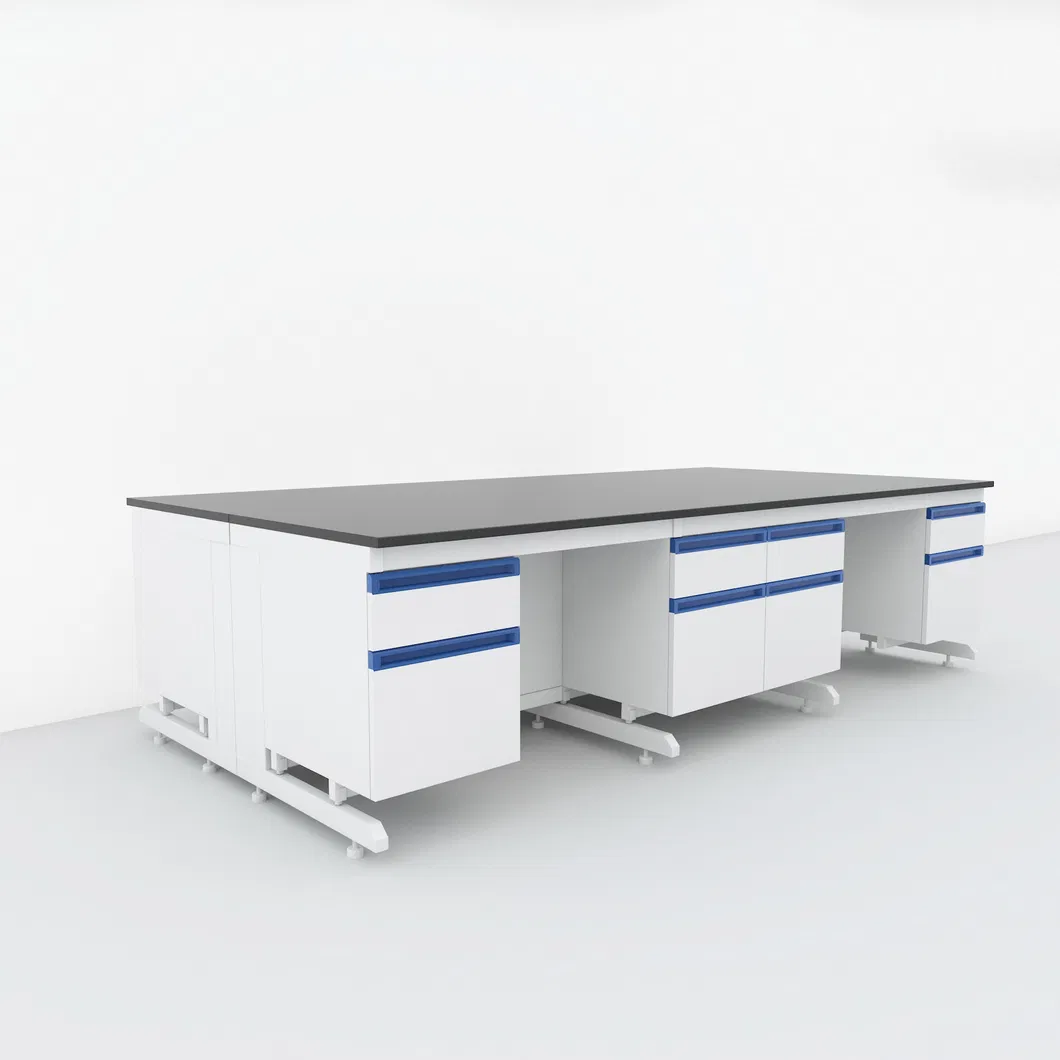

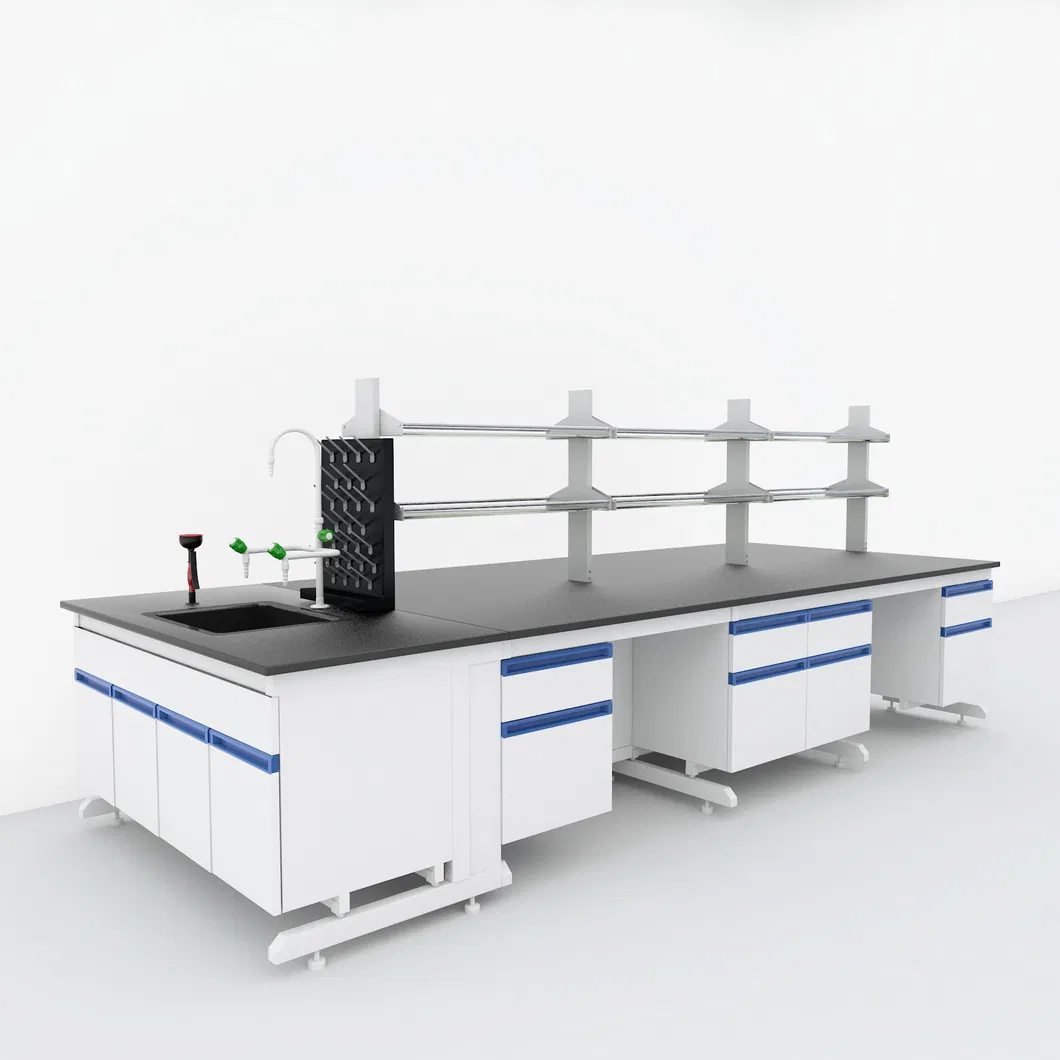

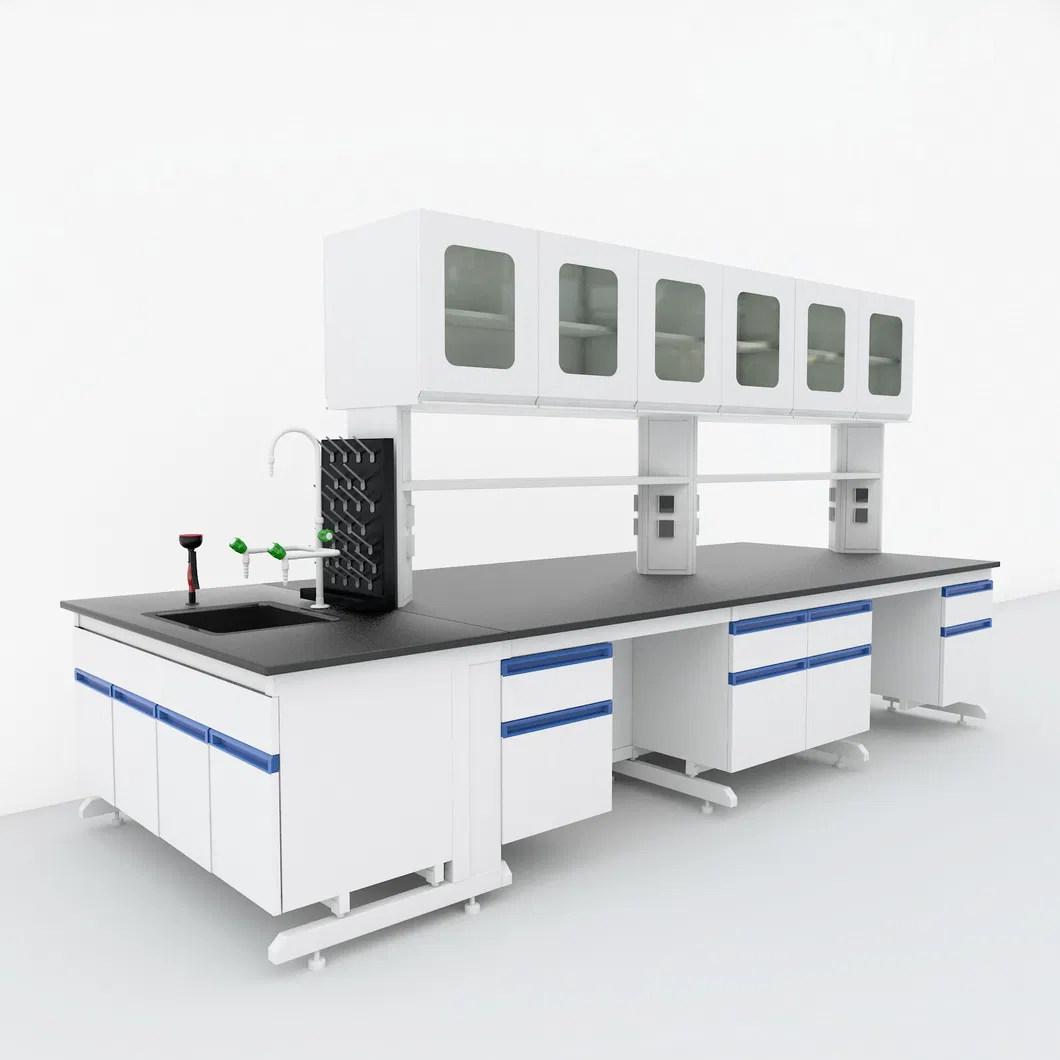

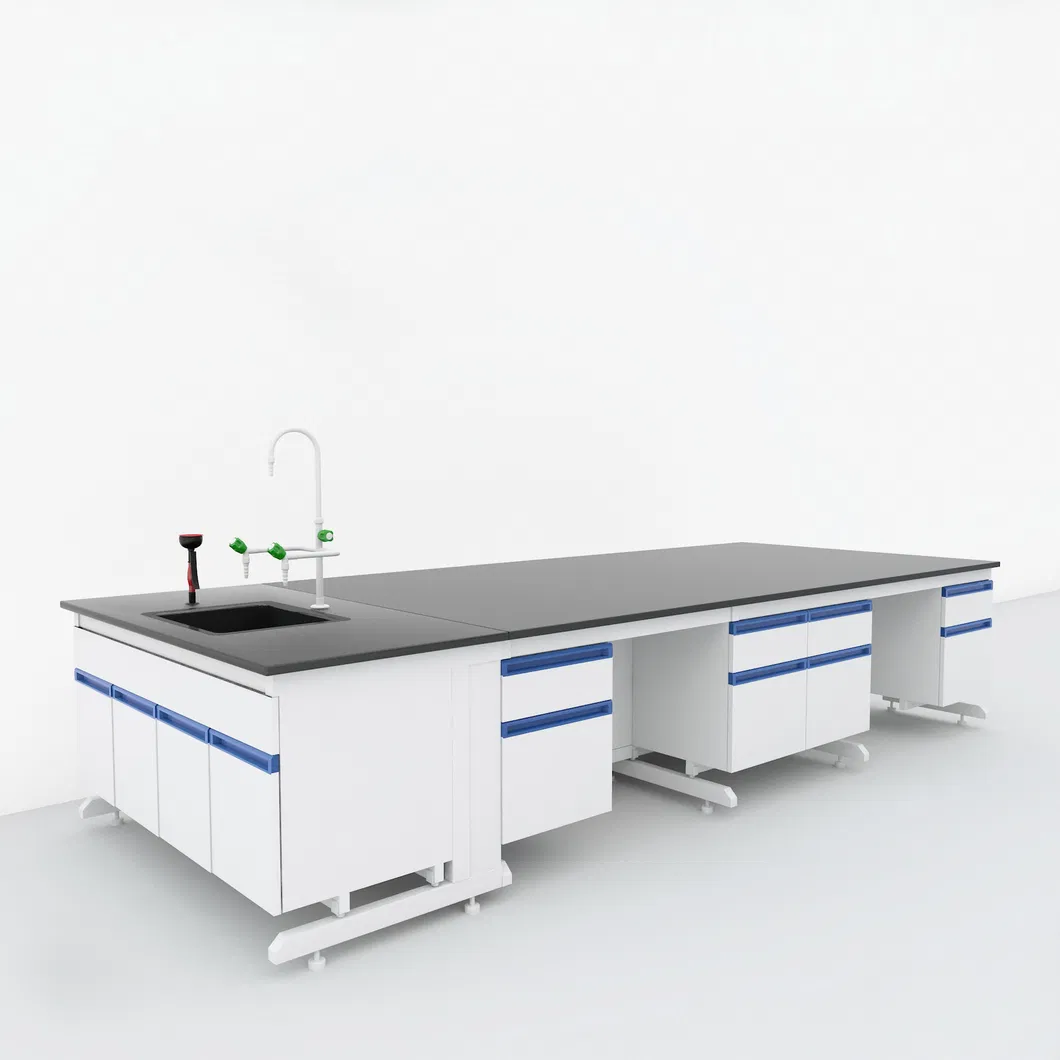

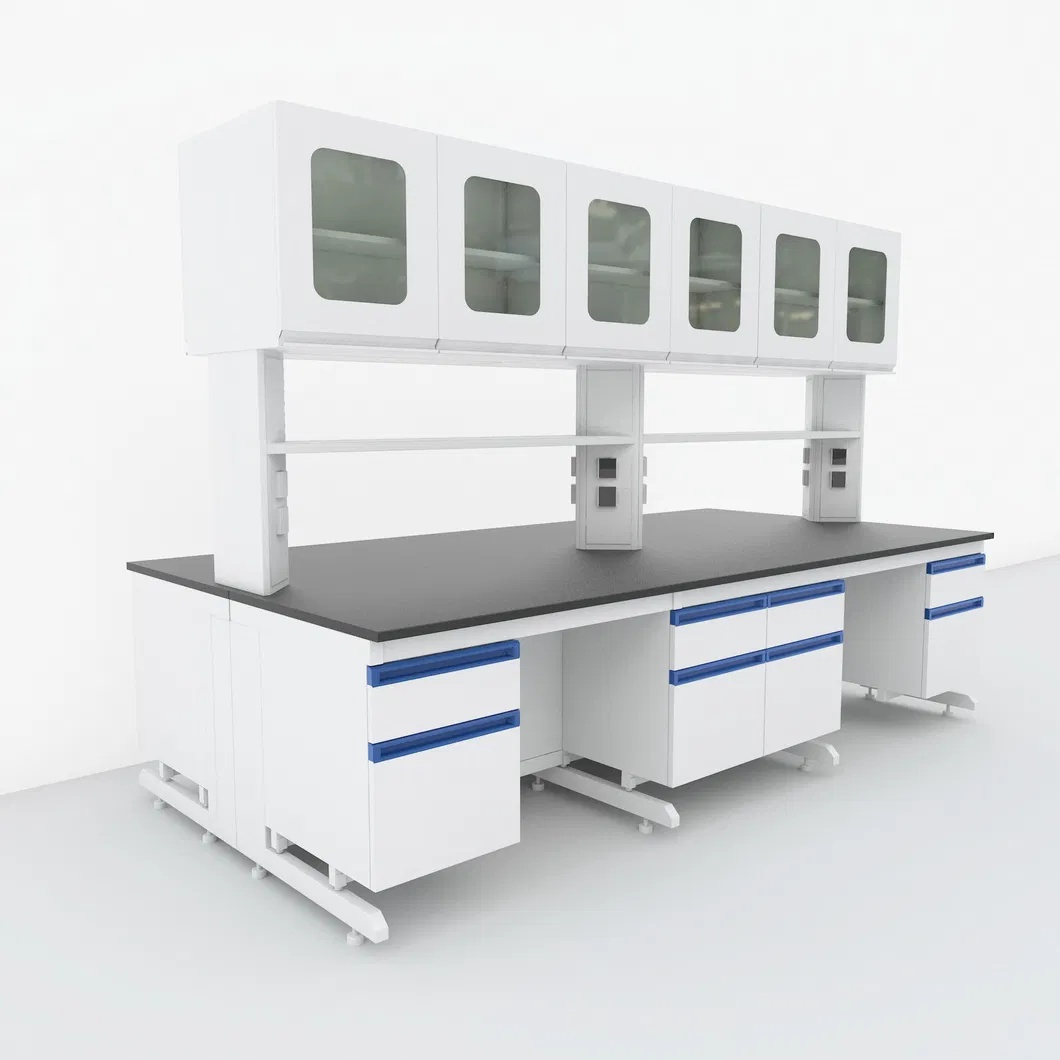

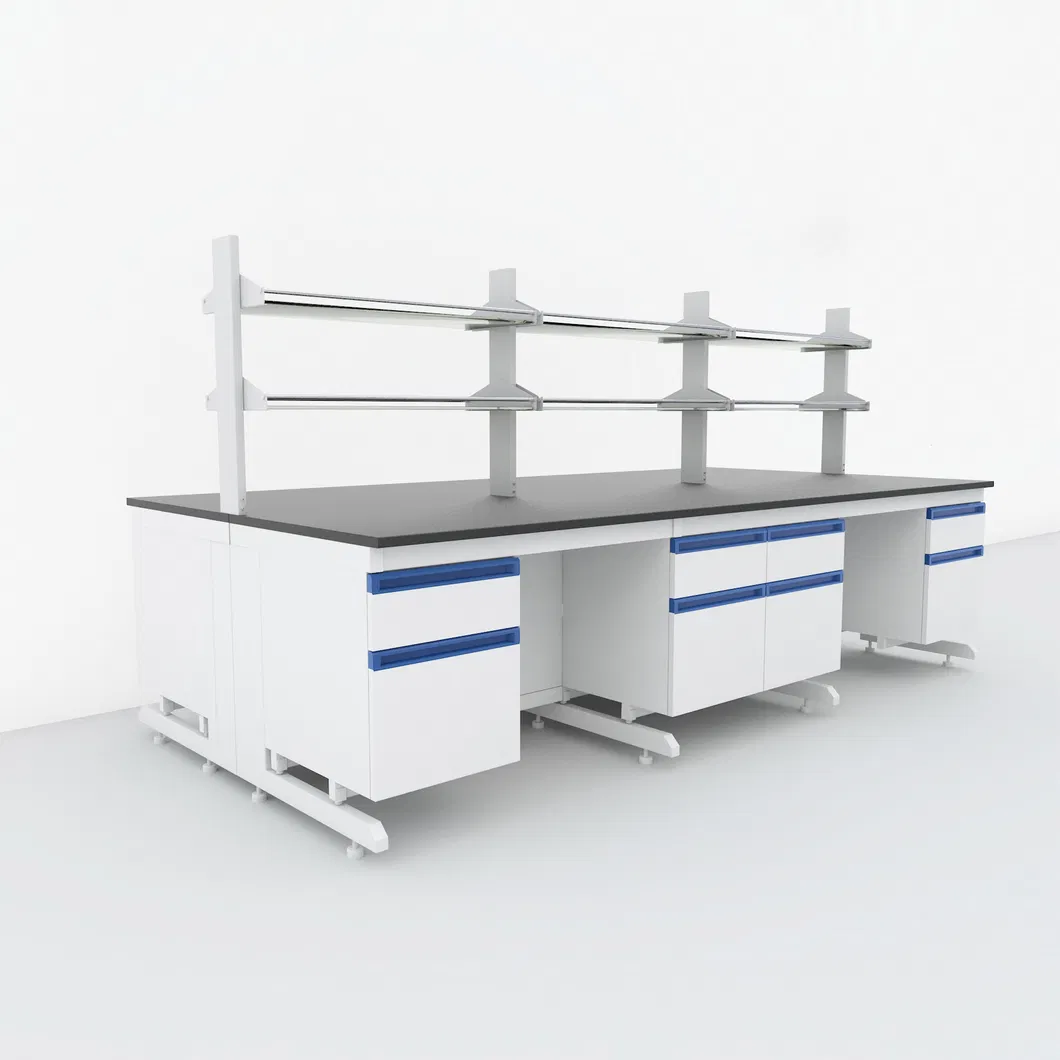

Product Series Gallery

Key Features & Advantages

  • Modern design with a unique, flexible structure that allows free combination.
  • Optional configurations: No cabinet, suspended cabinet, or mobile cabinet structures.
  • Easy-to-clean design with sufficient clearance between cabinets and the floor.
  • Enhanced knee and leg room for ergonomic operation.
  • Excellent moisture resistance and primary shock absorption.
  • High load-bearing capacity reaching more than 200KG/m².
  • Independent cabinet units can be moved, added, or removed without affecting the main system.
  • Strict production process using high-quality rectangle steel with professional chemical rust removal and anti-corrosion treatment.

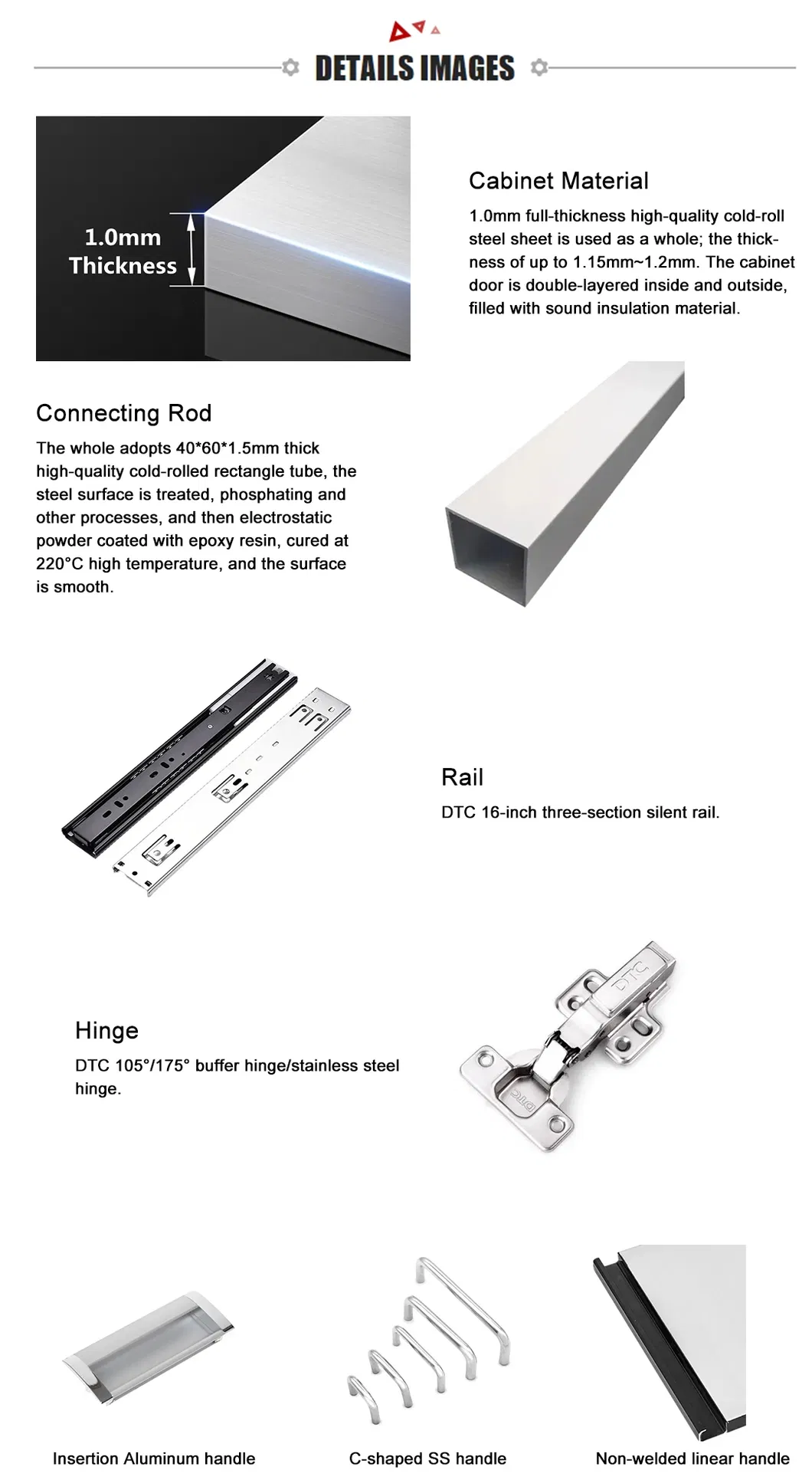

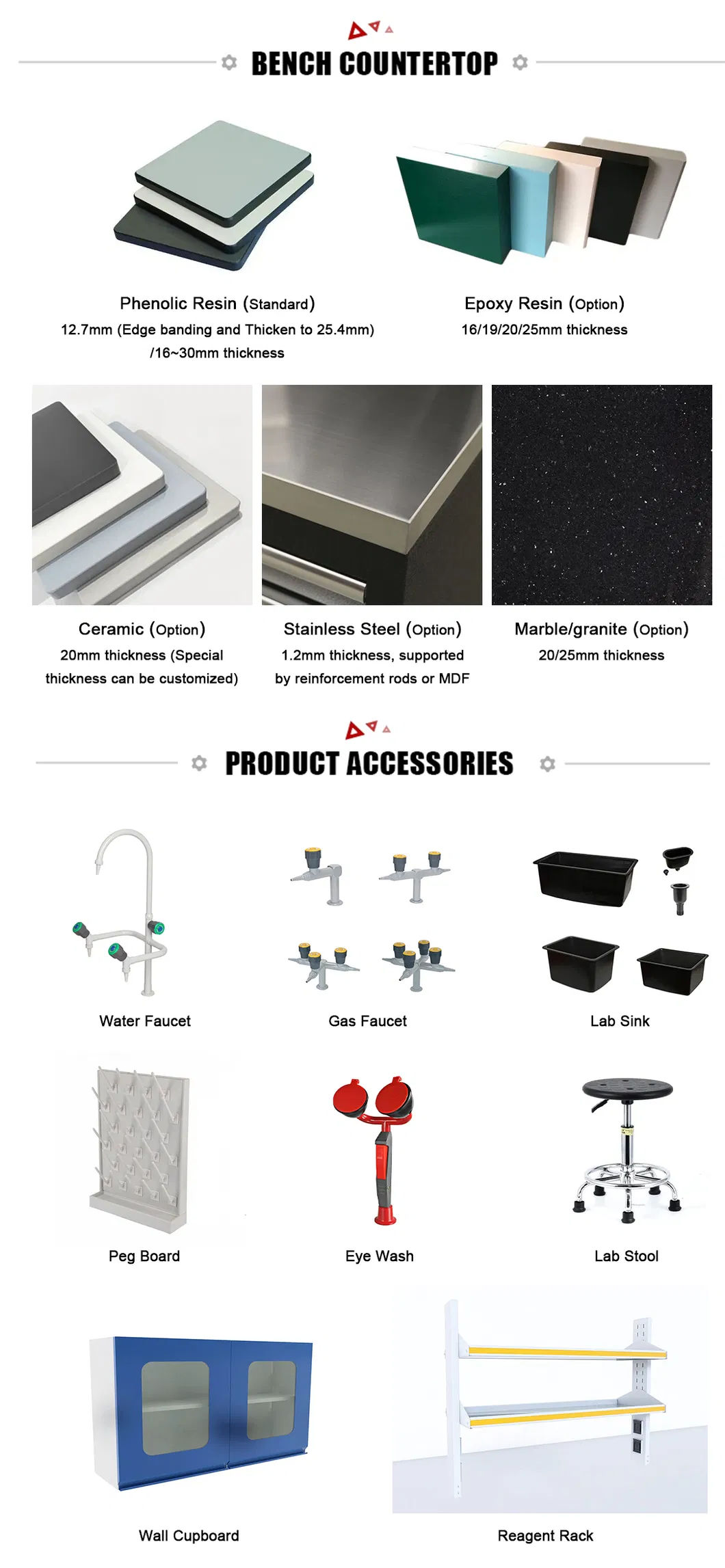

Lab Bench Features Lab Bench Details

Frequently Asked Questions

Q1: What materials are available for the lab worktops? We offer a variety of high-performance materials including Phenolic Resin, Epoxy Resin, Ceramic, Trespa, and Granite/Marble to suit different chemical resistance needs.
Q2: What is the load-bearing capacity of these lab benches? The benches are designed for heavy-duty use, with a load-bearing capacity of up to 500kg per square meter for the overall structure and 200KG/m² for specific configurations.
Q3: Can the size and configuration of the lab bench be customized? Yes, we provide fully customized solutions for length, depth, and height, as well as choice of cabinet units (steel or wood) and mounting styles (C-frame, H-frame, or mobile).
Q4: How is the steel frame protected against corrosion? The steel surface undergoes phosphating and other professional chemical rust removal processes, followed by an electrostatic powder coating with epoxy resin cured at 220°C.
Q5: Are standard accessories included with the lab benches? Standard benches can be equipped with essential accessories such as water taps, PP sinks, and electrical outlets according to laboratory requirements.
Q6: Is the C-Frame structure easy to clean? Absolutely. The C-Frame design provides enough space between the cabinets and the floor, making it very easy to clean and maintain hygiene in the laboratory.
