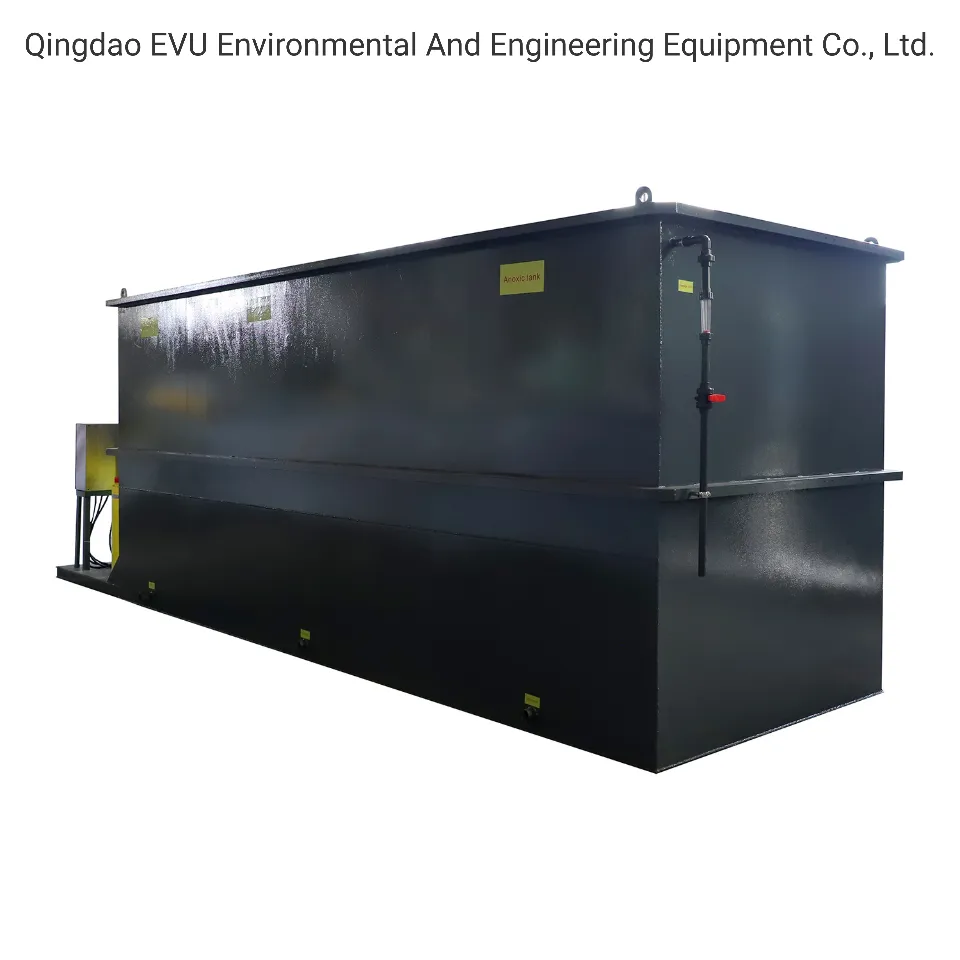

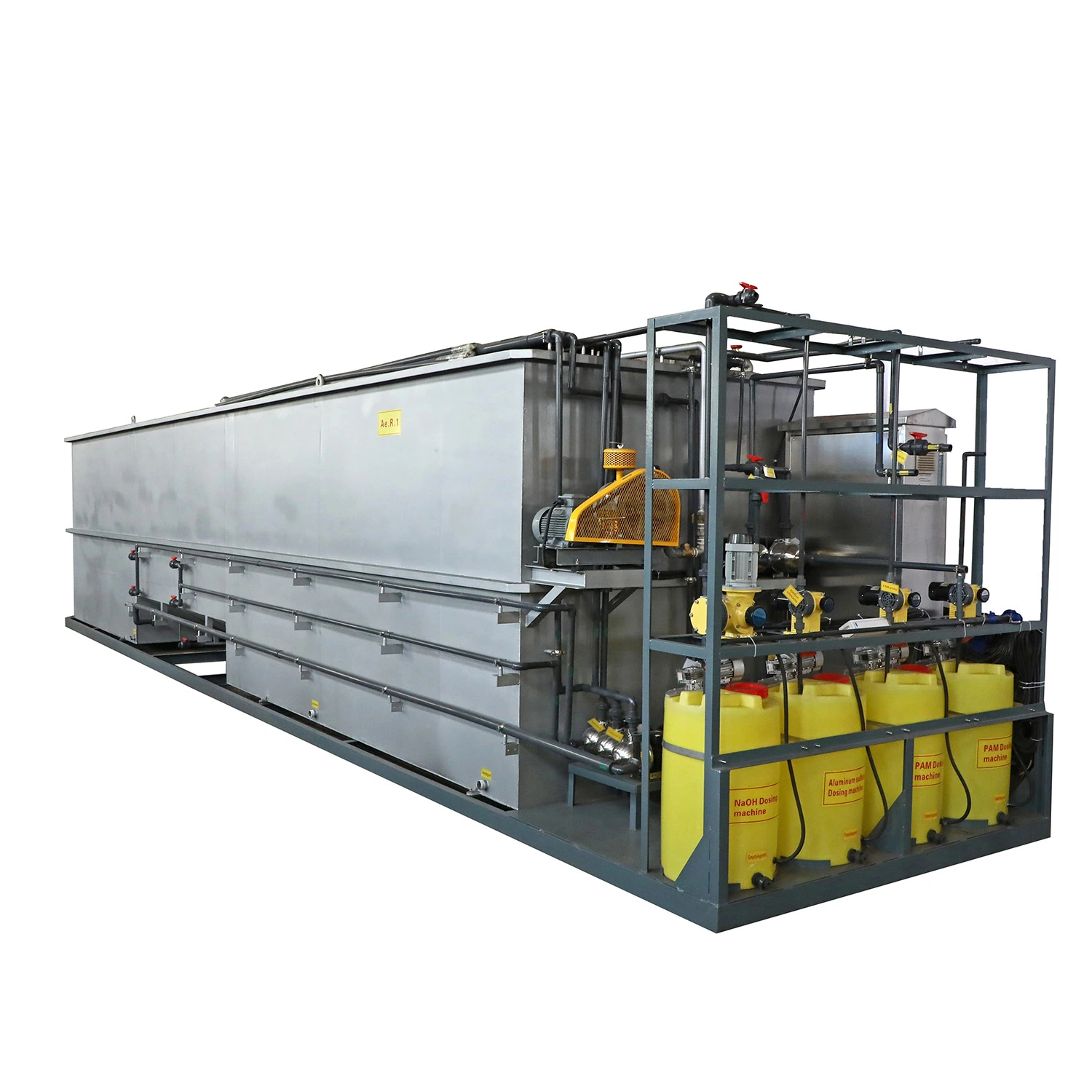

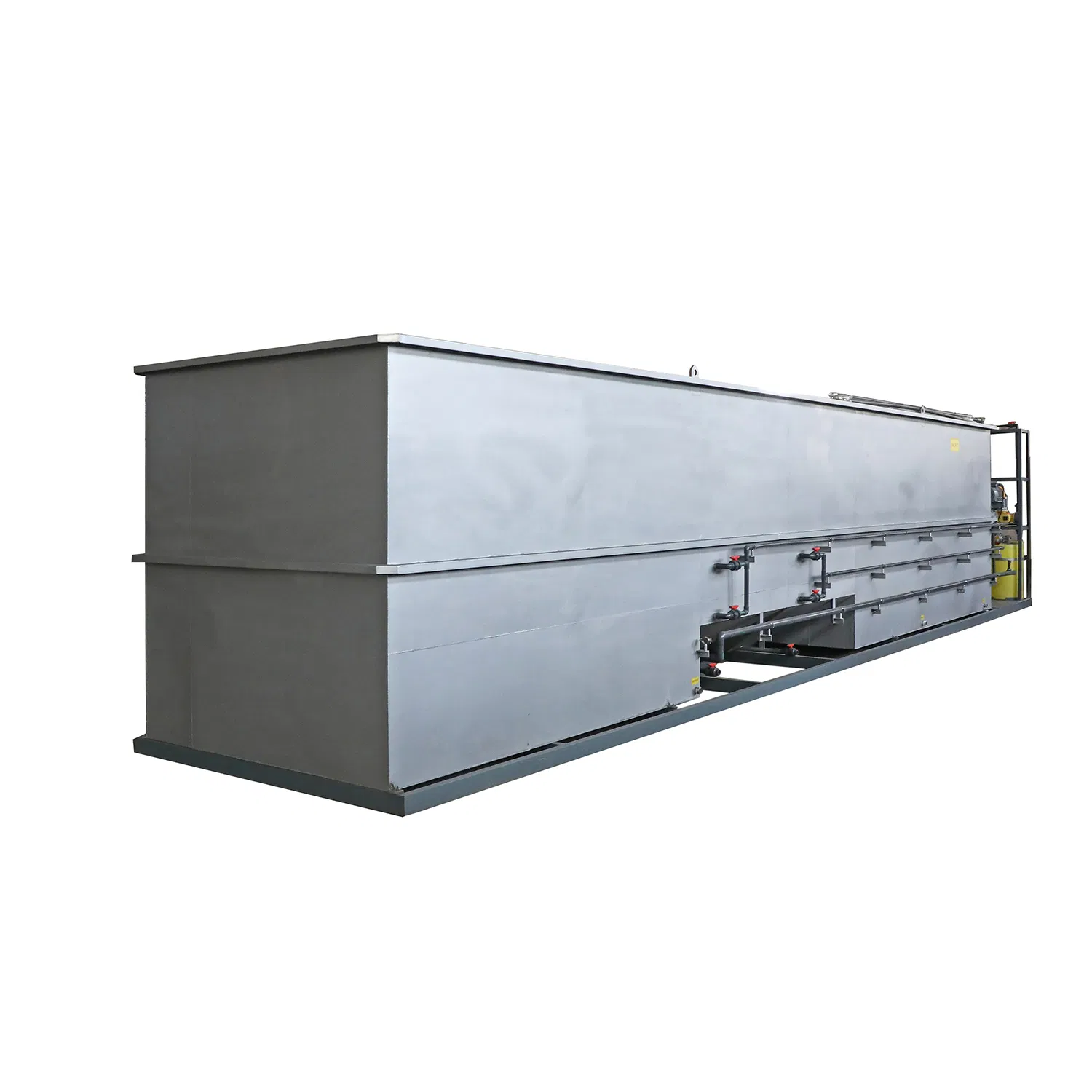

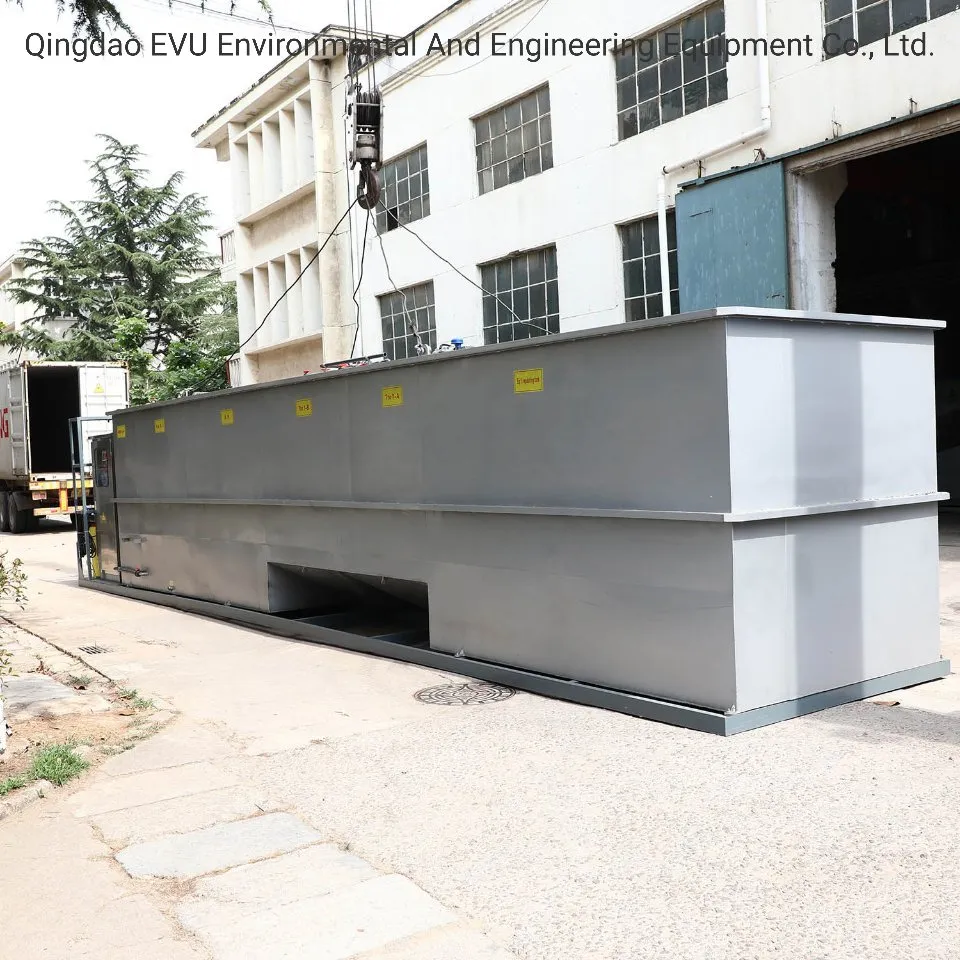

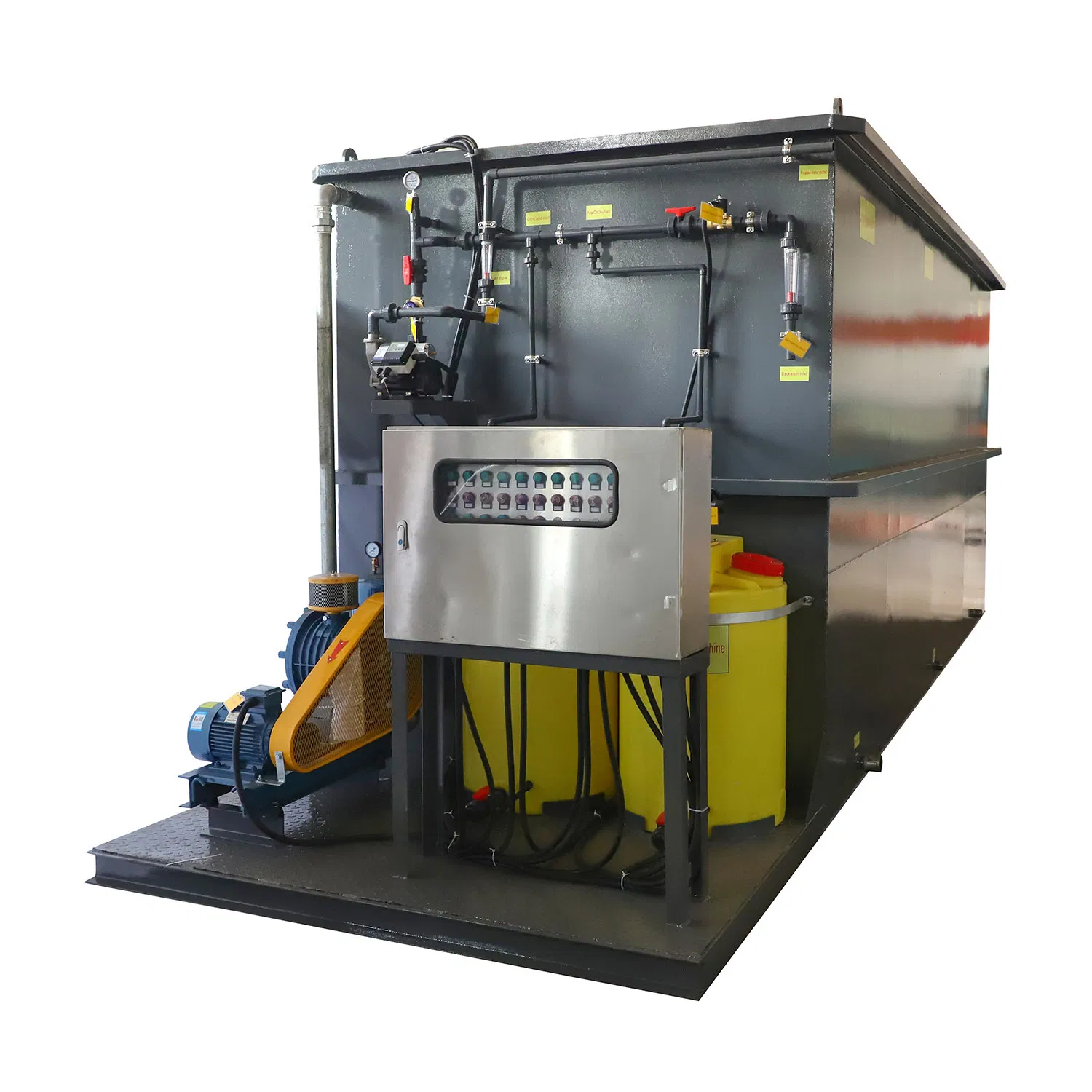

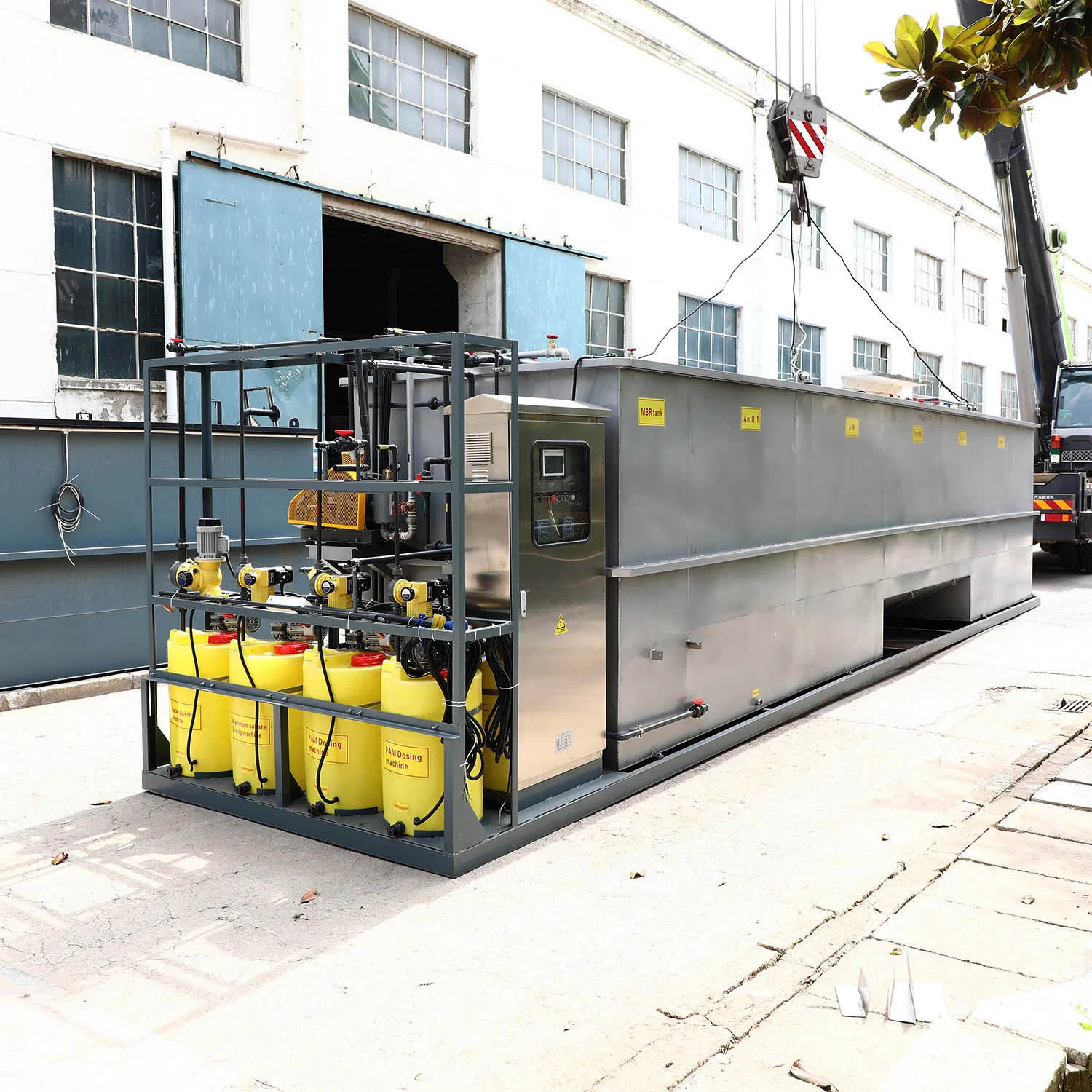

The integrated sewage treatment equipment eliminates organic matter pollutants and ammonia nitrogen primarily through the AO biological treatment process. Due to the high density of organic matter in the sewage, microorganisms operate under anoxic conditions to decompose organic nitrogen into NH3-N. Simultaneously, organic carbon is used as an electron donor to transform NO2-N and NH3-N into N2.
In the O level stages, the reduced organic matter density allows for further oxygenolysis and nitrification. This level employs low oxygen biology contact oxidation, utilizing nitrifying bacteria to decompose organic matter into CO2 and H2O, effectively eliminating nitrogen pollution through denitrification reflux.
| Model | QDCK1 | QDCK2 | QDCK3 | QDCK5 | QDCK10 | QDCK20 | QDCK30 | QDCK50 |
|---|---|---|---|---|---|---|---|---|
| Process load (m³/h) | 1 | 2 | 3 | 5 | 10 | 20 | 30 | 50 |
| Air Blower Wind (m³/min) | 0.31 | 0.59 | 0.67 | 1.02 | 2.5 | 4.11 | 4.11×2 | 4.11×3 |
| Blower Power (KW) | 0.55 | 0.75 | 1.5 | 1.5 | 3.7 | 5.5 | 5.5×2 | 5.5×3 |
| Pump Lifting (m) | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Area (m²) | 6 | 10 | 14 | 19 | 39 | 75 | 113 | 168 |
