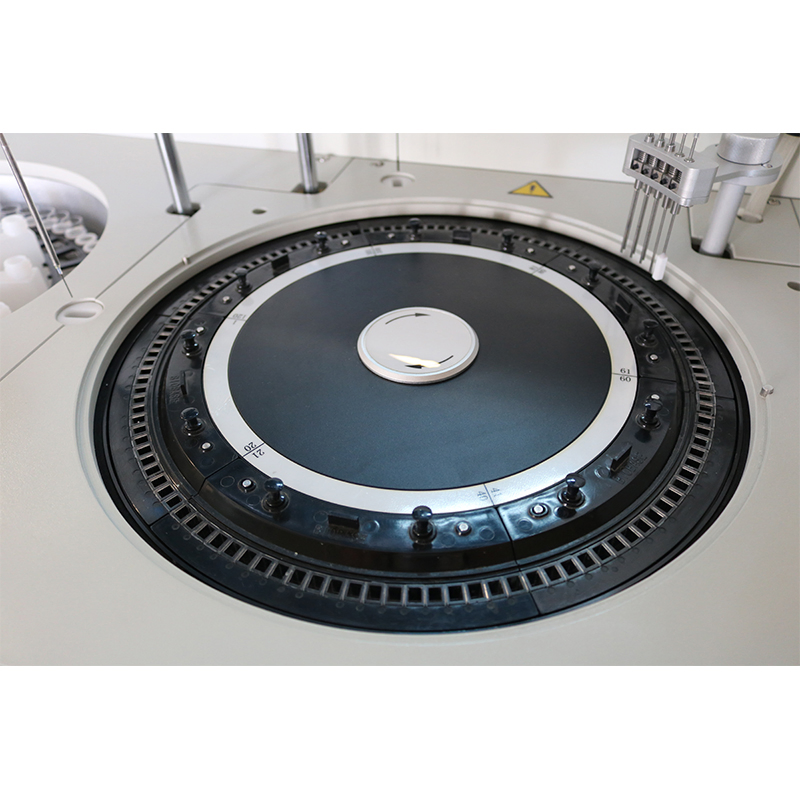

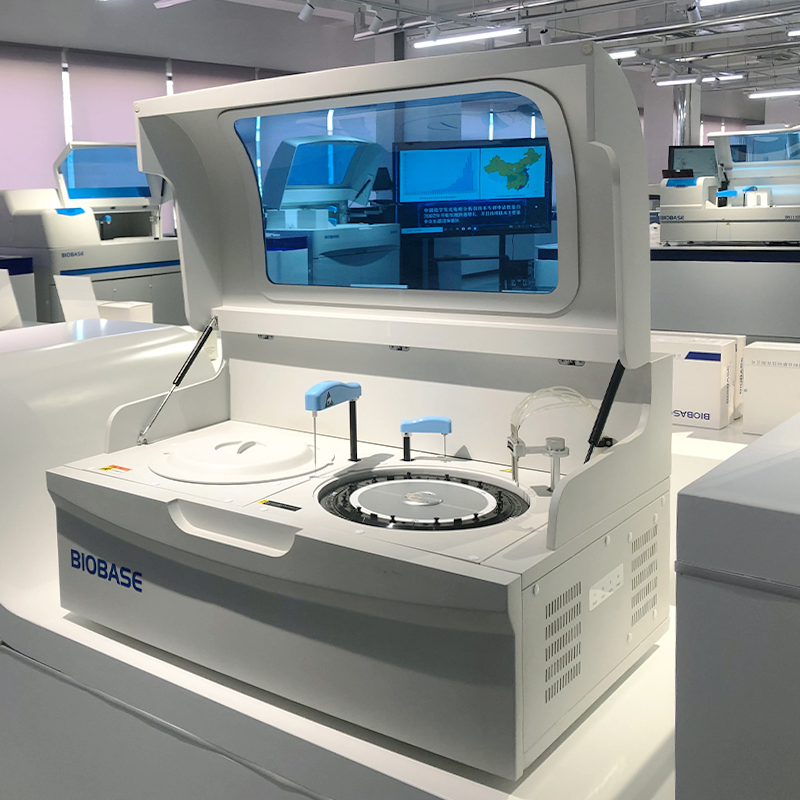

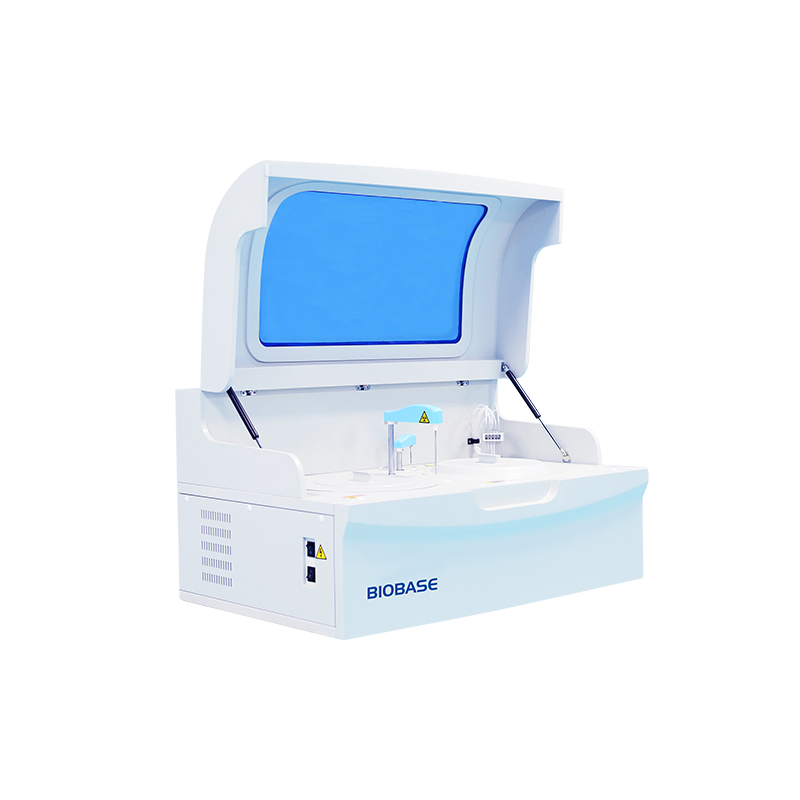

Biobase Factory 200 Tests/Hour Fully Automatic Clinical Chemistry Analyzer
Biobase Factory 200 Tests/Hour Fully Automatic Clinical Chemistry Analyzer
Biobase Factory 200 Tests/Hour Fully Automatic Clinical Chemistry Analyzer
Biobase Factory 200 Tests/Hour Fully Automatic Clinical Chemistry Analyzer
Biobase Factory 200 Tests/Hour Fully Automatic Clinical Chemistry Analyzer
1 / 5
Biobase Factory 200 Tests/Hour Fully Automatic Clinical Chemistry Analyzer
Biobase Factory 200 Tests/Hour Fully Automatic Clinical Chemistry Analyzer
Biobase Factory 200 Tests/Hour Fully Automatic Clinical Chemistry Analyzer
Biobase Factory 200 Tests/Hour Fully Automatic Clinical Chemistry Analyzer
Biobase Factory 200 Tests/Hour Fully Automatic Clinical Chemistry Analyzer

Biobase Factory 200 Tests/Hour Fully Automatic Clinical Chemistry Analyzer

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model: BK-280
Certification: CE
Throughput: 200 T/H
Sample Positions: 37
Reagent Positions: 27
Reaction Cuvettes: 48
Mixer Probe: Independent Stirring
Package: Carton
Production Capacity: 10,000 units
Core Features

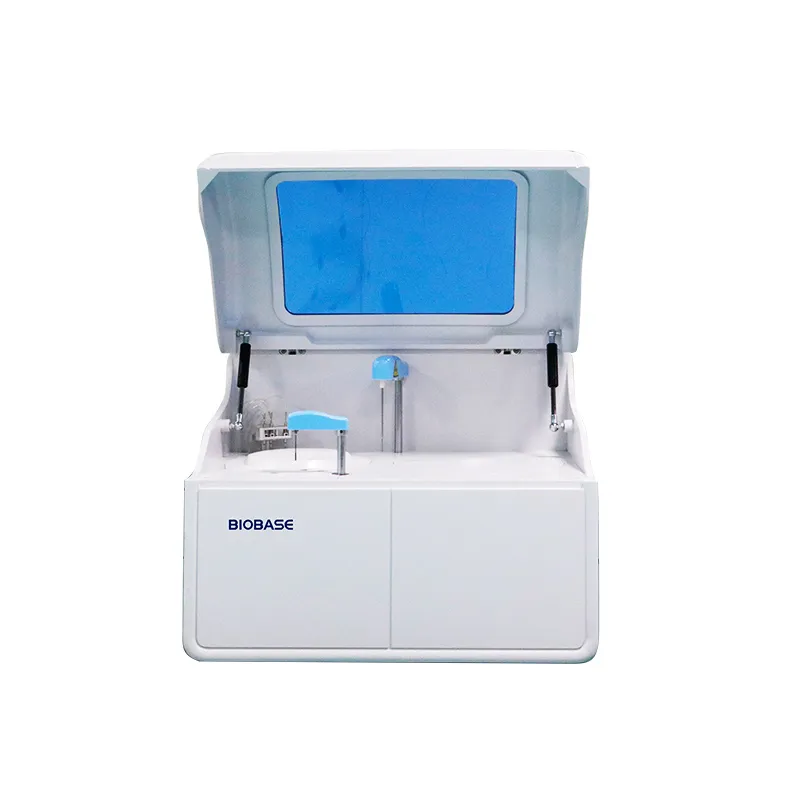

Automatic Clinical Chemistry Analyzer
  • 37 Sample positions for efficient batch processing
  • 28 Reagent positions with cooling functionality
  • 48 Reaction cuvettes ensuring high throughput
  • 200 Tests per hour constant speed
  • Probe anti-collision and liquid level detection
  • Automatic washing for interior and exterior
Technical Parameters
Model BK-200 (NEW BK-280)
Overall Performance Throughput 200 Tests/Hour
Analysis Method End-point, Fixed-time, Rate(Kinetic), Turbidimetry
Certificates ISO9001, ISO14001, ISO13485
Sample & Reagent Unit Positions 49 Sample positions / 56 Reagent positions
Probe Washing Automatic washing interior and exterior
Cooling Refrigerated tray with independent switch
Reaction System Temp. Control 37±0.1ºC, real-time monitor
Cuvettes 120 reusable cuvettes, optical length 6mm
STAT Function YES
Optical System Light Source 12V/30W halogen lamp
Wavelength 340, 405, 450, 510, 546, 578, 630, 700nm
Absorbance 0~3.0Abs
Data Management Software Windows 7/8/10, LIS system available (HL7 protocol)
Working Conditions Power Supply AC220V±10%, 60/50Hz; 110V±10%, 60Hz, 300W
Dimensions External Size 950*612*510mm (Net Weight: 75kg)
Factory & Production Display

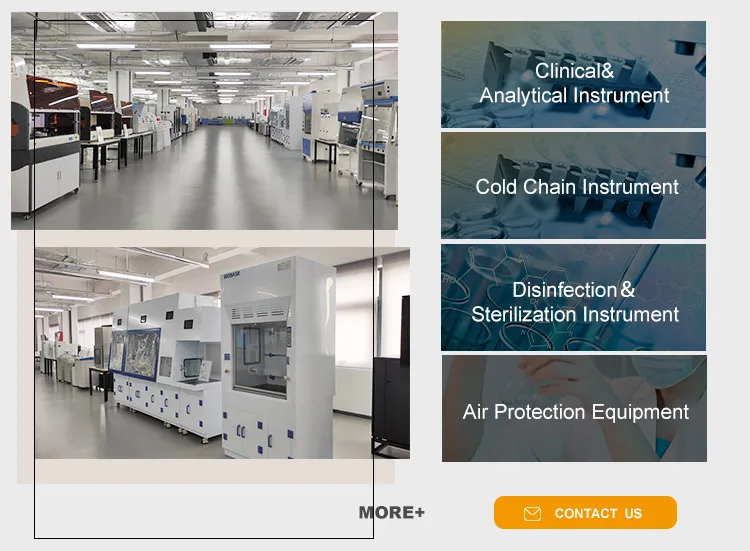

Factory View 1 Factory View 2 Factory View 3
Production Line 1 Production Line 2 Production Line 3
Quality Control
Global Service Support
Service Support Banner
Frequently Asked Questions
What is the testing speed of the BK-280 analyzer?
The analyzer maintains a constant throughput of 200 tests per hour, making it ideal for medium-sized laboratories.
Does the system support emergency samples?
Yes, the system includes a STAT function, allowing for prioritized testing of emergency samples at any time during operation.
How are the reagents kept stable?
The analyzer features a refrigerated reagent tray with an independent switch, ensuring reagents are stored at optimal temperatures even when the main system is not in use.
What type of maintenance is required for the cuvettes?
The BK-280 is equipped with an automatic cuvette washing system that cleans the 120 reusable cuvettes, reducing manual labor and ensuring testing accuracy.
Is the software compatible with hospital laboratory systems?
Yes, the software supports Windows 7, 8, and 10, and features a bi-directional LIS system compatible with the HL7 protocol for seamless data integration.
What wavelengths does the optical system support?
The post-spectral spectrophotometry system covers 8 standard wavelengths: 340, 405, 450, 510, 546, 578, 630, and 700nm.
