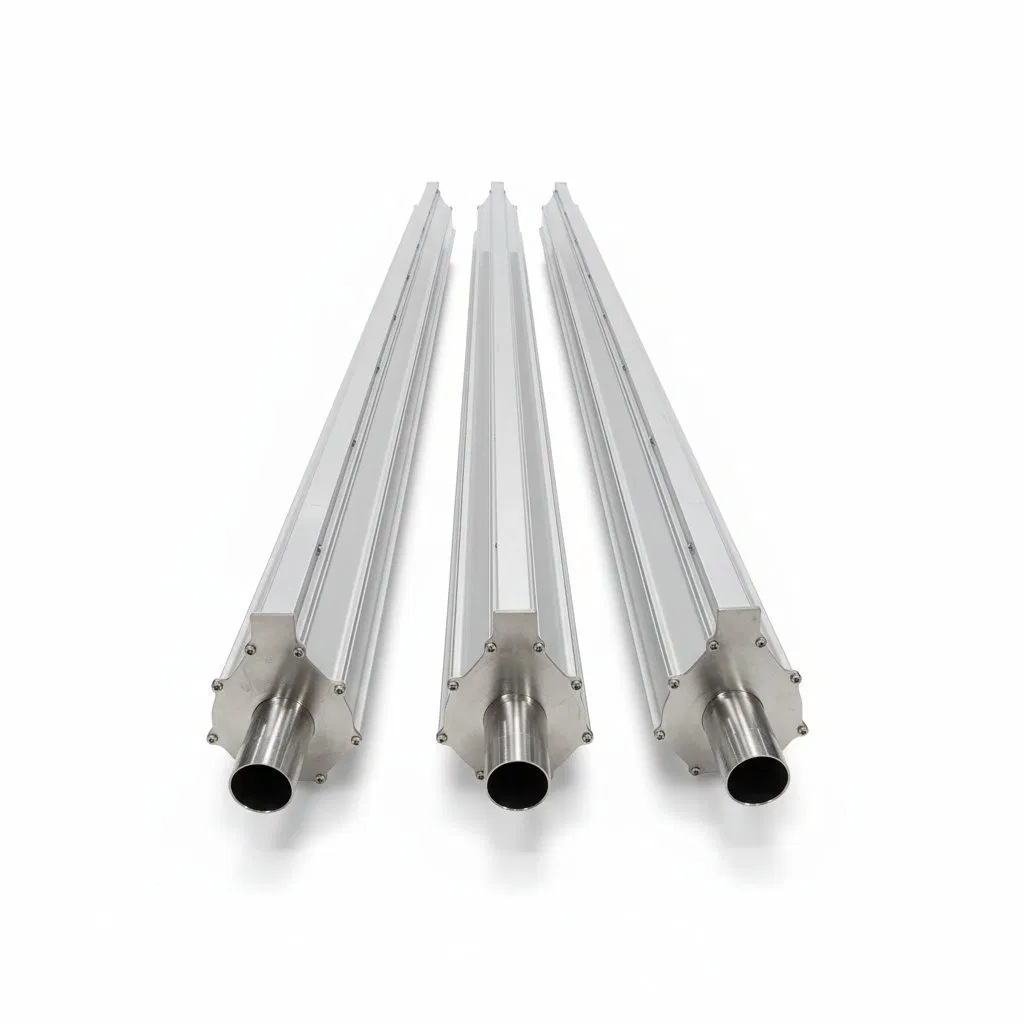

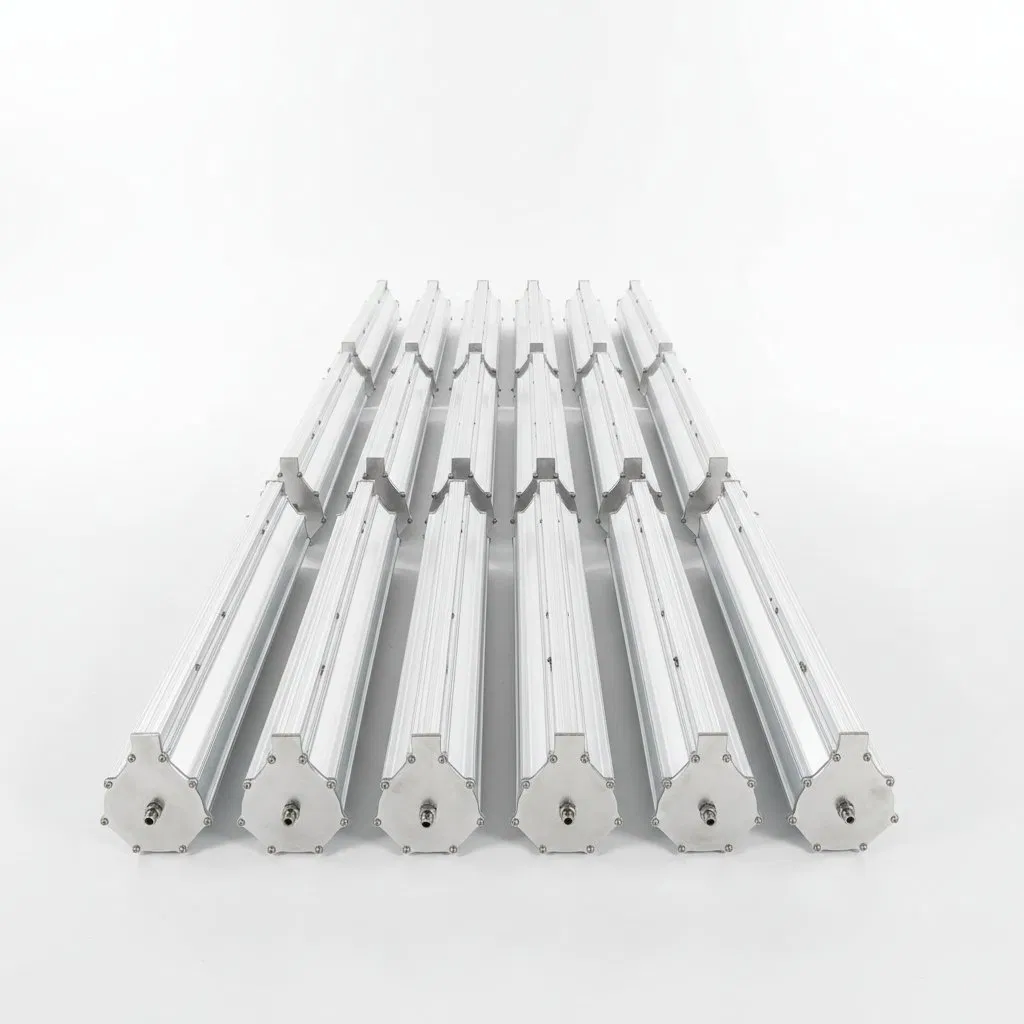

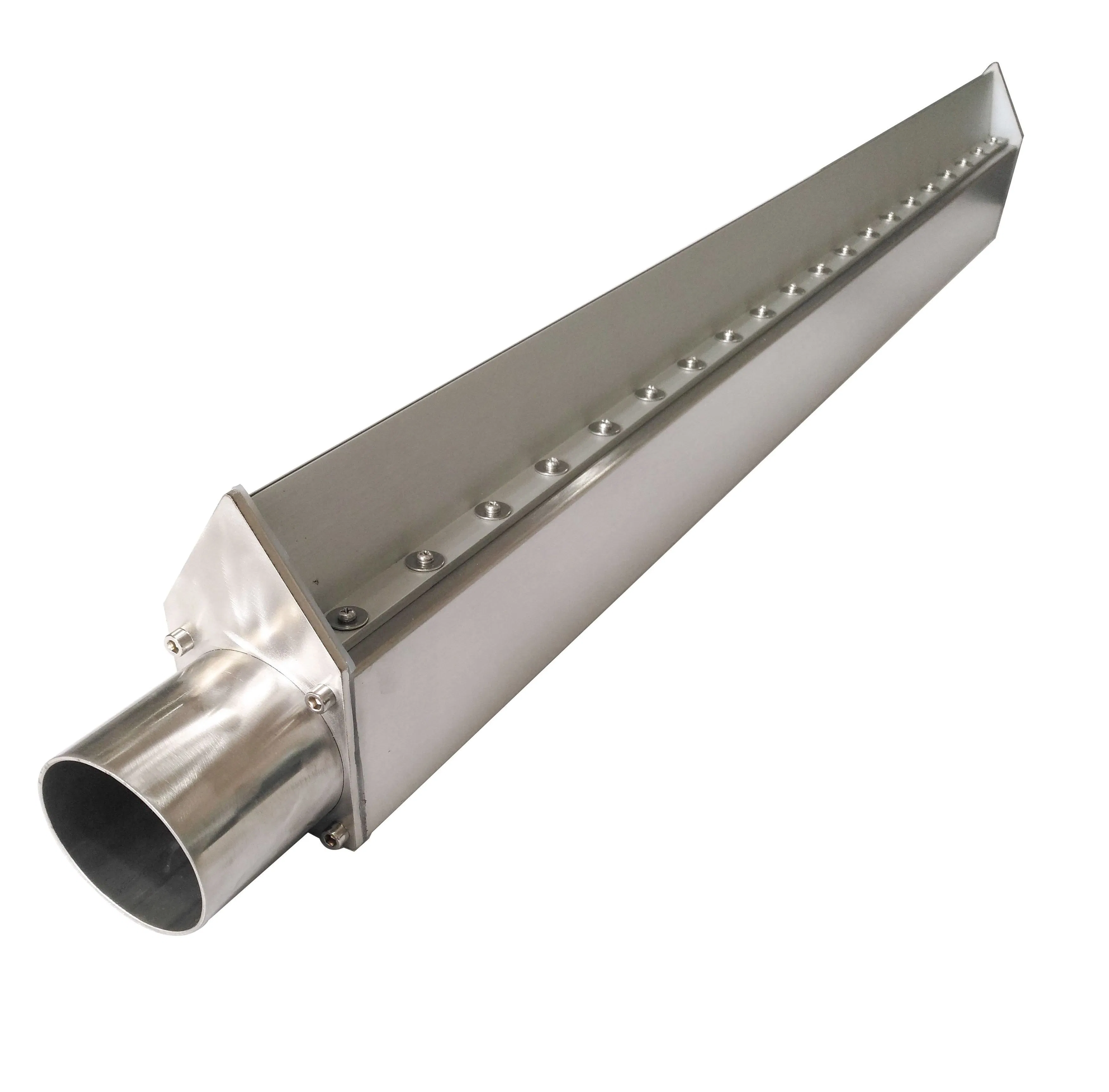

Aluminum Air Knife ISO Certified, Quality Management

1 / 5

Aluminum Air Knife ISO Certified, Quality Management

Customization:	Available
After-sales Service:	Free Technical Support for Life
Warranty:	1 Year

Send Inquiry

Product Description

📋

Basic Information & Specifications

Model NO.SWK/WSWK-S1, S2

TypeAir Heater / Air Knife

CertificationCE, ISO

MaterialStainless Steel, Aluminum Alloy

Temperature RangeHigh-Temperature

Power SourceElectric

Voltage220V

Specification30X13X19 cm

📦

Packaging & Delivery

Package Size30.00cm * 13.00cm * 19.00cm

Gross Weight5.000kg

Lead Time8 days (1-1 Pieces); Negotiable (>1)

Transport PackageWooden Box

⚙️

Products and Applications

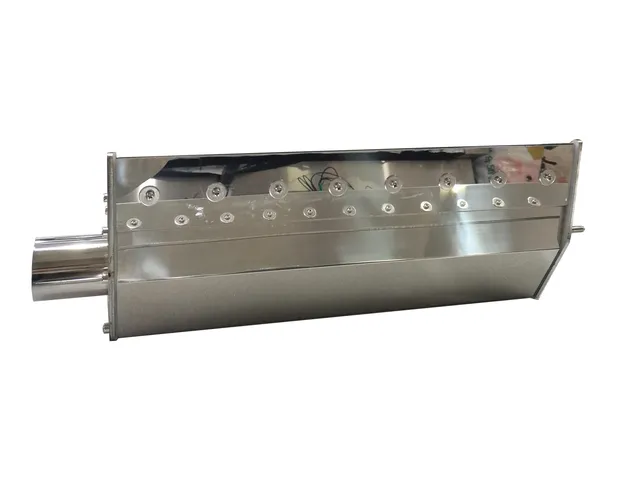

Main Material

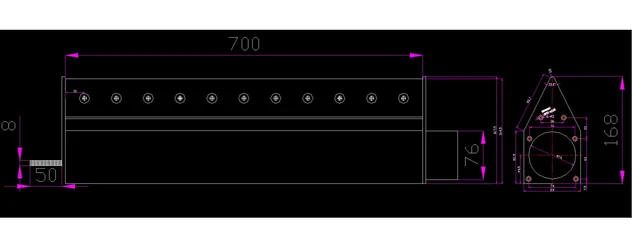

Duct Structure

Working Principle

Material Construction

Stainless steel air knife made of 304 or 316L stainless steel, corrosion-resistant, high-temperature resistant (up to 250 ℃). Suitable for highly corrosive environments, food, and medicine sectors. Some blades use aluminium alloy 6061 for enhanced structural strength.

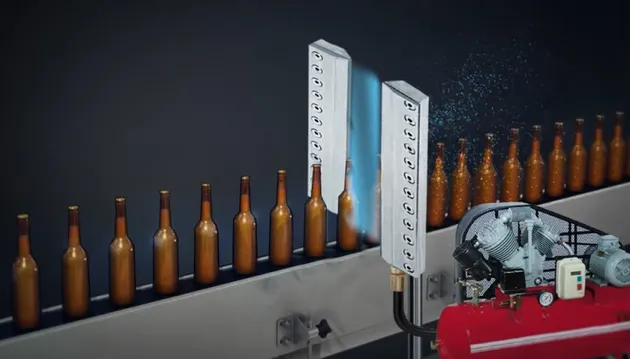

Working Principle

Utilizes the Coanda effect to amplify compressed air volume by 20-40 times. Forms a high-speed thin airflow (up to 80m/s-200m/s) to effectively remove surface moisture, dust, or provide rapid cooling.

Areas of Application	Application Scenario	Areas of Application	Application Scenario
Automotive	Body cleaning/drying, cooling, dust removal	Electronics	PCB Drying, Screen Cleaning, Chip Packaging
Metal Processing	Plating pre-treatment, laser cutting cooling	Food & Packaging	Bottle cleaning, bag opening, bakery cooling
Chemical & Pharma	Reactor cleaning, tablet drying	Logistics	Conveyor cleaning, packaging sealing

🎨

Customised Product Showcase

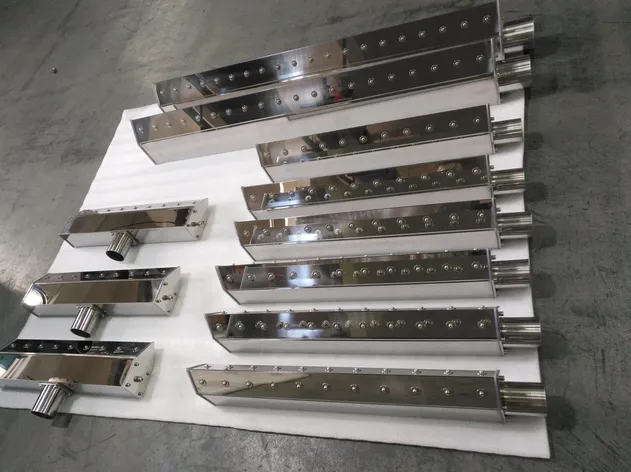

304 Stainless Steel

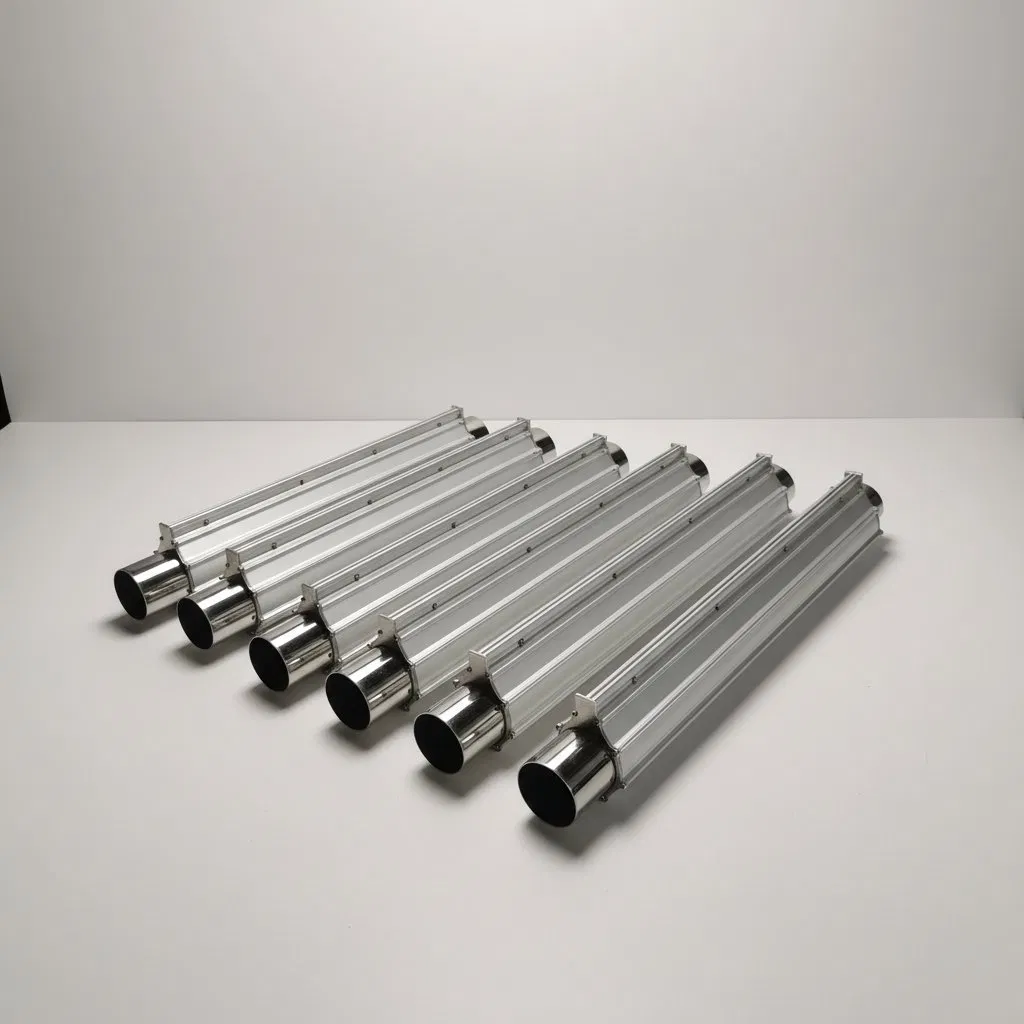

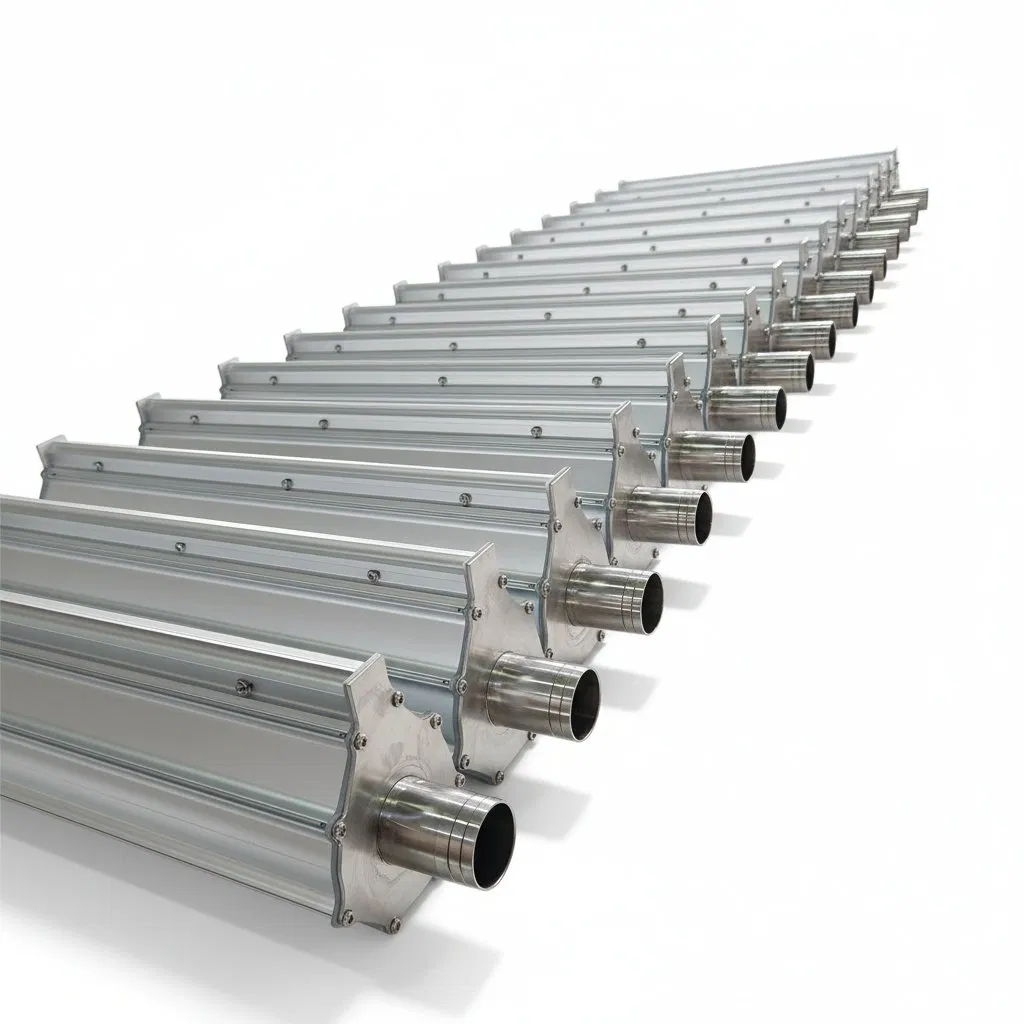

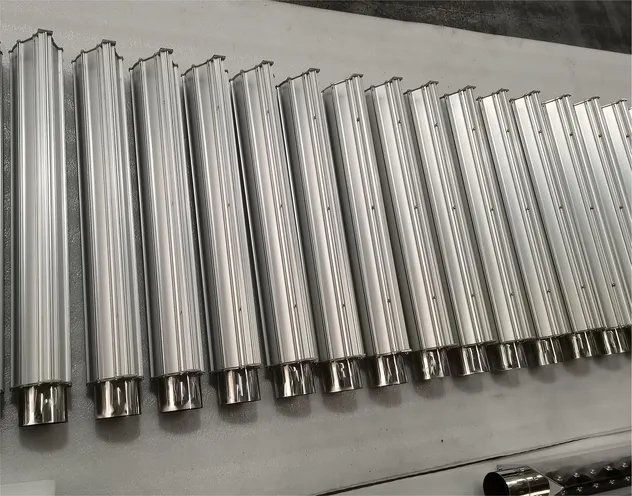

Aluminium

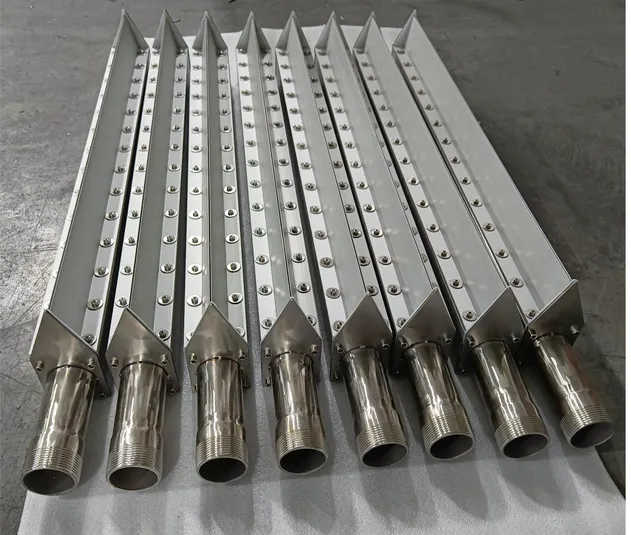

Aluminium Alloy + 304 SS

📝

Notes on Customisation

Please provide the following data for custom orders:

Usage Scenario	Drying (bottles, chips, vegetables), cooling, or debris removal.	Material Choice	304 SS, Aluminum, or Hybrid Construction.
Air Outlet Size	Standard 1mm (Range: 1mm - 8mm).	Air Intake Size	51mm, 63mm, 76mm, 89mm, etc.
Knife Length	From 10cm to 350cm (Fully customizable).	Intake Position	S (Side) or T (Top).

🤝

Customer Visits & Communication

🏆

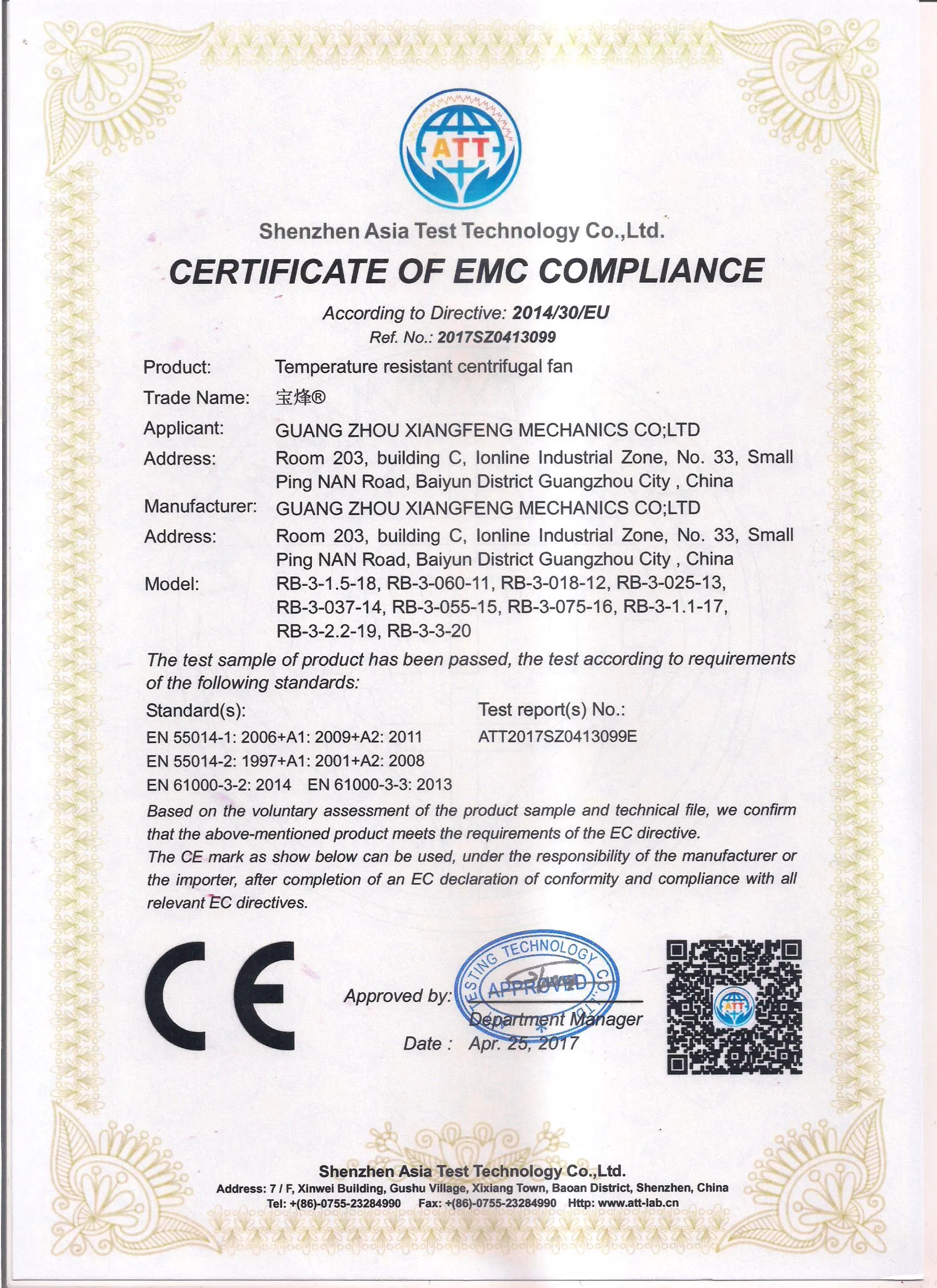

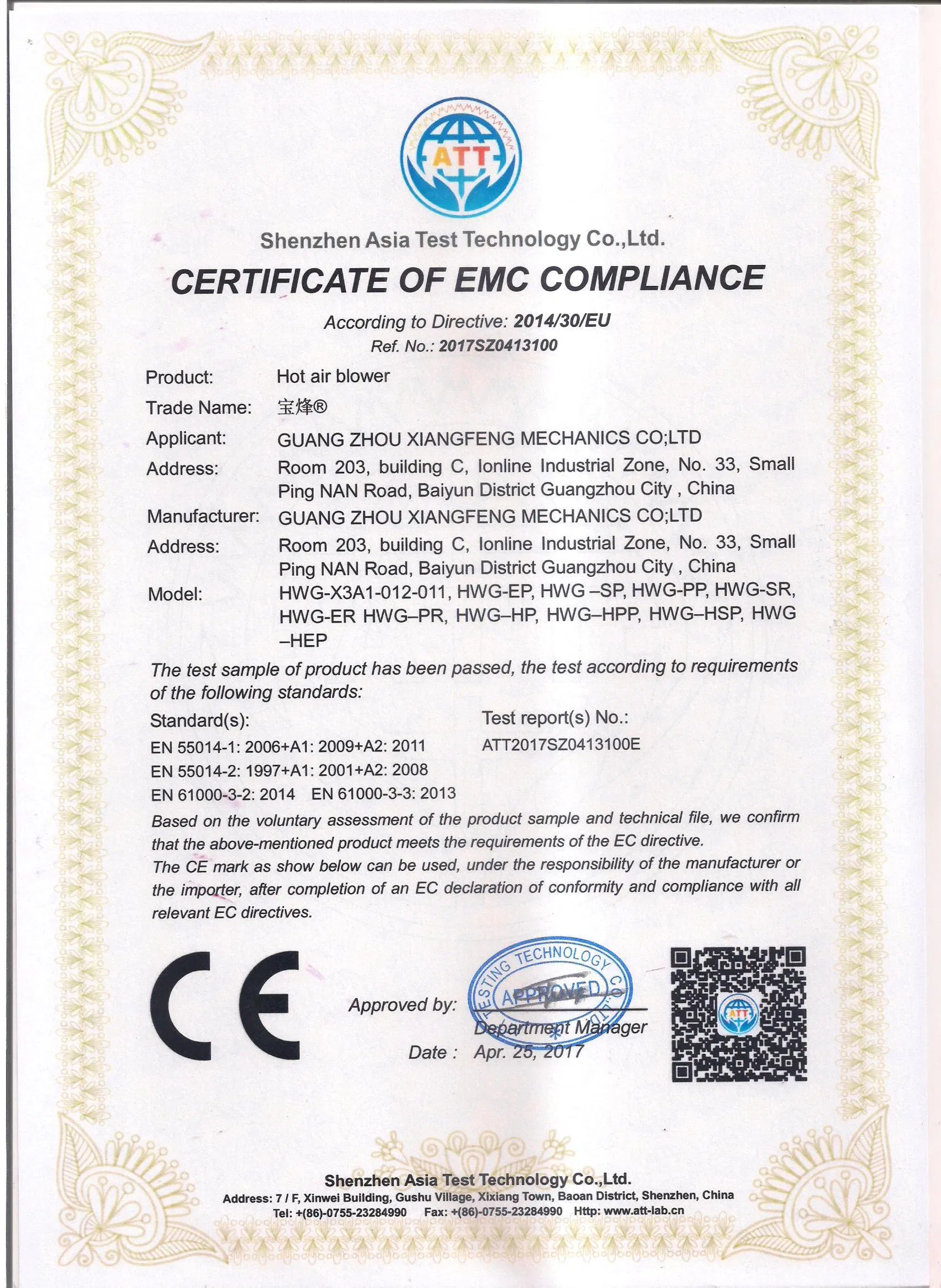

Company Environment & Key Certificates

❓

Frequently Asked Questions

What materials are available for the air knives?

We provide air knives made of 304 stainless steel, 316L stainless steel, and high-strength aluminum alloy (6061).

What is the maximum temperature these air knives can withstand?

Our stainless steel air knives are designed to operate in high-temperature environments up to 250 ℃.

How does the Coanda effect benefit the air knife performance?

The Coanda effect allows the compressed air to pull in surrounding ambient air, amplifying the total air volume by 20 to 40 times, creating a powerful and efficient air curtain.

Can I customize the length of the air knife?

Yes, we can customize air knives to any specific length between 10cm and 350cm based on your machinery requirements.

What is the standard lead time for a single unit?

For standard orders of 1 piece, the lead time is typically around 8 days. Larger orders are subject to negotiation.

What are the primary applications for this equipment?

Common applications include beverage bottle drying, PCB cleaning, automotive parts cooling, food packaging de-watering, and industrial dust removal.
