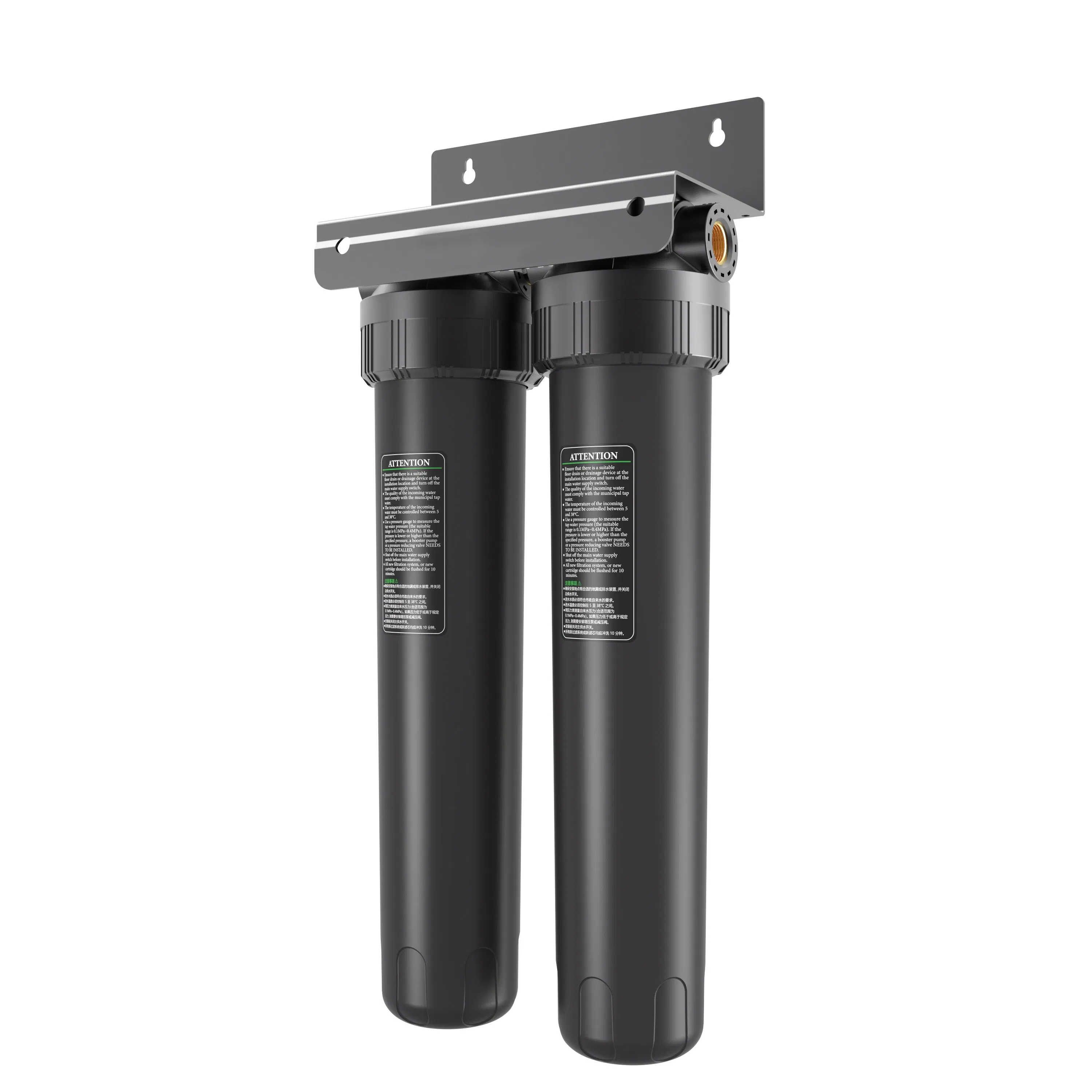

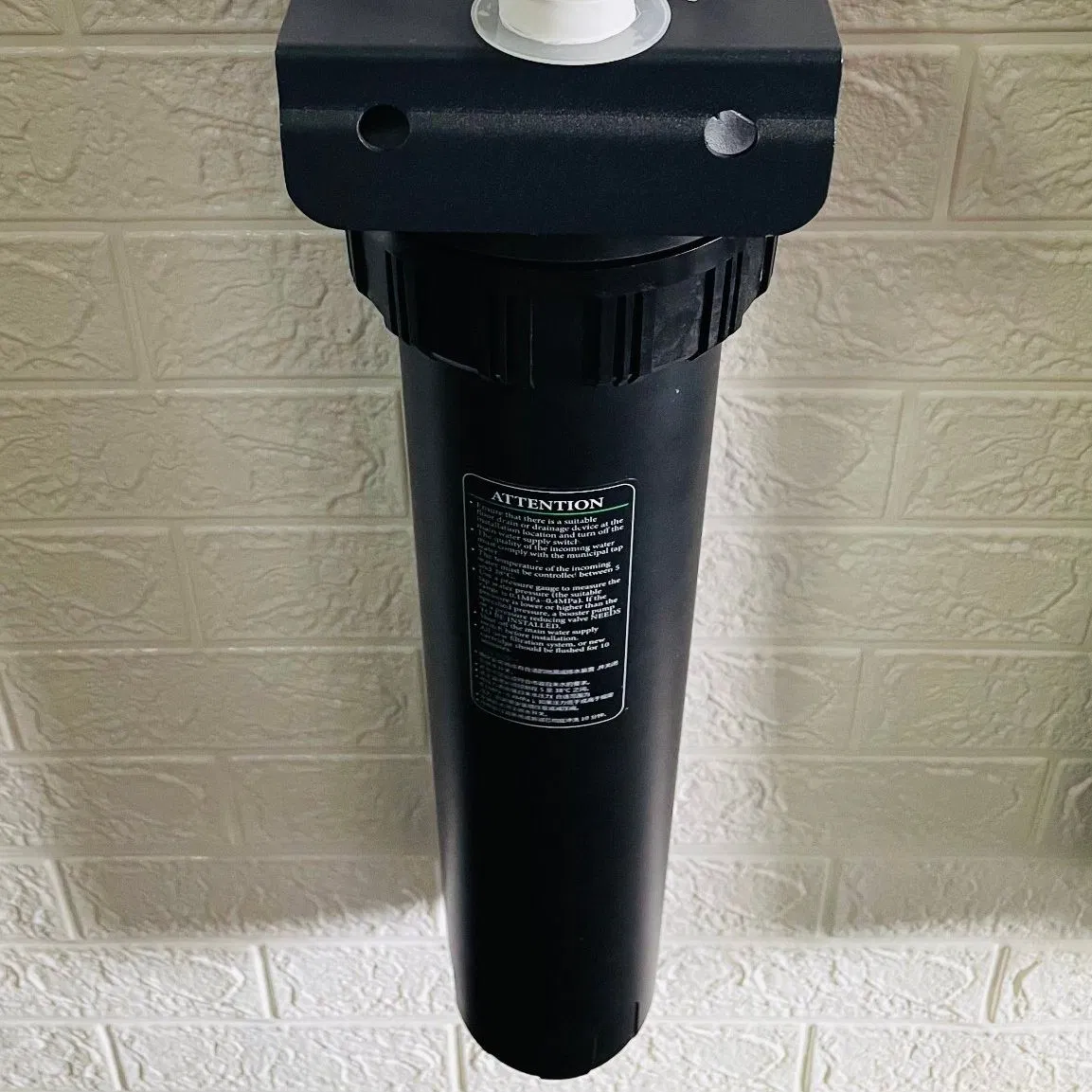

Bulk 100tons Capacity 20" Big Black Water Prefilter System

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications
Model: NR-H06-07
Application: Residential Water Purification
Water Temp: Cold, Warm & Hot
Flow Rate: 30-40 LPM
Dimension: 13.5x15x61 cm
Connect Size: 3/4 Inch
Filter Fineness: 5um
Installation: Easy One Step
Water Prefilter System
Model Introduction: NR-H06-P

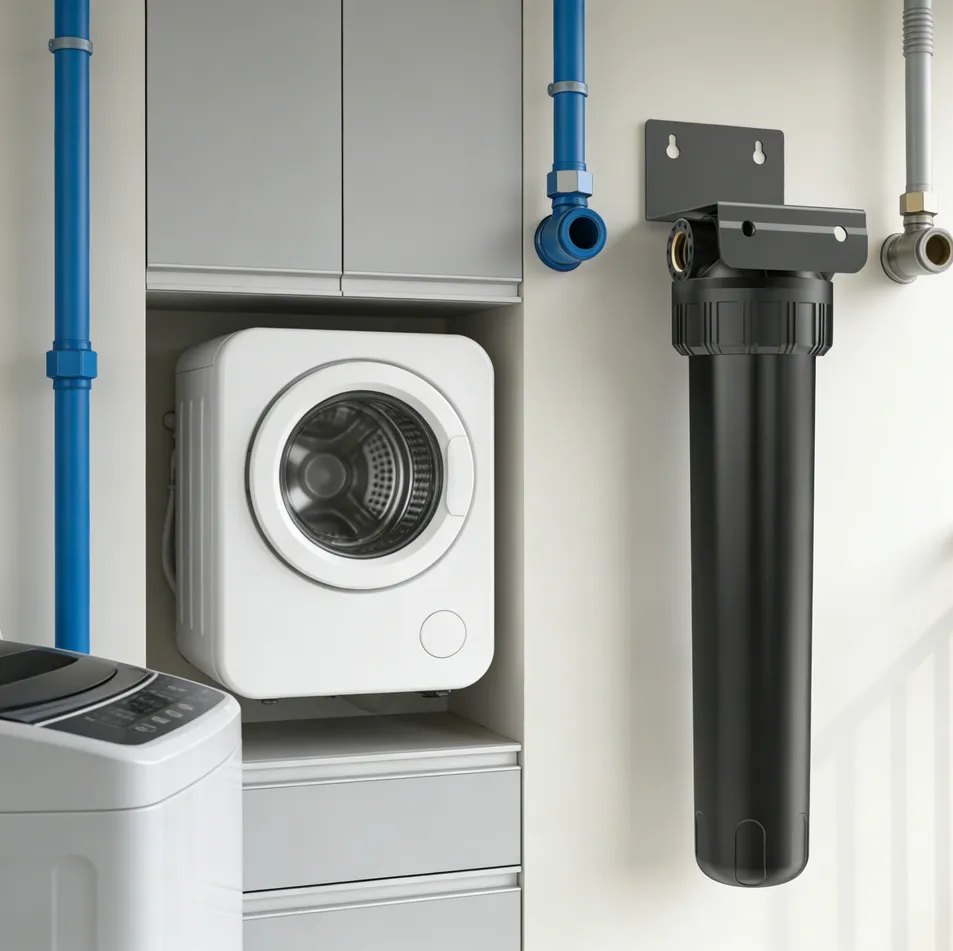

NR-H06-P Filter

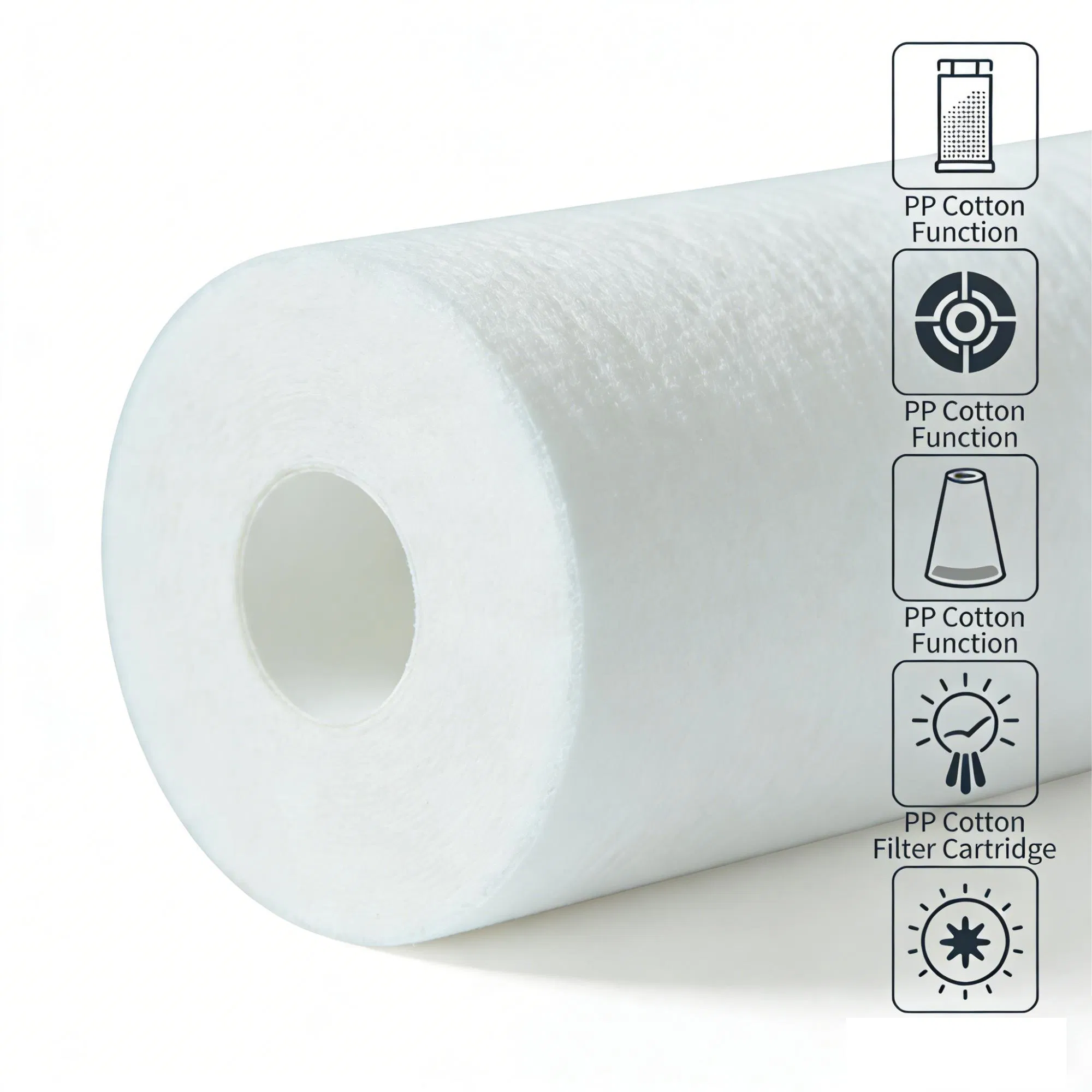

5 um V0 PP Sediment Filter
Removes suspended solids, rust, and colloids.
High filtration accuracy for household sludge and micro-protozoa.
ACF adsorption eliminates carbon powder leakage.
Enhanced filtration efficiency for safe drinking water.
Maintenance Tips:
1. Replace filter element every 3-6 months based on usage.
2. Flush newly installed filters for 5-10 minutes before use.
Technical Parameters
Item Parameters
Model No.NR-H06-PP
Applicable WaterMunicipal Tap Water
Pressure Range0.1MPa ~ 0.4MPa
Filter Fineness5um
Model Size13.5x15x61 cm
Flow Rate30-40 LPM
Inlet/Outlet3/4''
Product Features

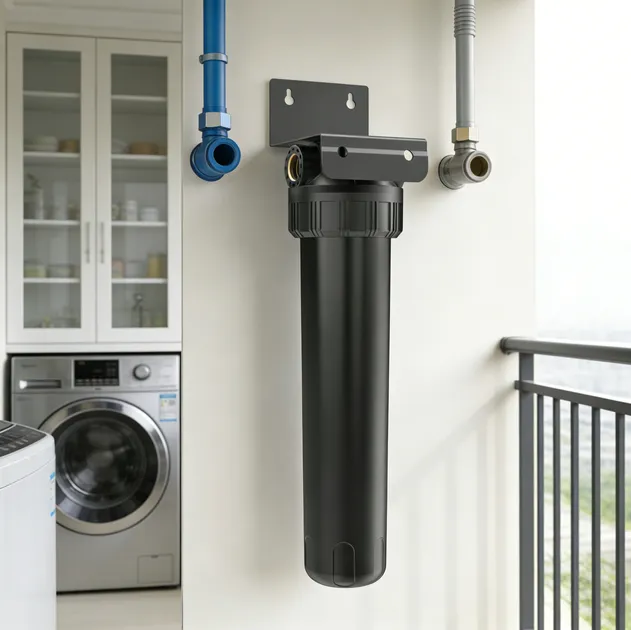

Feature 1

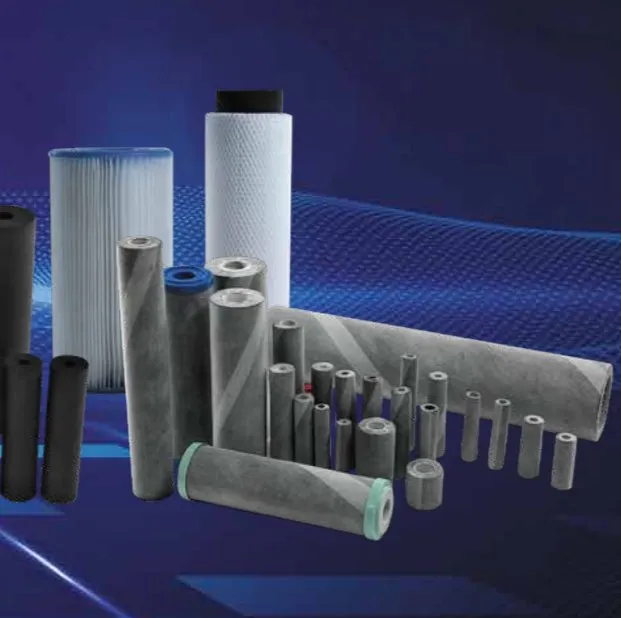

Feature 2
Feature 3
Applications & Limitations
Suitable for 4-5 people, 2 kitchens/toilets. Working temperature: 5-38°C.
Materials & Safety
20" PP inner filter. Removes sludge, micro-protozoa, and solid impurities.
Filter Options

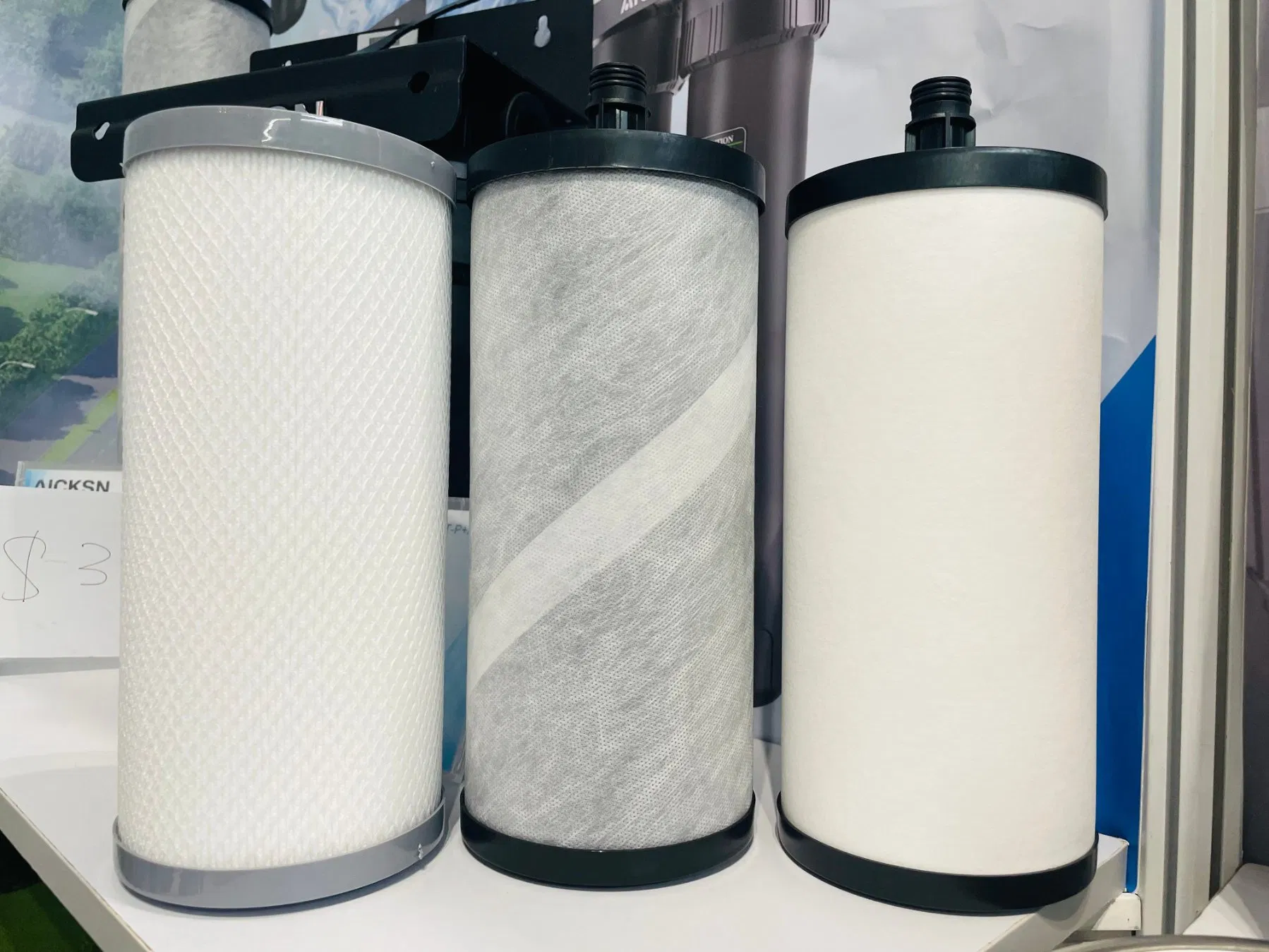

Available Cartridges: PP / ACF / UF / RO / CB / ATS / PAT / PAC.
Installation Guide

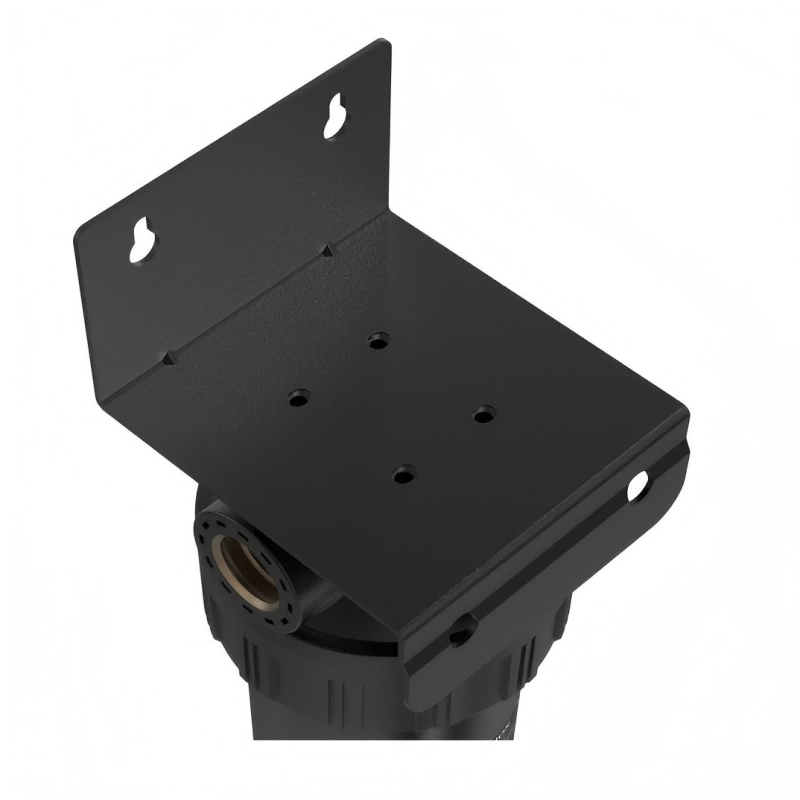

01 Mark the mounting bracket position on the wall using a level.
02 Drill pilot holes and secure the bracket with screws.
03 Turn off water mains and connect 3/4" NPT fittings.
04 Use sealing tape for all connections; avoid reuse of old tape.

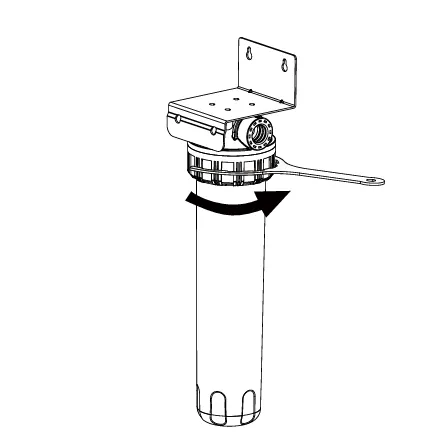

05 Install filter element with lubricant/o-ring and tighten housing.
06 Turn on water and check for leaks.

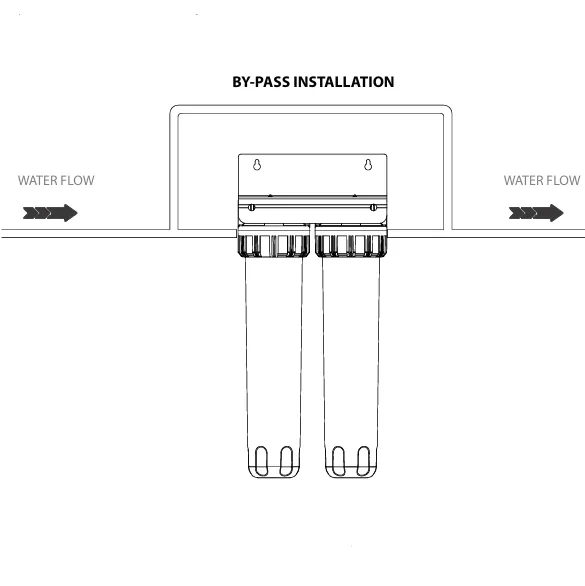

Installation Diagram
Professional Supply Chain
Global Supply
Warehouse 1
Warehouse 2
Warehouse 3
We specialize in light industrial products with a stable network of multi-category suppliers. Leveraging superior product quality and competitive pricing, we provide efficient cooperation channels for global business partners.
Packaging & Shipping
Packaging
Packing Information:
- Standard Paper Cartons & Pallets.
- Customization Package available upon request.
Shipping Information:
- Samples: Air Express (UPS/FEDEX/DHL/SF).
- Bulk Orders: Customized shipping solutions.
Frequently Asked Questions
Q1: How often should I replace the PP filter cartridge?
A1: It is recommended to replace the filter element every 3 to 6 months, depending on your local water quality and consumption volume.
Q2: Can this system be used with well water?
A2: This system is primarily designed for Municipal Tap Water. If using well water, please ensure there is a coarse pre-filtration system installed before this unit.
Q3: What impurities does the 5-micron filter remove?
A3: It effectively captures suspended substances, sludge, micro-protozoa, rust, and solid impurities like colloids.
Q4: Does this filter reduce water pressure significantly?
A4: No, it is designed for a high flow rate of 30-40 LPM, which is sufficient for household needs with minimal impact on water pressure.
Q5: Is the installation bracket included in the package?
A5: Yes, the standard package includes the mounting bracket and necessary screws for a stable wall-mount installation.
Q6: Are there other filter options for the same housing?
A6: Yes, the 20" housing is compatible with various filter types including ACF, UF, RO, and Carbon Block (CB) cartridges.
